KND Siemens FANUC cnc vertical milling machine VMC650 mini cnc milling machine
- Category: >>>
- Supplier: Shandong Gsk Cnc Equipment Co. Ltd.
Share on (60770407959):
Product Overview
Description
KND Siemens FANUC cnc vertical milling machine VMC650 mini cnc milling machine
Products Description
Details Images
Product Paramenters
Features:
Standard accessories :
KND control system
Lubricating system
Full guard
Manual chip conveyor
KND control system
Lubricating system
Full guard
Manual chip conveyor
Product main technical specifications:
specifications | unit | VMC855 |

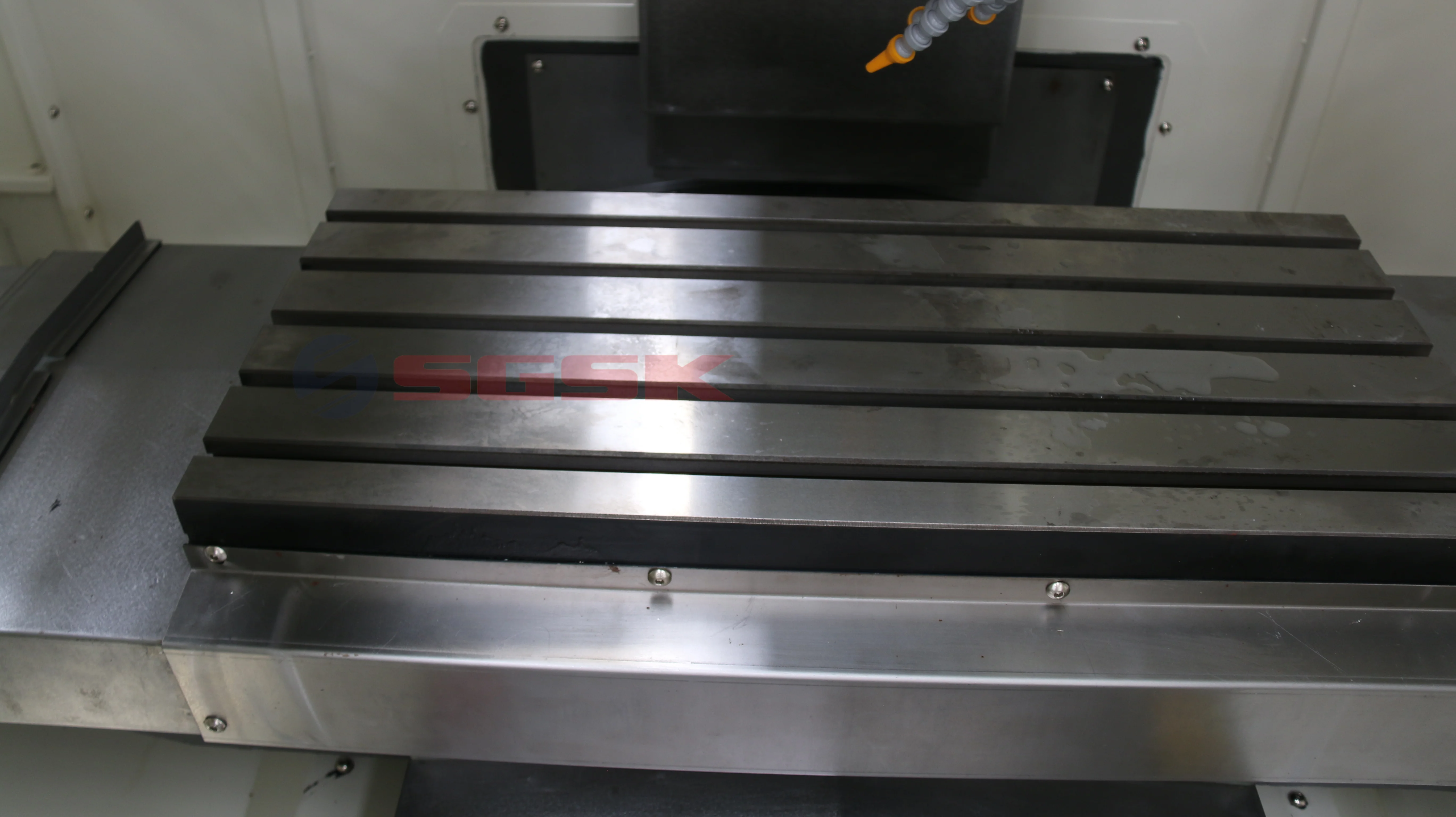

Table size | mm | 1000x550 |
Max.table load | mm | 500 |
X axis travel | mm | 850 |
Y axis travel | mm | 550 |
Z axis travel | mm | 550 |
Distance between spindle center and column surface | mm | 571 |
Distance between spindle nose and table surface | mm | 100-650 |
T slot | 3-18*90 | |
Spindle taper | mm | BT40 |
Max. spindle speed | r/min | 8000(10000 optional) |
Main motor power | kw | 7.5 |
X/Y/Z axis servo motor torque | N.M | 15/15/23 |
X/Y/Z motor connection | direct | |
X/Y/Z guide rail form | 3 axis linear guide rail | |

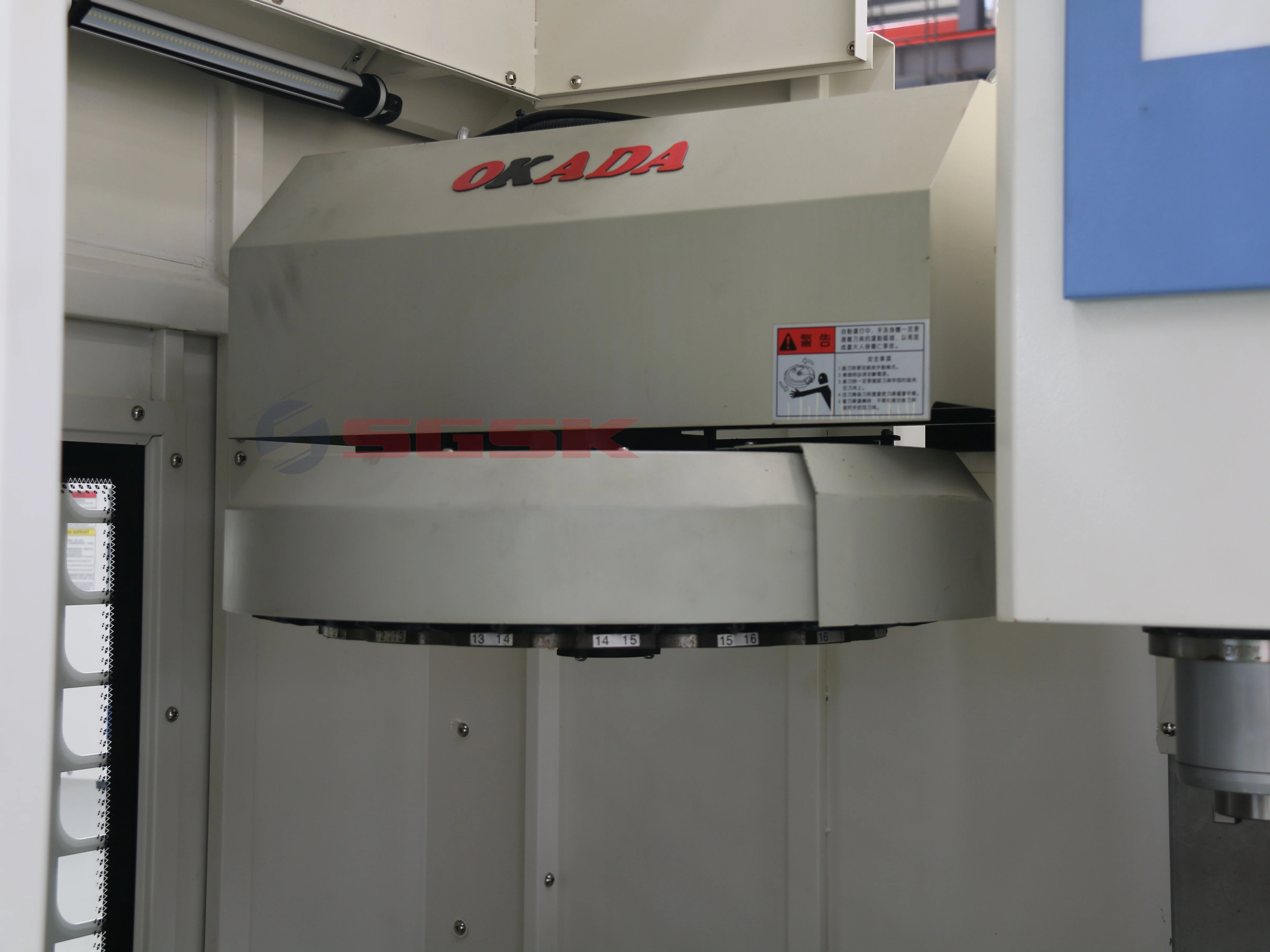

Automatic tools changer | 24 arm type | |
X/Y/Z axis rapid traverse | M/min | 32/32/32 |
Cutting feed speed | M/min | 10 |
Position accuracy | mm | ±0.005 |
Repeat positioning accuracy | mm | ±0.003 |
Machine dimension | mm | 2600x2000x2200 |
Machine weight | kg | 4800 |
Recommend Products
Company Profile
FAQ
1. What is your minimum order quantity and warranty?
A: MOQ is one set, and warranty is one year.
2.What CNC system do you use?
A: FANUC, SIEMENS, MISTSUBISHI, LNC,SYNETC,GSK,etc. It depends on your choice.
3.When is the delivery time?
A: Conventional Machines,We will delivery then within 30-45 working days after received your deposit,if some special machines will
be some longer.we will give you the answer accordingly.
4. What is the package of the machines?
A: The machines standard packed by iron pallets with plastic films.
5.How can I choose the most suitable machines ?
A: Please let us know your machining demand or machine size ,we can choose the best model for you , or you can choose the exact
model by yourself. You can also send us the products drawing ,we will choose the most suitable machines for you .
6. What is your trade terms?
A : FOB, CFR,CIF or others terms are all acceptable.
8. What is the payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
A: MOQ is one set, and warranty is one year.
2.What CNC system do you use?
A: FANUC, SIEMENS, MISTSUBISHI, LNC,SYNETC,GSK,etc. It depends on your choice.
3.When is the delivery time?
A: Conventional Machines,We will delivery then within 30-45 working days after received your deposit,if some special machines will
be some longer.we will give you the answer accordingly.
4. What is the package of the machines?
A: The machines standard packed by iron pallets with plastic films.
5.How can I choose the most suitable machines ?
A: Please let us know your machining demand or machine size ,we can choose the best model for you , or you can choose the exact
model by yourself. You can also send us the products drawing ,we will choose the most suitable machines for you .
6. What is your trade terms?
A : FOB, CFR,CIF or others terms are all acceptable.
8. What is the payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
