China electric motor diesel concrete cement mixer with pump JBS40 price
Product Description
1.Product Description: Mobile Concrete Mixer With Pump
Item | JBT30 | JBT40 | DJBT30 | DJBT40 |
Theoretical output (m3/h) | 30 | 40 | 30 | 40 |
Max. concrete pumping pressure (MPa) | 10 | 10 | 10 | 10 |
Power type | Motor | Motor | Motor | Motor |
Electric motor (kw) | 37 | 45 | 62 | 82 |
Main oil pump | Jinda | Kawasaki | Jinda | Kawasaki |
Main oil pump capacity (ml/min) | 71 | 112 | 71 | 112 |
Concrete cylinder diameter x stroke (mm) | Φ140 x 845 | Φ180 x 1000 | Φ140 x 845 | Φ180 x 1000 |
Main oil cylinder diameter x stroke (mm) | Φ80 x 845 | Φ100 x 1000 | Φ80 x 845 | Φ100 x 1000 |
Theoretical delivery distance (m) | 120/350 | 160/500 | 120/350 | 160/500 |
Hopper capacity (L) | 550 | 550 | 550 | 550 |
Max. aggregate diameter (mm) | 20/30 | 30/40 | 20/30 | 30/40 |
Inside diameter of delivery pipe (mm) | Φ100 | Φ150 | Φ100 | Φ150 |
Loading capacity of the mixer (L) | 560 | 720 | 560 | 720 |
Dimension: length x width x height(m) | 4.5 x 2.2 x 2.8 | 4.8 x 2.2 x 2.8 | 4.8 x 2.2 x 2.8 | 6 x 2.2 x 2.8 |
Total weight(kg) | 5000 | 5500 | 5500 | 6000 |

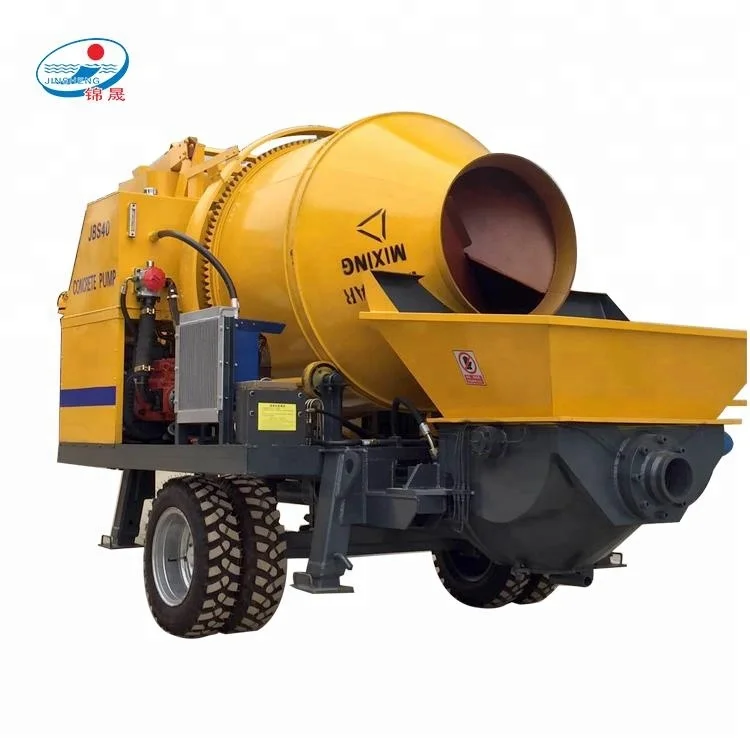

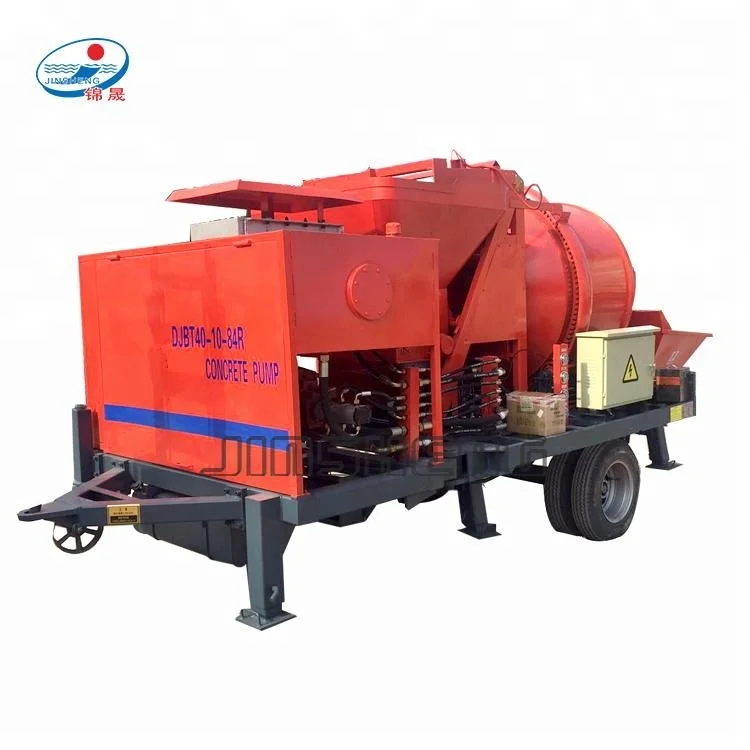

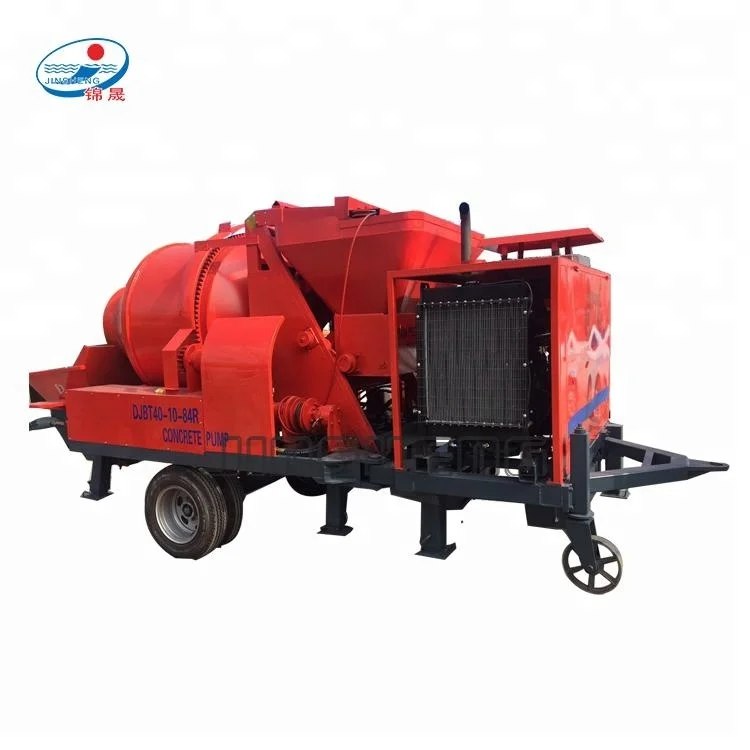

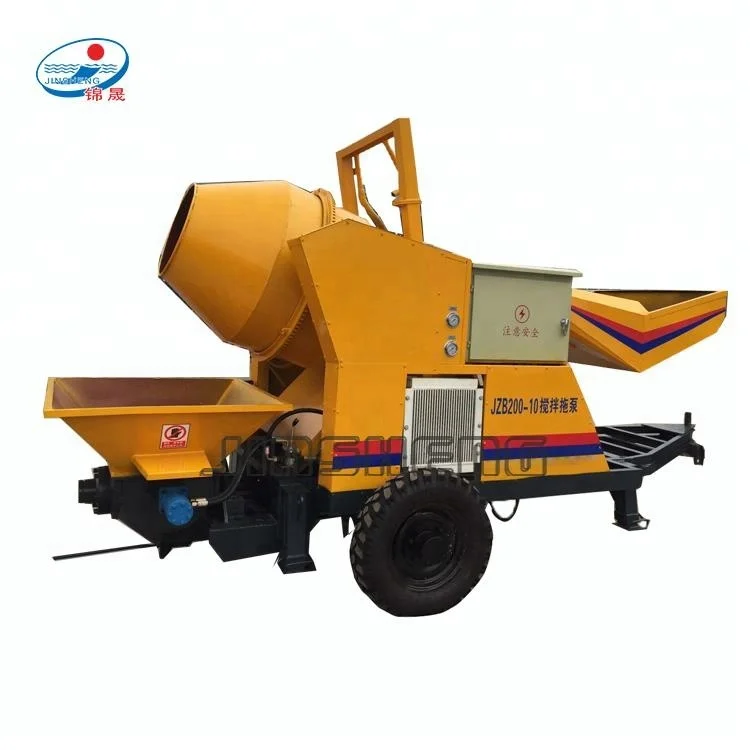

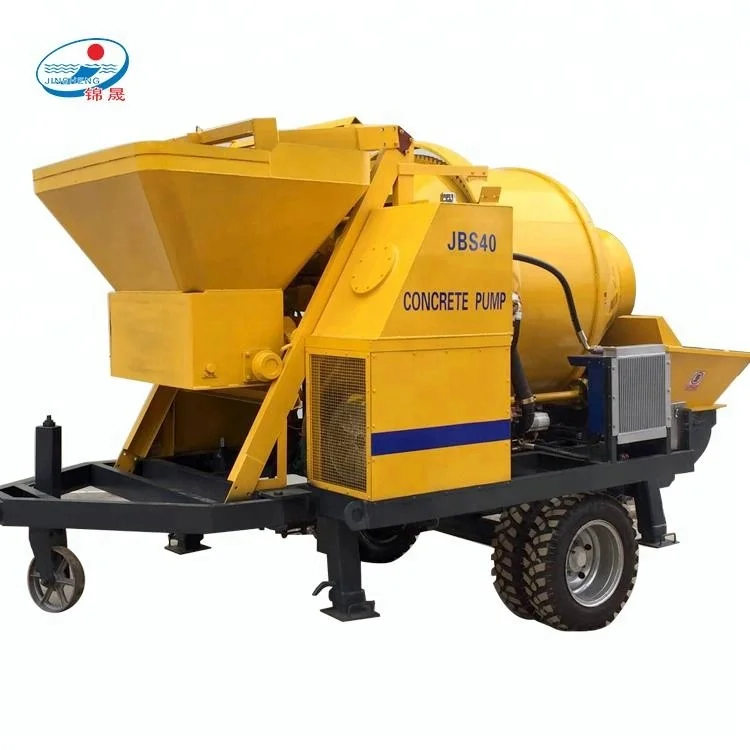

2. Photos Show: Mobile Concrete Mixer With Pump
Detailed Images
1. Detailed Images: Mobile Concrete Mixer With Pump
2. Main Features: Mobile Concrete Mixer With Pump
Adopt open hydraulic system, which is with stable and reliable performance, low failure rate.
Integration control for mixing and pumping, wireless remote control, which makes operation convenient.
Electric parts. Main electric elements are from Schneider or ABB, highly improved the reliability.
Adopt wear-resistant alloy materials for the concrete mixer, prolong the service life.
Hydraulic rubber hose joints. Adopt American Eaton, insures the safety and no leakage of hydraulic system.
Company Information
Company Information
JINSHENG Machinery Co., Ltd is a professional company in design and research, manufacturing, sales and service on concrete equipment,such as concrete mixers,concrete batching plant,concrete truck mixers, concrete pump, etc.
In the manufacturing process, we adopt integrated quality control and have passed ISO9001 international authentication. We adopt world-famous brand for the key electronic elements, pneumatic and hydraulic system to ensure high quality and reliable of the concrete equipment. |
Packaging & Shipping
Packing&Shipping
| Packing | 1,Standard export packaging by container, which should be applicable to international requirement. 2,Big size equipment will be fixed by steel wire, while small ones together with spare parts will be packed into wooden boxes. |
| Shipping | Usually by sea, sometimes by land, air |
| Delivery Time | Within 15-20 working days after receiving payments |
| Payment Item | 30% of total price should be paid by T/T as down payment; 70% balance payment should be paid by T/T before delivery. We also support L/C, Western Union. |
Our Services
Our Service
| Pre-Sales Service | On-Sales Service | After-Sales Service |
24h online; Get your demands clearly; Feasibility analysis; Confirm the proposal drawing and specifications; Project approachment. | Provide products quotation, sign sales-contract; Offer the foundation drawing; Complete the equipment in time and in good quality; Arrange for the delivery. | Install and debug equipment according to sales-contract; Supply operator and serviceman training; Track the use situation of the equipment regularly; train the engineer about technology, service, etiquette. |
FAQ
FAQ: Mobile Concrete Mixer With Pump
Q1. What kind of concrete mixer is you need? How can I choose them?
Q2. How to choose concrete batching plant?
Q3. How big and how many cement silo is what you need?
