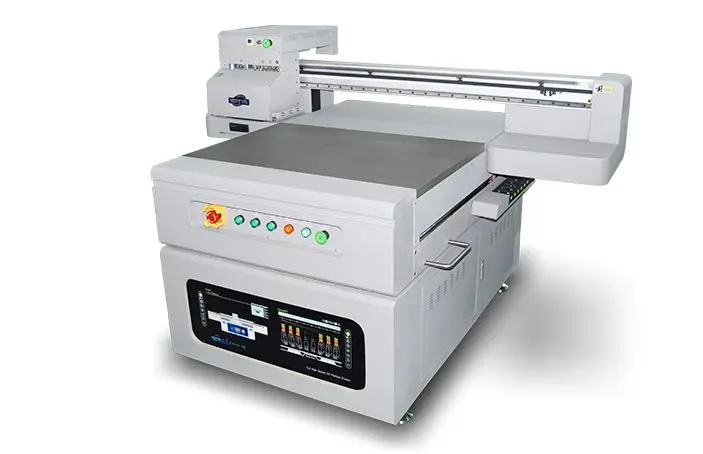

Mass production candle printing machine 3D UV printer

Product Overview

Description

Mass production candle printing machine 3D UV printer





Application material:

Printed materials could be: glass, ceramic, ceiling, aluminum sheet, wood board, door sheet, metal panel, billboard, acrylic panel, plexiglass, paper board, foam board, PVC expansion board, corrugated cardboard; flexible materials such as PVC, canvas, cloth, carpet, sticky note, reflective film, leather etc.



Application Areas:

Decoration industry, glass industry, sign industry, exhibition industry, rigid paperboard packing industry, leather, textile printing industry, artware industry, furniture industry etc.

Our machine can print material includes rigid sheets, such as glass, metal, acrylic, PVC board, MDF, and the flexible material, like film, leather, canvas, wall paper, ceiling paper etc.

We provide the printer with excellent performance & competitive price&timely service.

You will enjoy our one-stop service.



UV ink advantage:

Its instant dry feature that leaves the graphic completely cured. It is not easy to clog the print head

UV ink boasts fewer emissions than solvent inks which is more environmental friendly.

It's anti-UV, waterproof ,widely used indoor and outdoor.



UV Ink Features

Ink Type: It's UV curing ink, environment-friendly ink.

Characteristics: water-proof, anti-uv, heat-resistance.

Printing samples life: 3 years outdoor, and 10 years indoor.

Can print on both flexible material and rigid material



Machine Highlights:



High Speed Plus Higher Resolution:
Ricoh Gen4 print head with 384 unit 7PL nozzle is used to support you with high speed printing and higher resolution(Max resolution can be up to 300dpi*2400dpi)



Double circulation for white color

One small circulation is the circulation within the ink bottle. when the head cartridge stop, the circulation starts. The pump starts to stir the ink bottle.

One big circulation is the circulation from the ink sub tank to the ink bottle

Beside this , there will be automatic frequency flush on the print head set by the software.

In this way, the white clot on the print head can be get rid of.



Solid Mechanical machine structures
The X axial guide rail is imported from foreign country . which is more stable than the belt transmission to prevent of the belt will get loose after half years usage. The Y axial we use double screw pole for transmission.



Material Automatic height testing function

The machine can test the material height automatically.



Print head protection system

Print head anti-crash system can protect the print head by stopping the head cartridge in case of print head crash.



Specification:

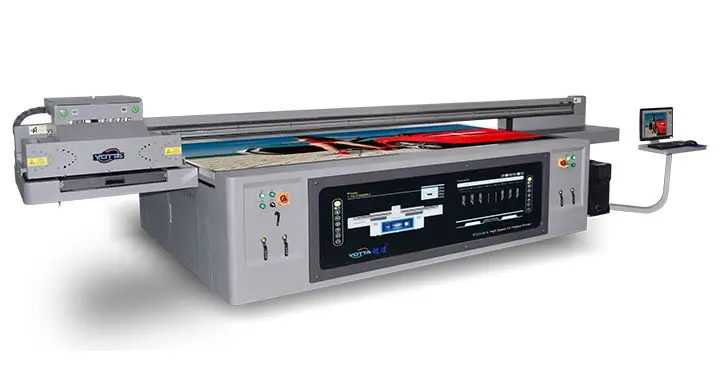

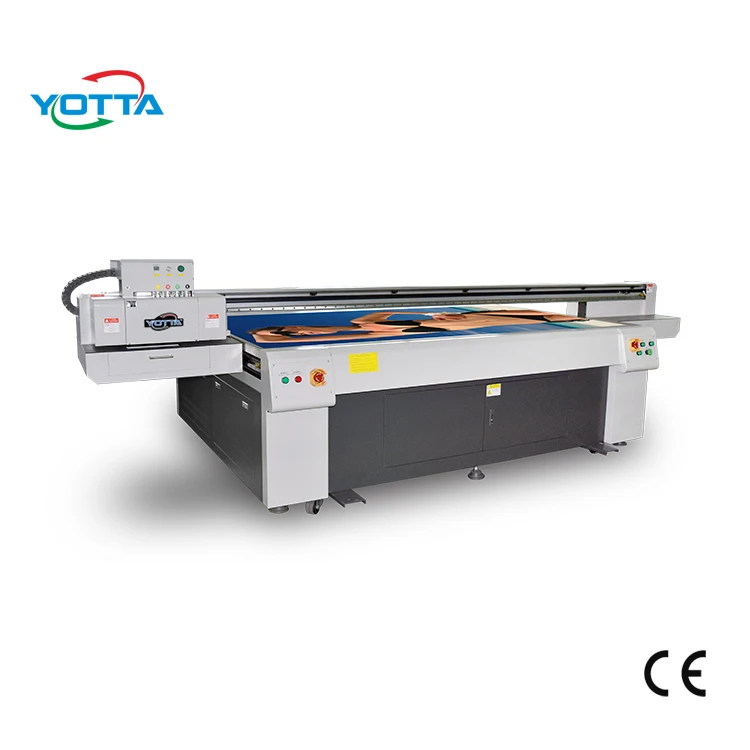

Printer mode	YD-F2513R4	YD-F2513R4-35(Heighening)
Print size	2500*1300
Print height	90mm	350mm
Print head quantity	2
Print color	C,M,Y,K+W/CMYK*2
Print resolution	2pass,4pass,8pass,16pass,32pass
Print speed	CMYK+W	CMYK*2
	2 pass,30m2/h	2 pass,58m2/h
	4 pass,18m2/h	4 pass,34m2/h
	8pass,11.5m2/h	2 pass,21m2/h
	16pass,6.5m2/h	16pass,11m2/h
Ink type	Special high quality UV inks
Opeartion system	Windows 98,Me,XP,2000,7
RIP Software	Photoprint
Color management	International standard ICC
UV curing systems	9020 compressor type water-cooling UV LED lamp
Interface mode	High speed USB
Power requirement	AC220v/3500W;50/60HZ
Working environment	The optimum temperature:20℃-28℃,Relative humidity: 40%-60%
Printer size	3500mm(W)*2100mm(L)*1200mm(H)
Printer weight	850KG	950KG



Advantages

1. Professional
Yueda company started to specialize in the best quality uv flatbed printer since 2008, Over 6 years in this industry, We have collected rich experience. We are the leader of this industry, So we can always offer constant reliable support for you..

2. Cost performance
What price, what goods. A reliable and high quality printer is what our pursuit, we will provide the best quality printers for you. The Top quality machine is derived from high-quality parts, perfect machine structure design, and also our professional before-sales and after-sales support.

3. High reputation
We are the Golden supplier of Alibaba.com for 5 years. Our brand has always been getting high praise from all our clients, and our products are welcome worldwide, we have many distributors and sales agents around the world. We are looking forward to build a win-win situation with you.

4. Customer Service
1.One year trouble-free warranty;
2.Lifetime online tech support;
3.Install machine in your factory;
4.Training your staffs how to operate the machine
5.Printing consumables and spare parts are available.

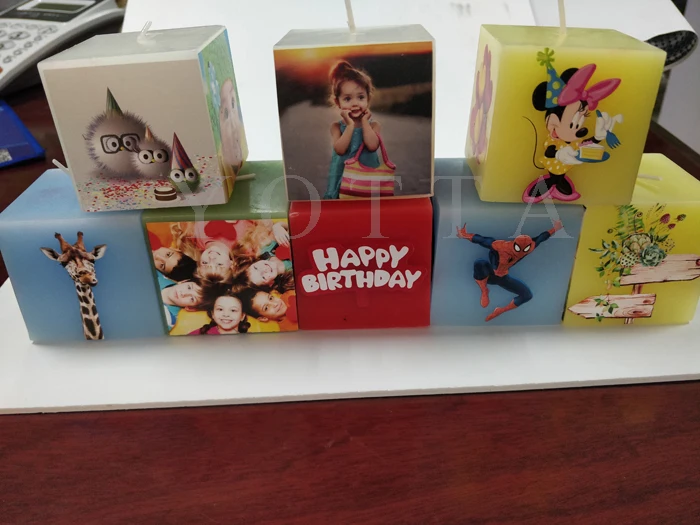

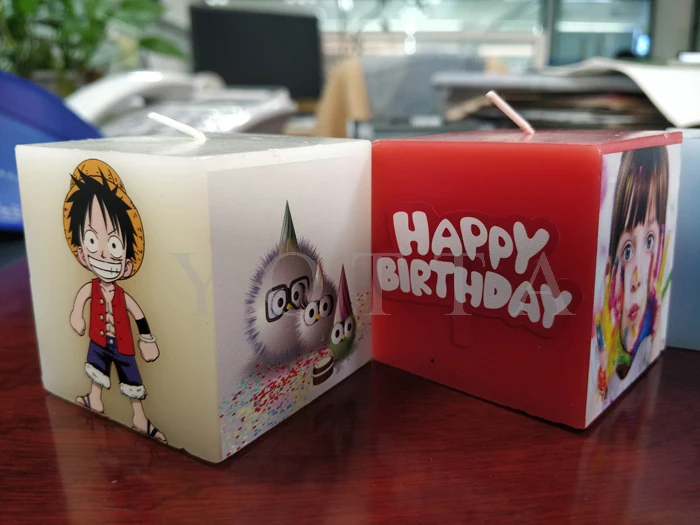

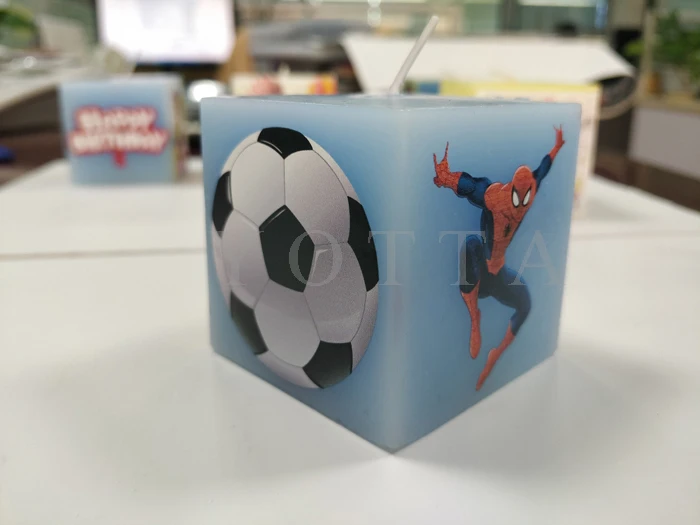

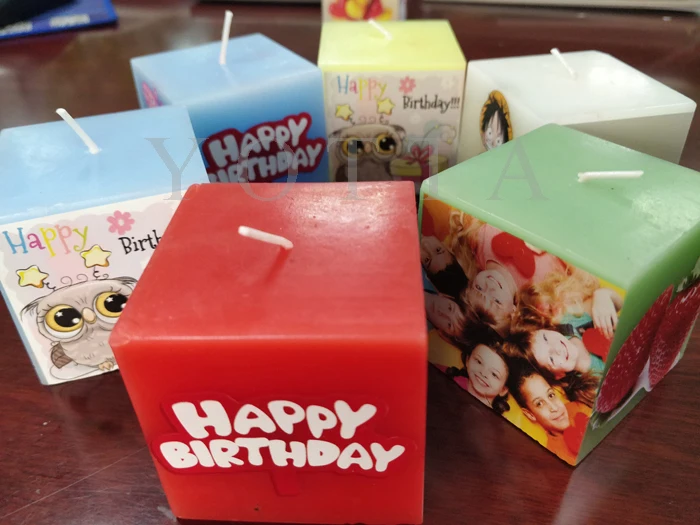

Sample show
