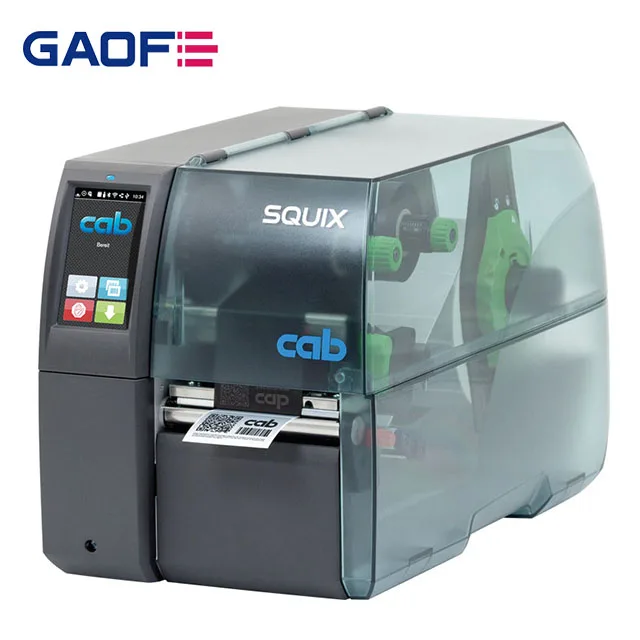

The SQUIX 4 M label printers are the further development of A4+M. The professional SQUIX label printers fit with a wide range of industrial applications. They have been developed with focus on easy and convenient operation and high reliability.


The print mechanics and the chassis are made of high-quality materials and perfectly match in terms of shape and function. A large number of peripherals and software enable customer-specific solutions.


Whether they are operated in stand-alone mode, in a PC application or within a network - the rugged SQUIX printers are always up to the mark. The high-speed processor ensures fast job processing and immediately provides the required label.




Label printers SQUIX M series

























Basic version

















Peel-off version P



The accurate and versatile one


for printing on all materials that are wound on rolls or reels or fanfold - especially very small labels or slim continuous materials such as pressed shrink tubes.


As regards the label width, no adjustment of the plungers is needed.


Width-adapted print rollers are provided for slim materials.































1.4 Label printerSQUIX 4.3 MSQUIX 4 M
Printable resolution dpi203300300600
Print speed up to mm/s250250300150
Print width up to mm104108.4105.7105.7





See also:











59.pngSQUIX 4 MT
especially für continuous textile materials		60.pngSQUIX 2, SQUIX 4, SQUIX 6
Flexible label printers for industrial applications in several widths




 Functions

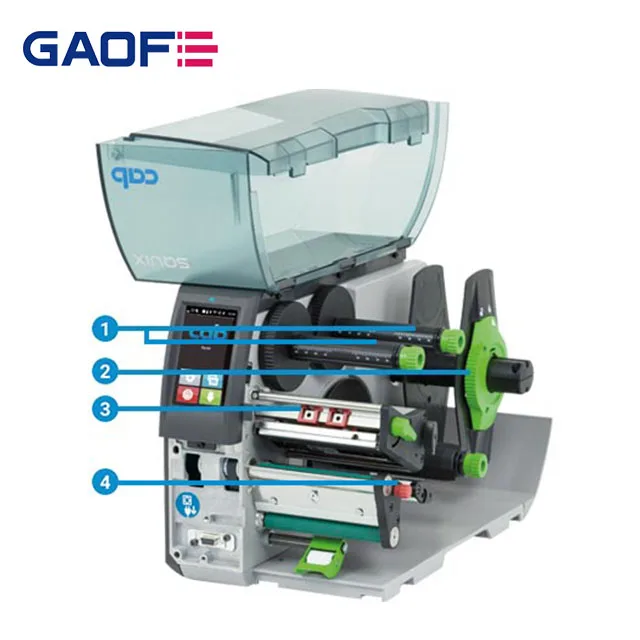

Differences compared to a left-aligned material guide:


1 Ribbon holder
Easy insertion of the ribbons is enabled with the three-part tightening axles. A preprinted ruler simplifies the adjustment.


2 Roll holder
When setting the margin stop, the material roll is automatically centered. If rolls with 100 mm core diameter are processed, an adapter is recommended.


3 Plungers
Both plungers are fixed for all material widths. No print head settings or adjustments are necessary.


4 Material guide
The material guide just in front of the print roller provides accurate imprint. The material width is adjusted with a spindle.



















Technical data





& Typical  ~  Possible   # Standard     * Option




















































































































































































































































































































 1.4
Label printerSQUIX 4.3 MSQUIX 4 M
Material feedcentered
Printing method: Thermal transfer&&&&
Printing method: Thermal direct&&~-
Printable resolution dpi203300300600
Print speed up to mm/s250250300150
Print width up to mm104108.4105.7105.7
Print start: Distance to locating edgecentered
Material
Roll, fanfold, reel: Paper, cardboard, PET, PE, PP, PI, PVC, acrylate, Tyvec&
Roll, fanfold, reel: Smart Labels&
Roll, fanfold, reel: Ready-for-use shrink tubes&
Roll, fanfold, reel: Pressed continuous shrink tubes&
Roll, fanfold, reel: Textile tapes~
Labels1) Width mm4 - 110
Labels     Height without label backfeed2) from mm3
Labels     Height with label backfeed2) from mm4
Labels     Height with label backfeed when dispensing from mm6
Labels Maximum height mm2,000
Labels     Thickness mm0.03 - 0.60
Carrier material Width mm9  - 114
Carrier material Thickness mm0.03 - 0.16
Continuous material Width mm9  - 114
Continuous material Thickness mm0.05 - 0.50
Continuous material Weight (cardboard) up to g/m2300
Shrink tubes Width ready-for-use up to mm114
Shrink tubes Width continuous mm4 - 85
Shrink tubes Thickness up to mm1.1
Roll, reel: Outside diameter with core diameter up to mm205 / 38.1 - 76
180 / 100
Windingoutside or inside
Ribbon3)
Ink sideoutside or inside
Roll diameter up to mm80
Core diameter mm25.4
Variable length up to m450
Width mm25-114
Internal rewinder in peel-off version
Outside diameter up to mm142
Core diameter mm38.1 - 40
Windingoutside
Printer sizes and weights
Width x Height x Depth mm252 x 288 x 460
Weight kg10
Label sensor with position indication
Gap sensor forlabels, punch marks or print marks in transparent materials and end of material
Reflective sensor from below or top forprint marks in not transparent materials and end of material
Distance sensor from center to locating edge centered mm0-55
Height of material gap mm2
Electronics
Processor 32 bit clock rate800
Main storage (RAM)256
Data storage (IFFS) MB50
Slot for SD memory card (SDHC, SDXC) up to GB512
Battery for time and date, real-time clock#
Data storage when power is off (e.g. serial numbers)#
USB WLAN stick 2.4 GHz 802.11b/g/n# (included as an extra item in the scope of delivery)
Interfaces
RS232C 1,200 to 230,400 baud/8 bit#
USB 2.0 Hi-speed device to connect a PC#
Ethernet 10/100 BASE-TLPD, IPv4, RawIP printing, DHCP, HTTP, FTP, SMTP, SNMP, TIME, NTP, Zeroconf, SOAP web service, VNC
1 x USB host at the operation panel for
1 x USB host at the operation panel for		Service Key or USB memory stick
USB WLAN stick 2.4 GHz 802.11b/g/n
2 x USB host on the back side forService Key, USB memory stick, keyboard, barcode scanner, USB Bluetooth adapter, USB WLAN stick
WLAN 802.11b/g/n, hotspot or infrastructure mode GHz2.4 # / 5 *
Periphery connection USB host, 24 VDC#
Digital I/O with 8 inputs and outputs: Peel-off/basic device# / *
Operating data
Power supply100 - 240 VAC ~ 50/60 Hz, PFC
Power consumptionStandby <10 W / typical 150 W / maximum 300 W
Temperature / humidity: Operation+5 - 40°C / 10 - 85% not condensing
Temperature / humidity: Storage0 - 60°C / 20 - 85% not condensing
Temperature / humidity: Transport–25 - 60°C / 20 - 85% not condensing
ApprovalsCE, FCC class A, CB, CCC, cUL
