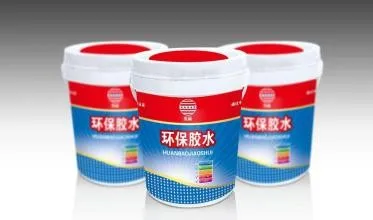

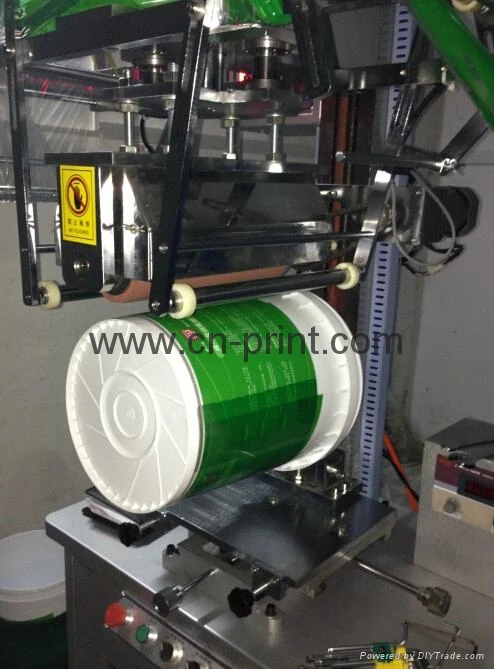

PVC shrink film High Density Heat Transfer Printing Machine TC 350R For Plastic Bucket Label

 PVC shrink film High Density Heat Transfer Printing Machine TC-350R For Plastic Bucket  Label

 PVC shrink film High Density Heat Transfer Printing Machine TC-350R For Plastic Bucket  Label

Features:
1.Computer controller, ensure reliable machine operation.
2. Using Omron temperature controller to ensure that heating temperature stability, and ensure stamping quality.
3. Toggle mechanism design, low consumption of compressed air, pressure strong.
4. Stamping pressure, temperature, hot pressing time is adjustable.
5. Table automatically before and after the move, easy to operate safely and quickly.
6.Table 6 can be front, left, rotate the adjustment.
7. Automatic document feeder, the collection of paper, and adjustable.
8. Installation of photocell (electric eye) with the contacts after the transfer paper on the track in place control.
9. Stamping head height adjustable lift, a larger work can be stamping.
10. with security guards to protect the operator's safety

PVC shrink film High Density Heat Transfer Printing Machine TC-350R For Plastic Bucket  Label

Product parameters:

1.Max stamping diameter: L 280* φ300mm

2.Heating power(can be customize): 2000W

3.hot head outer diameter 100mm /inner diameter of 30mm

4.Stamping temperature range of options: room temperature reach 280 degrees Celsius

5.Stamping time :0-99 seconds

6.Stamping pressure range of options: ≤250kgf -100kgf (7bar)

7.Stamping speed: 120pcs / hr

8.Power: 220 V/ 50Hz

9.Machine weight:500KG

10.Dimensions: 1400 × 1000 × 1900mm

 PVC shrink film High Density Heat Transfer Printing Machine TC-350R For Plastic Bucket  Label

https://www.youtube.com/watch?v=uNPqM_ZL2yg

//www.youtube.com/watch?v=qYeEZNZsLPY

https://www.youtube.com/watch?v=Bk-xiFLOnrU&index=126&list=UUp1UrWHnR1OMbTxxGodXsaw

 LUEN CHEONG PRINTING EQUIPMENT GROUP LTD was specializing in manufacturing LC brands . including luding :various pad printer, silk screen printer, hot foil stamping machine, UV Curing machines & cliche making machine for 26 years.

We passed ISO-9001-2000 certification in 2001 and we are a member of SGIA and all of our industrial printers had passed EURO'S CE standard.And we are the glod membership of alibaba and got a huge credit all the world .

There are customers from 98 countries to visit our factory and we had a good cooperation.

1 The guarantee time is 1 years, and maintain is lifelong. During this time, if any work piece dose not work well and which is not caused by worker and can not control naturally, the supplier provide it free of charge, but the carrier cost must be in buyer's side. And the machines have matched an urgent foot switch.

2 The supplier must make sure the machine all work well before package.

3 we will provide the working video after delivery the machines.

4 Welcome your engineers to come to our factory for training.

    Packaging Detail: PLYWOOD CASE
  Delivery Detail: within 5 days after payment
