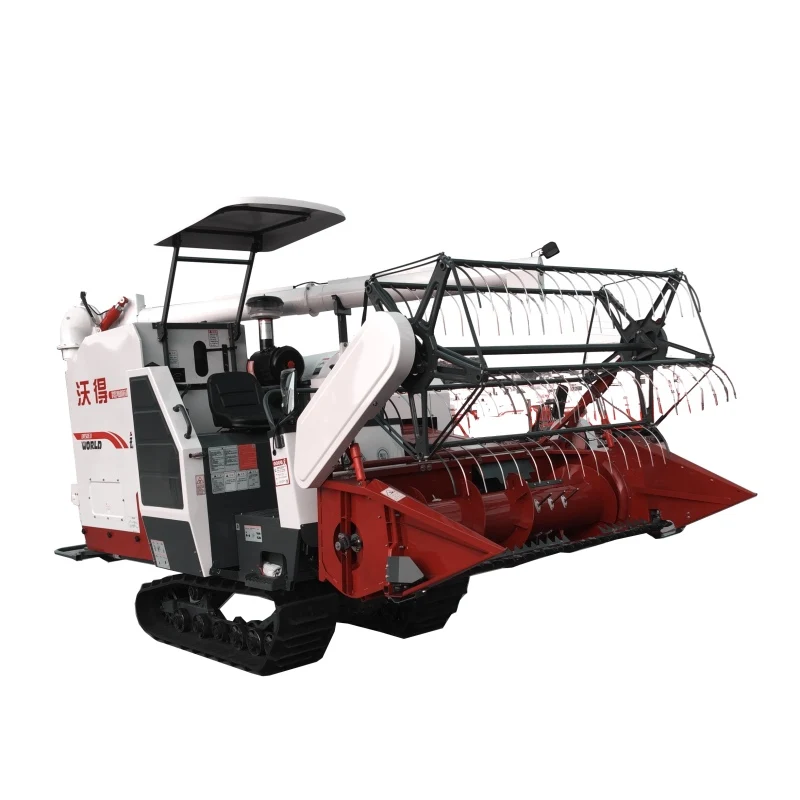

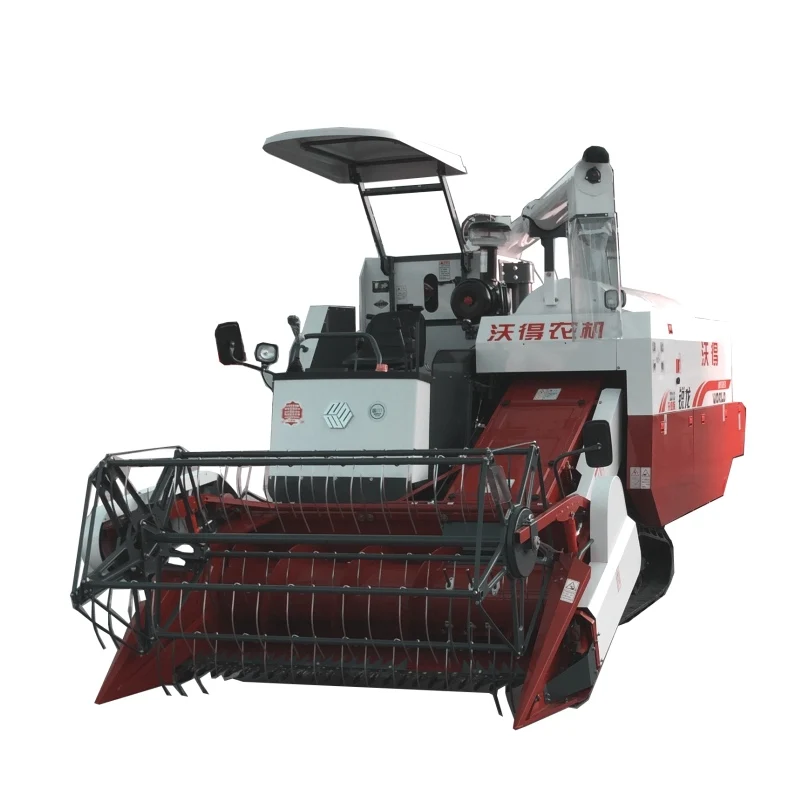

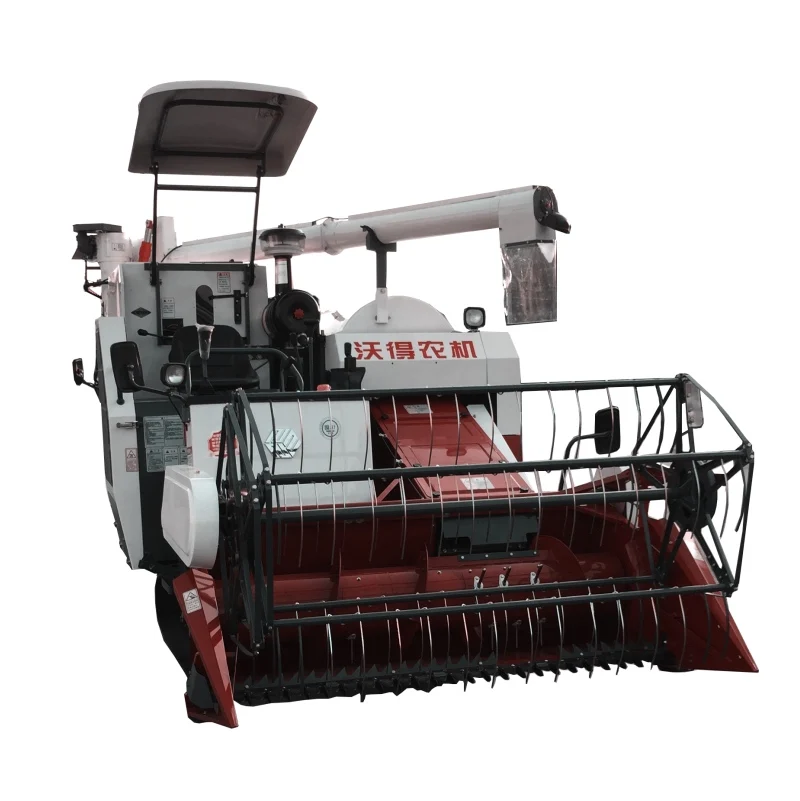

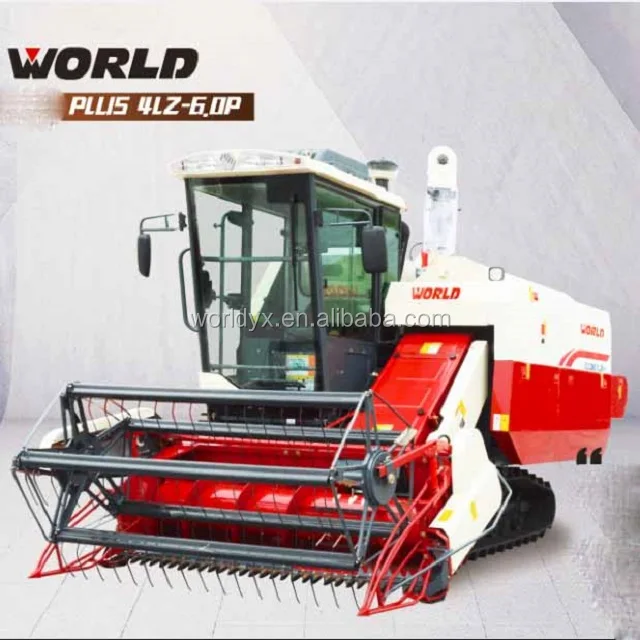

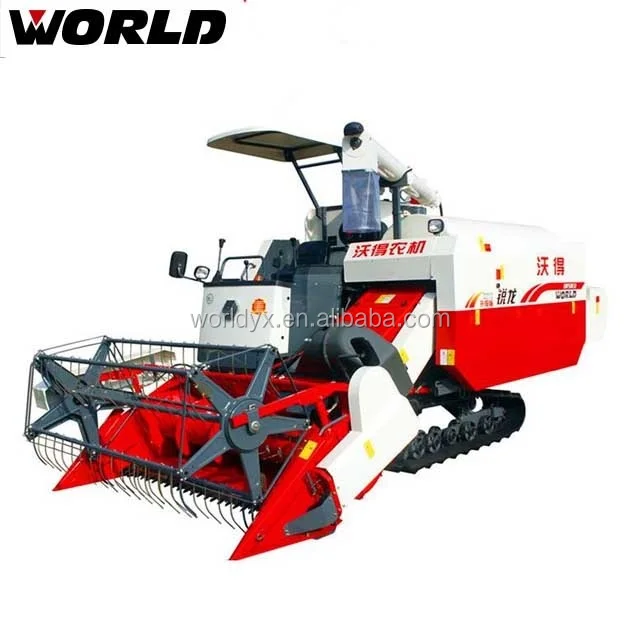

WORLD 4LZ 6.0P 102HP Combine Harvester Machine for Rice Wheat Corn Harvesting
- Category: >>>
- Supplier: Shanghai Yingxin World Machinery Co. Ltd.
Share on (60770520818):
Product Overview
Description
Feeding Capacity (kg/s) | 6 | ||||
Work Dimension L*W*H (mm) | 5100*2890*2700 | ||||
Weight (kg) | 3100 | ||||
Cabin/Sun Shade | Sunshade | ||||
Engine Part | Model No. | Changchai 4G33TC | |||
Power/Speed (hp/rpm) | 102/2600 | ||||
Fuel | Light Diesel Oil | ||||
Fuel Capacity (L) | 160 | ||||
Fuel Consumption (kg/hm2) | 12～30 | ||||
Start | Motor Starter | ||||
Gear Box | ZKB85 made by WORLD factory, stronger power | ||||
HST | 45CC HST Imported from South Korea. | ||||
Walking Part | Rubber Track | Length of Ground Contact (mm) | 1700 | ||
Center Distance (mm) | 1150 | ||||
Size (mm) | 550*90*56 | ||||
Average Contact Pressure (kpa) | ≤20Kpa | ||||
Min. Ground Clearance (mm) | 340 | ||||
Gear Shifts | Variable Sun-transmission 3 Shifts | ||||
Walk Speed (Km/Hour) | Low: 0～1.85 Medium: 0～6.5 High: 0～9 | ||||
Theoretical Work Speed (Km/Hour) | 0.9-6.5 | ||||
Harvesting Unit | Grain Lifter | Divider | |||
Working Width (mm) | 2200 | ||||
Reel Bat | Dia. × Length (mm) | 900×2028 | |||
Gearshift Method | Constant Speed | ||||
Adjusting Means | Hydraulic | ||||
Stubble Height [Lift] (mm) | 25cm or above | ||||
Threshing & Harvesting Unit | Threshing Mode | Axial Flow Type, Bullet Rotor | |||
Threshing Rotor | Type of Threshing | Beat Bar | |||
Dia. ×Length (mm) | 620*2050 | ||||
Rotating Speed(rpm) | 662/732 | ||||
Fan | Diameter | 400 | |||
Separating Type | Vibrating Sieves + Air Blow | ||||
Area of Sieves (Lowe and Upper Sieves) (m2) | 1.645 | ||||
Grain-unload Unit | Grain Tank Capacity | 1000kg | |||
Grain Discharging Type | Manual or 360 Rotary Discharging Pipe | ||||
Alarm Units | Water Temperature, Battery, Oil, Grain Tank, Jam of 2# Auger | ||||
Work Efficiency (hm2/h) | 0.6-0.9 | ||||
Crops | Rice, Wheat | ||||
Total Loss | Less than 2.5% | ||||
Breakage | Less than 1.5% | ||||
Impurity | Less than 1.5% | ||||
Description:
4LZ-6.0P harvester, 6kg/s feeding capacity, 2.2m cutting width, Changchai brand 102hp diesel engine, 45CC HST, ZKB85 gearbox, rubber track size 550x90x56mm, Sunshade only.
1. Since the buyer's final acceptance date, our company implements the products after sale service. The warranty period is one year.
2. During the warranty period, our company provides free maintenance and replacement parts, if these parts or damages are out of quality problems.
3. In the meantime, the machine should be under normal operation by the buyers. (Except for improper operation or man-made damage by the buyers).
4. We can send the parts by courier if urgently needed while the buyer should pay the freight.
