4 inch pipe industrial air male connectors fitting

Product Overview

Description

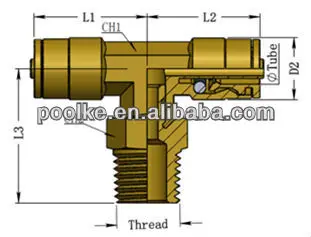

DOT-HTS, Swiveling Tee, Male
PART NO.	Thread	Tube O.D.*I.D.	D2	L1	L3	L2	CH
DOT-HTS-06-R01	R1/8	6*4	12.7	22	22	25	9.5
DOT-HTS-06-R02	R1/4	6*4	12.7	22	22	28	9.5
DOT-HTS-08-R01	R1/8	8*6	15	25	25	28	12
DOT-HTS-08-R02	R1/4	8*6	15	25	25	29	12
DOT-HTS-08-R03	R3/8	8*6	15	27	27	32	12
DOT-HTS-10-R02	R1/4	10*8	17.5	28	28	30	12.7
DOT-HTS-10-R03	R3/8	10*8	17.5	28	28	30	12.7
DOT-HTS-10-R04	R1/2	10*8	17.5	31	31	36	16
DOT-HTS-12-R02	R1/4	12*9	19.5	31	31	31	16
DOT-HTS-12-R03	R3/8	12*9	19.5	31	31	31	16
DOT-HTS-12-R04	R1/2	12*9	19.5	31	31	36	16
DOT-HTS-IN02-N01	NPT1/8	6.35*4.3	12.7	22	22	28	9.5
DOT-HTS-IN02-N02	NPT1/4	6.35*4.3	12.7	22	22	28	9.5
DOT-HTS-IN03-N02	NPT1/4	9.52*6.38	17.5	25	25	30	12.7
DOT-HTS-IN03-N03	NPT3/8	9.52*6.38	17.5	27	27	30	12.7
DOT-HTS-IN04-N02	NPT1/4	12.7*9.55	19.5	31	31	32	16
DOT-HTS-IN04-N03	NPT3/8	12.7*9.55	19.5	31	31	32	16
DOT-HTS-IN04-N04	NPT1/2	12.7*9.55	19.5	31	31	36	16
