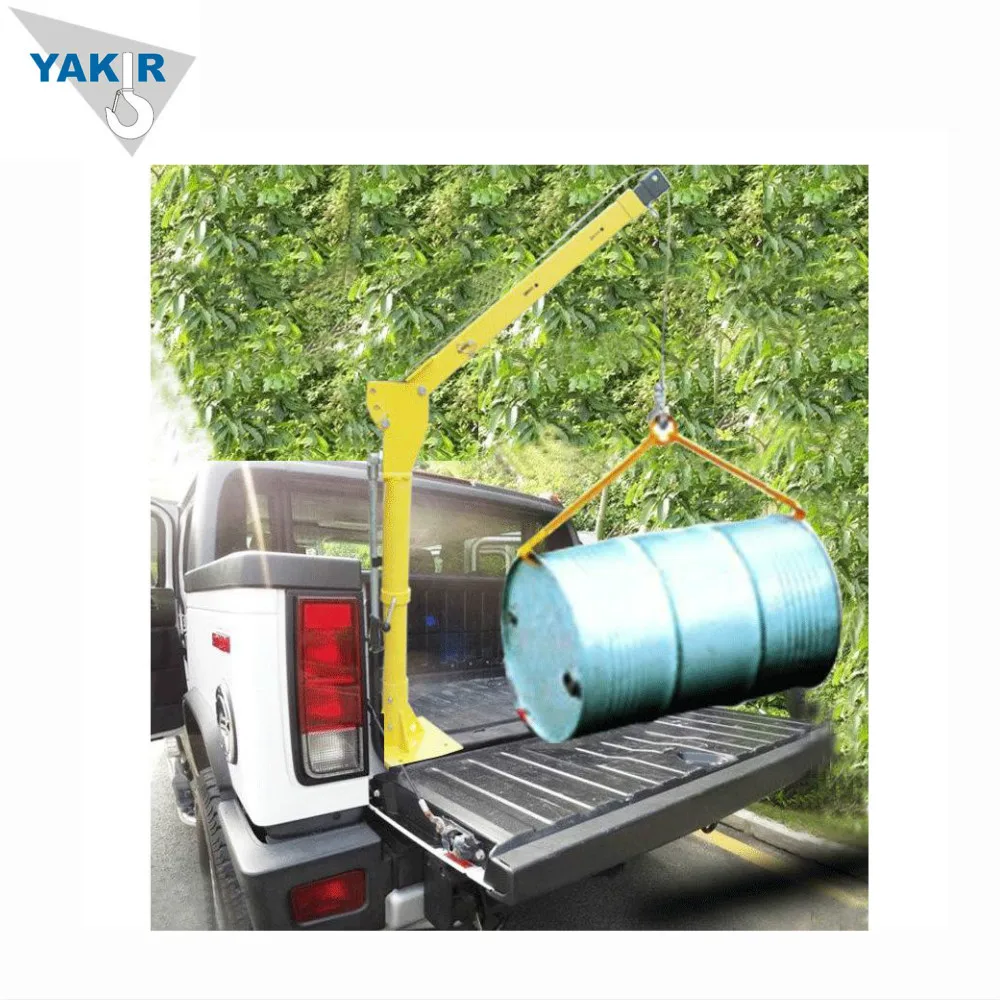

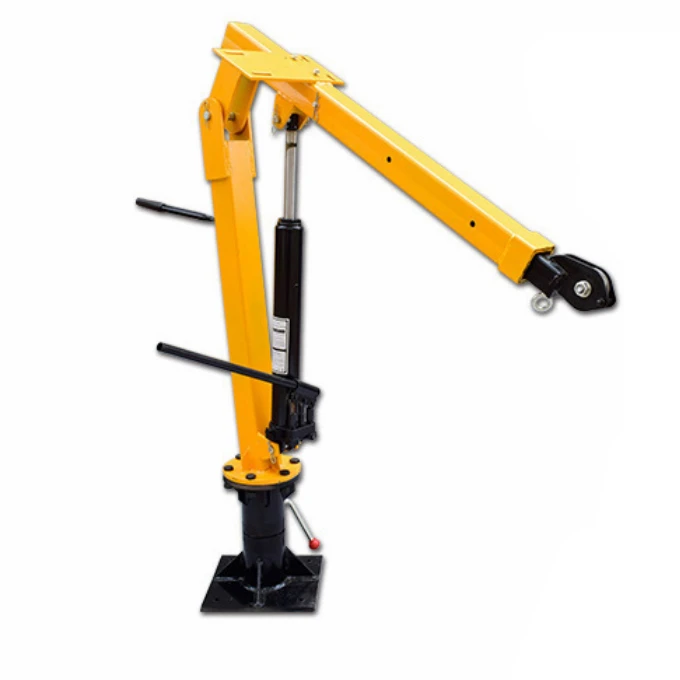

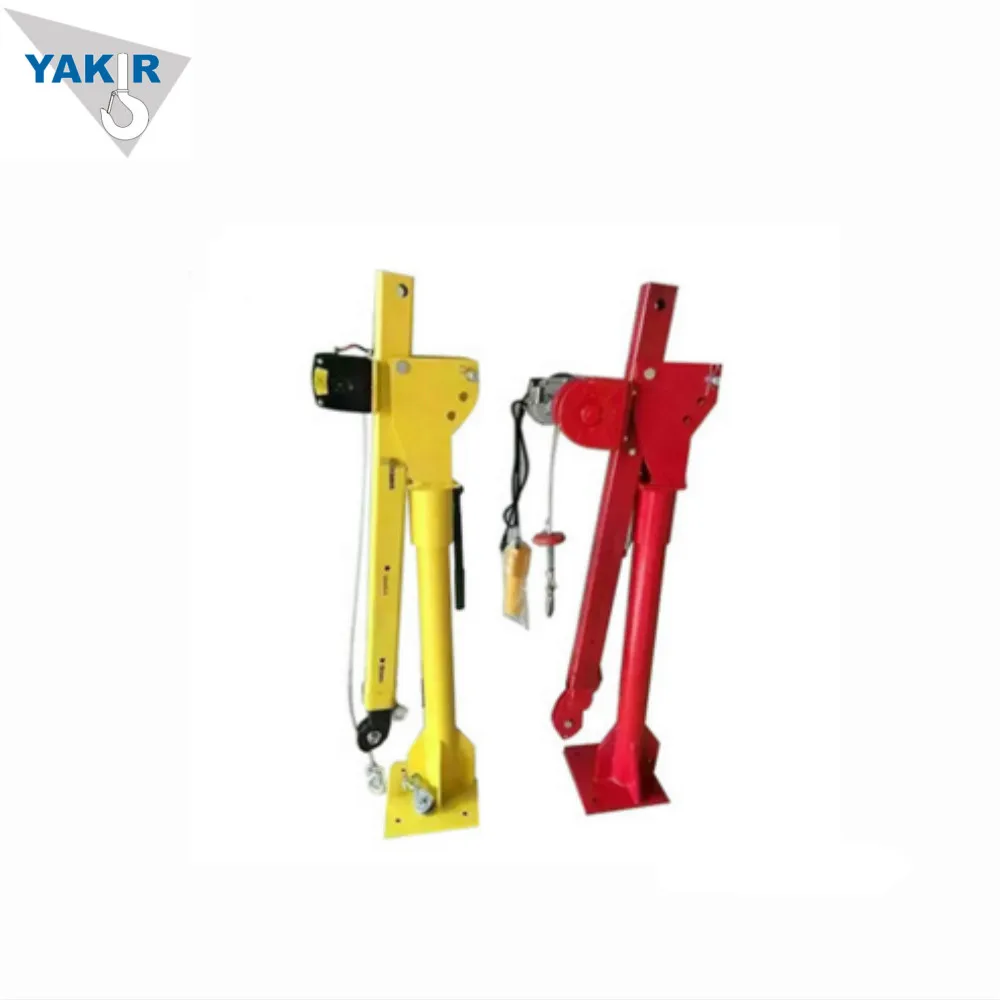

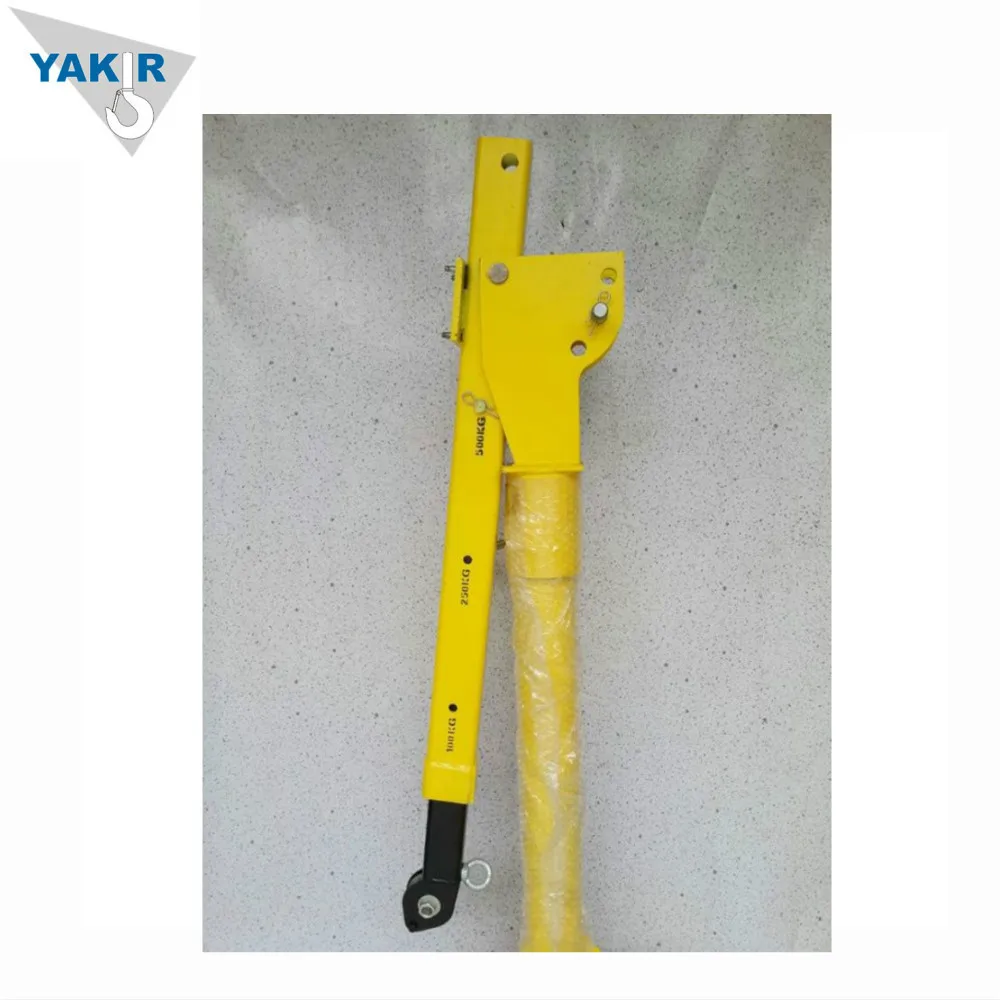

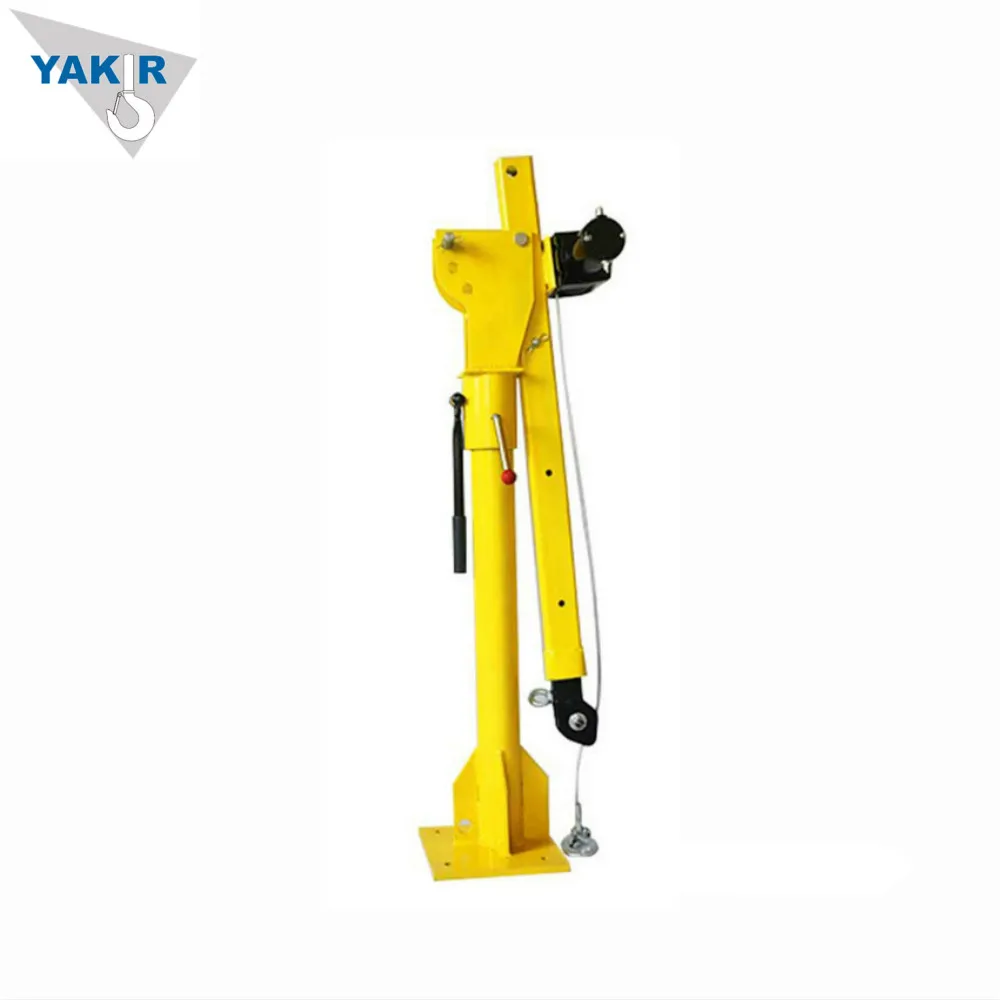

Небольшой лодочный мини кран 12 В или 24 В, автомобильный подъемный кран
- Category: Other Cranes >>>
- Supplier: Guangdong Yakir Import & Export Trade Co. Ltd.
Share on (60770598689):
Product Overview
Description
12v or 24v small boat crane mini car lifting cranes
Features electric mini truck crane
ELECTRIC WINCH HOIST DC12V
Compact, easy to install
Max loading and unloading capacity:1000lbs
Simple to operate
360° Free manual rotation
All shafts and pins stainless steel
Specifications of electric mini truck crane
Single line Lifting Capacity(maximum) | 500kg |
Double-line Lifting Capacity(maximum) | 800kg |
Lifting Height Max.Std.(base to hook) | 1940mm |
Reach Max.(from center of rotation) | 1490mm (see Figure 3) |
Rotation (continuous) with Brake | 360° Manual |
Lifting Cable | 4.8mm x 4.5m –1pc(for single-line lifting) 4.8mm x 5.5m-1pc(for double-line lifting) |
Line speed with No Load | 3.6m/min single line |
Power Requirements | 12V DC 125 amps |
Switch Cable | 4.2m |
Mounting Base | 250x250x18mms |
Mounting Bolt Hole Pattern | 170x170mms |
Net Weight of Crane (LBS) | 58.5KGS |

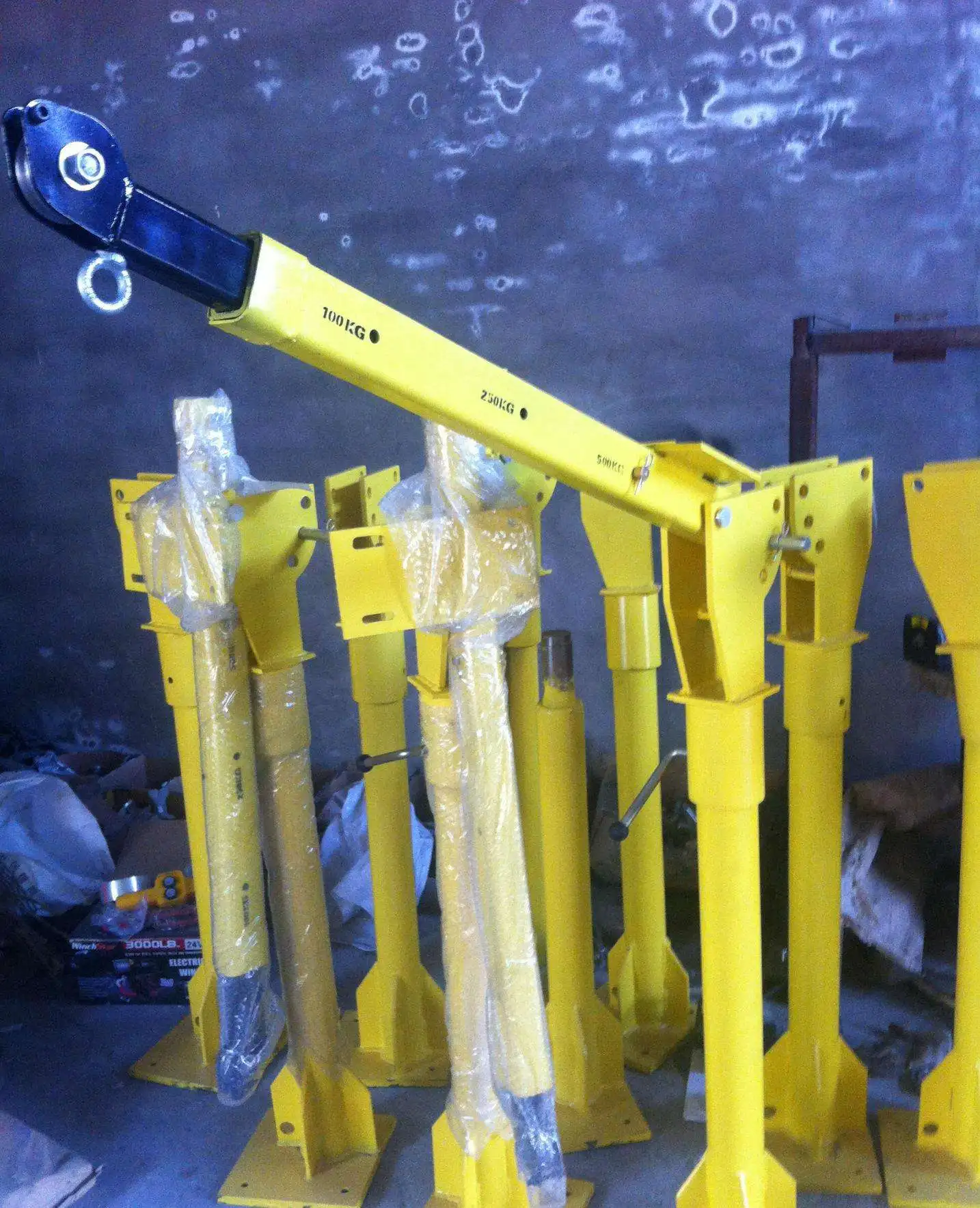

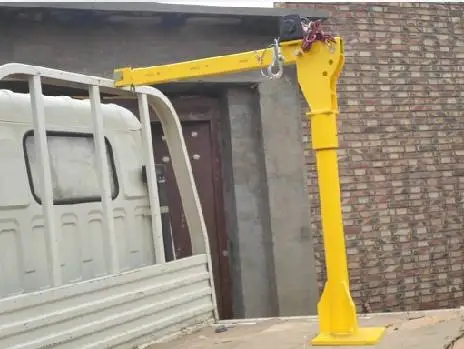

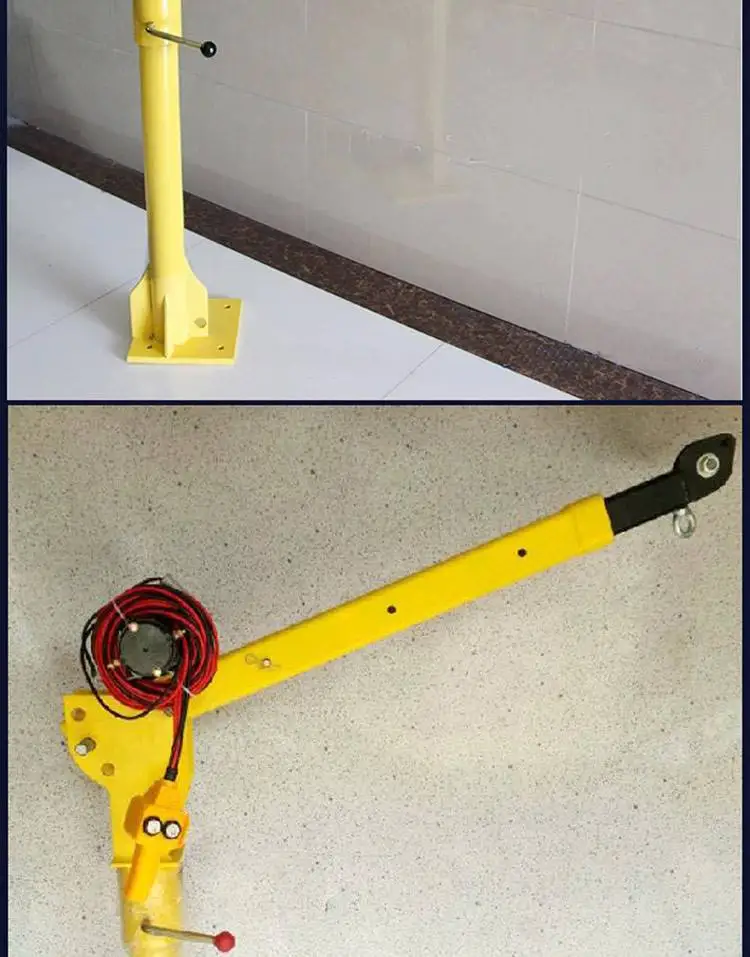

Photos
![~763SWQ]$W(9C47847`NN7T.png](http://sc02.alicdn.com/kf/HTB1MznPgf2H8KJjy1zk760r7pXaJ/231373990/HTB1MznPgf2H8KJjy1zk760r7pXaJ.png)

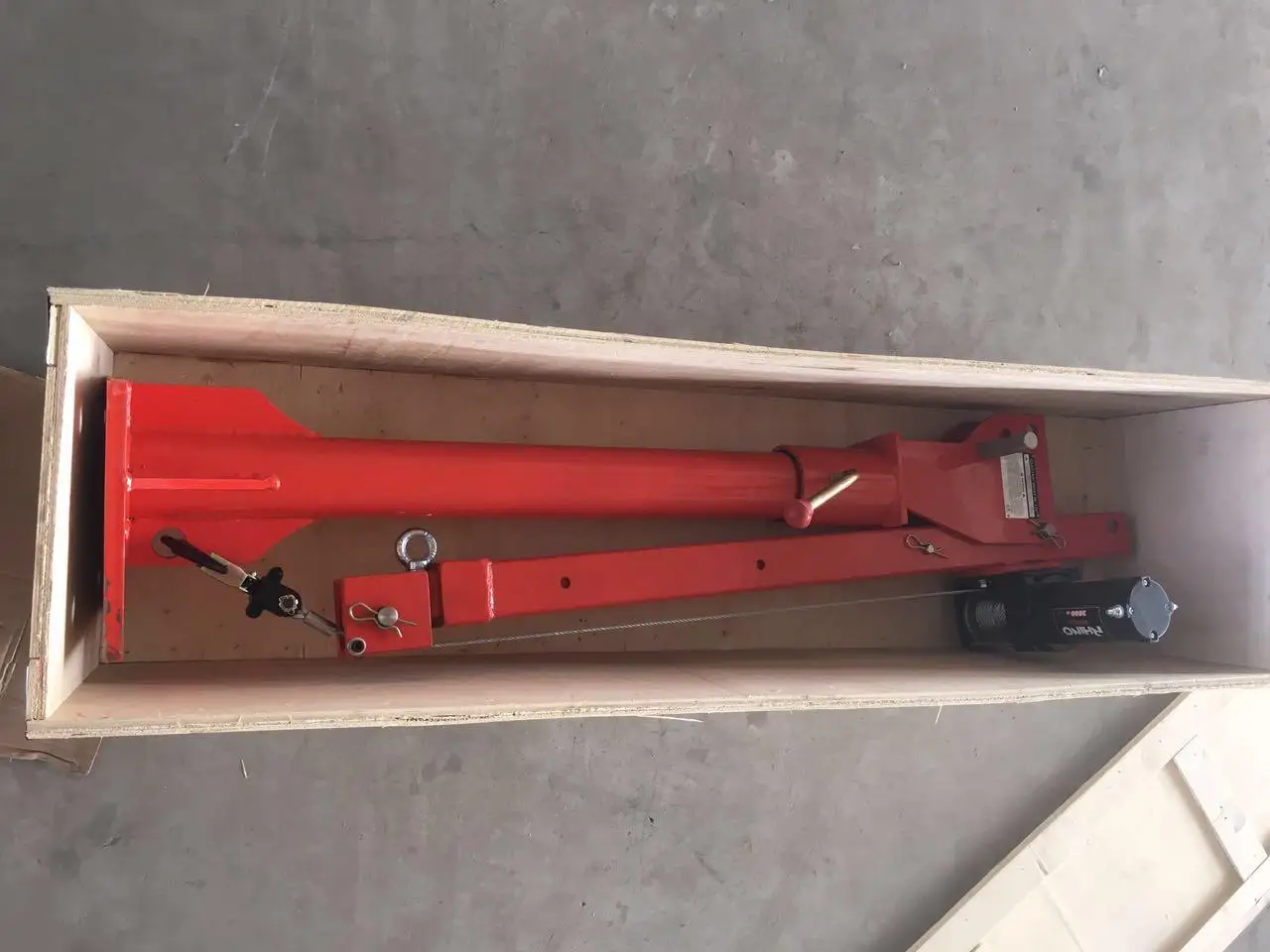

Packing and shipping
