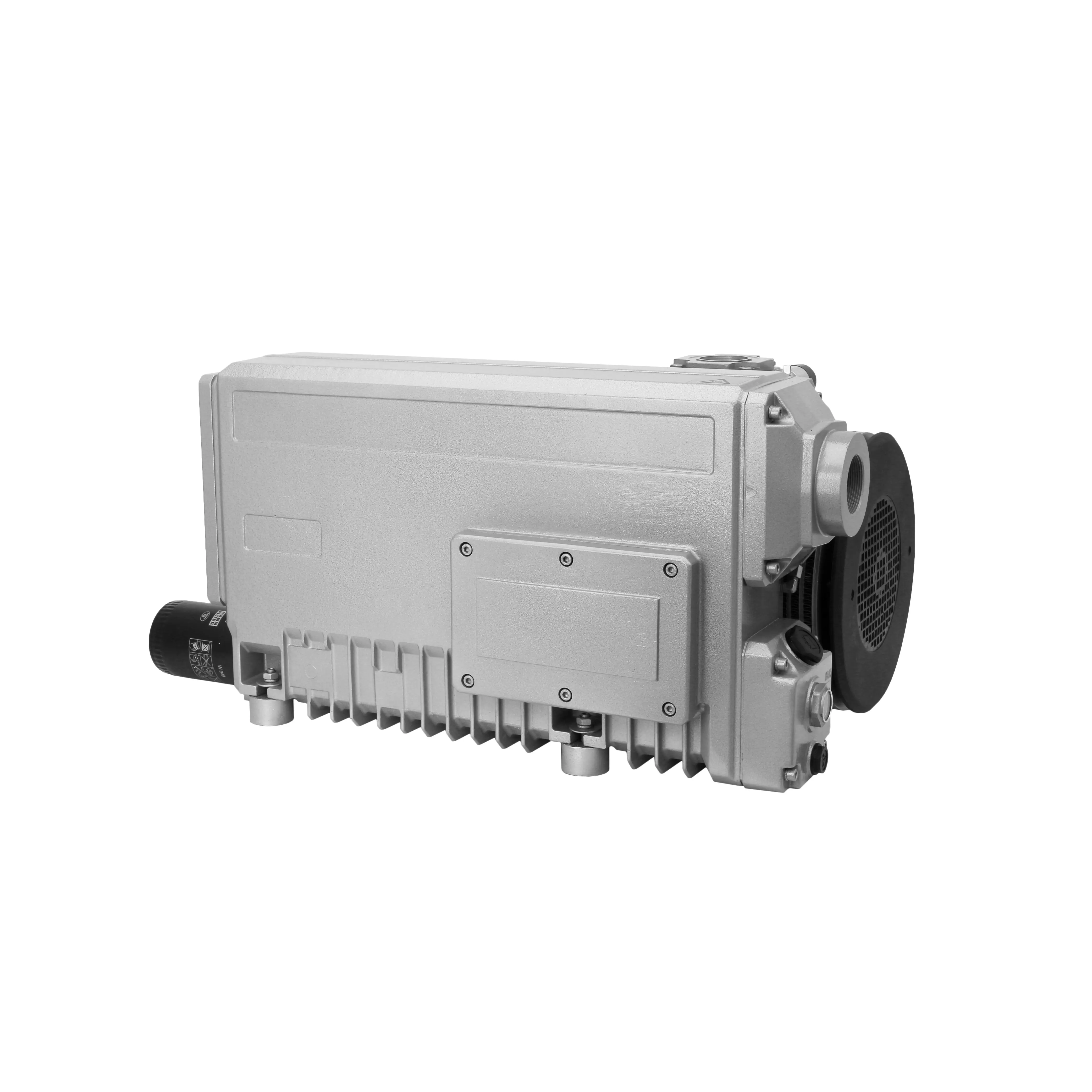

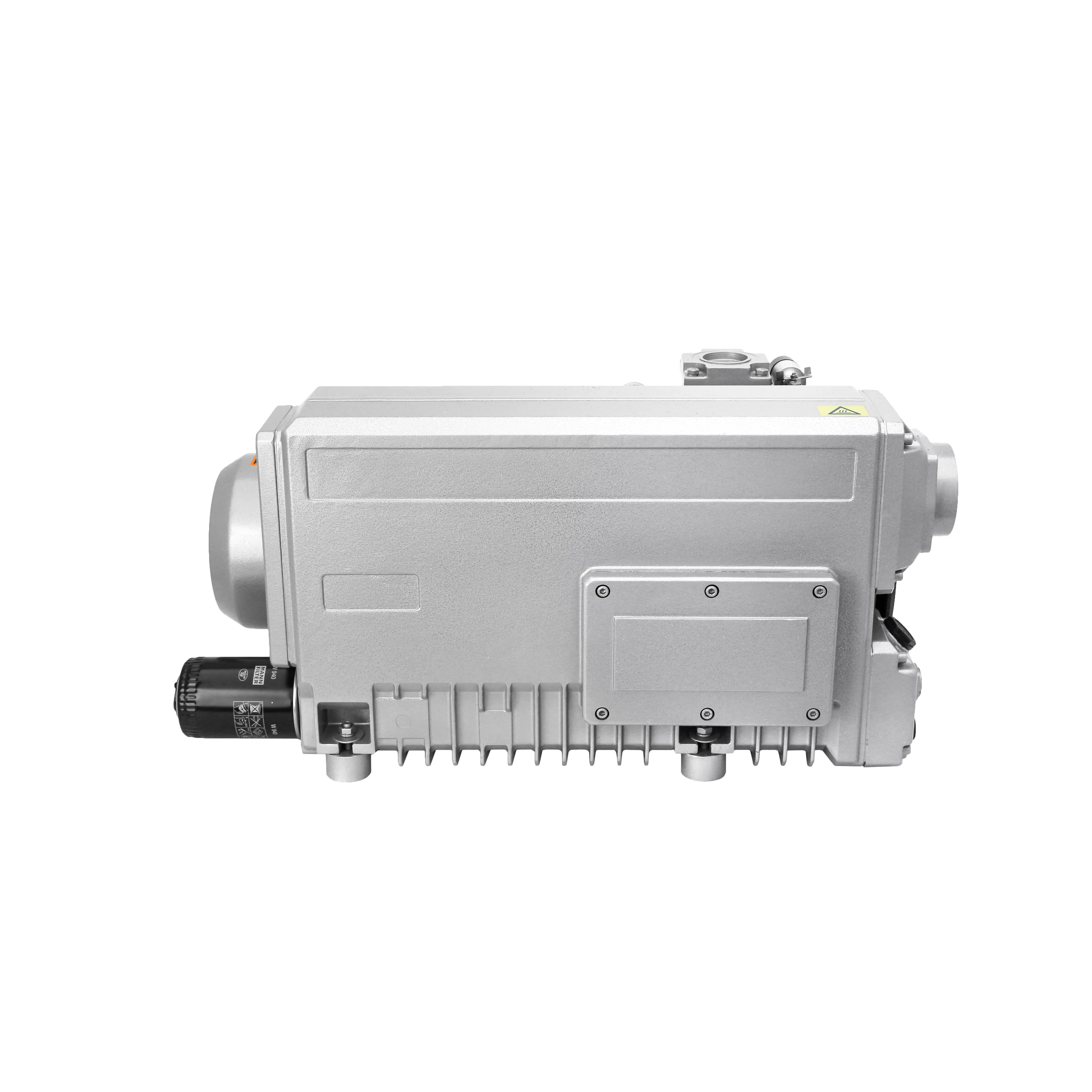

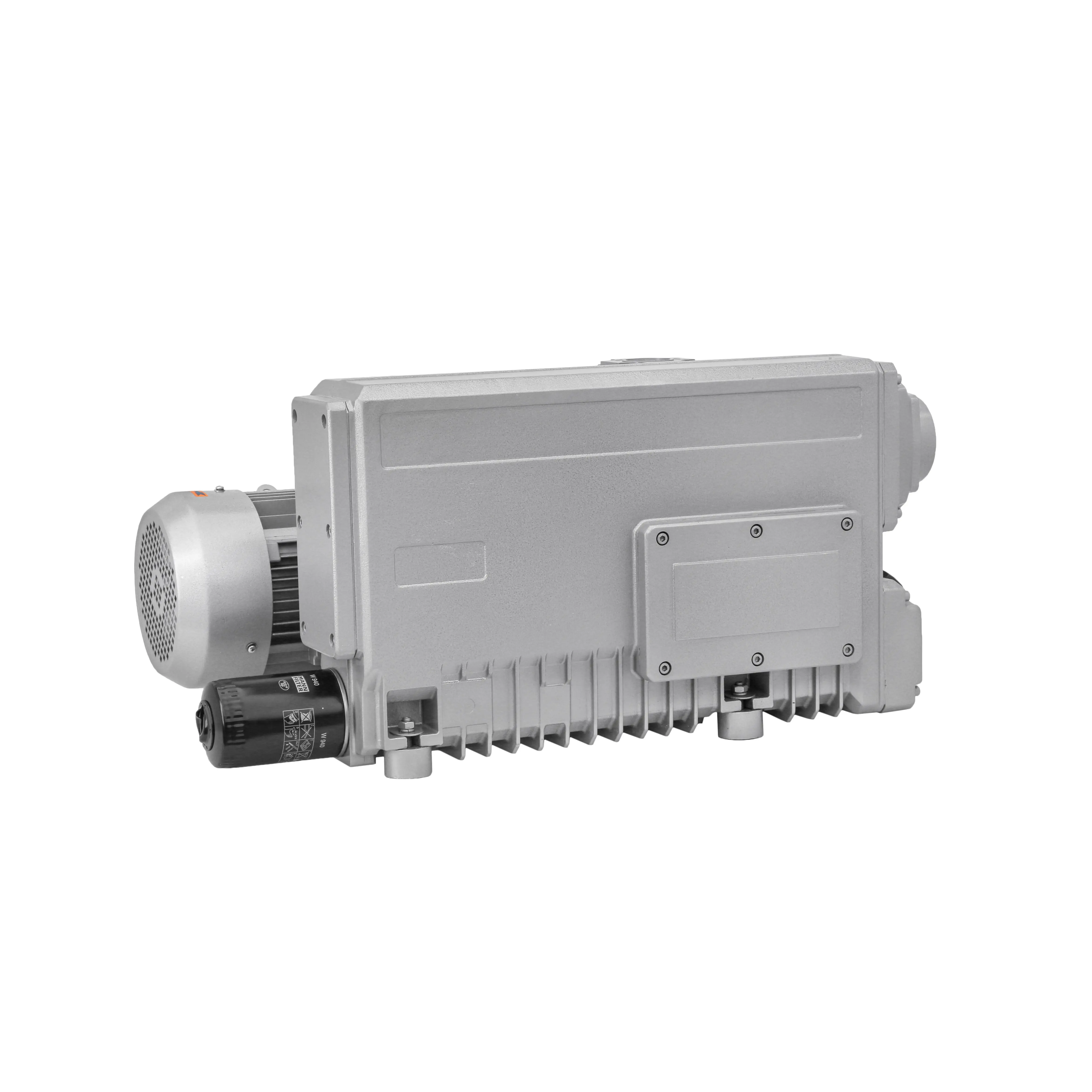

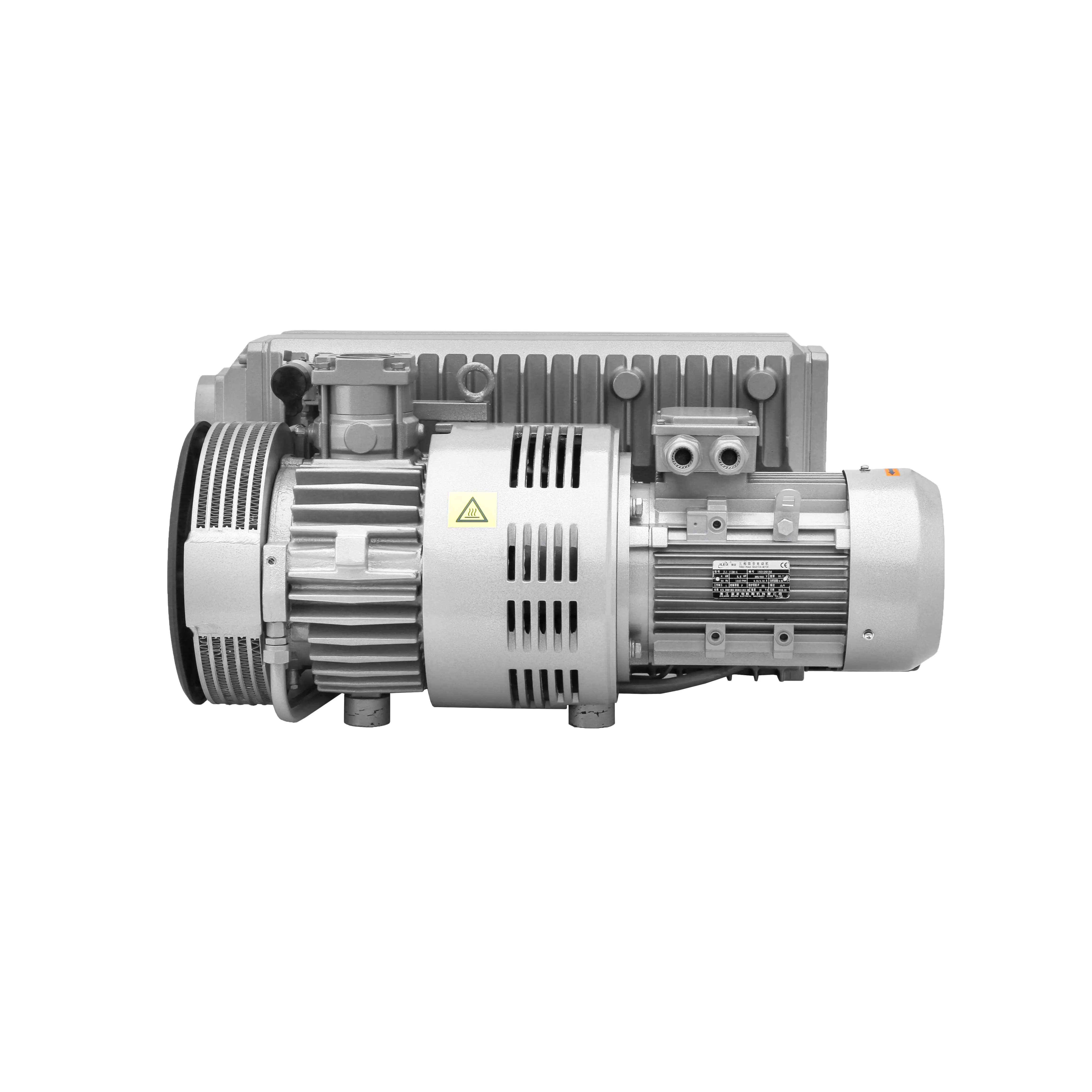

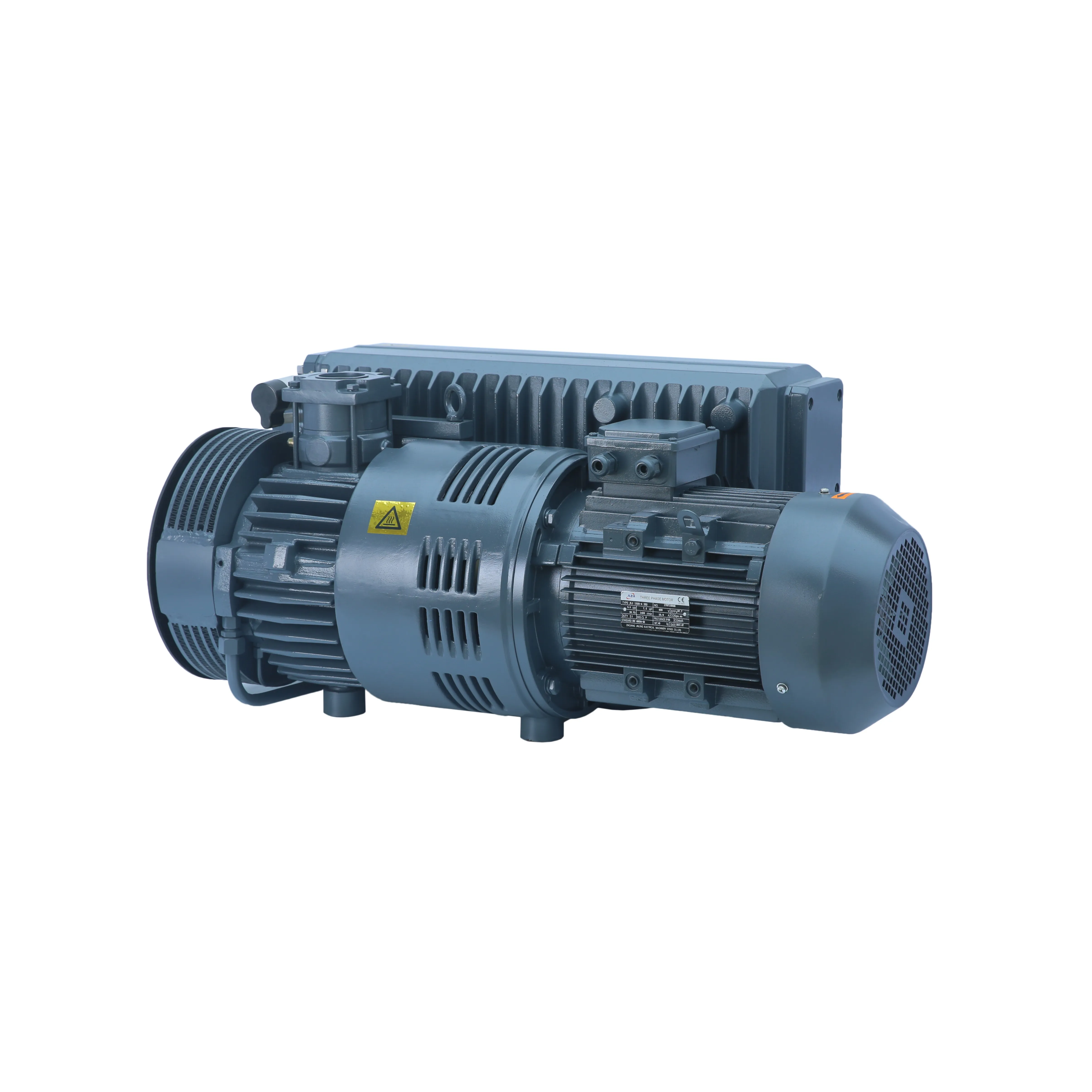

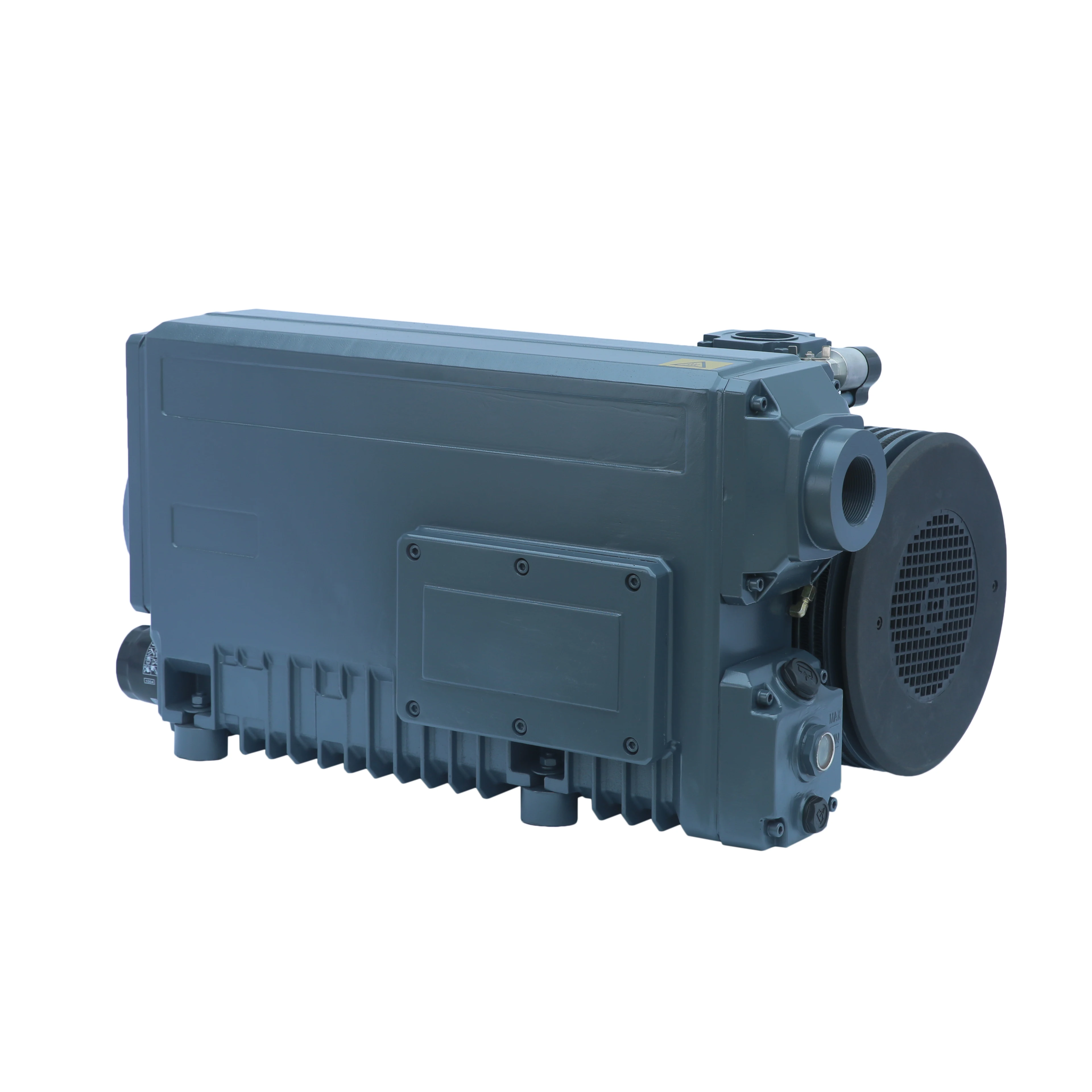

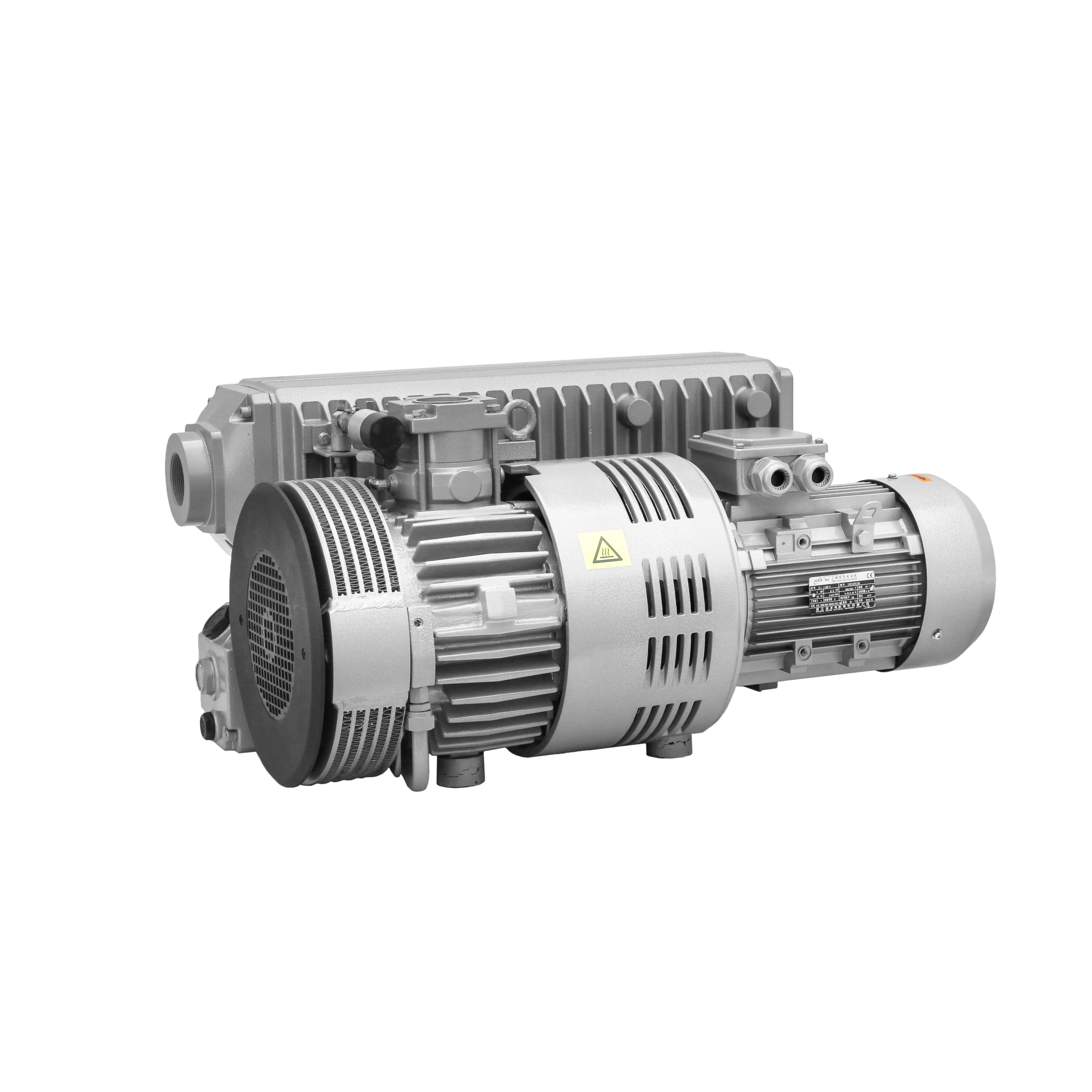

SV160 Single Stage Rotary Vane Vacuum Pumps for vacuum theory forming machine and vacuum packing industry

Product Overview

Description



Model		Pump speed (m3/h)	Motor Power (KW)	Rotary speed (rpm)	Ultimate vacuum (Pa)	Inlet Diam (inch)	Oil Capacity (L)	G.W  (kg)	Noise dB (A)	Dimensions (mm)
SV-160	50HZ	160	4.0	1440	50	G2	4.5	152	74	805*520*410
	60HZ	192	5.5	1728





Principle of Operation

-The rotary vane vacuum pump works on the rotating vane principle.

-A circular rotor(s) is positioned centrically on the shaft of the vacuum pump.

-The shaft of the vacuum pump is driven by the drive motor shaft by means of a flexible coupling.
-The rotor (s) is rotates in an also circular, fixed cylinder (t),the centreline of which is offset from the centreline of the rotor such that the rotor and the inner wall of the cylinder almost touch along a line.
-In order to avoid the suction of solids, the vacuum pump is equipped with a screen in the suction connection





The single stage rotary vane vacuum pumps are used extensively in the vacuum packing or the other industrial field.
We are cooperated with the partners to ensure the quality and reality of our products.





1:High utmost vacuum rate,it can be less than 0.5mbar
2:High deflating speed
3:Low noise while working, lower than 67db
4:Strong capacity in deflating the vapor
5:Protecting eveironment;an oil fog clearer is set in the vacuum pump,and no oil fog in the exhaust air.
6:Compact structure,scientific and reasonable design,and it is easy to install in the industry system Application Range of Single-stage Rotary Vane Vacuum Pump
