CE certified animal feed processing machine
- Category: >>>
- Supplier: Jiangsu Yongli Machinery Co. Ltd.
Share on (60770633401):
Product Overview
Description

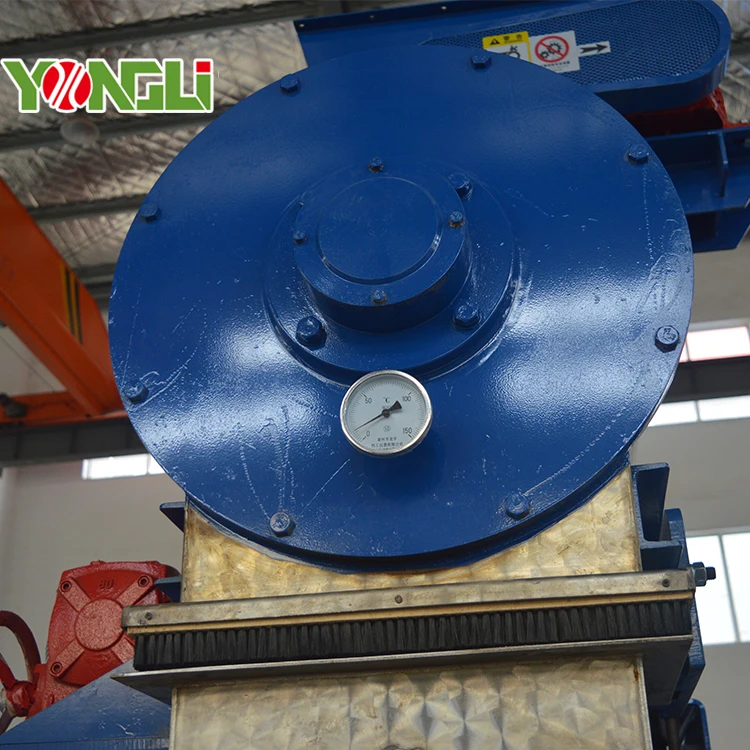

CE certified animal feed processing machine
Product Description

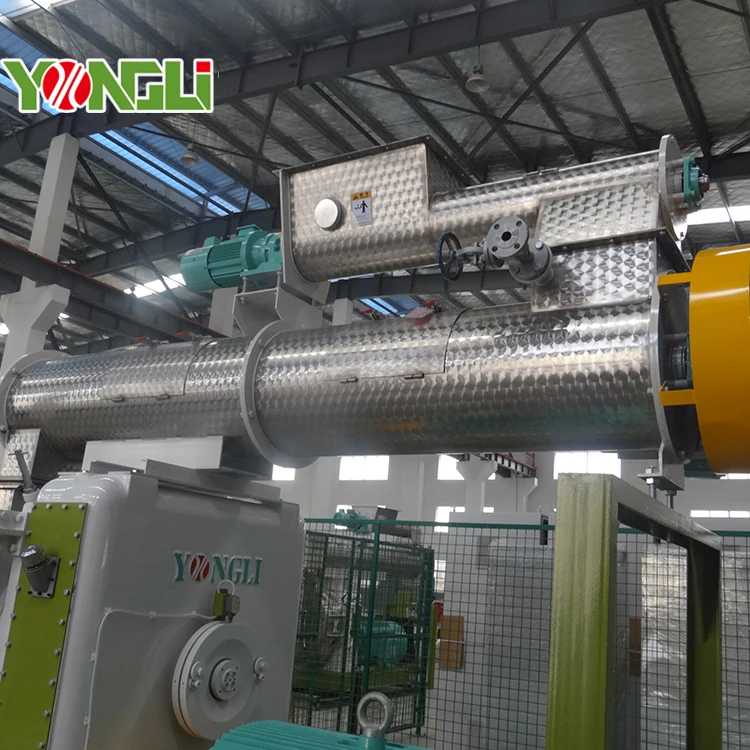

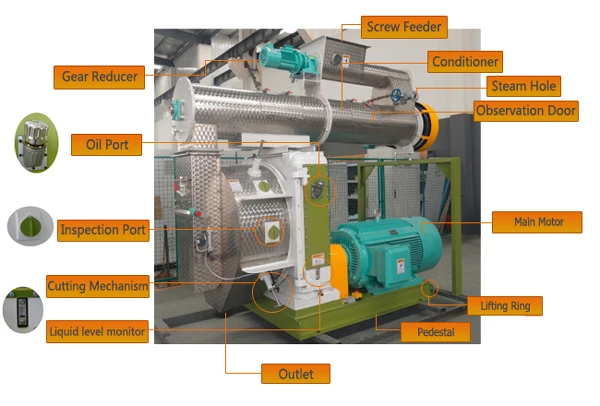

The pellet mill with one layer conditioner:
Screw Feeder: ( adjust the feeding speed with inverter)
Stainless Steel conditioner:( sofiten and even material, adjust moisture content, increase capacity and also improve the appearance of pellets, promote the curing and evenness of pellets etc)
The pellet mill with one layer conditioner is widely used for Poultry and Livestock:

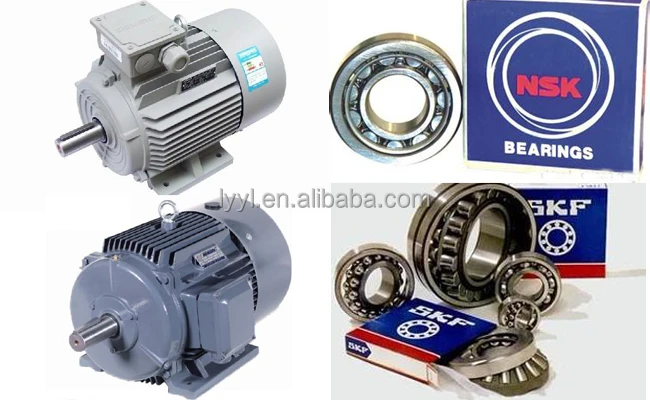

We use famous brand parts to guarantee the quality of line and every machines are processed in our own CNC workshop. Siemens motor

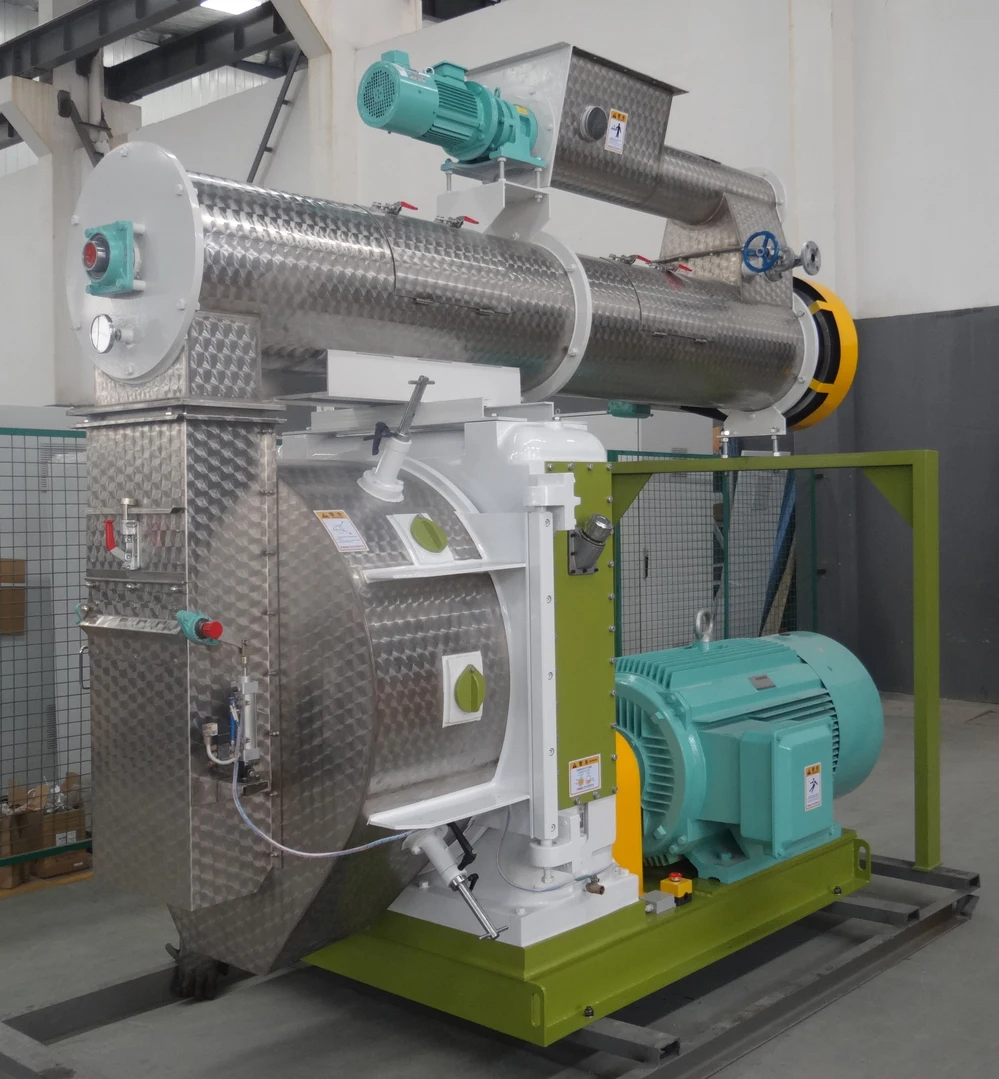

Introducing the Model of YPM660:
Item | Feed pellet machine ( YPM660 ) |
Pellet Mill Style | - With Conditioner - With Screw Feeder |
Technical Parameters
| - Capacity: 8-25(T/H) - Power of feeder: 1.5(kw) - Power: 185/200(kw) - Power of conditioner: 11(kw) - Inner diameter of die: 600(mm) - Pellet size: 1-5ø (mm) |

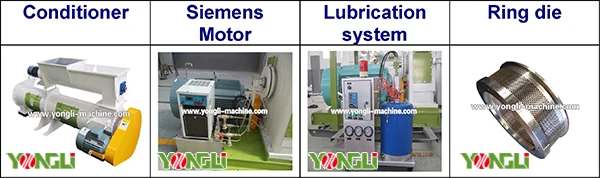

Features |
- Suitable coupling assembly design - Siemens motor, NSK/ SKF bearing - Automatic Lubrication System - Cutting mechanism - Stainless steel ring die - Full stainless steel feeder - Stainless steel conditioner
|
Optional Extras |
- Double or triple conditioners
|
Packing Details | Iron case or iron pallet etc |
MOQ | 1 set |
Payment | L/C, T/T, Western Union, Money Gram or negotiation |
Warranty | 1-2 year |
If YPM660 is not suitable for you, please refer to the following models.
Main technical parameters for related Models:
Model | Capacity (t/h) | Power (kw) | Inner diameter of die (mm) | Pellet size (mm) | Conditioner (kw) |
YPM250 | 0.5-2 | 11/15 | 250 | 2-12ø | 2.2 |
YPM320 | 2-4 | 37 | 320 | 2-12ø | 2.2 |
YPM350 | 3-6 | 55 | 350 | 2-12ø | 2.2 |
YPM420 | 6-14 | 110 | 420 | 2-12ø | 5.5 |
YPM508 | 6-20 | 132/160 | 508 | 2-12ø | 7.5 |
YPM660 | 8-25 | 185/200 | 600 | 2-12ø | 11 |
YPM800 | 15-28 | 280/315 | 800 | 2-12ø | 15 |
Beyond above models, as a professional manufacturer, we also can customize all kinds of feed pellet machine according to your request.

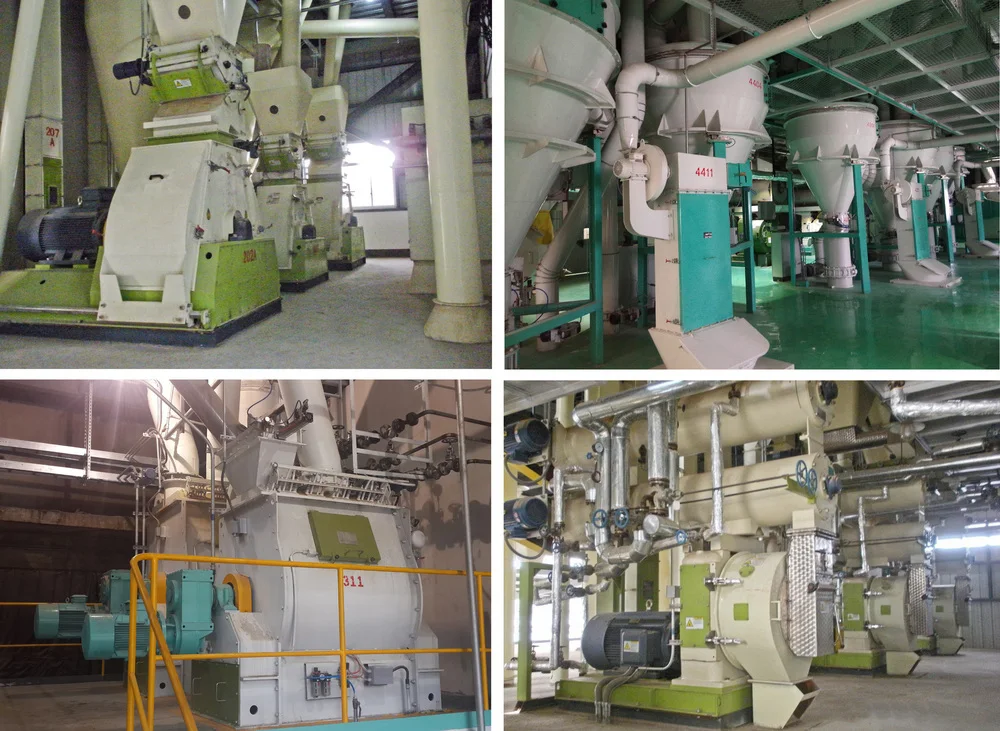

Until now, our feed machines have sold well to over 50 countries. More project cases we finished, if you interest, we can send to you reference.

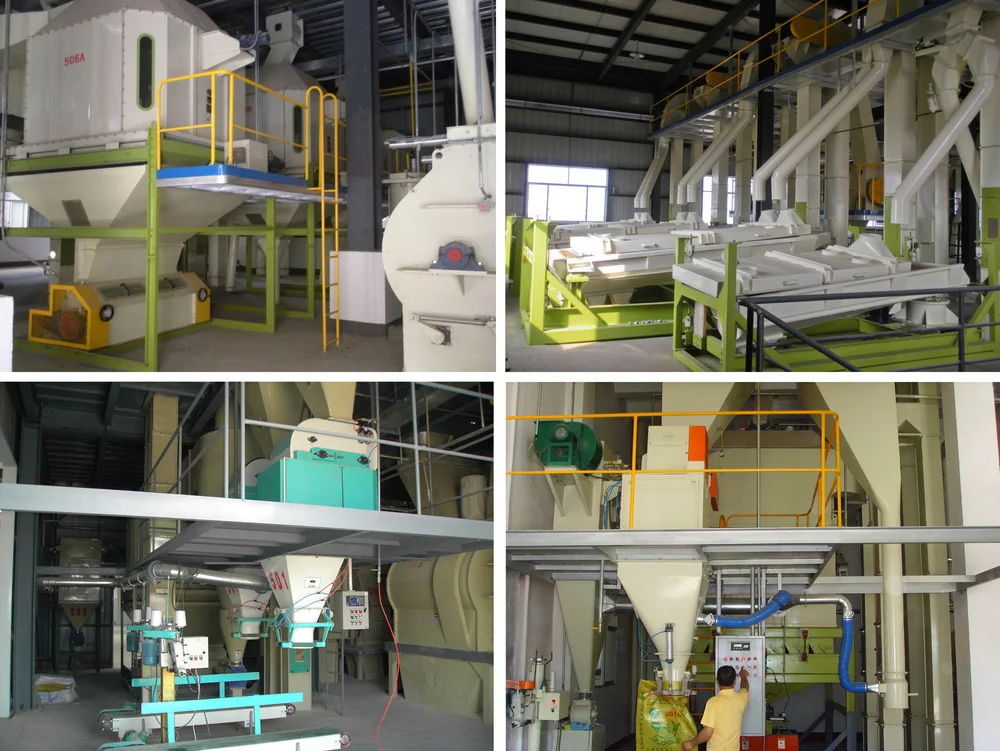

Related Production line:

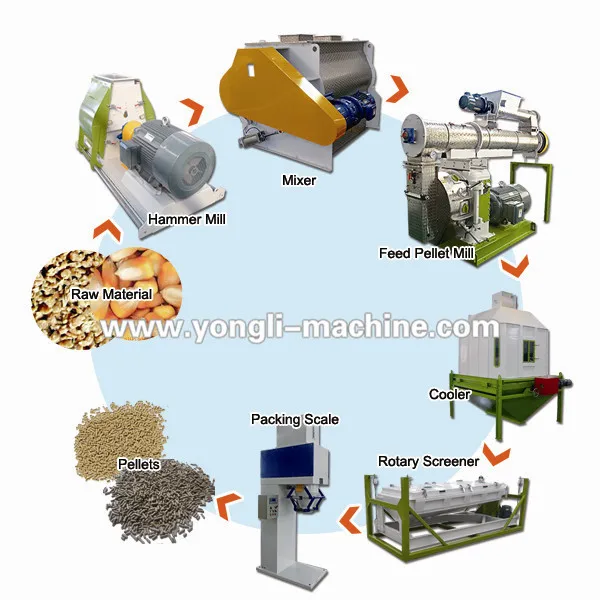

A complete animal feed production line includes: Hammer Process, Mixing Process, Pelletizing Process, Cooling Process, Crumbling Process, Sieving Process and Packaging Process.

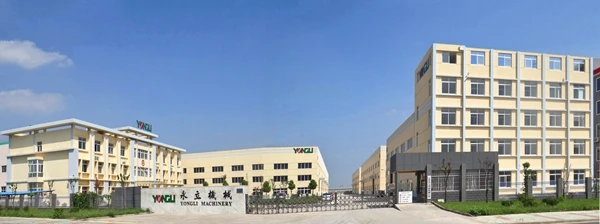

Company Information
Jiangsu YONGLI Machinery Co.,Ltd. was founded in 2003. We are an excellent provider and operator for feed,biomass, fertilizer and Silo equipments. With the principle of High Quality, Competitive Price, Technical Innovation, Excellent Service, we constantly develop domestic market and abroad market, until now, we have finished hundreds feed, biomass, fertilizer and silo projects which closely connected with the pellet mill, hammer mill, mixer, drum dryer, wood chipper, packing machine, feed mill, fish feed extruder, cooler, conveyors, bucket elevator etc, and gain great reputation from our clients. YONGLI insist on “Quality is the soul of company", and passed the audit of ISO9001 quality system and all finished products meet the CE standard.
Our equipments have exported to more than 50 countries: Canada, USA, Portugal, Greece, Russia, Latvia, France, Lithuania, Slovenia, Belgium, Hungary, Ukraine, Croatia, Romania, Turkey, Tunisia, Algeria, Malaysia, Vietnam, Korea, Thailand, Indonesia, Japan, Sri Lanka, Dubai, Australia, New Zealand and so on. With high-quality staffs, CAD & Solidworks design center and strong technical force, we could provide process design, manufacturing, installation, commissioning, personnel training, after-sales service and other service for our customers. We promise that customers can get optimum benefit at minimum investment.
CE Certification
YONGLI passed CE certification for all of the exported machine:
YONGLI Customers
Many clients come to visit YONGLI factory for face to face discussing the technology drawing and order for details! You are also always welcome!

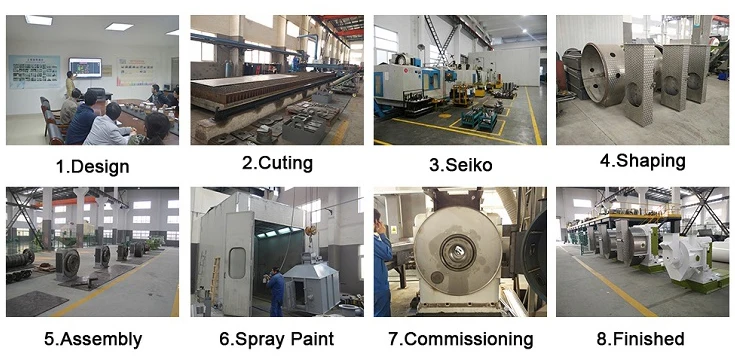

Production Flow
If you are interested in it, please kindly review the working process flow of our machine in YONGLI workshop:
Packaging & Shipping
YONGLI provide shipment terms per clients request like EXW factory, FOB shanghai, CFR & CIF client's port. The details for of shipment pictures for YONGLI machine as below:
Our Services
1)Consultation service before, during and after-sales.
2) Project planning and design service.
3) Debugging of equipment until every process is functional.
4) Training of equipment maintenance and operating personally.
5) Provide shipping service from YONGLI factory to client's discharge port.
6) Provide 1-2 years warranty for main machine and life-time maintenance service.
FAQ
1.Q: How can I trust on your quality?
Answer:
1). All of the machine be tested successfully in Yongli workshop before shipment.
2). Yongli wins 40 national patents for machines by our senior R&D engineers.
2. Q: What is your superiority comparing with other suppliers?
Answer:
1). Yongli can make optimal design based on your kinds of raw materials.
2). Yongli has service center in overseas, which can provide you spare parts very fast and on-site service quickly.
3). Yongli R&D ability is very strong, it can develop 8-10 new technology every year.
4). It has at least 90% traders and distributors place order for Yongli every year.
Answer:
1). Yongli can make optimal design based on your kinds of raw materials.
2). Yongli has service center in overseas, which can provide you spare parts very fast and on-site service quickly.
3). Yongli R&D ability is very strong, it can develop 8-10 new technology every year.
4). It has at least 90% traders and distributors place order for Yongli every year.
3. Q: Does your company provide Engineers Abroad Service?
Answer: Sure, we provide it. And we can provide free training for on-site workers.
Answer: Sure, we provide it. And we can provide free training for on-site workers.
4. Q: How to train our staff about operation and maintenance?
Answer : We will provide every detailed technical instructive, pictures, videos to teach them for the operation and maintenance. In addition, our engineers for guide assembly will teach your staff on site.
Answer : We will provide every detailed technical instructive, pictures, videos to teach them for the operation and maintenance. In addition, our engineers for guide assembly will teach your staff on site.
5. Q:What shipment terms you offer?
Answer: We can offer EXW, FOB, CIF, CFR etc based on your request.
Answer: We can offer EXW, FOB, CIF, CFR etc based on your request.
6. Q:What payment terms you take?
Answer: T/T, LC at sight etc.
Answer: T/T, LC at sight etc.
7. Where is your factory located? How can I visit there?
Answer: Our factory is located in Liyang City, Jiangsu Province, China, it is nearby Shanghai. You can fly to Shanghai airport or Nanjing Airport directly. We can ask our driver to pick you up at the airport or train station etc.
Answer: Our factory is located in Liyang City, Jiangsu Province, China, it is nearby Shanghai. You can fly to Shanghai airport or Nanjing Airport directly. We can ask our driver to pick you up at the airport or train station etc.
