Product Overview

Description

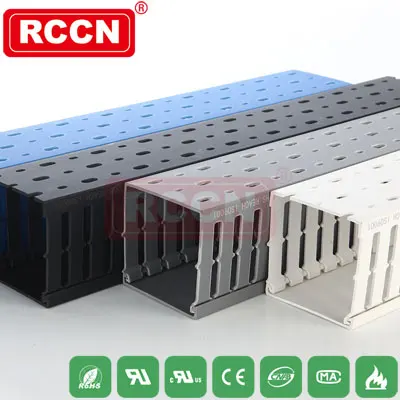

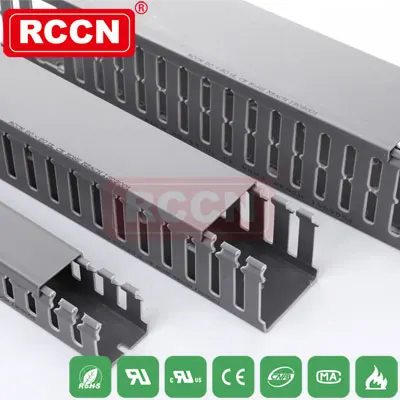

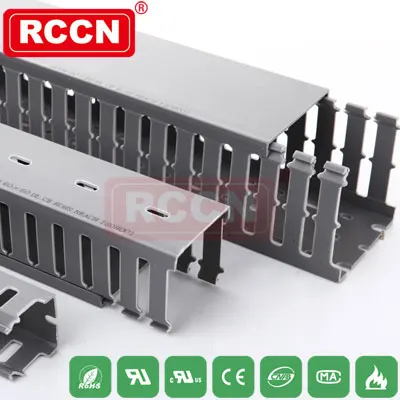

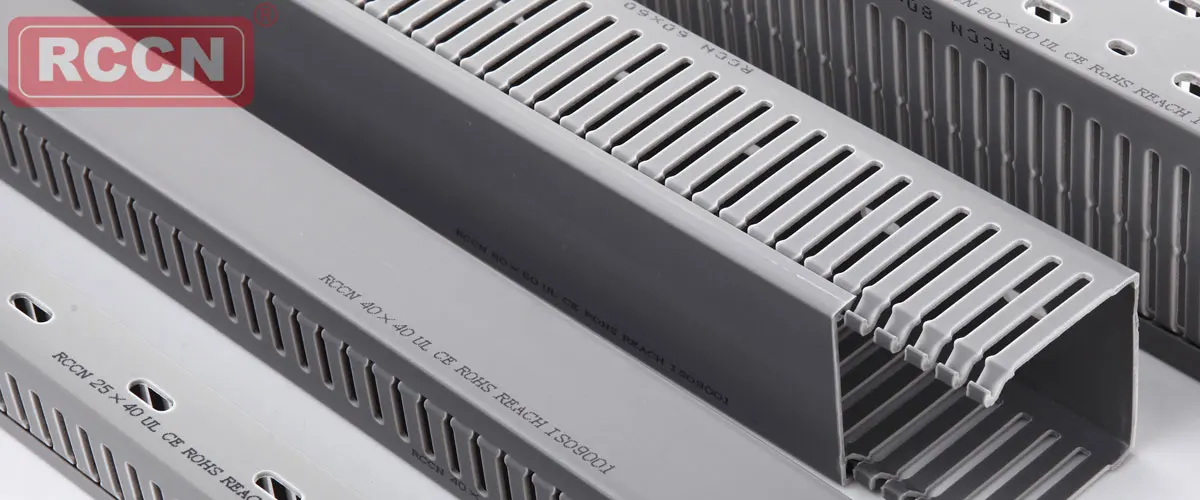

RCCN Wiring Duct HVDRF

4mm*6mm

Wide slot/finger design provides greater sidewall rigidity and canbe used with a wide range of wire bundle sizes.
Certificates:UL:E306674 CE:EN50085 RoHS,REACH.

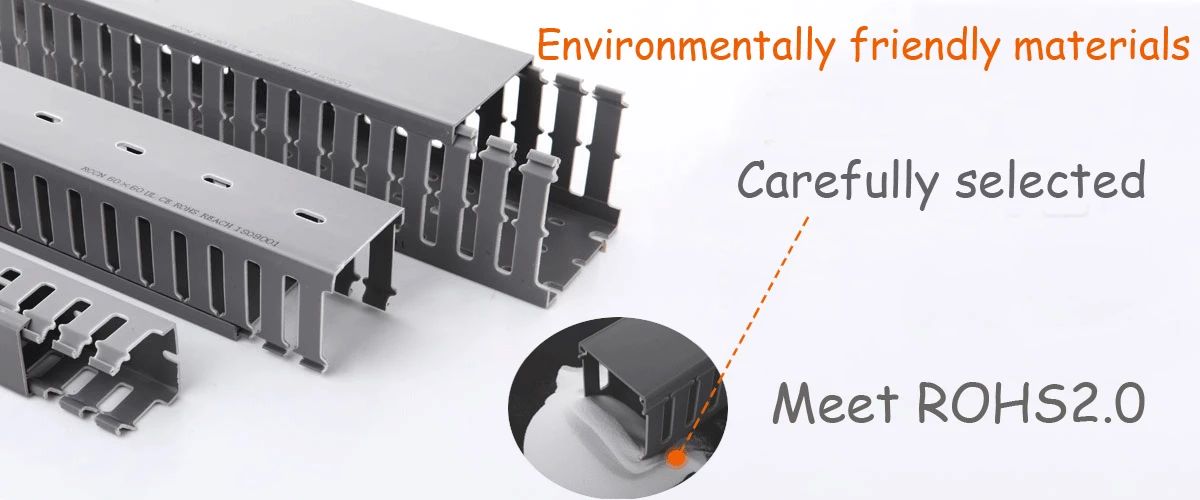

Made of rigid PVC
UL Recognized continuous use temperature: 50°C (122°F)
UL94 Flammability Rating of V-0

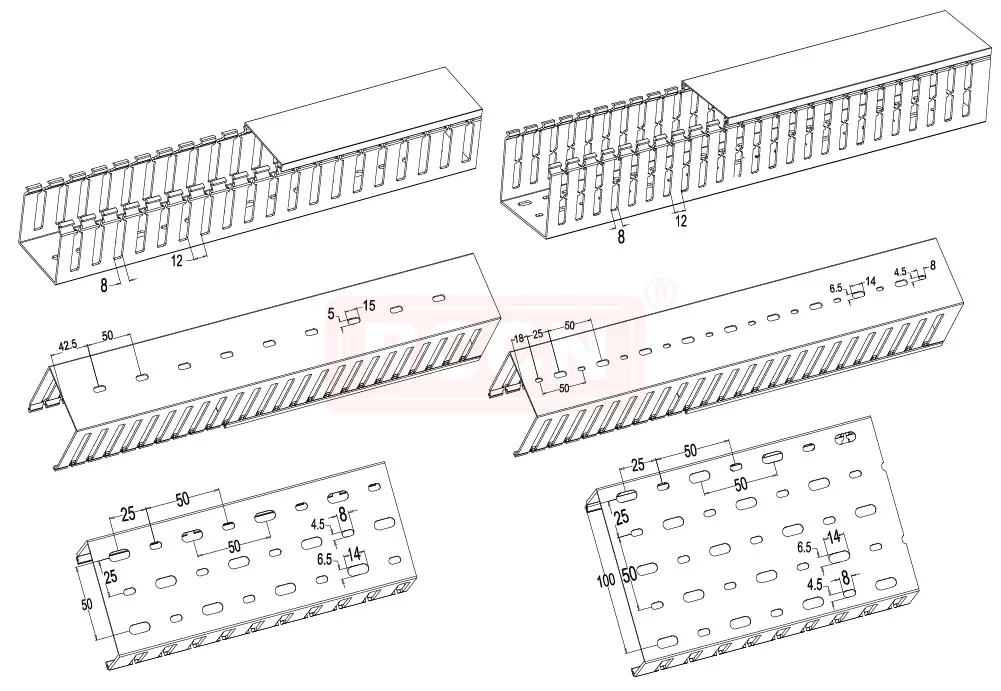

Provided with mounting holes

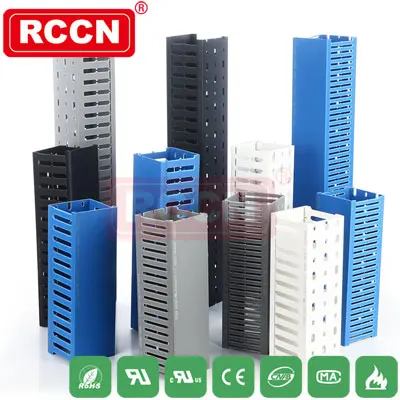

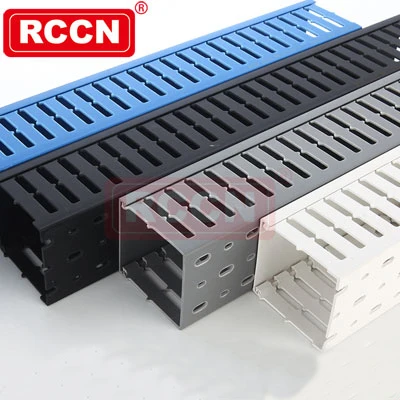

Available color:gray.white.blue.black and other special colors
Work Temperature:-40°C to 65°C
Special length come with MOQ request
Comment:gray is the common color, other color need more MOQ
Standard Length:2M/PCS

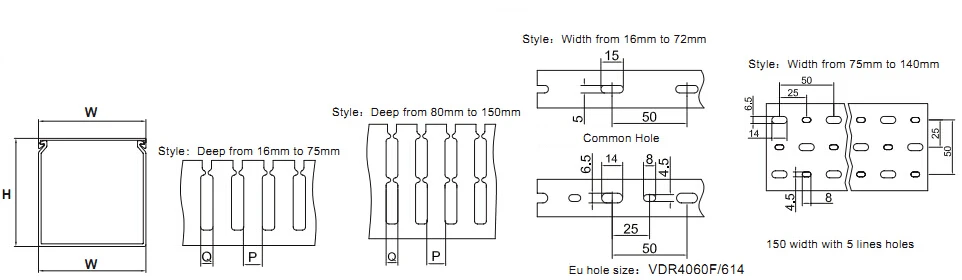

Item No.    4MM	W*H	Q	P	Wire  capability /2.0sp	Pack /M
Black
HVDR1616FB	16*16	5	5	3~10pcs	300M
HVDR2516FB	25*16	5	5	3~10pcs	100M
HVDR1520FB	15*20	4	6	8~12pcs	260M
HVDR2020FB	20*20	4	6	10~20pcs	240M
HVDR4020FB	40*20	4	6	12~28pcs	140M
HVDR1525FB	15*25	5	6	5~15pcs	260M
HVDR2025FB	20*20	4	6	5~15pcs	200M
HVDR2525FB	25*25	4	6	10~25pcs	200M
HVDR3025FB	30*25	4	6	12~28pcs	160M
HVDR4025FB	40*25	4	6	12~28pcs	100M
HVDR5025FB	50*25	4	6	20~30pcs	100M
HVDR1530FB	15*30	4	6	20~30pcs	180M
HVDR2030FB	20*30	4	6	20~30pcs	160M
HVDR2530FB	25*30	4	6	25~35pcs	160M
HVDR3030FB	30*30	4	6	25~35pcs	140M
HVDR4030FB	40*30	4	6	30~40pcs	100M
HVDR5030FB	50*30	4	6	35~45pcs	80M
HVDR6030FB	60*30	4	6	40~50pcs	60M
HVDR2233FB	22*33	5	6	30~45pcs	160M
HVDR3333FB	33*33	4	6	35~45pcs	160M
HVDR2035FB	20*35	4	6	30~40pcs	100M
HVDR3535FB	35*35	4	6	35~45pcs	112M
HVDR5035FB	50*35	4	6	40~60pcs	88M
HVDR2040FB	20*40	4	6	16~22pcs	110M
HVDR2540FB	25*40	4	6	20~25pcs	112M
HVDR3540FB	35*40	4	6	50~60pcs	100M
HVDR4040FB	40*40	4	6	60~70pcs	100M
HVDR6040FB	60*40	4	6	100~115pcs	68M
HVDR8040FB	80*40	4	6	120~135pcs	48M
HVDR10040FB	100*40	4	6	120~135pcs	32M
HVDR12040FB	120*40	4	6	140-155pcs	/
HVDR2545FB	25*45	4	6	20~25pcs	104M
HVDR3345FB	33*45	4	6	40~55pcs	108M
HVDR4545FB	45*45	4	6	60~70pcs	72M
HVDR6545FB	65*45	4	6	110~120pcs	56M
HVDR2050FB	20*50	4	6	18~28pcs	100M
HVDR2550FB	25*50	4	6	20~30pcs	100M
HVDR3050FB	30*50	4	6	25~40pcs	84M
HVDR3550FB	35*50	4	6	40~60pcs	80M
HVDR4050FB	40*50	4	6	60~70pcs	68M
HVDR4550FB	45*50	4	6	70~80pcs	60M
HVDR5050FB	50*50	4	6	80~90pcs	50M
HVDR5550FB	55*50	4	6	80~90pcs	48M
HVDR6050FB	60*50	4	6	100~120pcs	48M
HVDR7550FB	75*50	4	6	120~140pcs	40M
HVDR8050FB	80*50	4	6	160~180pcs	40M
HVDR10050FB	100*50	4	6	200~250pcs	26M
HVDR12555FB	125*55	4	6	220~270pcs	20M
HVDR2060FB	20*60	4	6	35~45pcs	100M
HVDR2560FB	25*60	4	6	40~50pcs	100M
HVDR3060FB	30*60	4	6	60~80pcs	80M
HVDR3560FB	35*60	4	6	90~105pcs	78M
HVDR4060FB	40*60	4	6	100~115pcs	60M
HVDR4560FB	45*60	4	6	110~125pcs	30M
HVDR5060FB	50*60	4	6	120~135pcs	60M
HVDR6060FB	60*60	4	6	120~135pcs	48M
HVDR8060FB	80*60	4	6	180~210pcs	36M
HVDR10060FB	100*60	4	6	240~290pcs	28M
HVDR11060FB	110*60	4	6	250~300pcs	48M
HVDR12060FB	120*60	4	6	260~320pcs	48M
HVDR15060FB	150*60	4	6	300~360pcs	16M
HVDR2565FB	25*65	4	6	40~50pcs	88M
HVDR3365FB	33*65	4	6	40~70pcs	80M
HVDR4565FB	45*65	4	6	110~120pcs	52M
HVDR6565FB	65*65	4	6	180~200pcs	44M
HVDR7265FB	72*65	4	6	180~230pcs	42M
HVDR2575FB	25*75	4	6	180-210pcs	/
HVDR3575FB	35*75	4	6	180-210pcs	/
HVDR5075FB	50*75	4	6	180~210pcs	42M
HVDR7575FB	75*75	4	6	200~240pcs	40M
HVDR10075FB	100*75	4	6	240~280pcs	24M
HVDR2580FB	25*80	4	6	100~120pcs	72M
HVDR3080FB	30*80	4	6	110~125pcs	56M
HVDR3580FB	35*80	4	6	110~130pcs	56M
HVDR4080FB	40*80	4	6	140~160pcs	48M
HVDR4580FB	45*80	4	6	140~160pcs	40M
HVDR5080FB	50*80	4	6	160~180pcs	40M
HVDR5580FB	55*80	4	6	160~180pcs	32M
HVDR6080FB	60*80	4	6	180~210pcs	32M
HVDR8080FB	80*80	4	6	240~290pcs	24M
HVDR10080FB	100*80	4	6	260~350pcs	24M
HVDR12080FB	120*80	4	6	280~380pcs	16M
HVDR14080FB	140*80	4	6	350~450pcs	16M
HVDR16080FB	160*80	4	6	50-550pcs	/
HVDR25100FB	25*100	4	6	110~160pcs	60M
HVDR33100FB	33*100	4	6	130~175pcs	44M
HVDR40100FB	40*100	4	6	130~175pcs	40M
HVDR50100FB	50*100	4	6	220~250pcs	40M
HVDR60100FB	60*100	4	6	240~290pcs	32M
HVDR70100FB	70*100	4	6	250~310pcs	24M
HVDR75100FB	75*100	4	6	260~350pcs	24M
HVDR80100FB	80*100	4	6	260~350pcs	24M
HVDR100100FB	100*100	4	6	300~400pcs	24M
HVDR120100FB	120*100	4	6	350~450pcs	16M
HVDR150100FB	150*100	4	6	400~650pcs	16M
HVDR150130FB	150*130	4	6	400~650pcs	16M
HVDR160100FB	160*100	4	6	500-750pcs	/
HVDR100130FB	100*130	4	6	350-450pcs	/
HVDR200100FB	200*100	4	6	600~800pcs	16M
HVDR200150FB	200*150	4	6	900-1200pcs	16M
HVDR200200FB	200*200	4	6	1200-1600pcs	16M
