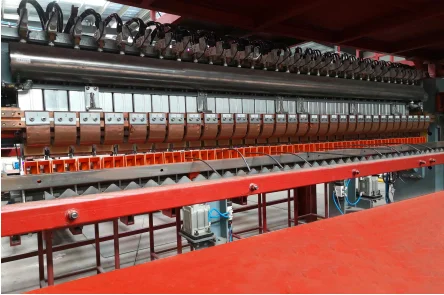

Concrete Reinforcing open hole Wire Mesh Panel Automatic Steel Roll Fence Welding Machine
- Category: >>>
- Supplier: SKZ INTELLIGENT EQUIPMENT CO. LTD
Share on (60770677105):
Product Overview
Description

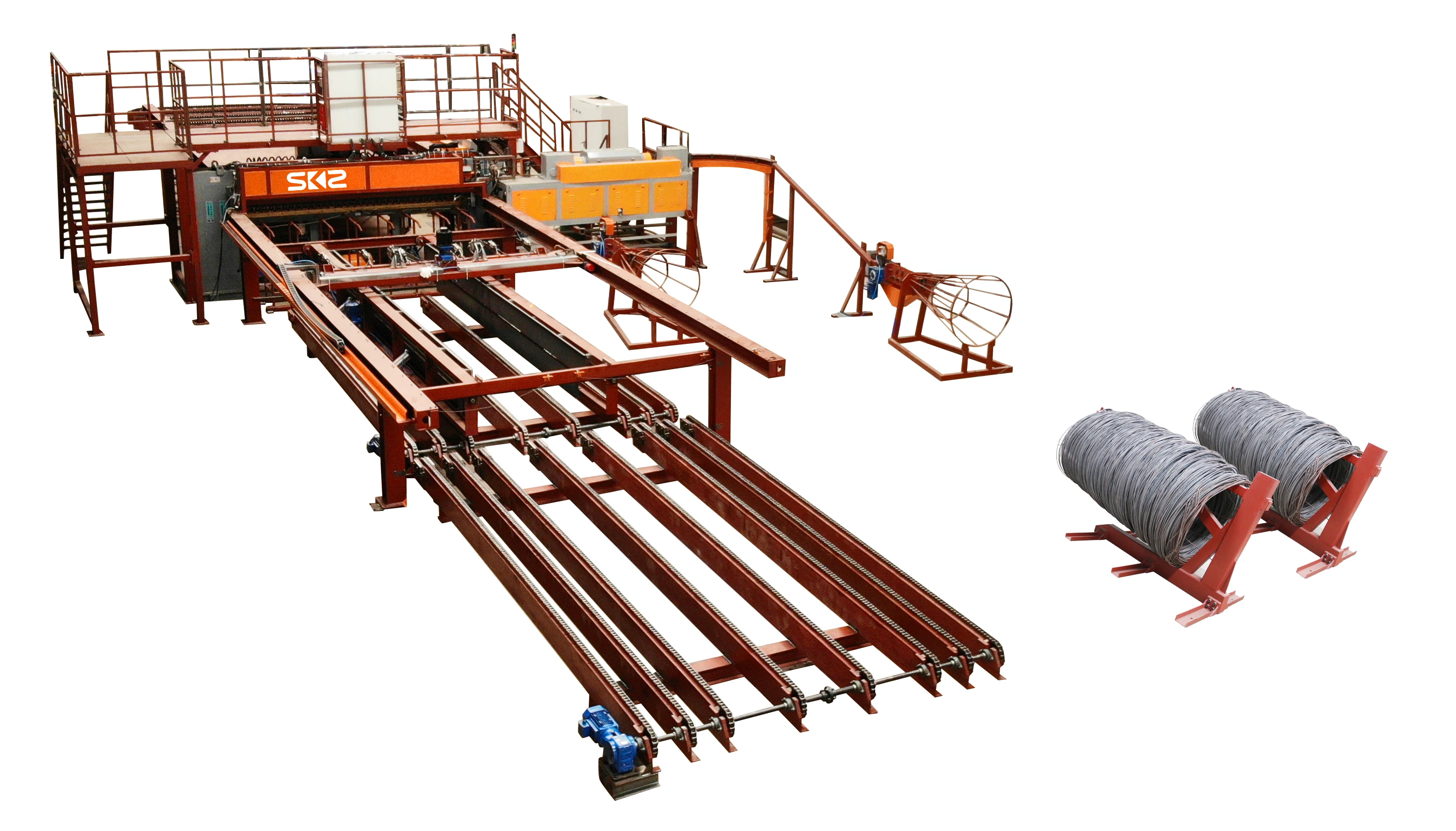

Concrete Reinforcing open hole Wire Mesh Panel Automatic Steel Roll Fence Welding Machine
Working specifications: | |
Material | Cross wire&line wire: High quality low carbon steel wire, cold-drawn steel wire, cold-rolled ribbed steel wire with clear surface and without rusting, lime drawing powder, water stain, scabbing |
Max. mesh width (cross wire length) | 3,300 [mm] |
Max. outmost line wire dimension | 3,100 [mm] |
Max. mesh length (line wire length) | in panel: 2-6 [m] |
Line wire spacing | ≥50 [mm],Multiplier of 50,programmable adjustable |
Cross wire spacing | ≥50 [mm], programmable adjustable |
Line wire diameter | Φ5 – Φ12 [mm] |
Cross wire diameter | Φ5– Φ12[mm] |
Max. welding capacity | Φ12 + Φ12[mm] |
Max. welding speed | 90 – 120 [strokes/min] (cross wire no°/min) |
Air consumption | ≥0.7Mpa, 3m3/min |
Electronic parts specifications: | |
Numbers of welding transformer | 2 |
Numbers of electrode | 64 |
Power supply voltage | 380 [V] – 50 [Hz] – 3 [Phase] |
Control voltage | DC24 [V] |
Welding machine installed power | 2*160 [KVA] |
Machine overall dimension | 29m(L) × 12m(W) × 3.75m(H) |
Main Machine weight | 35,000Kg |
Power mode | Pneumatic system+servo motor+PLC+touch screen |

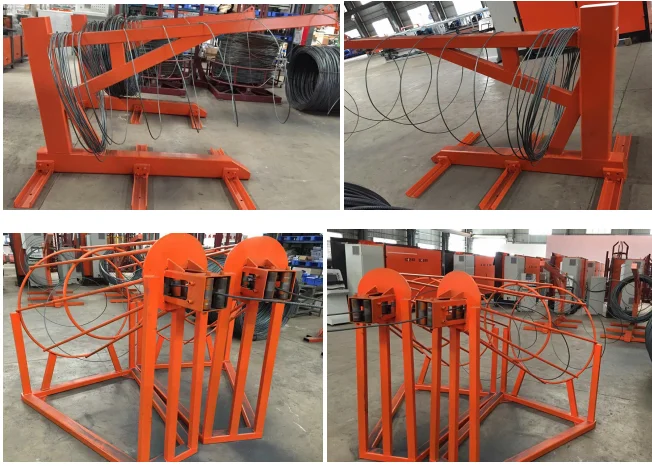

Wire payoff with guide funnel

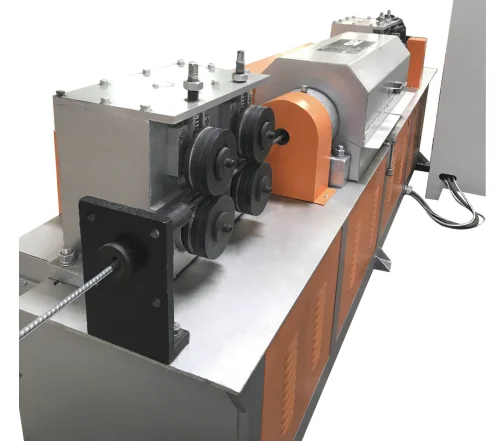

Line wire straightening&cutting unit
Related Products
Roller type steel sheet leveling flattening straightening machine
Square spiral bending machine KZ2L32X
CNC Hydraulic rebar shearing line for High-tensile reinforcing steel bar
Pre-sale Service
1. Supply item design, process design.
2. Help you choose a proper machine.
3. Making the machine according to your requirement.
Sale Service
1. Acceptance equipment together with you.
2.Help you to make the method statement and the details of process.
After-sales Service
1. Guarantee for a year.
2. Quality problem, we will send you the accessories.
3. Free repair whole using life (without the freight and accessories charge)
4.SKZ has a professional and international experienced after service team. They all have more than 5 years’ experience and most of them have experience of oversea technical support.
