Product Overview

Description


Product Description

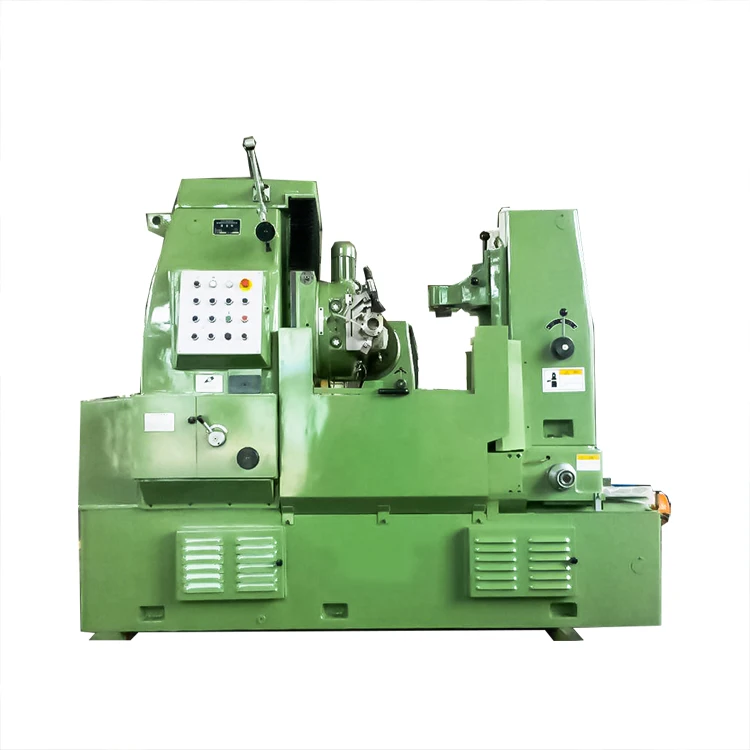

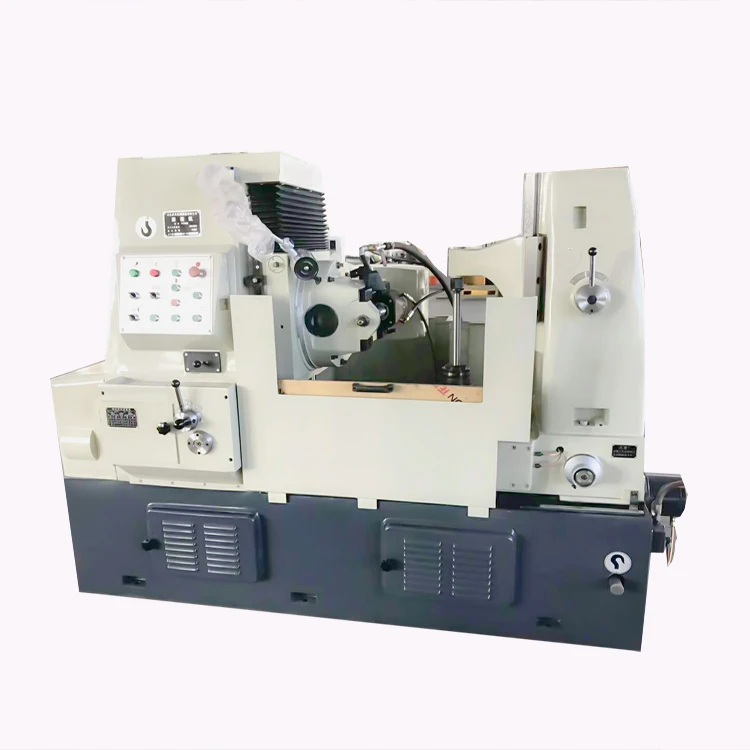

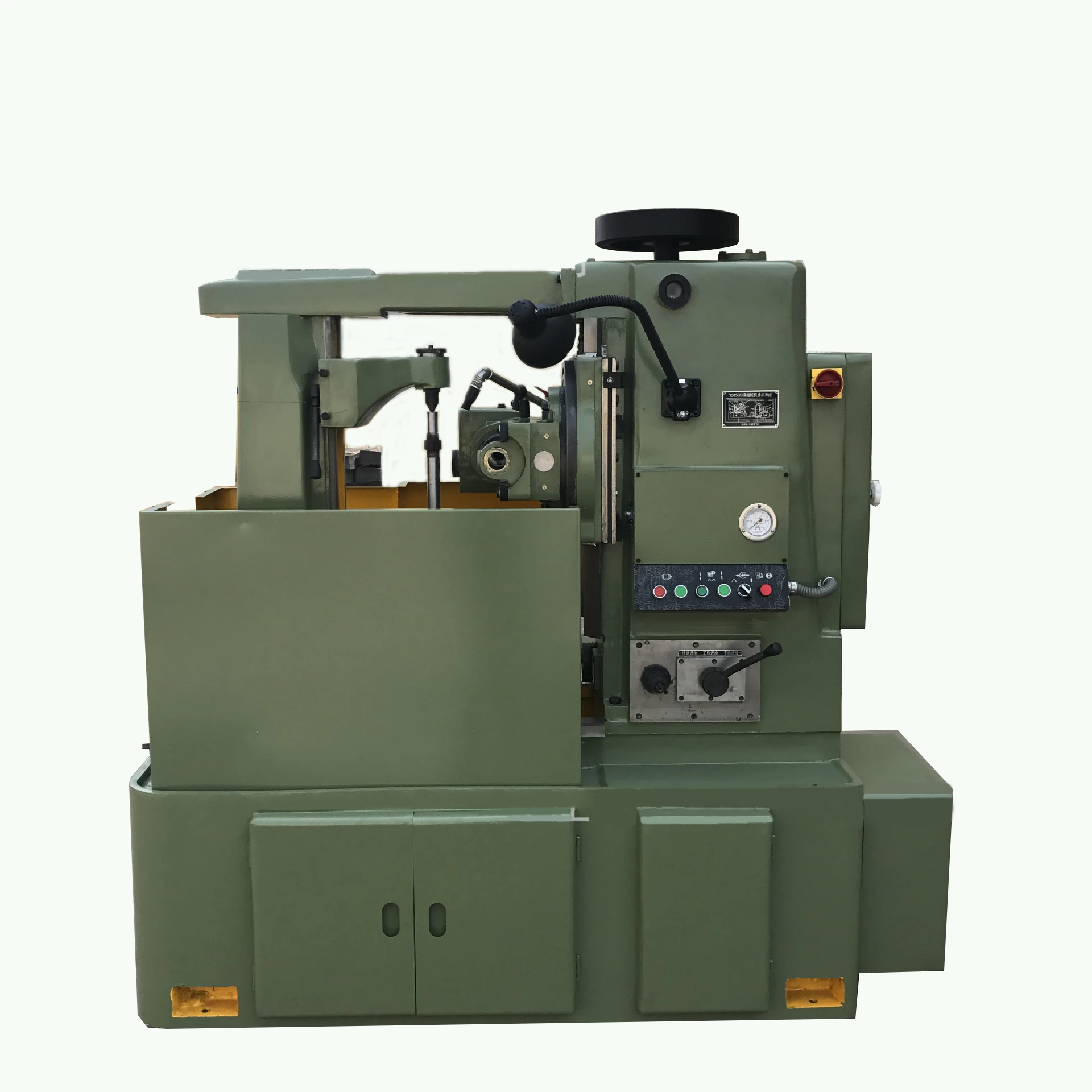

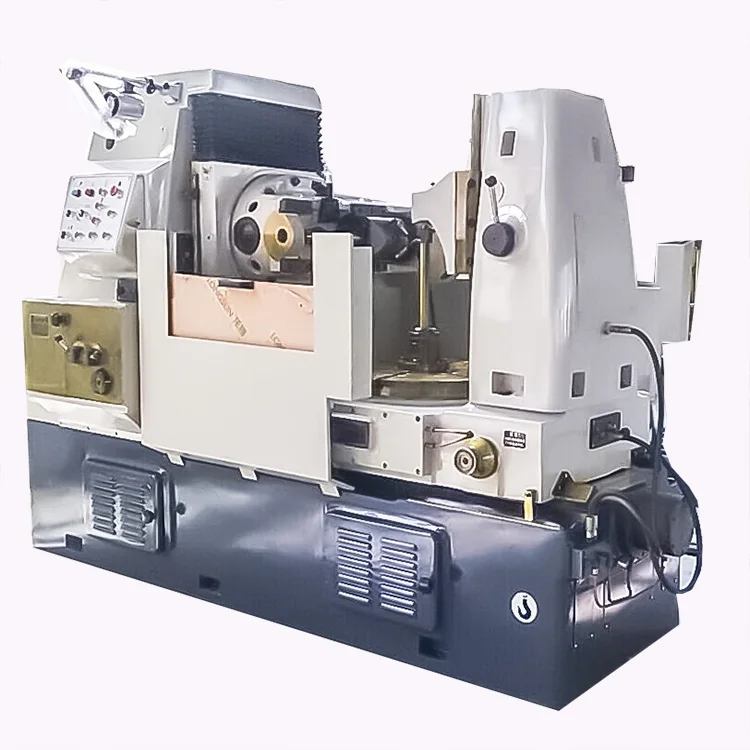

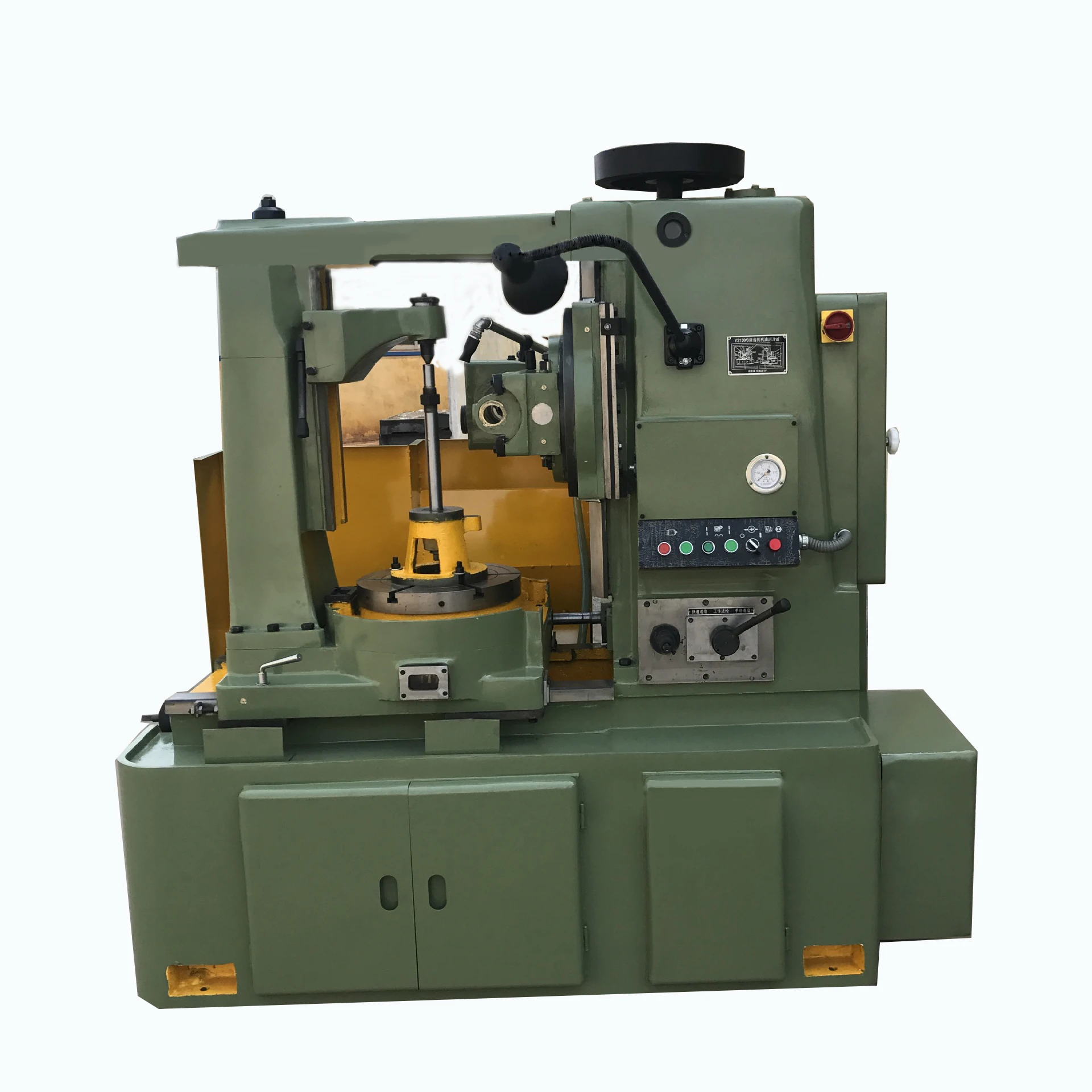

high quality gear hobbing machine Y3180HY3150E
Detailed Images
Size Information
MODEL
Y3180H
Y3150E
Max workpiece diameter
with rear column 550mm
550mm
without rear column800mm
Max hobbing modulus
10mm
8mm
Max Processing Width
300mm
250mm
Min processing gear
Z/K=8
Z/K=6
Max vertical travel of tool post
350mm
300mm
max swiver angel of tool post
240°
240°
Distance between cutter axis and worktable
MAX585mm
MAX535mm
MIN235mm
MIN235mm
Spindle taper
Morse 5
Morse 5
Hob diameter
Max diameter 180mm
Max diameter 160mm
Min length 180mm
Min length 160mm
Max axial movement of cutter
50mm
55mm
Hob abor diameters
Φ22 Φ27 Φ32 Φ40mm
Φ22,Φ27,Φ32mm
Distance between hob axis center and worktable
MAX 550mm
MAX 330mm
MIN 50mm
MIN 30mm
Distance of hydraulic worktable Rapid moving
50mm
50mm
Worktable aperture
80mm
80mm
Taper bore of workpiece mandrel
Morse 5
Morse 5
Worktable diameter
650mm
520mm
Spindle rotate speed and range
8LEVEL40~200r/min
9LEVEL40~250r/min
Rapid travel speed of tool post slide
≤540mm/min
≤540mm/min
Worktable rapid moving speed
≤500mm/min
≤500mm/min
Distance between worktable and outer support of axis face
MIN400mm
MIN400mm
MAX600mm
MAX600mm
Axial feed rate and degree
12LEVEL 0.4-4mm/r
12LEVEL 0.4-4mm/r
main motor power and synchro-speed
N=5.5kw, 1500r/min
4kw 1500r/min
Axial rapid motor power and synchro-speed
N=1.1KW 1500r/min
1.1kw 1500r/min
Worktable rapid motor power and synchro-speed
N=0.55KW 1500r/min
0.55kw 1500r/min
Hydraulic oil pump power and synchro-speed
N=1.1kw, 910r/min
1.1kw 1000r/min
Machine weight
5500kg
4500kg
Overall dimension
2752x1490x1870mm
2440x1370x1800mm
FAQ
Q1.How to send my enquiry?
You can contact us by email, phone call, message (Whats APP, We Chat, Skype).
Q2.How long can I get feedback after enquiry?
We will reply you within 3 hours in working day.
Q3.Delivery time
Machines order takes 30 days after deposit payment received. Please inquiry sales.
Q4.What is the package? Is it suitable for shipment?
Machine is by waterproof cloth to covered. And be packed by standard exported wooden case with steel foot. It is very much strong
for oversea transportation.
Q5.Payment term
30% T/T as down payment, balance 70% by T/T before delivery. If others payment terms, we can discuss the details. Welcome to
inquiry sales.
Q6.How long is the warranty for machines?
Machines warranty is 12 months after receive goods. in Warranty time,we can provide new free parts for changing.
Q7.Can you engineer come to our place to help with machine installation & commission?
Yes, our engineers are available to travel to your place. Round flight tickets & accommodation will be at your cost.
