Factory supply attractive price 200 l solar water heater
Compactg non pressure solar water heater relies on the nature circulation of the water between solar tubes
and the water tank. Thermosyphon systems work on principal of heat rising. The water enters in the bottom
of the collector and rises to the tank as it warms. The advantage of this system is that solar heat is stored
in a well-insulated tank, so hot water can be used at any time without the penalty of overnight losses.
Moreover the insulation of the tank can protect heat during 3 days without heat loss.
Descripition
Compact non solar water heater Galvanized steel
Material of out tank
Galvanized steel 0.4mm

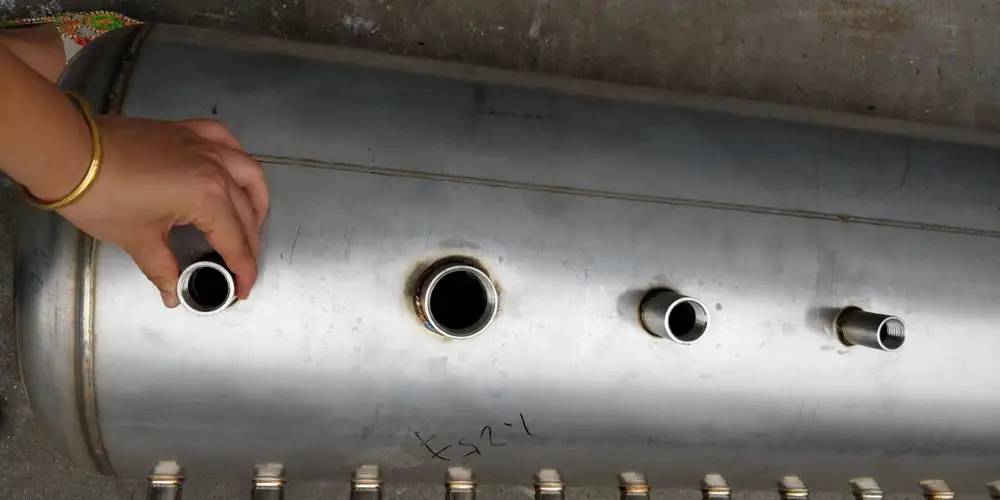

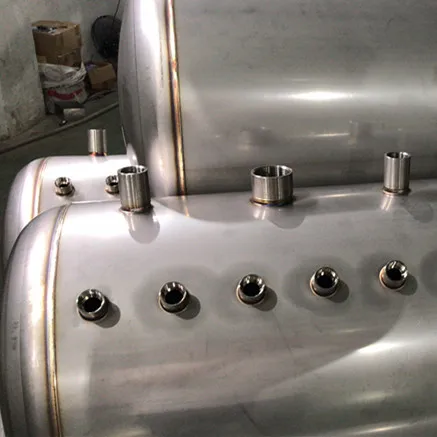

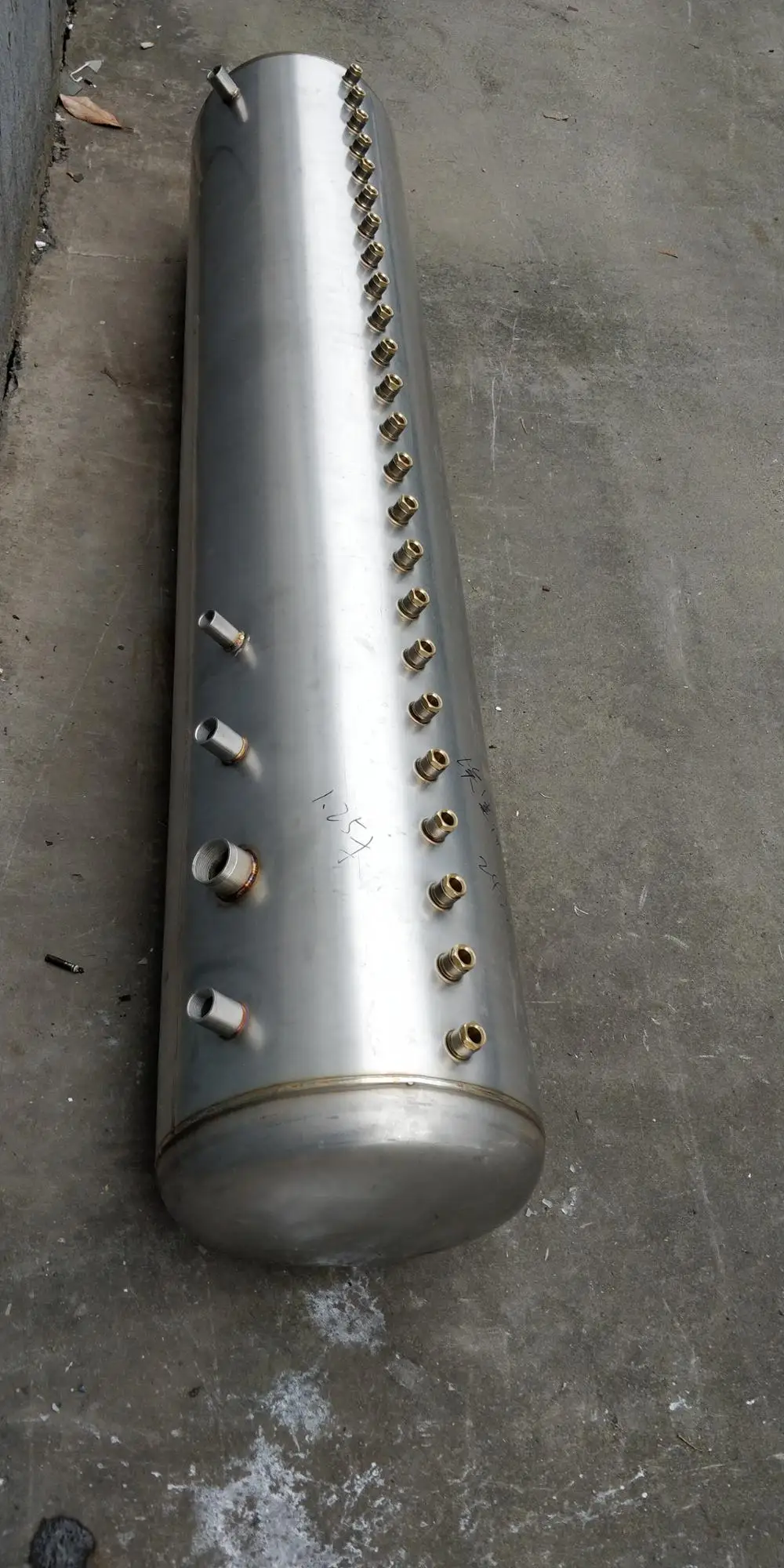

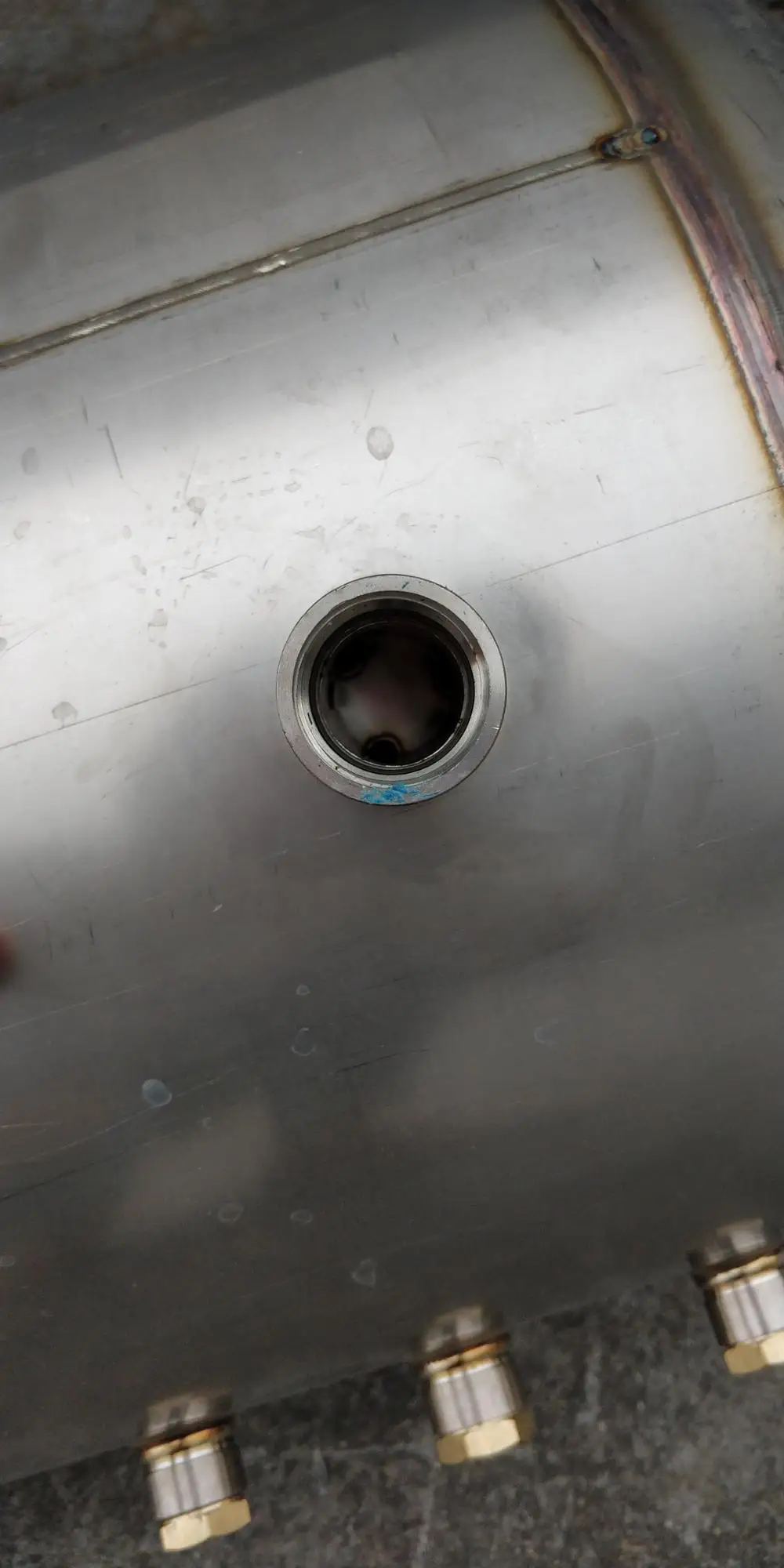

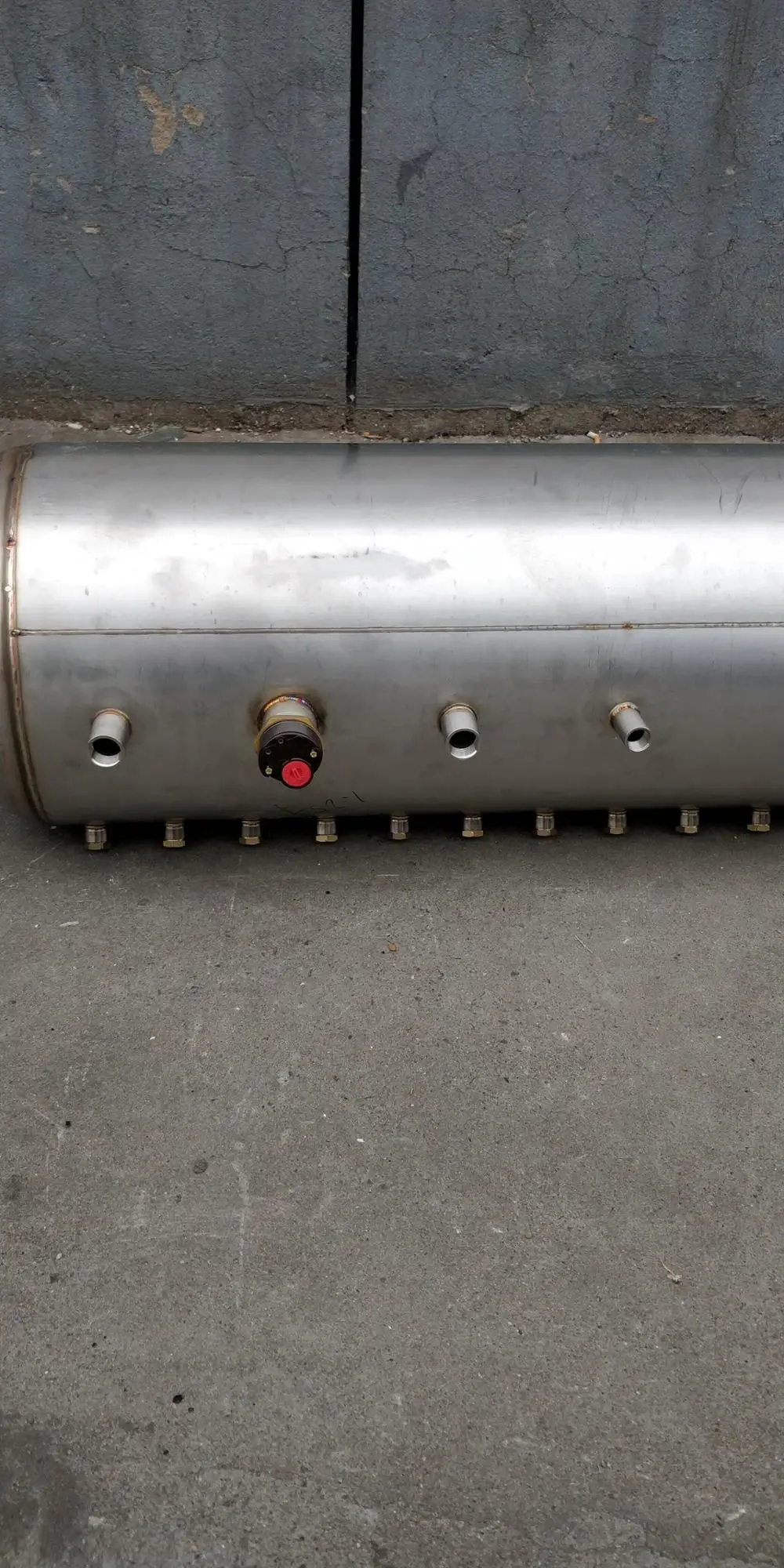

Material of inner tank
0.31-0.5mm thickness SUS304 stainless steel
Tank insulating layer
55mm 45kg/m³ high-density polyurethane foamed
Inlet and outlet hole
Male G 1/2, 3/4
Max pressure
0.05 Mpa
Solar collector tube
3.3 Borosilicate glass with Cu-SS-ALN/ANL. coating
Thickness of glass tube
1.6mm
Vacuum tube tightness
P≤0.005 Pa
Absorption
AS=0.93-0.96(AM1.5)
Emission ratio
εh=0.04-0.06(80C±5C)
Idle sunning
property parameters
Y=220~260m2.C/KW
Average heat
loss coefficient
ULT=0.6~0.7W/(m2.C)
Bracket:
1.4mm thickness Galvanized steel with paint
Structure of tank:
5 holes for air vent,overflow,water inlet and outlet,electric heater
Welding:
Argon arc welding
Fastening pieces:
Made of stainless steel screw
Tube quantity
18 tube 58x1,800mm
Tank capacity
180L
Afford for house
3-4persons
1.Features: (1). Cheap and reliable solution, Simple structures, Easy installation. (2). High efficiency of heating,water heated by sun light directly. (3). Withstands water pressure no more than 0.1MPa. (4). Operated without any power supplying. (5). Electric heater can be used as back-up in rainy days. (6). Hot water can be used directly, or can be used as a pre-heated. (7). Water flow in the vacuum tubes and is operated when confined. (8). Tank is equipped with electric water heater setting, automatic temperature controller(optional ). (9). the insulating layer uses polyurethane bulk bubble,keep hot water 72 hours.
2.How to choose: Choose the item according to the capacity, and choose the capacity according to the people quantity in your family, one adult shower need about 50 L water. Normally,50 liters is only used for one person's shower.
