YDA Horizontal cylindrical pressure steam sterilizer
- Category: Sterilization Equipments >>>
- Supplier: Nanjing Foinoe Co. Ltd.
Share on (60770781582):
Product Overview
Description

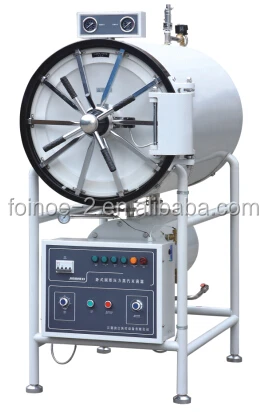

YDA Horizontal cylindrical pressure steam sterilizer
Characteristics:
Automatic control of sterilization process without supervision, easy to apply
With drying function, to achieve sterilization drying effect
With over-temperature,over-pressure auto-protect device
Door safety lock system:when the door is not closed well, the steam can not enter the inner layer of the main body and alarm. The pressure in the sterilization Chamber is greater than 0.027MPa, the door was locked, can't open the door
Overpressure protection:when the pressure exceeds the working pressure ,the safety valve would reduce the pressure automatically
Low water protection devices:when the water does not reach the high level,the sterilizer will not start.Low water level will cut off the power to protect.
Over current protection:When current overload, the power supply circuit breaker will automatically cut off the power supply
Fully stainless steel structure
Technical data
MODEL TECHNICAL DATA | WS-150YDA | WS-200YDA | WS-280YDA | WS-400YDA | WS-500YDA |
Sterilizing chamber volume | 150L φ440×1000mm | 200L φ515×1000mm | 280L φ600×1000mm | 400L Φ700×1100mm | 500L Φ700×1300mm |
Working pressure | 0.22 MPa | ||||
Working temperature | 134℃ | ||||
Adjustment of temperature | 40℃ - 134℃ | ||||
Time of sterilization | 0-60 min | ||||
Time of drying | 0-60 min | ||||
Heat average | ≤± 2℃ | ||||
Power | 9KW/380V 50Hz | 9KW/380V 50Hz | 12KW/380V 50Hz | 18KW/380V 50Hz | 18KW/380V 50Hz |
Overall dimension(mm) | 1400×600×1300 | 1400×670×1650 | 1400×770×1780 | 1430×880×1830 | 1800×900×1820 |
Transport dimension(mm) | 1550×750×1850 | 1560×820×1850 | 1680×920×2100 | 1600×1050×2100 | 1850×1050×2100 |
G. W/N.W | 320/240 KG | 350/260 KG | 465/365 KG | 530/420 KG | 580/470 KG |
Packaging & Shipping
Our Services
OUR SERVICE :
1. High quality with competitive price.
2. Small quantity orders are also acceptance.
3. We also provide OEM and ODM services.
4. Strictly control system and test methods to guarantee product’s quality.
5. Skilled workers, professional technical personnel and first-rate equipments.

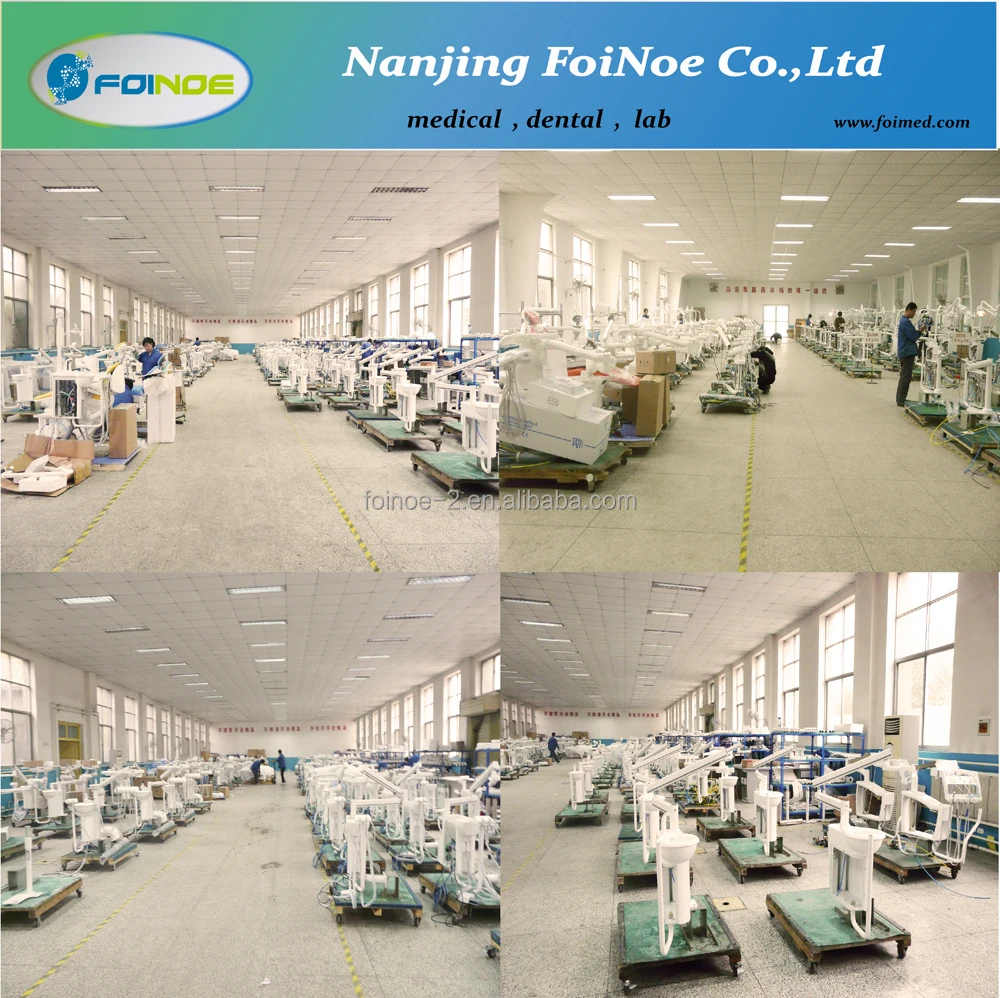

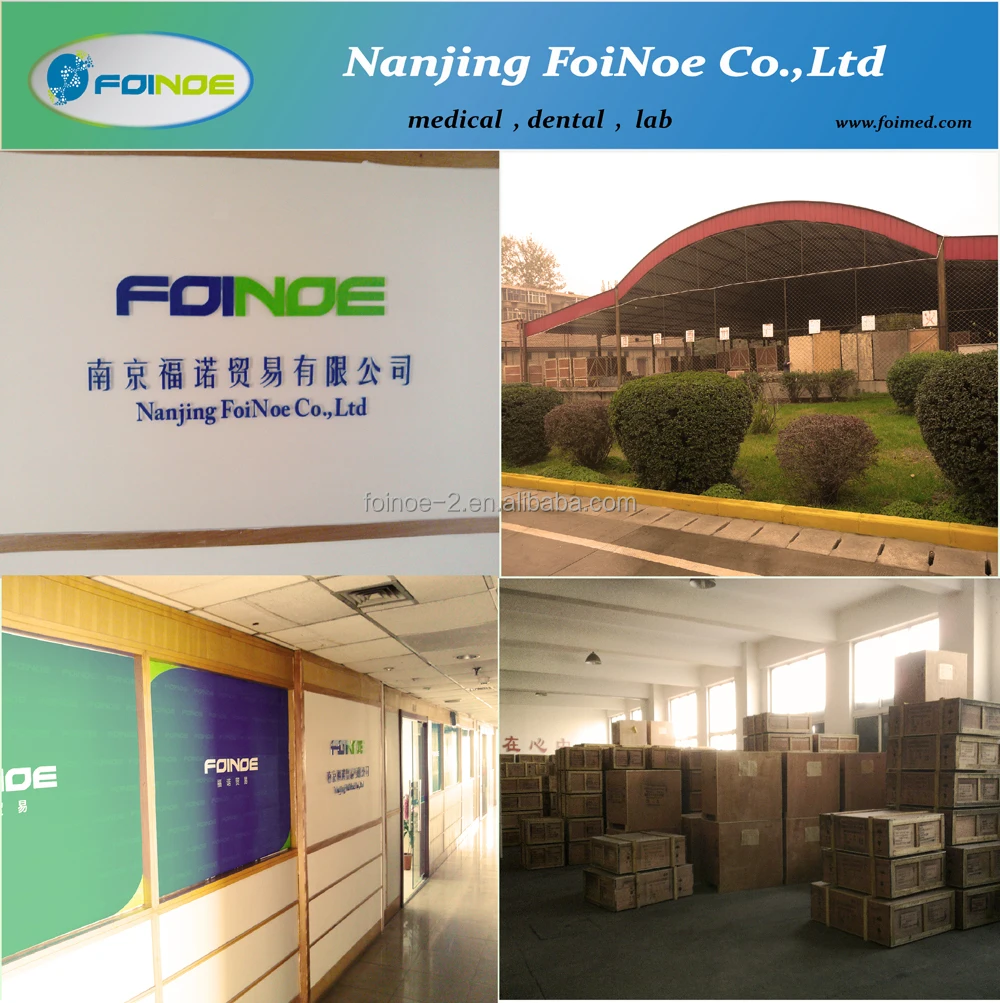

Company Information
Nanjing Foinoe Co., Ltd. is a specialized supplier of medical, dental, and biochemistry lab products. Our number one priority is customer satisfaction and we achieve this through professional customer support and quality products. Our knowledge and experience in the health care market ensures that we provide our customers with exceptional service.
Most of our products have CE certifications, and we guarantee your satisfaction by our product lines.
Our goal is to achieve long-term cooperation. This is accomplished through not only quality products, but also striving to provide the best price to our customers.
Contact Info:
We sincerely welcome You to visit our factory and we are looking forward the cooperation with You in the very near future!
