Unmanned Aerial Vehicle (UAV) 8 layers hdi pcb board design services
- Category: HDI PCB >>>
- Supplier: Shenzhen Anlida Electronics Technology Co. Ltd. [Guangdong China]Shenzhen
Share on (60770782481):
Product Overview
Description
Product Description
Unmanned Aerial Vehicle (UAV) 8 layers hdi pcb board design services

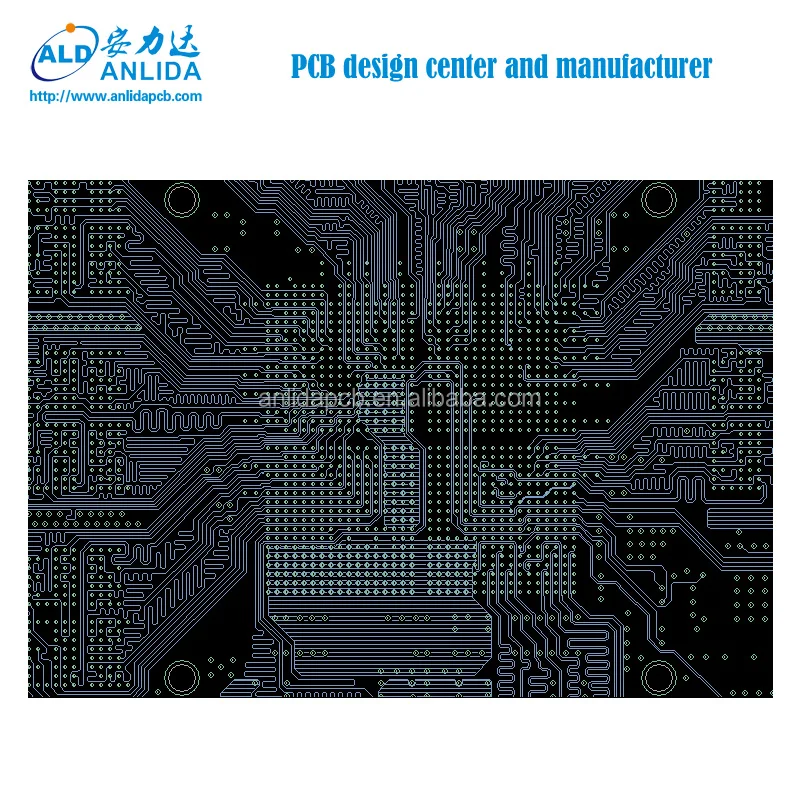

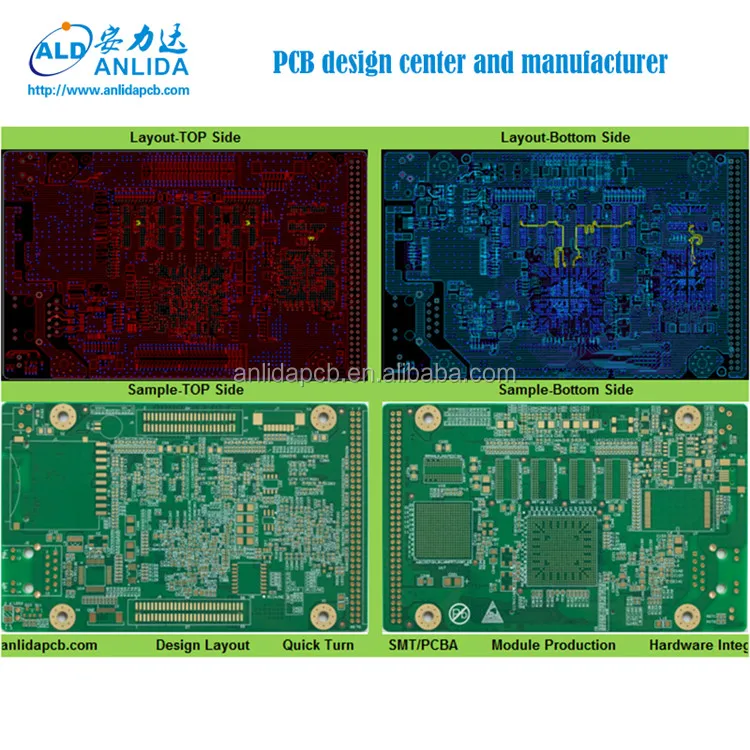

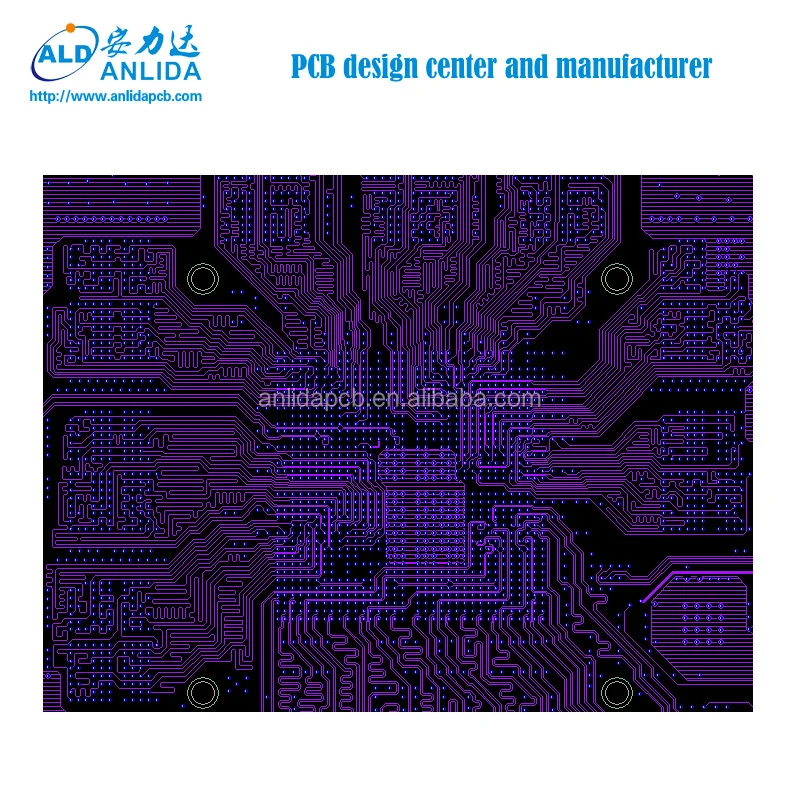

Design show:

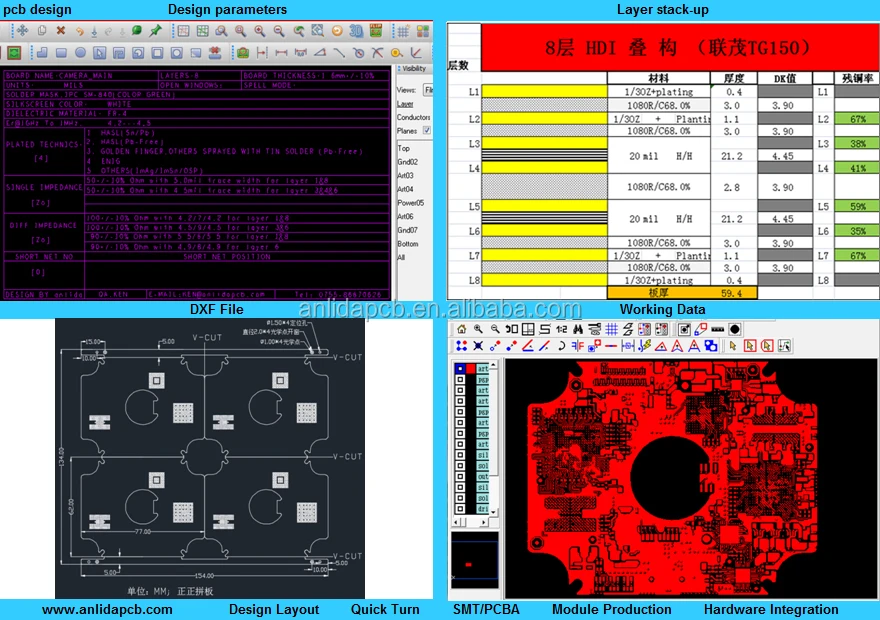

Design-parameters:
Design Delivery Time:
Design completed:
| Design completed data | |||||
| PCB Layout File | YES | Manufacturing File | YES | DXF File | YES |
| PAST File | YES | Silk File | YES | XY coordinates File | YES |
Mail Content Display :
Attached you can find the fabrication files for the ABCD single board, all the fabrication and assembly process as per the following files.The design files shall be deleted within 3 days after fabrication,so please back up the files,thank you !
--ABCD_PCB.ZIP → the pcb design files(.brd,.pcb)
--ABCD_CAM.ZIP → the file for pcb manufacturing
--ABCD_ASM.ZIP → the assembly files for pcb welding
--ABCD_SMD.ZIP → the SMT files for the SMT manufacturing
--ABCD_DXF.ZIP → the structure files for comfirming structure
--ABCD_SILK.ZIP → the silkscreen files for reference use of the assembly factory
Any questions ,please contact me ,thank you !
Hope we have a nice cooperation!
flow diagram:
