T8 LED Driver Cheap Price LED Tube Driver 220mA 9 20W

Product Overview

Description

T8 LED Driver Cheap Price LED Tube Driver 220mA 9-20W



MODEL		HG-T819-220
OUTPUT	DC VOLTAGE	80V
	CONSTANT CURRENT REGION	220-240mA
	RATED CURRENT	220mA
	RATED POWER	18W
	RIPPLE & NOISE(Max.)	9.6Vp-p
	VOLTAGE ADJ.RANGE	DC36-84V
INPUT	VOLTAGE RANGE	AC100-260V
	FREQUENCY RANGE	50/60Hz
	POWER FACTOR(Typ.)	0.97
	TOTAL HARMONIC DISTORTION(THD)	<20%
	EFFICIENCY(Typ.)	92.2%
	AC CURRENT	<0.1A
PROTECTION	SHORT CIRCUIT	Hiccup mode, recovers automatically after fault condition is removed.
	OVER LOAD	Protection type: Shut down o/p voltage, re-power on to recover
Function	Dimmable Function	Non
EMC	EMC EMISSION	Compliance to EN55015

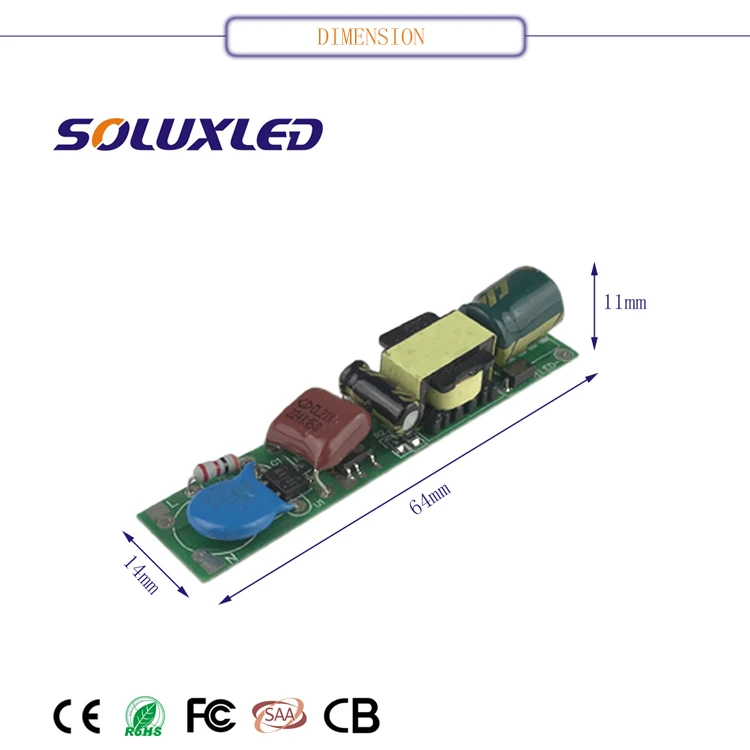

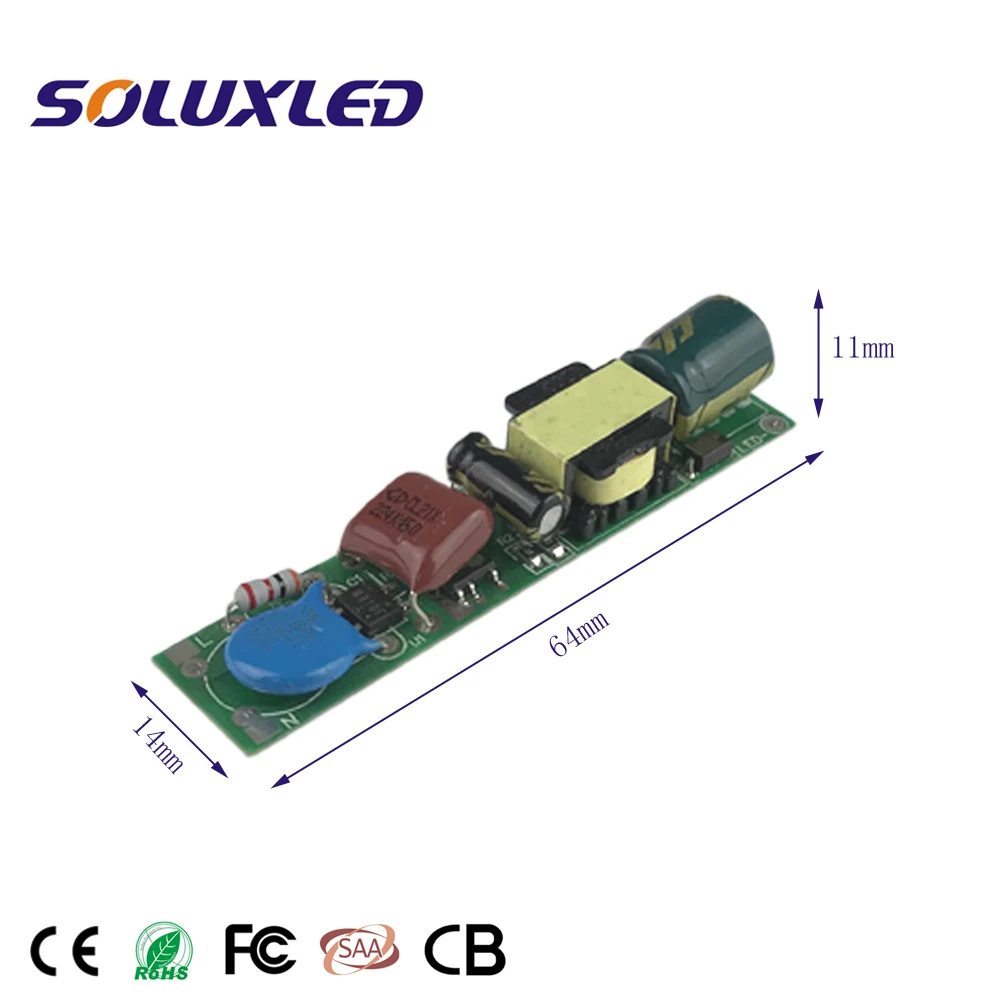

OTHERS	DIMENSION	L64*W14*H11mm
	PACKING	9.5g
	WORKING TEMP.	-30~+70℃
	WORKING HUMIDITY	20~95% RH non-condensing
