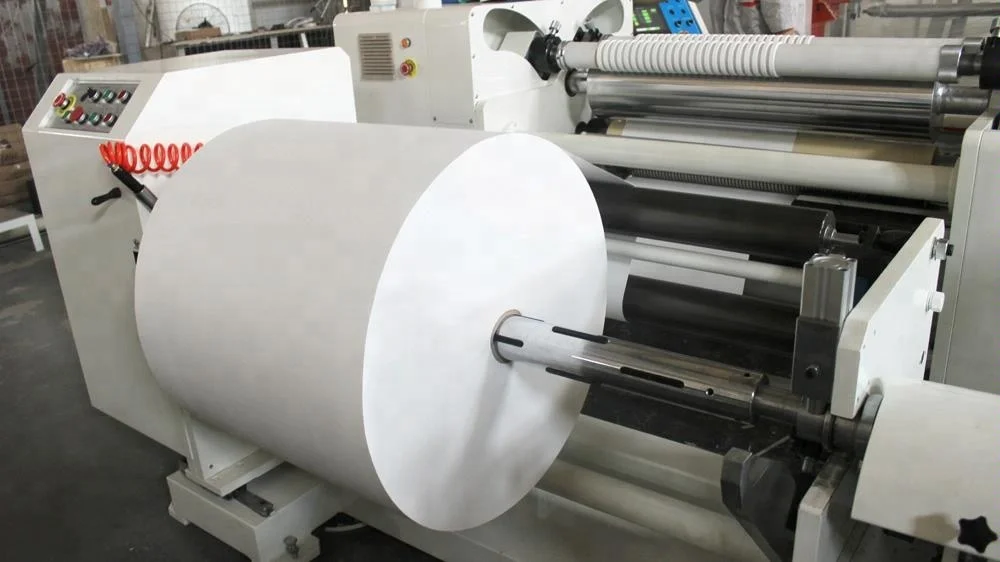

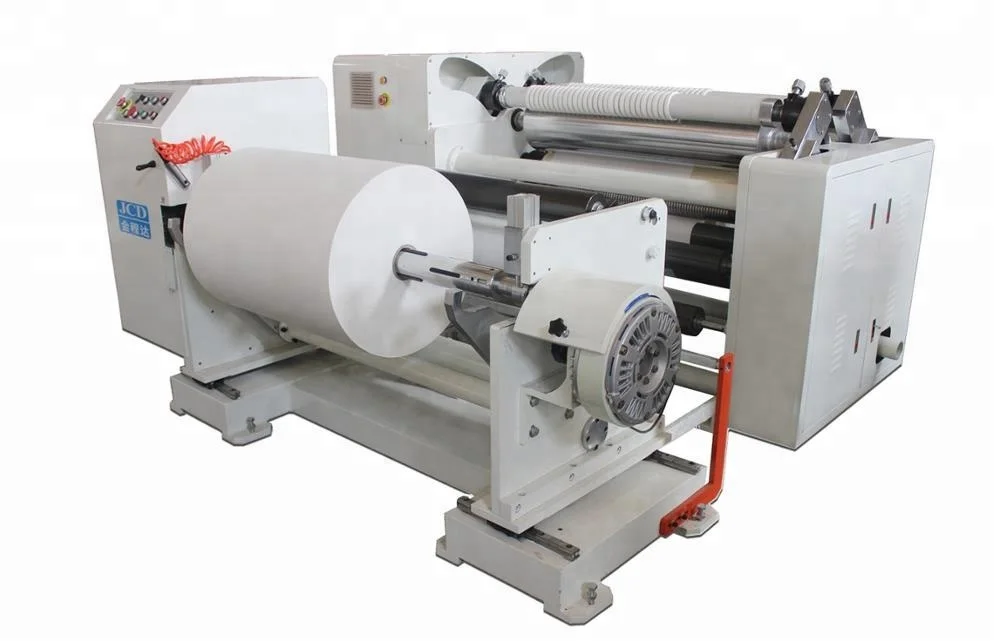

Servo motor control automatic jumbo roll paper slitting machine

Product Overview

Description





• Name:

    Servo motor control automatic jumbo roll paper slitting machine.



• Function:

        This machine is suitable for slitting rewinding paper, film, adhesive tape.

        Such as BOPP, PE, PET, masking tape, double sided tape, self adhesive material, release paper, etc.

• Features :





































  1	Independent feeding shelf (Hydraulic lifter for optional).
  2	Both the unwind and rewind shafts equiped as air shafts.
  3	Setting two stages length counter to control the rewinding length, the first stage to reduce the  speed, the second stage to make the machine stopping steady to get accurately length.
  4	Tension control system with the digital dispaly system.
  5	Slitting:  round knife or straight knife for optional.
  6	Automatic EPC Device the unwinding the jumbo rolls.
  7	Special design for avert scuffing, makes the  finished product avoid scraping.To reduce the waste.
  8	Double rewinding shafts controlled by 2 servo motors, to make the rewind more properly.






• Main technical parameters :



Machine width	650~1600 mm
Max. Unwid. diameter	800 mm
Max. Rewind diameter	450mm
Min. slitting width	5 mm
I.D of paper core	3 ''/ 6''
Cutting tolerance	±0.1 mm
Speed	0-180 m/min
Voltage	3 phase 380V/50HZ (As required)

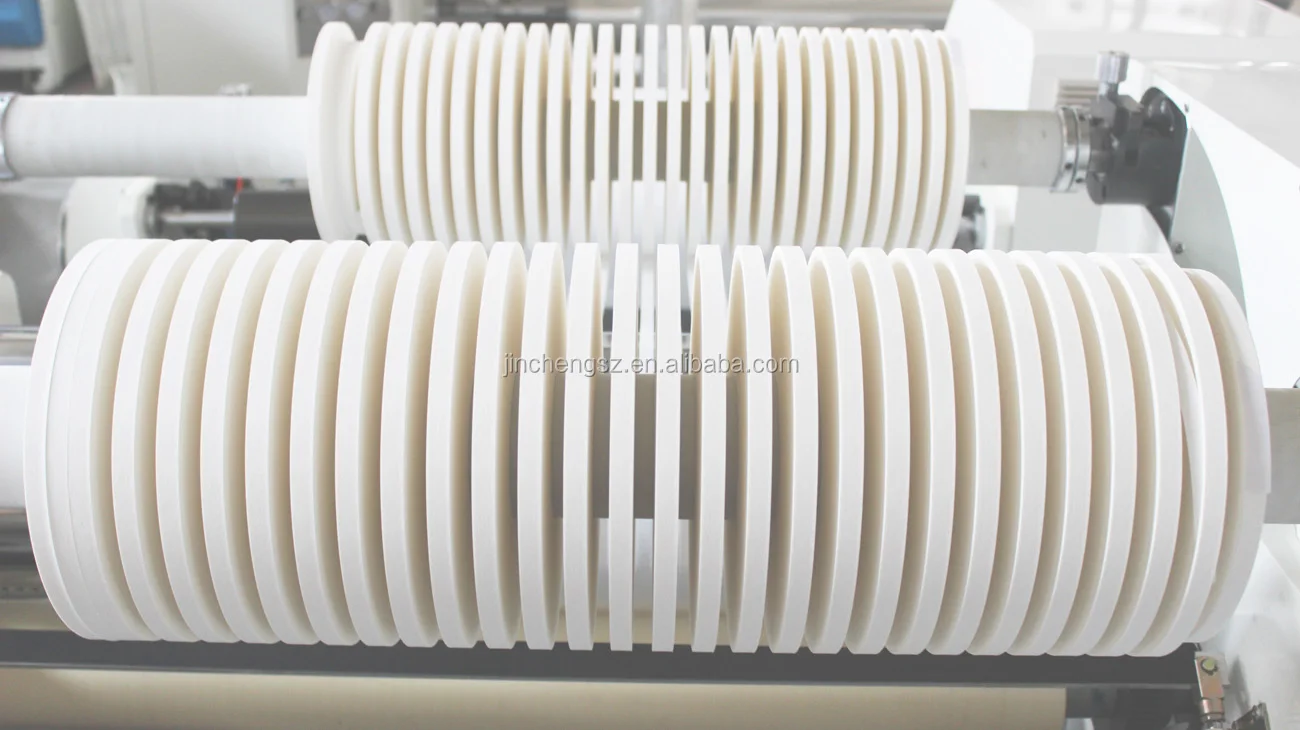

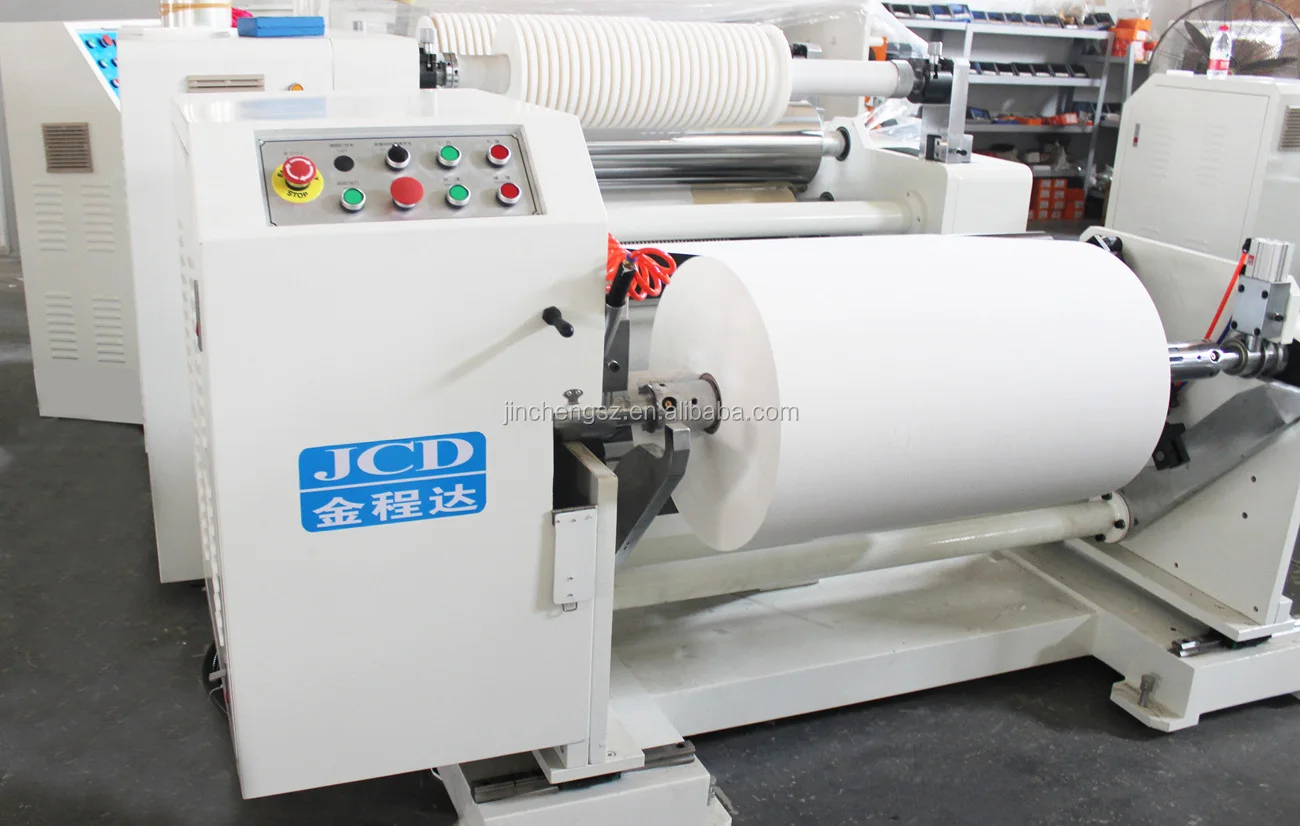

• MORE PHOTOS:
