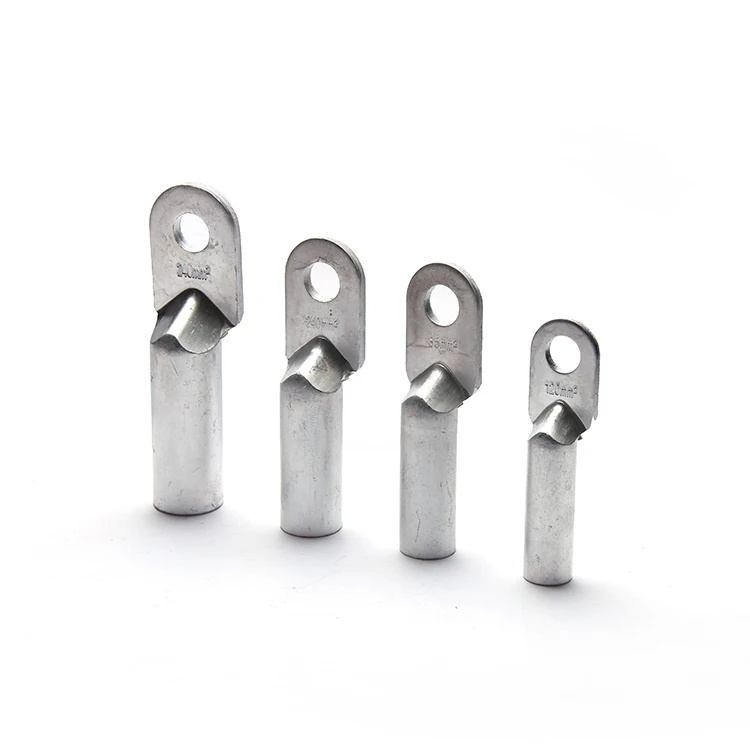

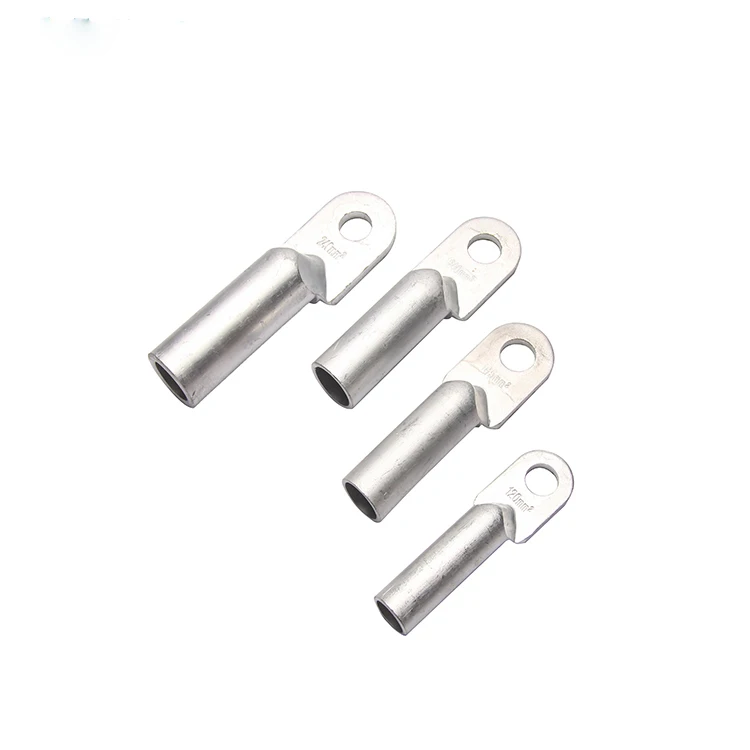

Wire Connecting aluminum cable compression lug

Wire Connecting aluminum cable compression lug

compression lug

 aluminum cable lug

 aluminum cable lug

•













  Specification











  Terminal connectors are used to connect tap conductor to power equipments(transformer,circuit breaker,disconnect switch.etc)or to wall bushing of substation.Aluminum connectors are also used to connect the tap conductor of T-connector.The connectors include compressive-type and bolted,both types have angle of 0°,30°and 90°with the direction of tap conductor.

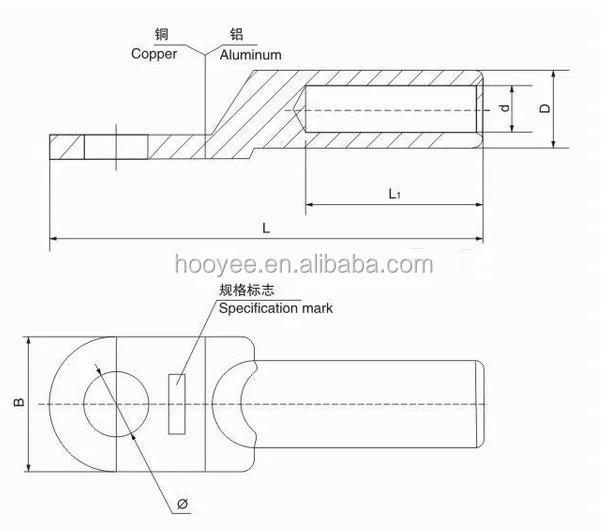

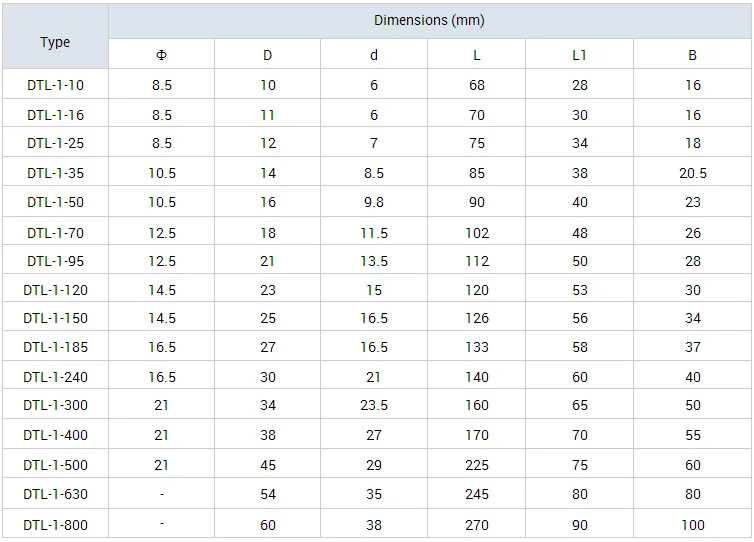

  DTL series Al-Cu connection terminal is suitable for transition joint of distribution device aluminum core cable and electric equipment.DL aluminum is used for aluminum terminal linking of aluminum core cable and electric equipment.DT copper terminal is used for copper terminal electric equipment.DT copper terminal is used copper terminal linking of copper core cable and electric equipment,The products adopt friction welding workmanship,It has advantage of good electric conductance,electrochemlcal corrosion resistance,long service life.

  (1) Cable lugs are suitable for the connection of copper conductors (section l.5-1000mm2) in power cable
  (2) With electronic equipment
  (3) Material: Copper T2 and Aluminum L3
  (4) Working temperature of -55 to +150 Celsius


































Lead time:

We have a lot of stock ,If not very big quantity, we can send the goods as soon as possible after recieve payment.If big quanity, the lead time need according to the quantity.

Shipping term:

If small quantity, usually send by courier (DHL,FEDEX,TNT and so on) . If big quantity, we advice ship by air or by sea. this will use longer time ,but cheaper fees. We are near NINGBO and SHANGHAI port.

Our service:

We can offer free Cable tie sample. If good quantity, we can offer very very competitive price .And can pack according to customer's requirment.

Q1: What’s the payment terms?
A:  We accept DHL,Fedex,TNT ,Aramex,China Post Air Mailand forwarder...

Q2: What’s the delivery time?
A: Usually it will take about three weeks for production.

Q3: What’s the standard of package?
A: Export standard package or special package according to customer requirement.

Q4: What kind of product quality your factory offer?
A: We offer most competitive prices with best quality.

Q5: Which market do you already sell?
A: We already ship to North America, Europe, Middle East, Southeast Asia and so on.
