constant current High frequency capacitor 9 24W 220mA LED Driver for Tube and Bulb Light
- Category: >>>
- Supplier: Jianghai Soluxled Lighting Electron Factory
Share on (60770821369):
Product Overview
Description
Product Description
constant current High frequency capacitor 9-24W 220mA LED Driver for Tube and Bulb Light
| MODEL | HG-PF2113-220 | |
| OUTPUT | DC VOLTAGE | 36-84V |
| CONSTANT CURRENT REGION | 220mA ±5% | |
| RATED CURRENT | 220mA | |
| RATED POWER | 18W | |
| RIPPLE & NOISE(Max.) | 13.6Vp-p | |
| VOLTAGE ADJ.RANGE | 36-84V | |
| INPUT | VOLTAGE RANGE | AC100-260V |
| FREQUENCY RANGE | 50/60Hz | |
| POWER FACTOR(Typ.) | 0.97 | |
| TOTAL HARMONIC DISTORTION(THD) | <20% | |
| EFFICIENCY(Typ.) | 91% | |
| AC CURRENT | <0.3A | |
| PROTECTION | SHORT CIRCUIT | Hiccup mode, recovers automatically after fault condition is removed. |
| OVER LOAD | Protection type: Shut down o/p voltage, re-power on to recover | |
| Function | Dimmable Function | Non |
| EMC | EMC EMISSION | Compliance to EN55015 |

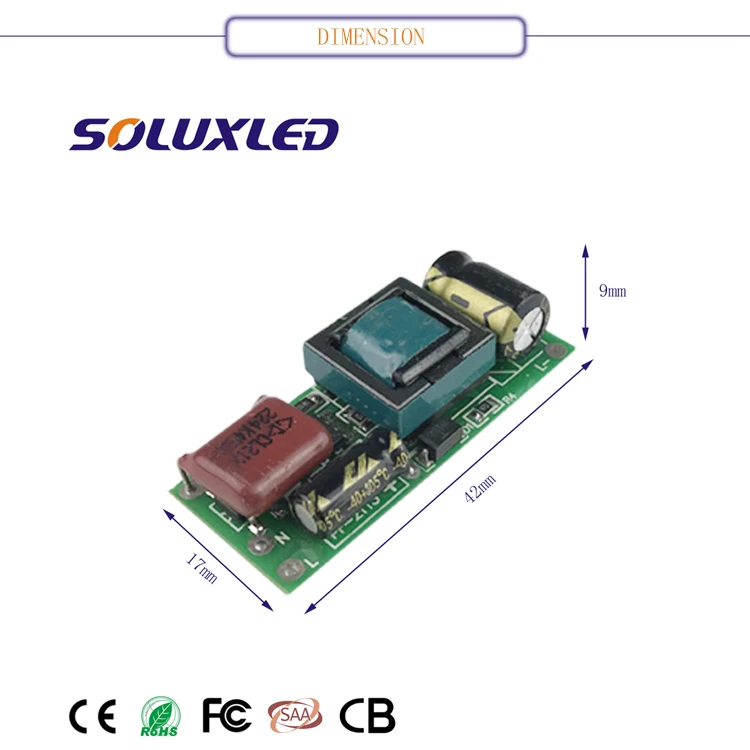

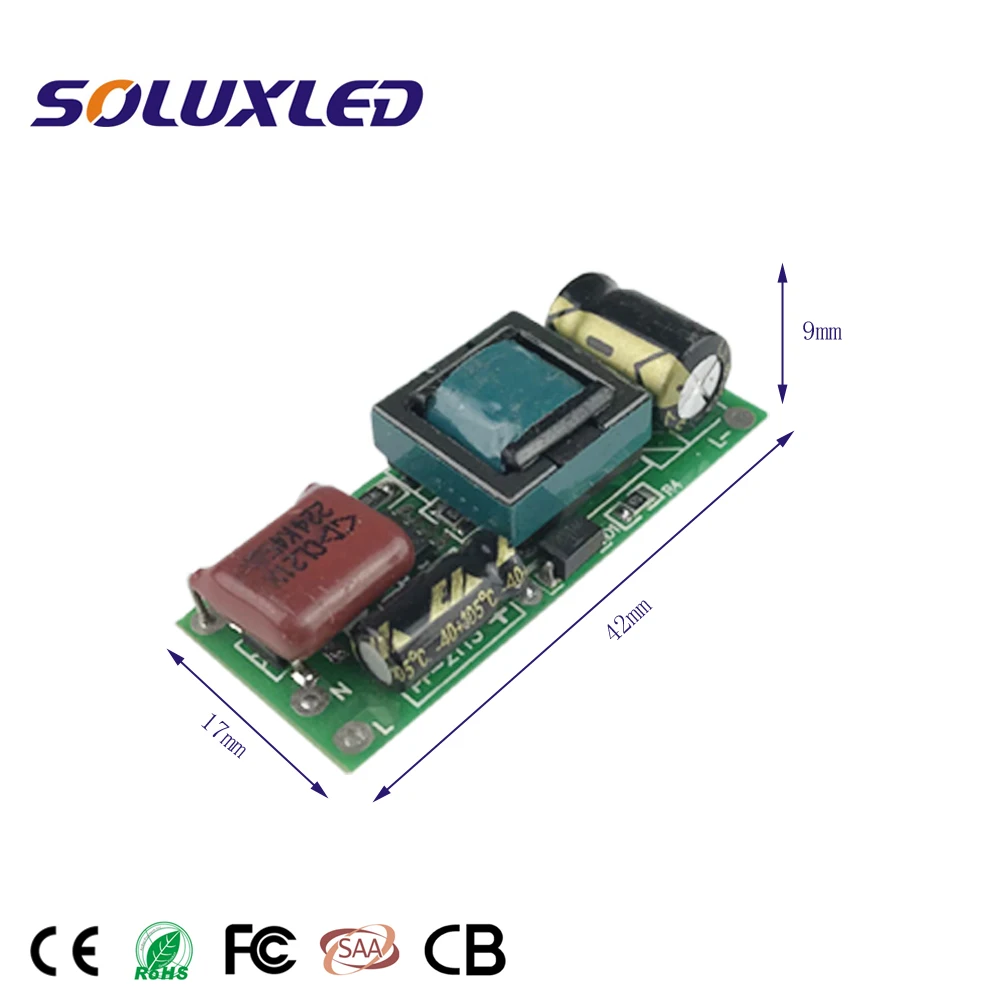

| OTHERS | DIMENSION | L42*W17*H9 mm |
| PACKING | 6.5g | |
| WORKING TEMP. | -30~+70℃ | |
| WORKING HUMIDITY | 20~95% RH non-condensing | |
