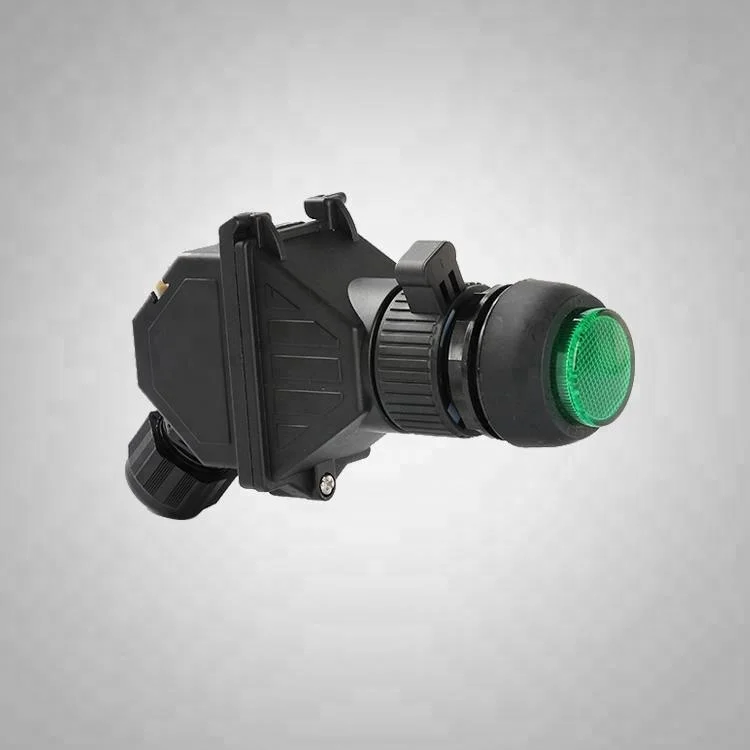

Explosion proof 5V LED flashlight push button switch

 Ex mark:Ex de IIC
Intended use:Can be used in zone 1 and zone 2
Ambient temperature use:-55≤Ta≤60
Degree of protection:IP20
Button:     Conventional closed heating current10A
Rated voltage:    250V/24V
Regimentation use:    AC15 DC13
Rated current:    6A/1A
Mechanical life:    300,000 times

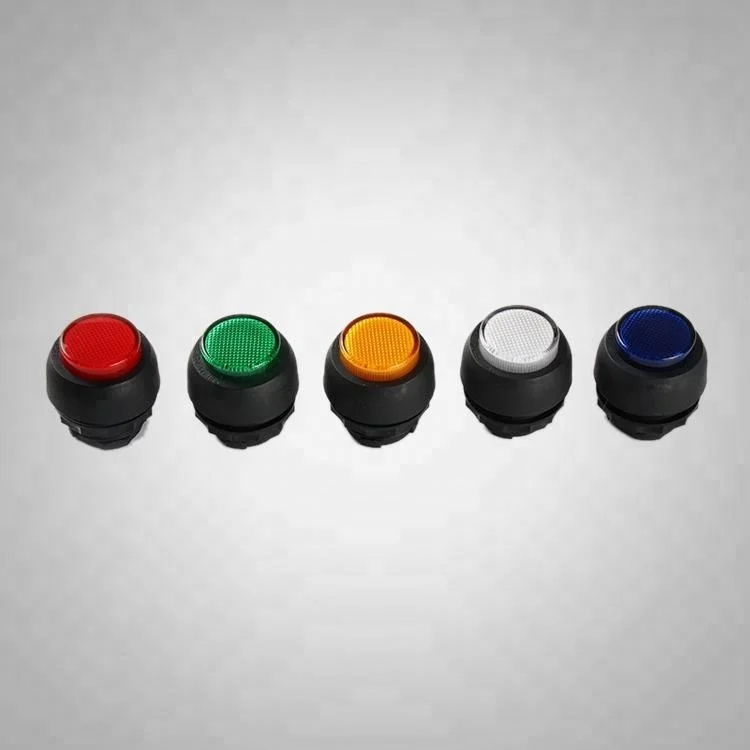

Signal lamp:Light source:      LED
Board back type mounting:     On 1-6mm panel
Power consumption:    Pmax≤1W
Rated voltage:     AC24-240V/DC24-36V
Electric life:     One hundred thousand hours
Board front type mounting:     May be held on mounting rails TS35×7.5 or with screws
Specification of board back cable type cable:     Flexible cable 4×1.5mm2
Length of board back cable type cable:     3mm (diameter: Φ9mm )
