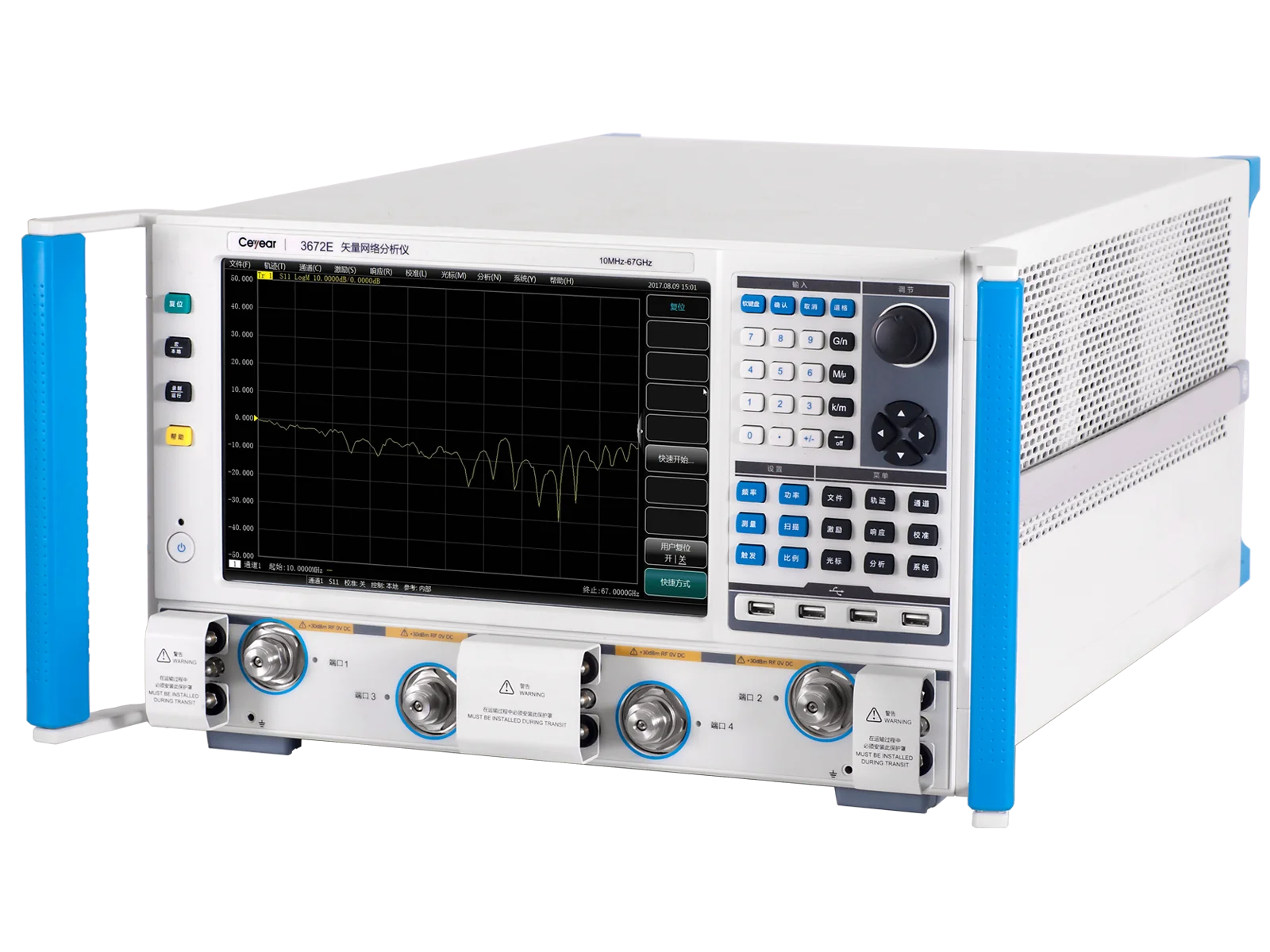

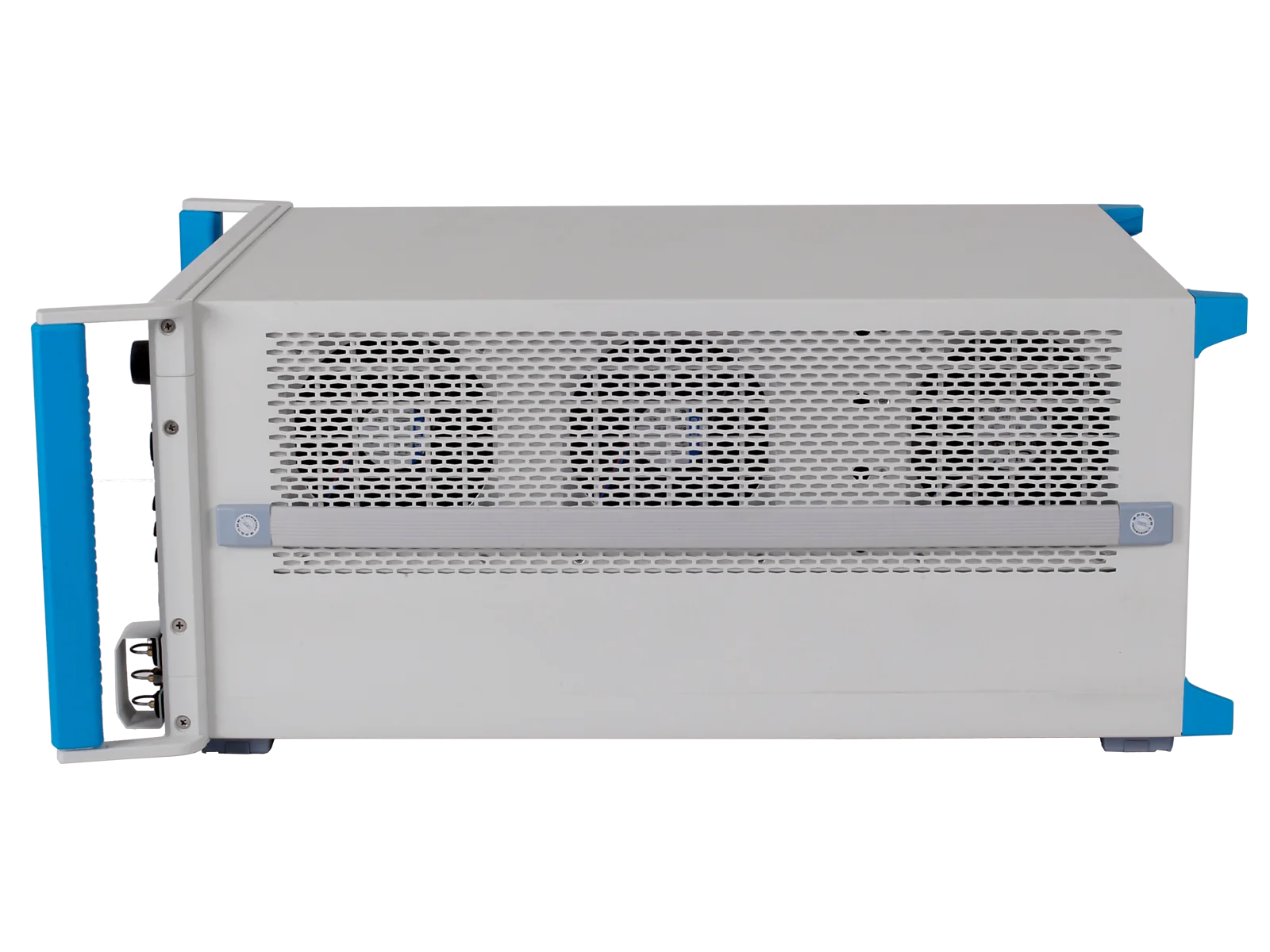

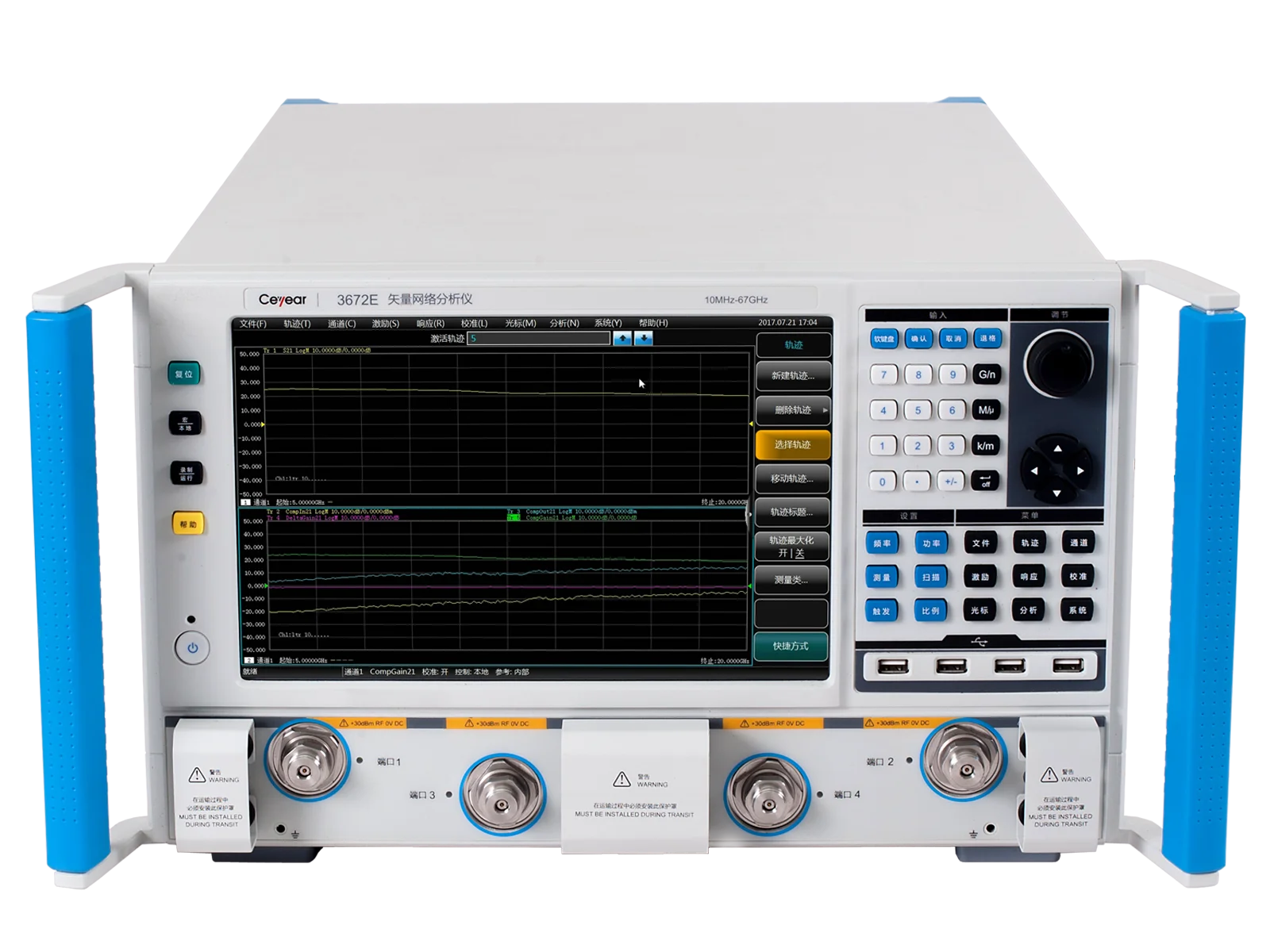

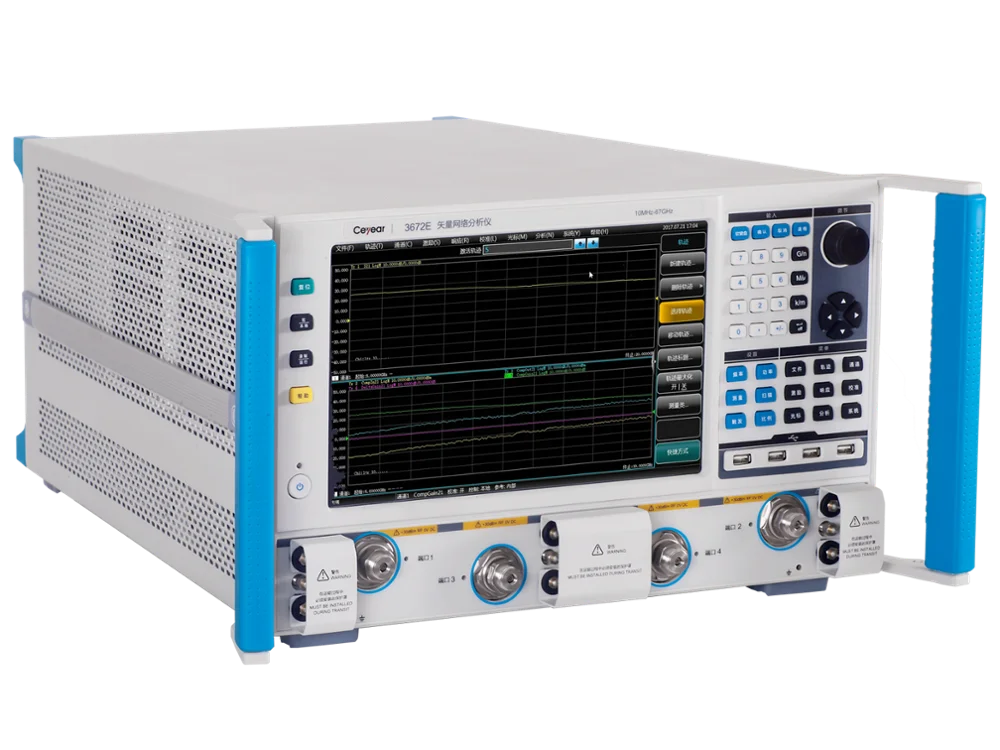

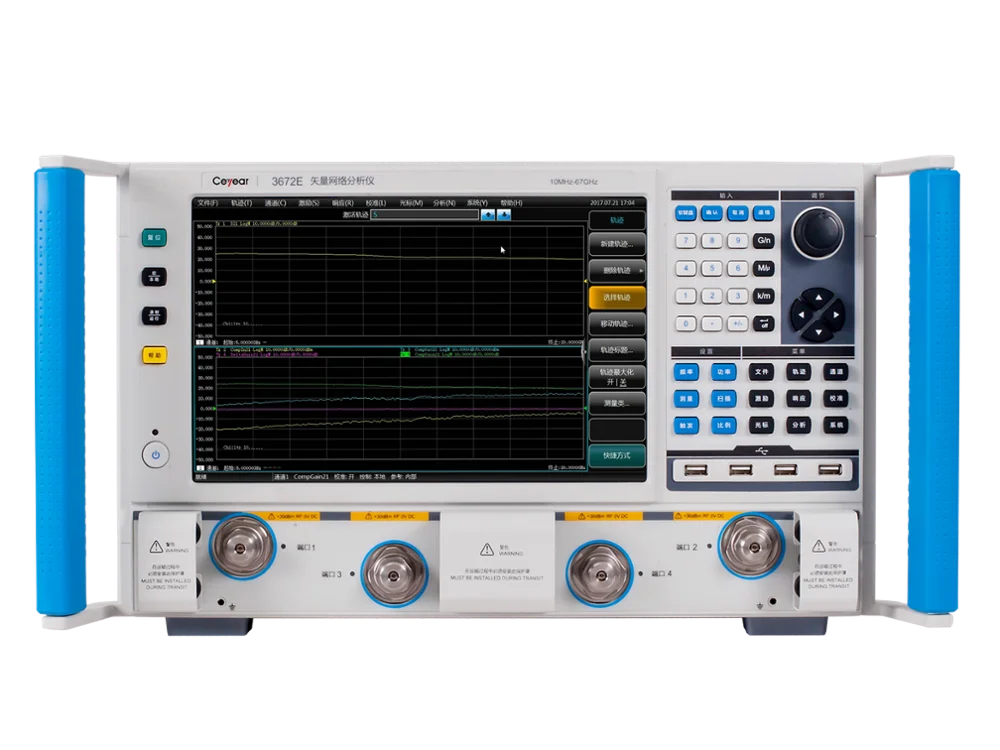

AV3672A/B/C S Vector Network Analyzer
- Category: >>>
- Supplier: Wuhan Huajin Co. Ltd.
Share on (60770853122):
Product Overview
Description
Product Overview:
AV3672*-S series vector network analyzer is consist of AV3672A-S(10MHz~13.5GHz), AV3672B-S(10MHz~26.5GHz)and AV3672C-S(10MHz~43.5GHz). AV3672*-S series reduces cost and enhances price-performance ratio but still maintains the same critical technical specifications with those of high performance instrument, such as sweep speed, dynamic range etc. AV3672*-S series offers multiple calibration types including frequency response, single port, response isolation, enhanced response, full dual-port and E-cal. Multiple display types are embedded like logarithm amplitude, linear amplitude, standing-wave, phase, group delay, Smith chart, polar coordinates. Many standard interfaces are available including USB, LAN, GPIB, VGA etc. They can precisely measure characteristics of amplitude-frequency, phase-frequency, and group delay and so on.
Main Features:
Ø Flexible calibration types, compatible with multiple cal kits
Ø Support complicated testing solutions with many windows, multiple channels and fast operation
Ø Multiple display types like logarithm amplitude, linear amplitude, standing-wave ratio, Smith chart etc
Ø With USB, GPIB, LAN and VGA
Ø Chinese/English operation interfaces, 12.1 inch 1280*800 high-resolution multi-point touch screen
Ø Record/Run, one-button operation simplifies measurement setup and improves working efficiency

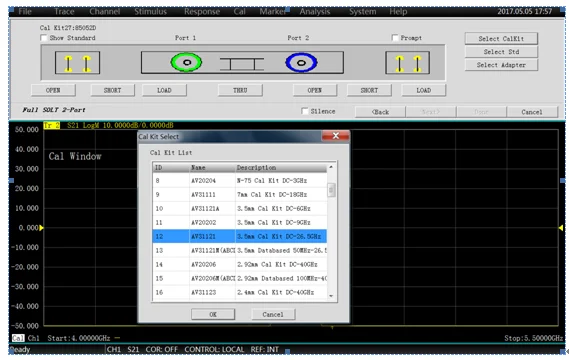

Flexible calibration types, compatible with multiple calibration kits
AV3672*-S series vector network analyzer can give you various calibration types, including guided calibration (auto cal), non-guided calibration (using mechanical cal kits for through response, through response and isolation calibration, single port calibration, enhanced response calibration, full dual-port SOLT calibration, TRL calibration), ECal. Different cal kits can be selected, like coaxial calibration kits or ECal kits, according to actual measurement needs, to make measurement easy for devices of diversified interfaces.

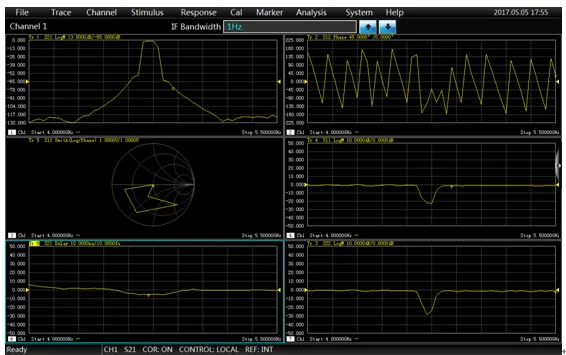

Multiple windows display all measurement channels
The analyzer supports up to 64 channels and displays up to 32 measuring windows simultaneously, with up to 16 trace curves displayed in each window at the same time, allowing more visual observation and more convenient operation.

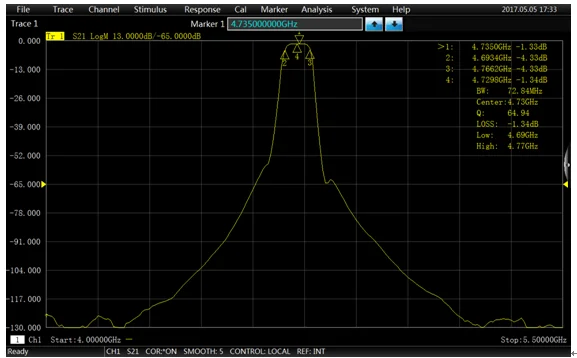

Wide dynamic range
AV3672*-S series implements the design concept of mixer receiving to extend dynamic range during your complete main units testing, and to meet test requirements of large dynamic range.

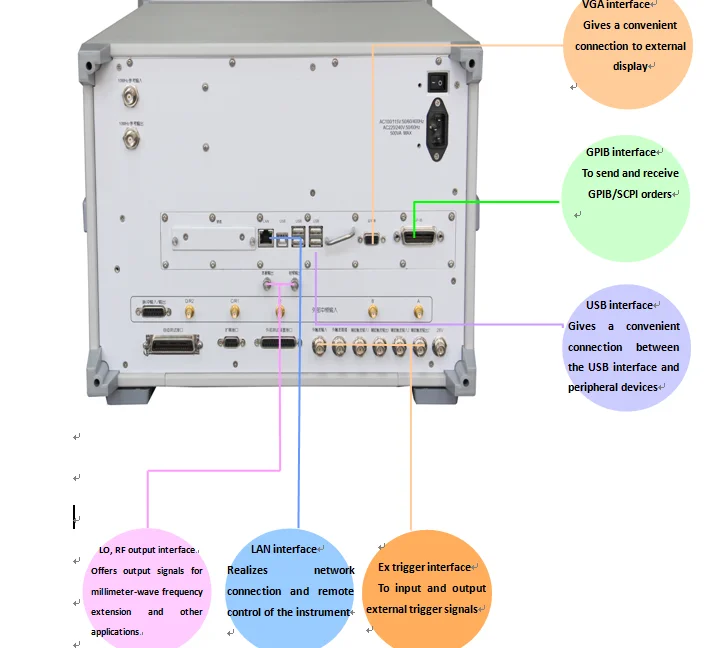

Rich peripheral interfaces, flexible and practical
AV3672*-S series realizes the perfect combination of the instrument and PC through the hardware and software platform consisting of embedded computer module which is compatible with PC and Windows operation system. The users can use the rich I/O interface (including GPIB, USB, and LAN) to realize the optimum selection of data communication.

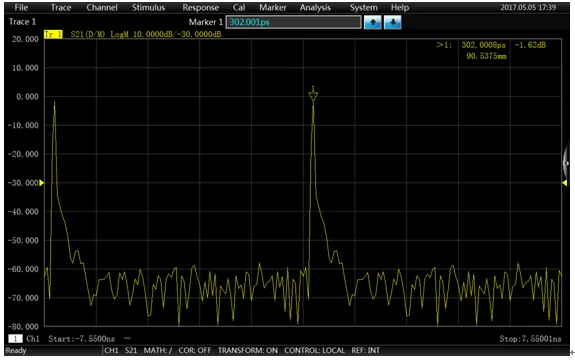

Time domain analysis can characterize the design thoroughly
Time domain option can facilitate the switching between frequency domain and time domain of measuring results, which can be used to identify the discontinuous points of device, fixture or cable to realize the accurate positioning of fault site.
Technical Specifications:
AV3672A/B-S Technical Specifications
Frequency characteristics | |||||
Frequency range | 10MHz~13.5/26.5GHz | ||||
Frequency resolution | 1Hz | ||||
Frequency accuracy | ±1×10-7(23℃±3℃) | ||||
Port harmonic suppression | |||||
Port 1 harmonic suppression | -48dBc(0.01~4GHz) -57dBc(4~26.5GHz) | ||||
Port 2 harmonic suppression | -13dBc(0.01~4GHz) -18dBc(4~26.5GHz) | ||||
Port power characteristics | |||||
Power sweep range | 33dB(10~50MHz) 30dB(0.05~4GHz) 34dB(4~7GHz) 31dB(7~13.5GHz) 29dB(13.5~20GHz) 25dB(20~26.5GHz) | ||||
Max. output power | Freq. range | Port 1 Filtering mode | Port 1 High power mode | Port 2 | |
10~50MHz | 0dBm | +9dBm | +13dBm | ||
0.05~4GHz | 0dBm | +6dBm | +13dBm | ||
4~7GHz | +12dBm | +10dBm | |||
7~13.5GHz | +8dBm | +9dBm | |||
13.5~20GHz | +6dBm | +6dBm | |||
20~26.5GHz | +4dBm | +2dBm | |||
Power linearity(23℃±3℃) | ±2.0dB | ||||
Network parameter characteristics | |||||
System dynamic range | 90dB(0.01~1GHz) 120dB(1~4GHz) 127dB(4~10GHz) 120dB(10~20GHz) 115dB(20~24GHz) 110dB(24~26.5GHz) | ||||
Effective directivity | 48dB(0.01~2GHz) 44dB(2~26.5GHz) | ||||
Effective source match | 40dB(0.01~2GHz) 30dB(2~26.5GHz) | ||||
Effective load match | 48dB(0.01~2GHz) 44dB(2~26.5GHz) | ||||
Reflection tracking | ±0.04dB(0.01~2GHz) ±0.05dB(2~26.5GHz) | ||||
Transmission tracking | ±0.10dB(0.01~2GHz) ±0.12dB(2~26.5GHz) | ||||
Others | |||||
Amplitude trace noise dB rms(1kHz IF bandwidth) | 0.050(10~50MHz) 0.007(50~500MHz) 0.002(0.5~13.5GHz) 0.003(13.5~20GHz) 0.005(20~26.5GHz) | ||||
Phase trace noise deg rms(1kHz IF bandwidth) | 0.200(10~50MHz) 0.051(50~500MHz) 0.042(0.5~13.5GHz) 0.054(13.5~20GHz) 0.054(20~26.5GHz) | ||||
IF bandwidth | 1Hz~5MHz | ||||
Amplitude display resolution | 0.001dB/div | ||||
Phase display resolution | 0.01°/div | ||||
Required value of Reference Level Amplitude setup | -500~+500dB | ||||
Required value of Reference Level phase setup | -500~+500° | ||||
General characteristics | |||||
Ports & connectors | 3.5mm(M),system impedance of 50 ohm | ||||
Number of measuring ports | 2 ports | ||||
Peripheral interface | USB, GPIB, VGA, LAN | ||||
Operating system | Windows 7 | ||||
Display | 12.1 inch high resolution touch screen | ||||
Dimensions | W´H´D=426mm×266mm×550mm (without stand and handles) W´H´D=516mm×279.5mm×640mm (with stand and handles) | ||||
Max. power consumption | 400W | ||||
Max. weight | 42kg | ||||
AV3672C-S Technical Specifications
Frequency characteristics | ||||
Frequency range | 10MHz~43.5GHz | |||
Frequency resolutions | 1Hz | |||
Frequency accuracy | ±1×10-7(23℃±3℃) | |||
Port harmonic suppression | ||||
Port 1 harmonic suppression | -48dBc(0.01~4GHz) -57dBc(4~13.5GHz) -57dBc(13.5~43.5GHz) | |||
Port 2 harmonic suppression | -13dBc(0.01~4GHz) -18dBc(4~13.5GHz) -57dBc(13.5~43.5GHz) | |||
Port power characteristics | ||||
Power sweep characteristics | 32dB(10~50MHz) 29dB(0.05~4GHz) 28dB(4~13.5GHz) 30dB(13.5~40GHz) 27dB(40~43.5GHz) | |||
Max. output power | Freq. range | Port 1 Filtering mode | Port 1 High power mode | Port 2 |
10~50MHz | -1dBm | +8dBm | +11dBm | |
0.05~4GHz | 0dBm | +5dBm | +9dBm | |
4~13.5GHz | +5dBm | +6dBm | ||
13.5~40GHz | +7dBm | +7dBm | ||
40~43.5GHz | +5dBm | +5dBm | ||
Network parameter characteristics | ||||
System dynamic range | 74dB(0.01~1GHz) 119dB(1~13.5GHz) 115dB(13.5~26.5GHz) 110dB(26.5~35GHz) 105dB(35~43.5GHz) | |||
Effective directivity | 42dB(0.01~13.5GHz) 38dB(13.5~40GHz) 36dB(40~43.5GHz) | |||
Effective source match | 36dB(0.01~2GHz) 31dB(2~13.5GHz) 28dB(13.5~40GHz) 27dB(40~43.5GHz) | |||
Effective load match | 42dB(0.01~13.5GHz) 37dB(13.5~40GHz) 35dB(40~43.5GHz) | |||
Reflection tracking | ±0.04dB(0.01~13.5GHz) ±0.03dB(13.5~40GHz) ±0.04dB(40~43.5GHz) | |||
Transmission tracking | ±0.1dB(0.01~13.5GHz) ±0.16dB(13.5~40GHz) ±0.20dB(40~43.5GHz) | |||
General characteristic | |
Ports & connectors | 2.4mm(M), system impedance of 50 ohm |
Number of measuring ports | 2 ports |
Peripheral interface | USB, GPIB, VGA, LAN |
Operating system | Windows 7 |
Display | 12.1 inch high resolution touch screen |
Dimensions | W´H´D=426mm×266mm×600mm(without stand and handles) W´H´D=516mm×279.5mm×690mm(with stand, rear stand and handles) |
