HV and LV Transformer Copper Wire Winding Machine
Introduction
HV and LV Transformer Copper Wire Winding Machine GDY-1T is suitable for winding different specifications of copper or aluminum wire coils, these coils can be used in HV and LV transformers, reactors, and other similar products. This winding machine is provided with a digital counter, and the turning number can be preset. The counting record and the parameters input can be memorized in case of power off. The parallel axis transmission system of this machine is hard gear, and is high efficient and low noise. Motor speed has 2 gears (fast and slow), and the motor speed can be steplessly adjusted in each gear with a variable frequency speed controlling mechanism.
Main Components

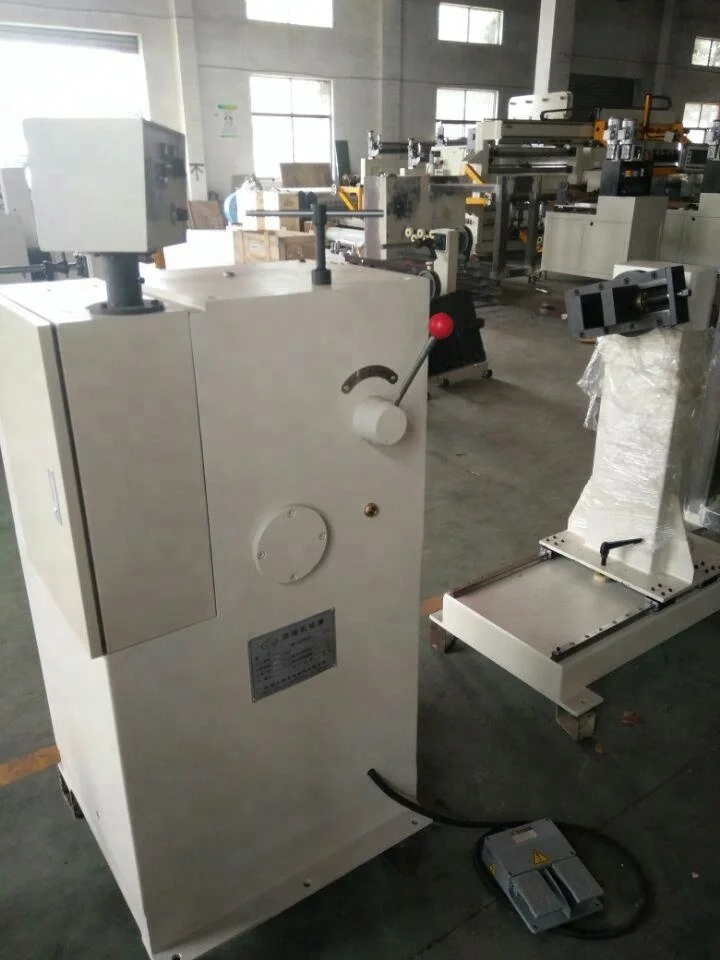

1.Main frame
2.Gearbox

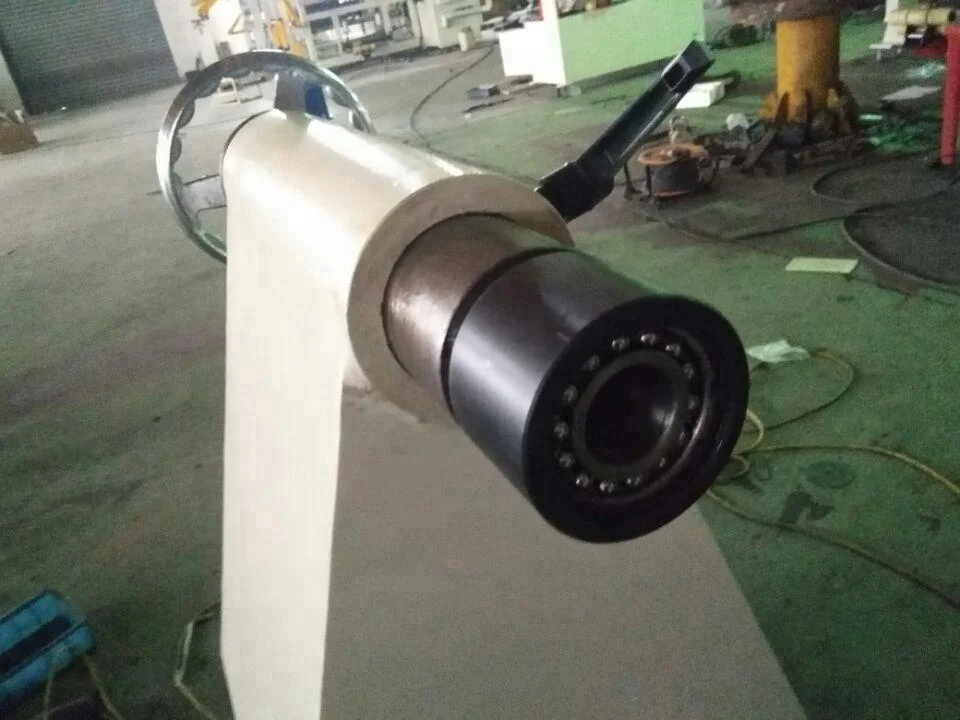

3.Tailstock

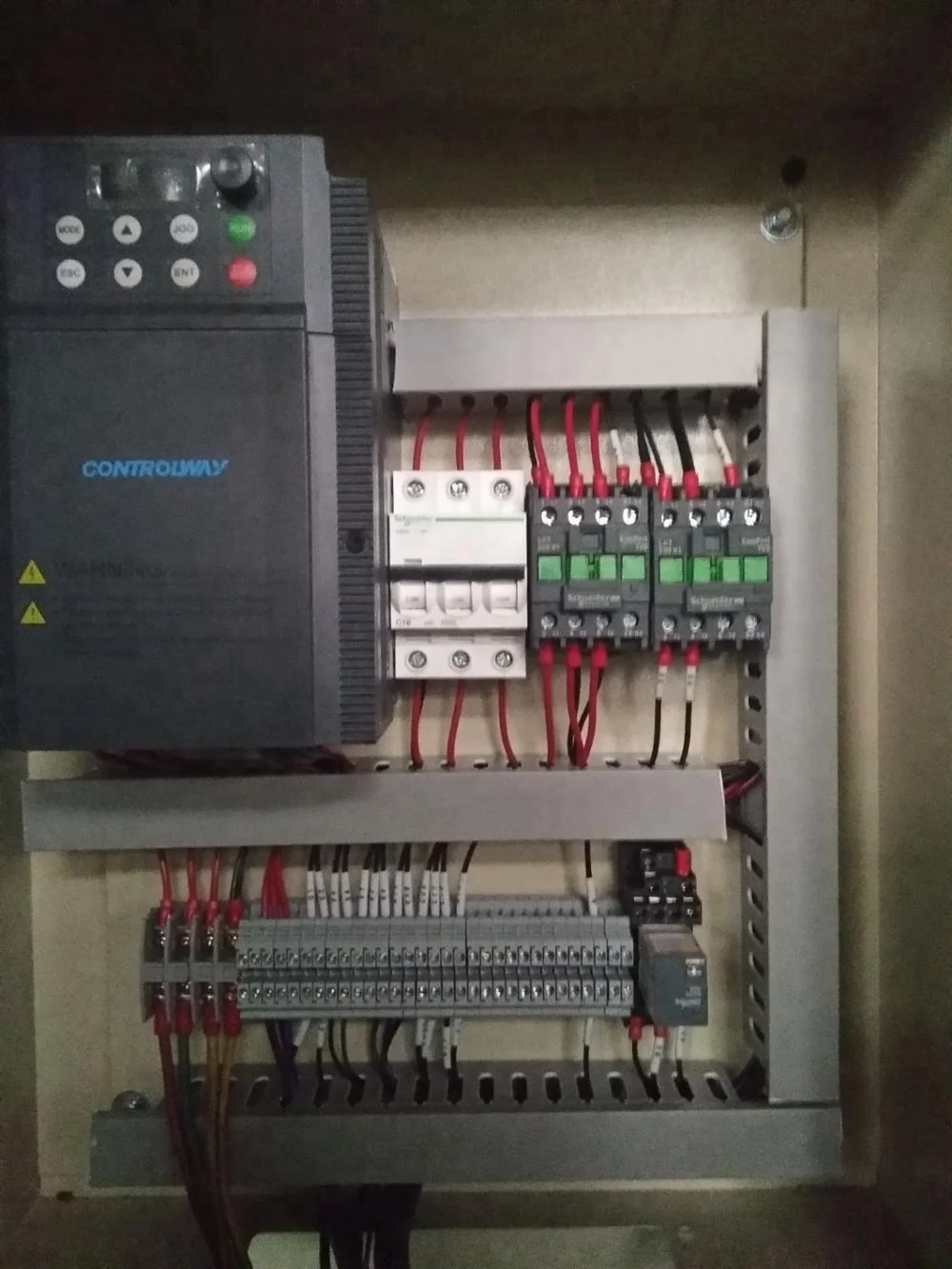

4.Electric control box
5.Foot switch
Main Parameters
Typical standard specifications of GDY series are shown below, however these can be easily modified as requested.
No. | Item | GDY-1T |
1 | Center Height | 1000mm |
2 | Mandrel Length | 1200mm |
3 | Flange Square Hole Size | 40*40mm |
4 | Working Torque | 1500 N.M |
5 | Max. Speed | 200 Rpm |
6 | Winding Height | 1000mm |
7 | Counting Range | 0-9999.9 |
8 | Max. Load | 1000kg |
9 | Power | 3Kw |

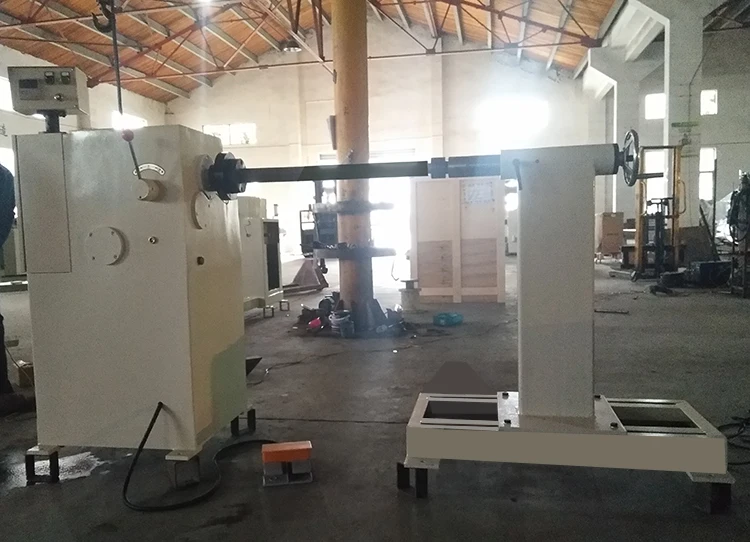

Figure:HV and LV Transformer Copper Wire Winding Machine GDY-1T's full view
Company Information
ABOUT US
Zhu Tang (Suzhou) Technology Co., Ltd., formerly known as Zhu Tang (Shanghai) Technology Co., Ltd., is specializing in developing, designing, manufacturing and selling transformer and reactor manufacturing machines, such as foil winding machines, coil winding machines, iron core stacking & tilting platform, etc. Our custormers are from all over the world, including Russia, Germany, Canada, South Korea, Vietnam, and India etc. The company was established in 2009 and is located in Taicang City, Suzhou City, Jiangsu Province, China.
Main Products
|  |  |
 |  |  |
Packaging & Shipping
FAQ
1) Q: Are you manufacturer or trading company?
A: We are manufacturer and trading company .
2) Q: Are you responsible for installing and training operators overseas?
A: We will do it if you need.
3) Q: How do you provide after sales service?
A: We provide technical support online as well as overseas services provided by our skilled technicians.
A: We provide technical support online as well as overseas services provided by our skilled technicians.
4) Q: How does your factory control product quality?
A: Every machine has to be tested before loading.
5) Q:How can I trust you that machines pasted testing before shipping?
A: 1) We can record the testing video for your reference if you need, or;
2) You can come to our factory for acceptance.
6) Q: Do you sell only standard machines?
A: Besides standard machines, we can also manufacture these machines as requested.
