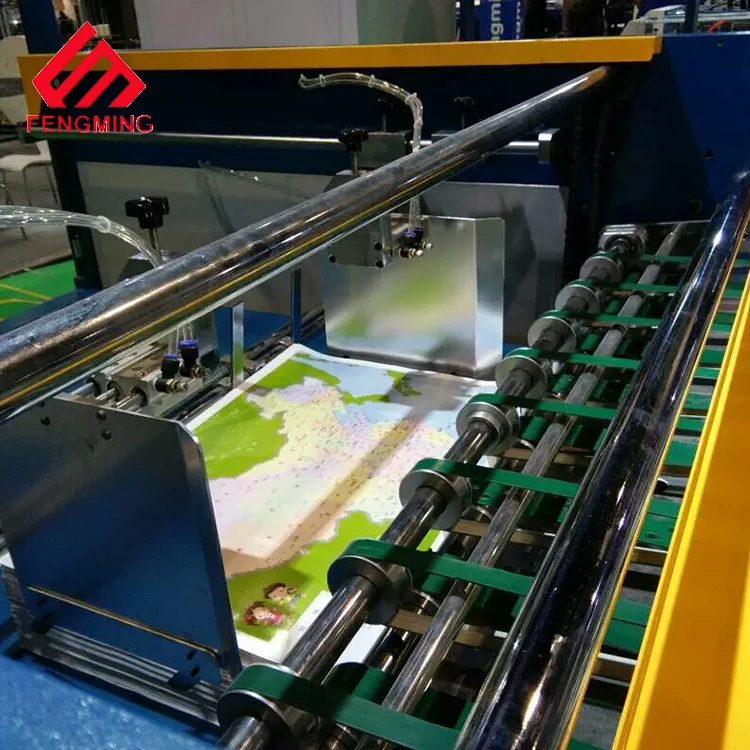

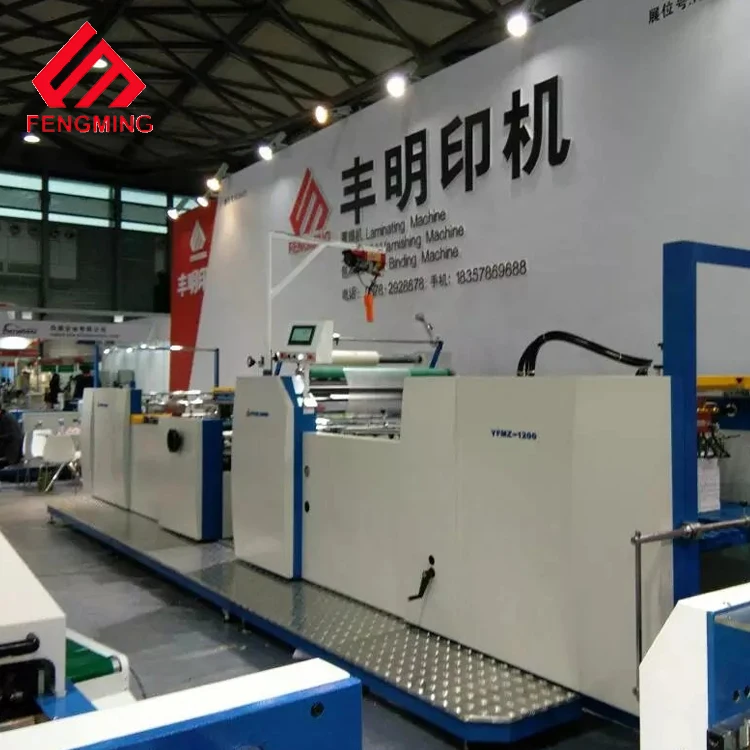

YFMZ1200A Hard Peel Book Post Map Printing Surface Paste Film Laminating Machine
- Category: >>>
- Supplier: Zhejiang Fengming Industrial Co. Ltd.
Share on (60770922827):
Product Overview
Description
Super Quality Hot Roll Laminating Machine with Auto Stacker
2.YFMZ1100A/1200A AUTOMATIC BOPP THERMAL FILM LAMINATING MACHINE
FEATURES

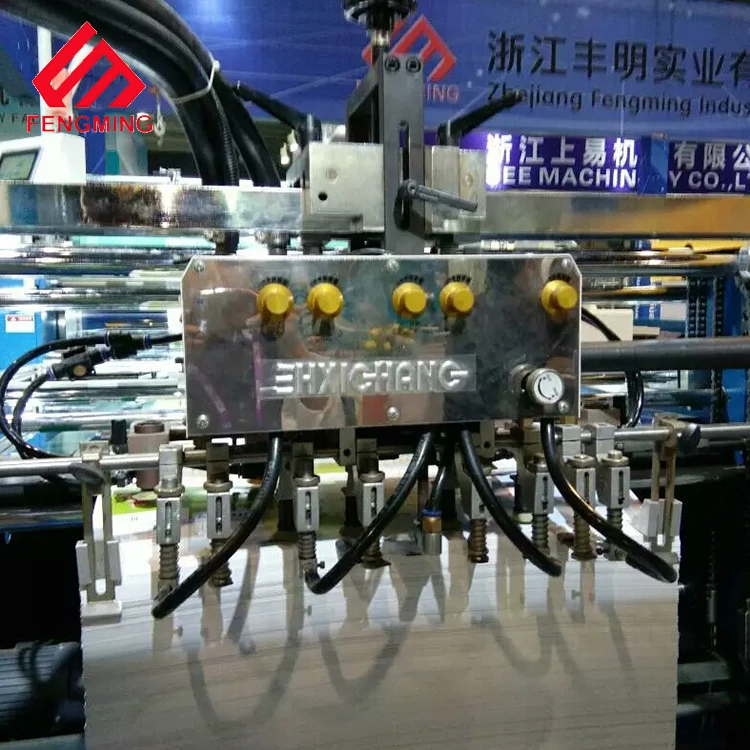

Feeder(vacuum pump system without oil system)

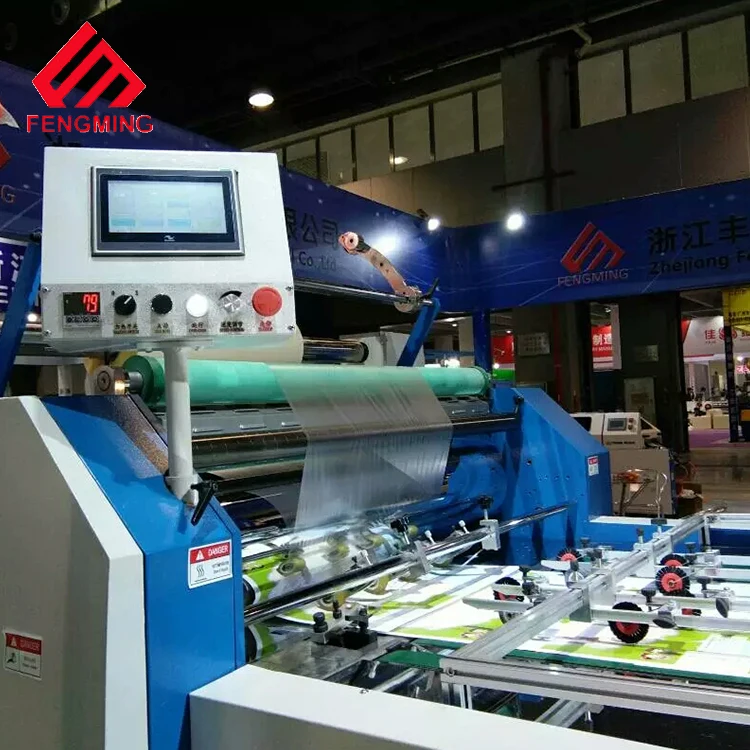

Man-Machine Interface(easy and automatic operation )
Magnetic heating system(heat from surface to inside quickly )
Hydraulic pressure (Automatic adjustment pressure )

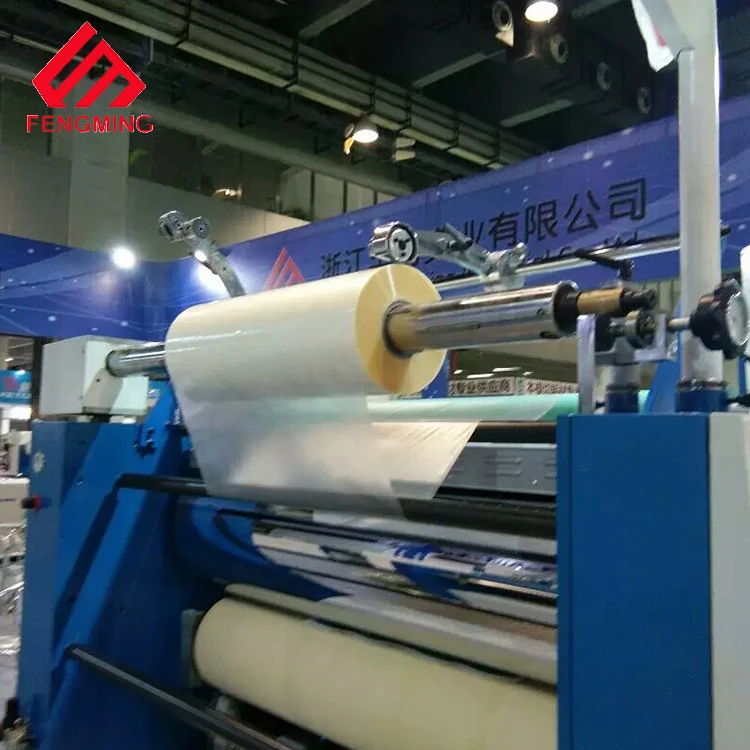

Gas Expanded Shaft(with Tension System)
Film Cutter and Film Puncher
Pull Guide and Auto Pull
Anti-Curve Device
Pneumatic Dividing
Auto stacker
Long table for high speed
TECHNICAL SPECIFICATION
| Model | YFMZ1100A | YFMZ1200A |
| Max.Laminating Width | 1050*1100mm | 1200*1300mm |
| Min.Laminating Width | 300*350mm | 300*350mm |
| Laminating Temperature | ≤130℃ | ≤130℃ |
| Paper Thickness | 100-500g/m² | 100-500g/m² |
| Laminating Speed | 100m/min | 100m/min |
| Total power | 36KW(normal is a half) | 36KW(normal is a half) |
| Voltage | 220/380V | 220/380V |
| Diameter of Heating Roller | 360mm | 360mm |
| Diameter of Rubber Roller | 320mm | 320mm |
| Diameter of Film Paper core | 76mm(3 inch) | 76mm(3 inch) |
| Total Weight | 4600KG | 4900KG |
| Overall Dimensions | 8100mm×1800mm×2000mm | 8100mm×1900mm×2000mm |
