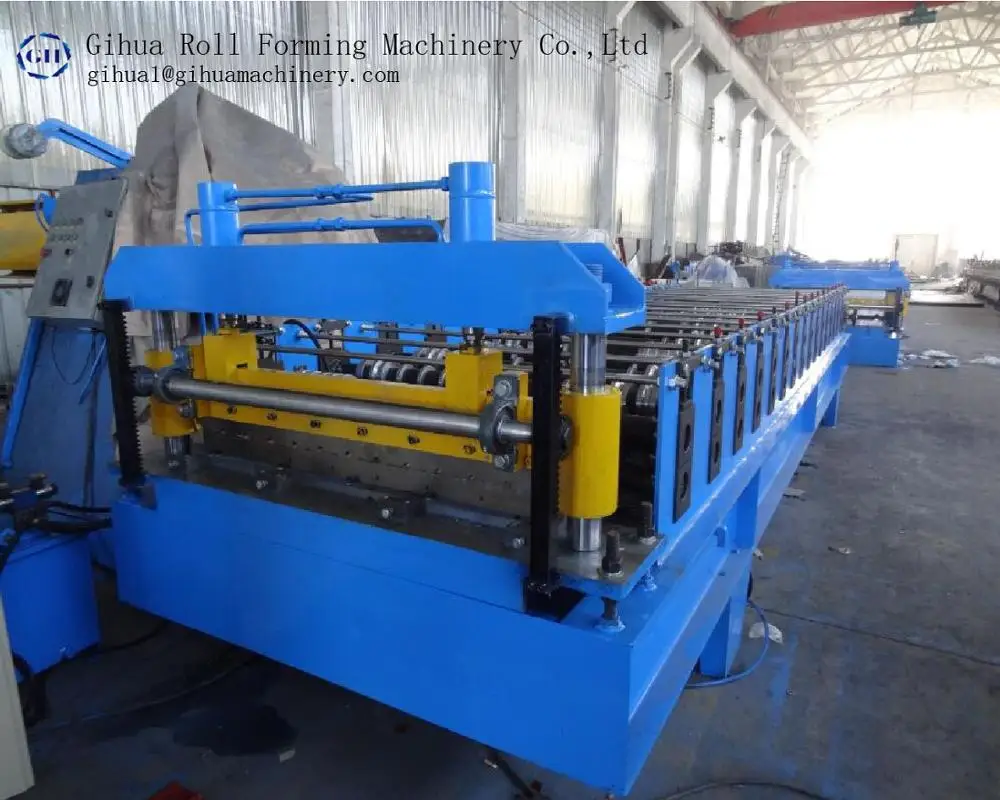

glazed and ibr roofing sheet roll forming machine
- Category: >>>
- Supplier: Zhangjiagang Gihua Machinery Co. Ltd.
Share on (60770928735):
Product Overview
Description
YX25-205-820 panel roll forming machine(Only for reference)
Bending precision: the maximum profile deviations (dimensions and shape) shall not exceed the tolerances specified as following data (or equivalent tolerances);
Bending quality: ability to bend the profiles of the specified configuration at the specified maximum steel thickness; cracking of the steel or metal coating is not permitted for all required steel grades;
Maximum production speed: not less than 15 metres per minute (excluding cutting);
Material: 0.3-0.8mm, GI or clor steel, yelid strength: 195-235Mpa;
If you have your own special requirements,our machine can be also customized.
profile as following:
1) Material of the profile: GI or color steel
2) Thickness range: 0.3-0.8mm
3) Main motor power:5.5kw, AC motor, motor inside of main machine (Brand: Guomao of China) (according the final design)
4) Machine Voltage, Frequency, Phase: 380 V, 50 Hz, 3Phase

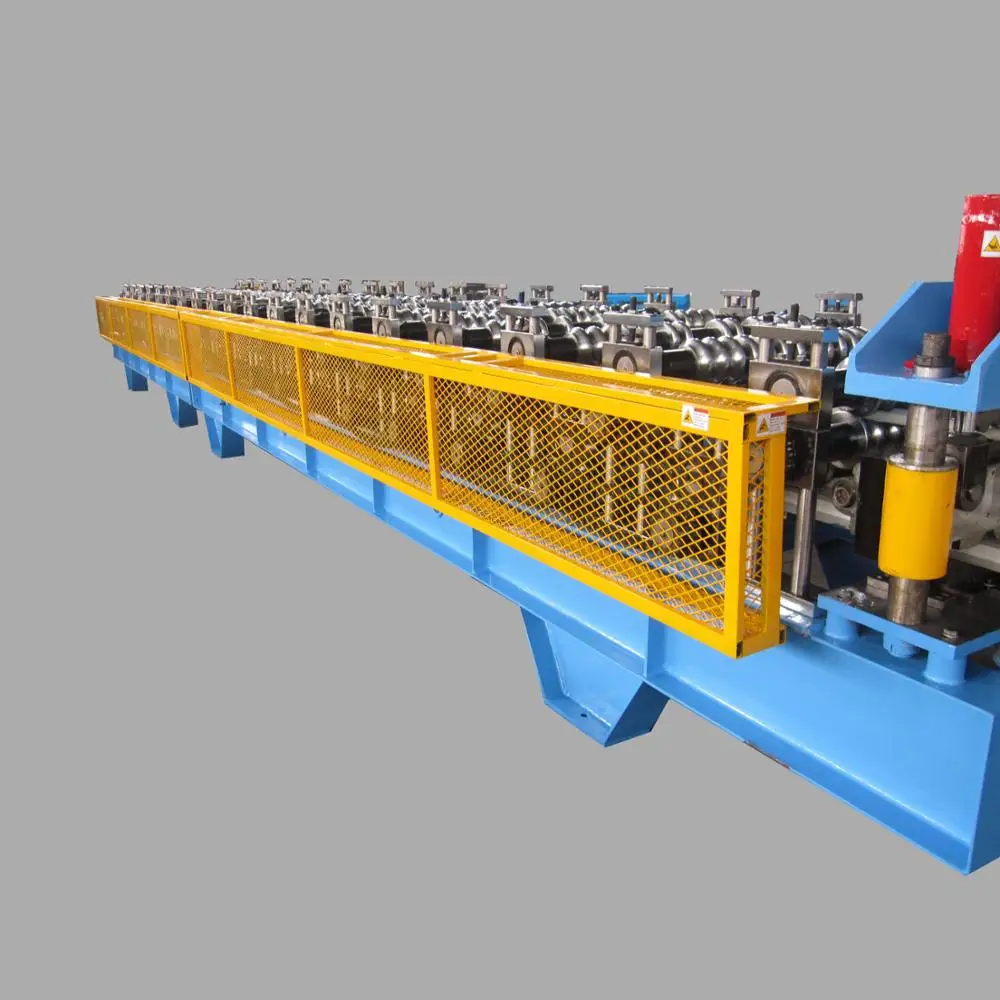

5) Roll station: about 18 stations (according the final design)
6) Roller material:ASTM1045 chrome plated surface with chrome,CNC,
7) Shaft diameter: 76mm material: SAE1045 with quenching and tempering
8) Machine roll forming speed:not less than 15m/min
9) Transmission: by chain, one inch, single line
10) Roll former has leveling bolts in the base for adjust the leveling
11) Machine base frame adopt H beam welding steel
12) In the main roll forming machine have 2 buttons for urgency stop if happen any malfunction.
13) Machine adopt new station to make machine more strong
14) To avoid accidents,all of drive part adopt protect cover
15) Color of machine: Blue and yellow (or base on customer request)
Manual decoiler:
Dimensions: 1700mm*1000mm*800mm
Width of feeding: 1250mm
Capability: 5 Ton
Inter diameter: 480-570mm
Maximal out diameter: 1500mm
Mode of expand &fight: inner expand &fight by manual
Way of feeding: manual

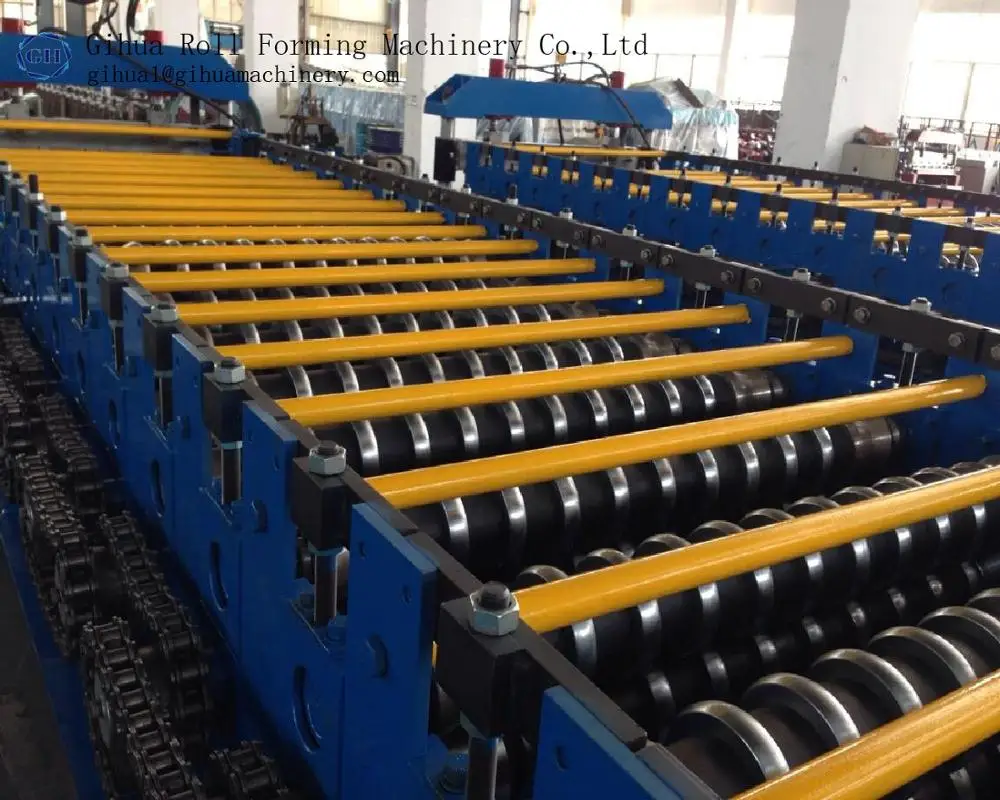

Forming section
Adjustable center of the forming rollers and of sufficient length to prevent lateral movement of the strip on its entry to flattener.
Feeding type: adjustable
Feeding width:900-1300mmmm
Entrance and guide roller: diameter is 56mm, material is SAE1045,surface with chrome
Cutting :
Cutting after forming: Cut the sheet after roll forming to required length.
Material of blade:Cr12, 58-62 HRC hardness
Cutting power by hydraulic,4KW
Working pressure: 12Mpa adjustable
Length measuring: Automatic encoder length measuring, Brand: Omron
The cutting sequence is also contained and controlled by the same PLC program
out table:
Jointed by 60mm*40mm tube
Size: 1.0m long*0.8mwide*0.6-1mhigh
One out table with two support roller
Size: 1.0m long*0.8mwide*0.6-1mhigh
One out table with two support roller
Two sets.

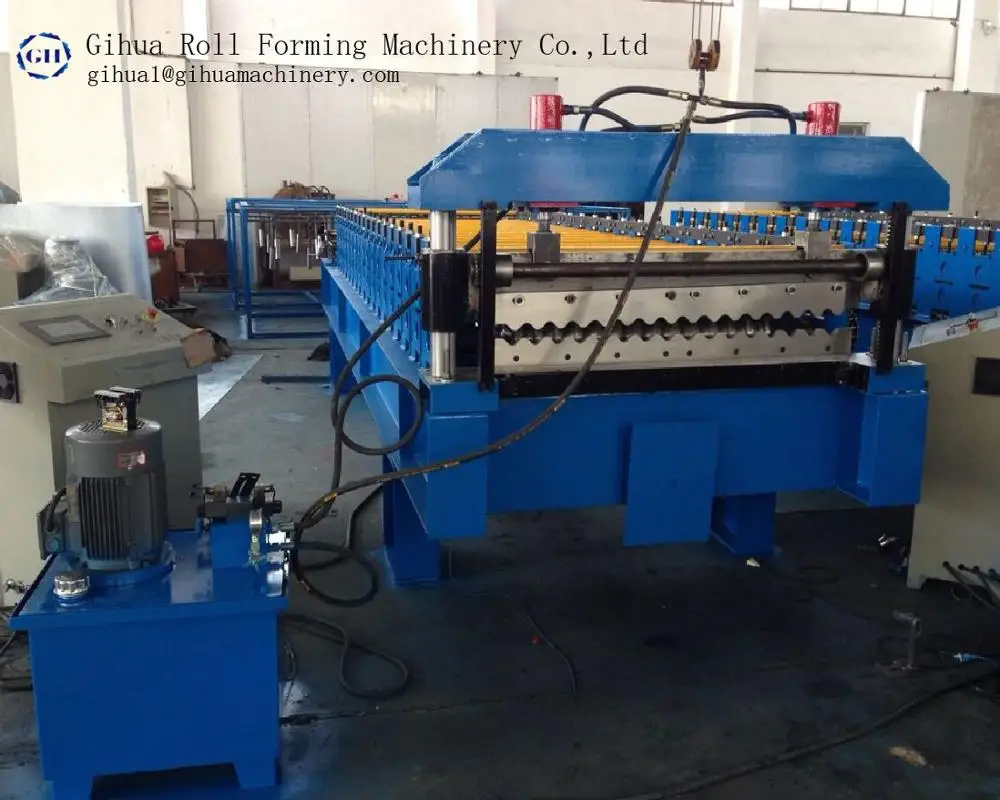

Hydraulic station:
Hydraulic power: 4kW
Working pressure: 12Mpa adjustable
Solenoid valve: 1 group
Hydraulic oil: 46# hydraulic oil
Color: Blue (or base on customer request)
Control carbinet:
1)Programmable setting of profile length and quantity
2)Automatic stopping of the equipment after completion of the cutting programme.
2)Automatic stopping of the equipment after completion of the cutting programme.
3)Operating system language: English and Chinese
4)Computer used to control length & quantity. Machine will automatically cut tolength and stop when required quantity is achieved
5)PLC brand: Panasonic
6)Frequency converter brand: Yaskawa, quantity: 1
7)Touch screen: Taiwan Weinview
5)PLC brand: Panasonic
6)Frequency converter brand: Yaskawa, quantity: 1
7)Touch screen: Taiwan Weinview
loading machine
If any needs or questions, feel free to contact me please.
We would like to design the machine for you
Mob/WhatsApp: 008618551231440
WeChat: 243554222
