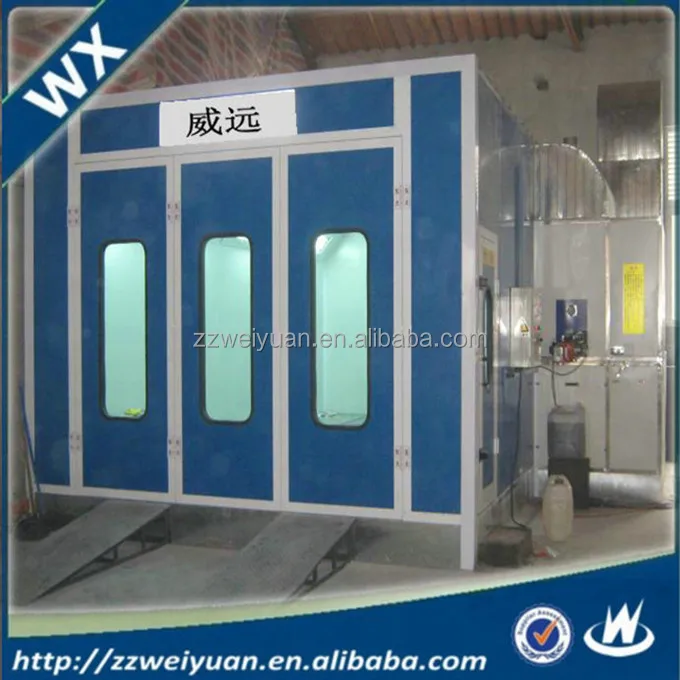

OEM Environmental Painting Oven WX DDE 1 Manufacturer In China

Dimensions:

Length (mm)

Width (mm)

Height (mm)

Booth Outside

7,000

5300

3300

Booth Inside

6,900

3900

2500

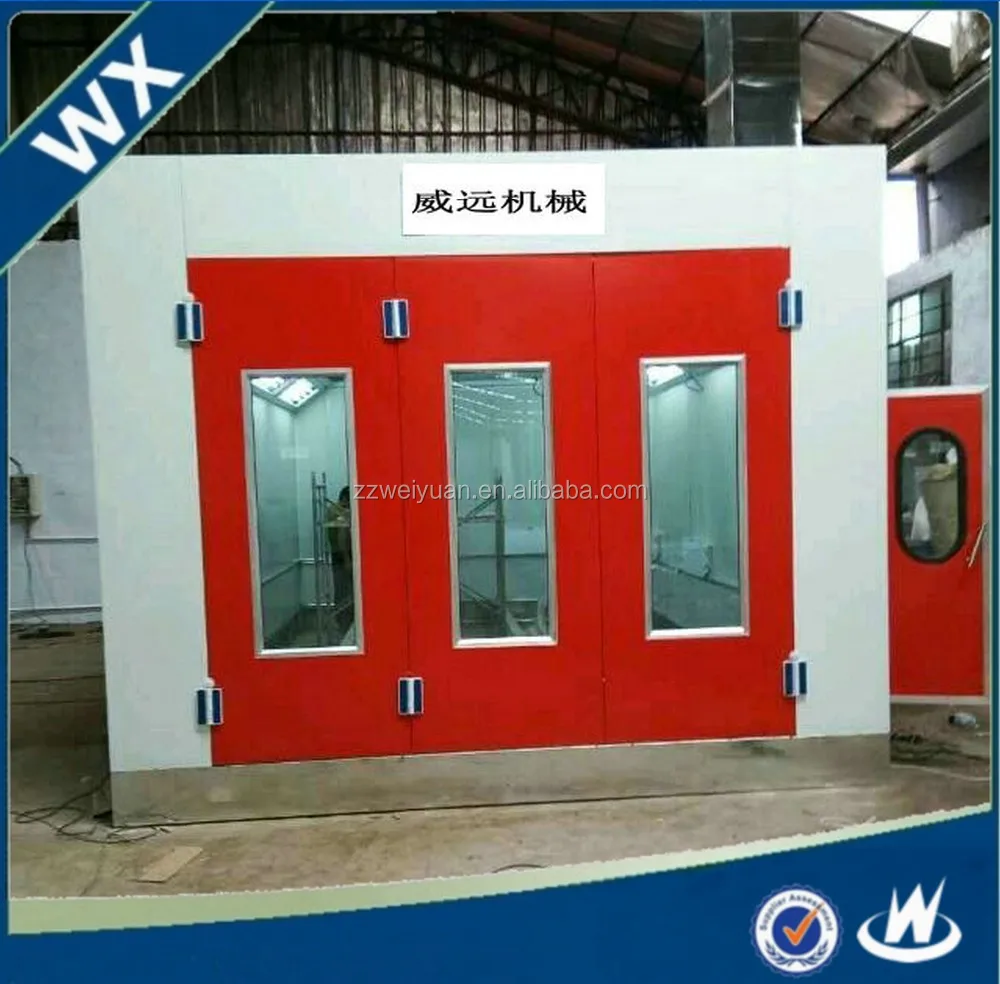

Entrance Door

Equipped with Handle & Lock

3200

480

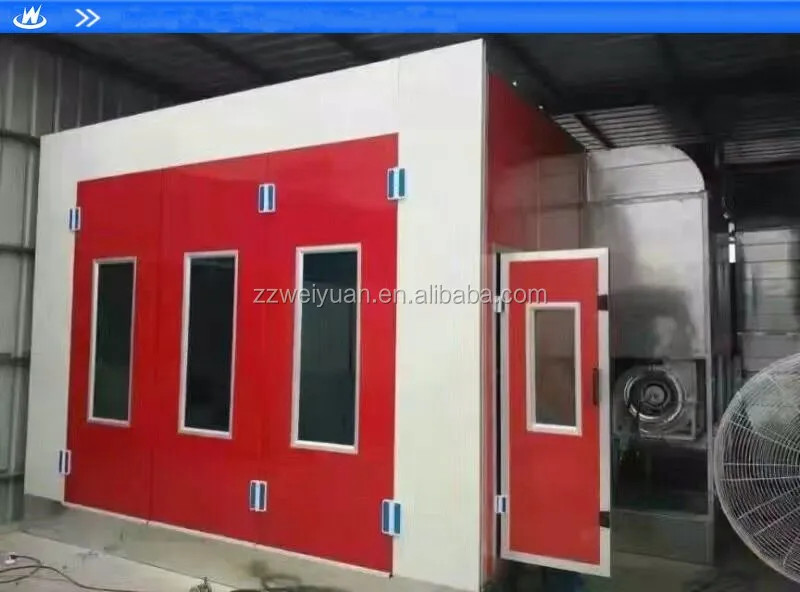

Personnel Door

Equipped with Handle & Anti-Explosion Lock

700

1800

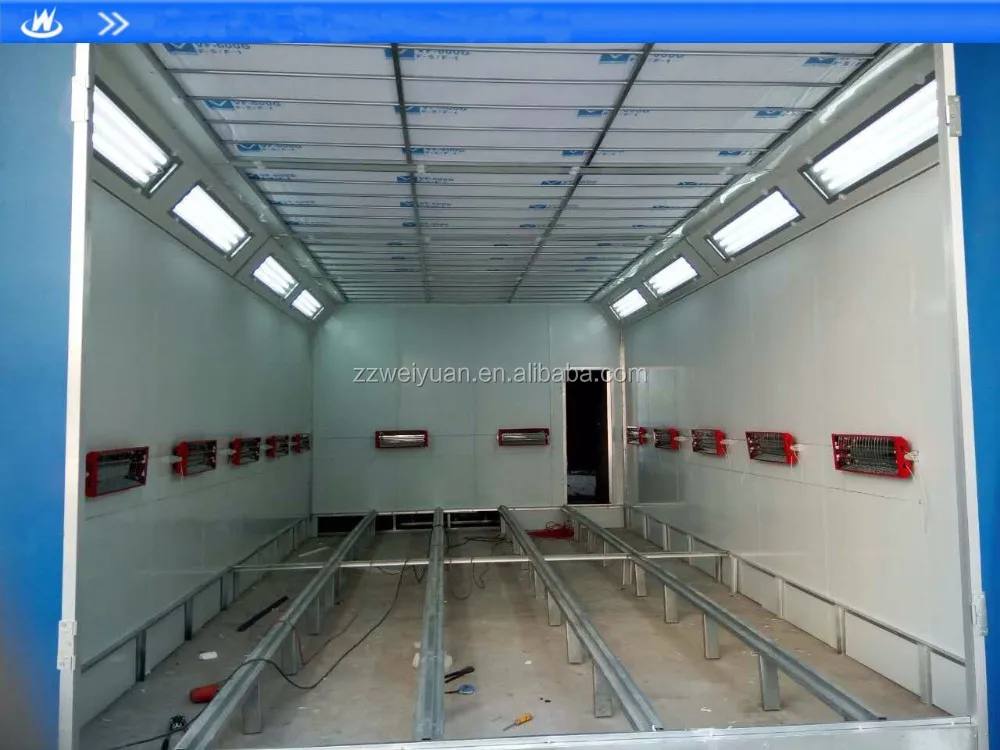

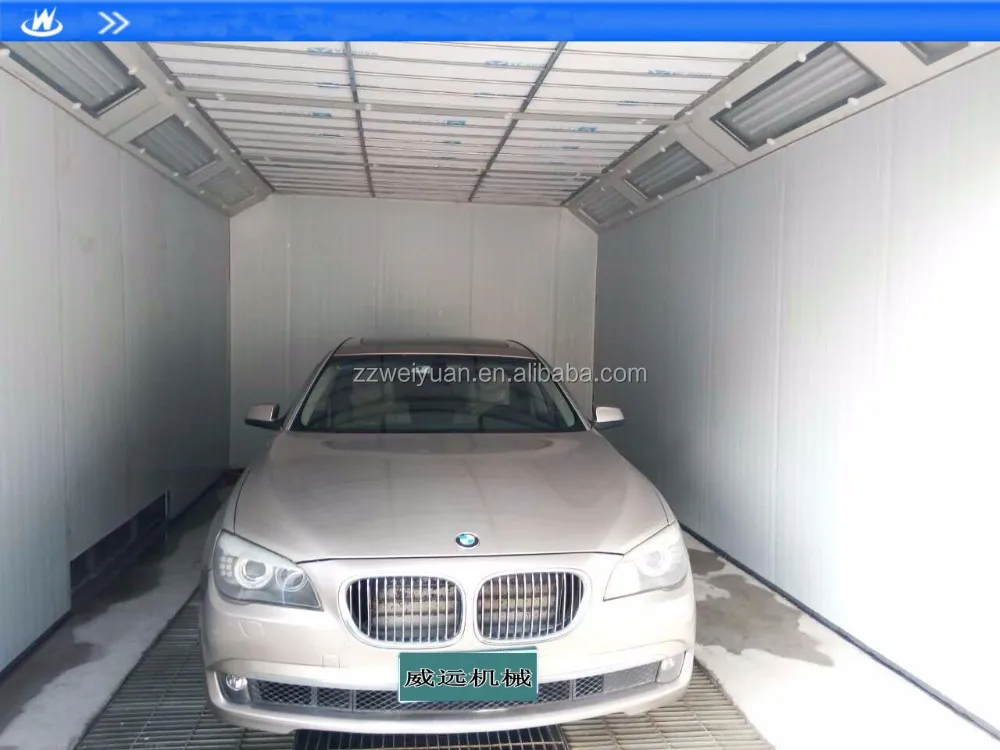

1. Cabin

1:Rock wool wall panels with self-sealing construction,the thickness is 50mm,and the inside and outside&=0.4mm color steel plate

2:plenum construction is made of galvanized steel with a thickness of 0.8mm

3:booth frame made of galvanized steel bending

2.Basement

3.Intake and Exhuast Air Units

1:2 sets intake fan models"YDW-4.5m: single power 4kw capacity:25000m³/h                                                                      2:1 sets single inlet high pressure exhaust fan model:DDF,power 7.5kw .capacity:25000m³/h

3: top side intake airflow,down side exhaust airflow

4.Duct Work

galvanized steel plate and flange,2 straight tubes.1 elbow

5. Heating System

-stainell steelsus304 heat exchanger.RIELLO G20 Diesel burner.heating capacity is 18000kcal/h with explosion-proof vents

6. Filtering System

pre-filter effectively caputre dust particles larger than 10um ceilling filter.effictively caputure dust particles larger than 4um with a capture rate of ≥98%

floor filter :fiberglass fiter ectivated carbon

7. Lighting System

celling light"40 pcs 24w led lamp min1000lux spare light :2 pcs

8. Control system

electric control box with"spray paine,heating paint,paine,lighting,emergency stop switch,fault alarm,timer,tempertyre,control,etc.

380V/3 PHASE/50HZ

80

17kw
