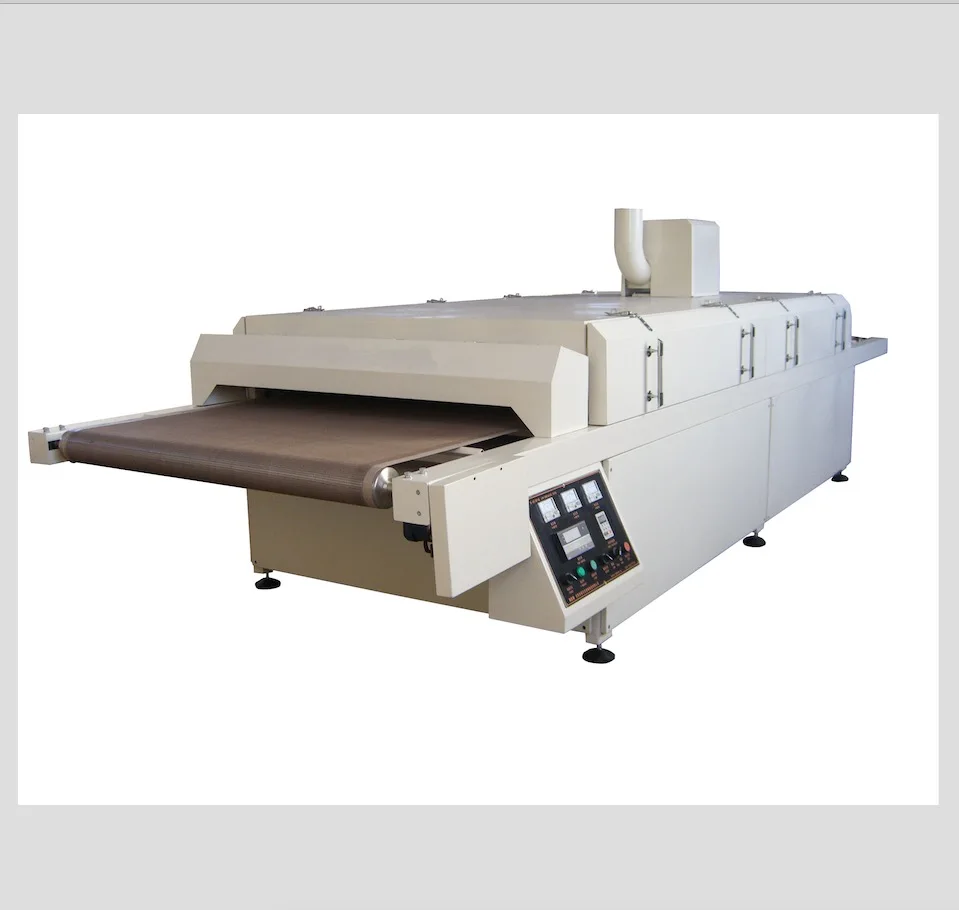

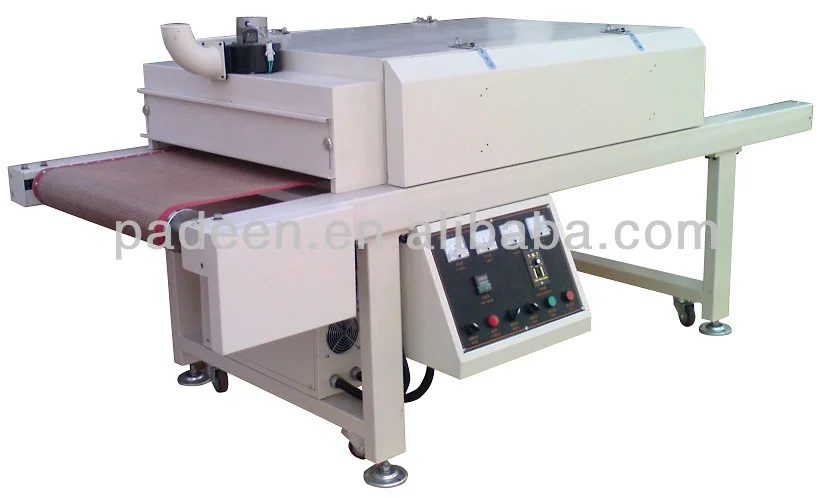

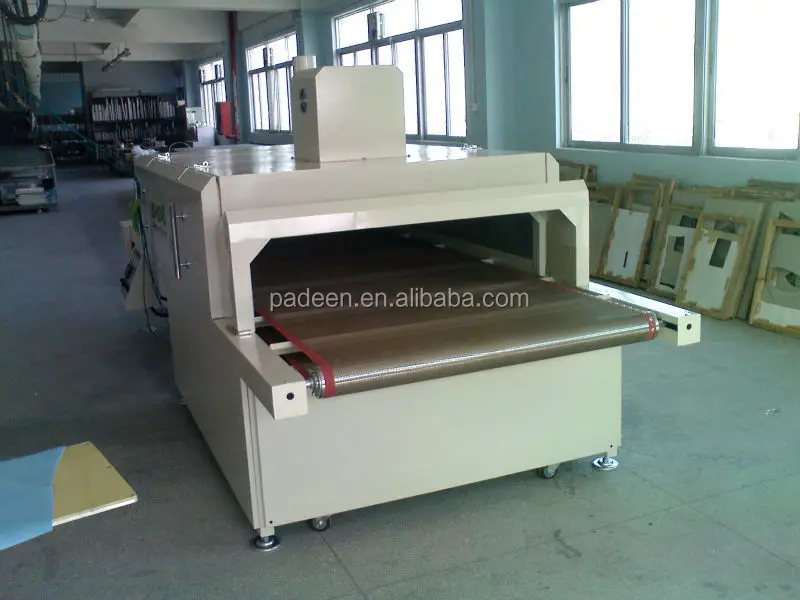

General T-shirt Conveyor 350cm Mesh Belt Screen IR Drying Tunnel
T shirt IR drying tunnel machine with Germany ELSTEIN ceramic heating element to dry the plastisol inks by both of medium wave IR curingand circulation hot air. Compared with the traditional black crystal tube and stainless stell heat pipe, its will not change the color of textile material after high temperature curing .
Tunnel dryer features:
1. Belt speed is adjustable
2. By hot air drying
3. Individul group control of heater source
4. With continuous heating tubes
5. Economic models
6. Suitable for small quantity drying
7. Adopt energy-saved model
Tunnel dryer Parameter :
| Model | TIR-250/75G | TIR-350/75G | TIR-500/120S |
| Tunnel length | 250cm | 350cm | 500cm |
| Weight | 150kg | 200kg | 300kg |
| IR Curing Chamber | 125cm | 225cm | 300cm |
| Heater Quantity | 6 pcs | 12 pcs | 9 pcs |
| Heater Power | 1 Kw/pcs | 1.75 Kw/pcs | |
| Total Power | 6.2 Kw | 12.2 Kw | 16 Kw |
| Heater adjust height | No | ||
| Heater Resource | Far-IR Heating Tube | Medium Wave IR Lamp | |
| Belt Width | 75 cm | 120 cm | |
| Belt Speed Adjustment | 2~6 m/min | ||
| Drying Speed | 120 p/hr | 200 p/hr | 400 p/hr |
| Power Supply | 220 or 380V/50Hz | 380V/50Hz | |
| Shipping dimensions | 250x100x120 cm | 350x100x120 cm | 500x160x120 cm |

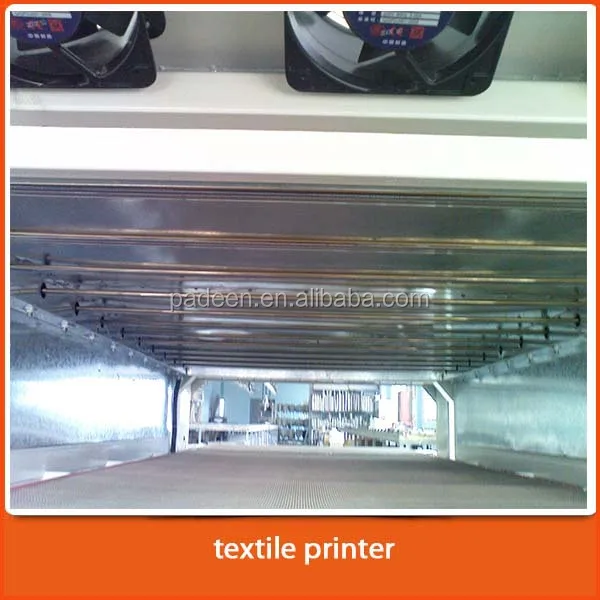

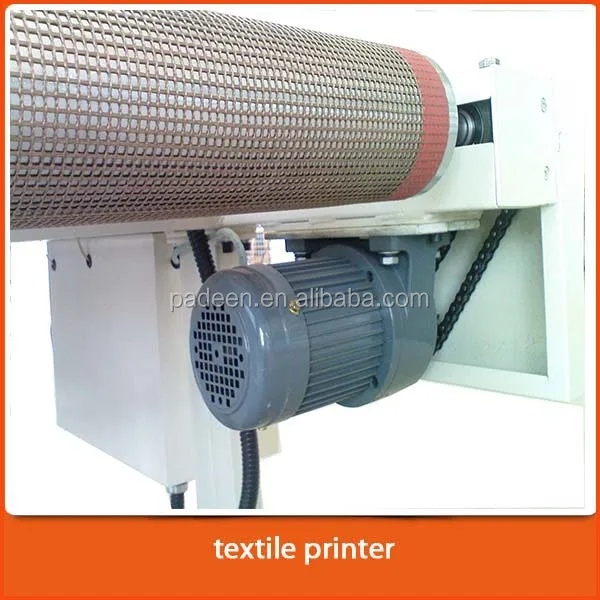

IR Tunnel dryer Detail Picture:

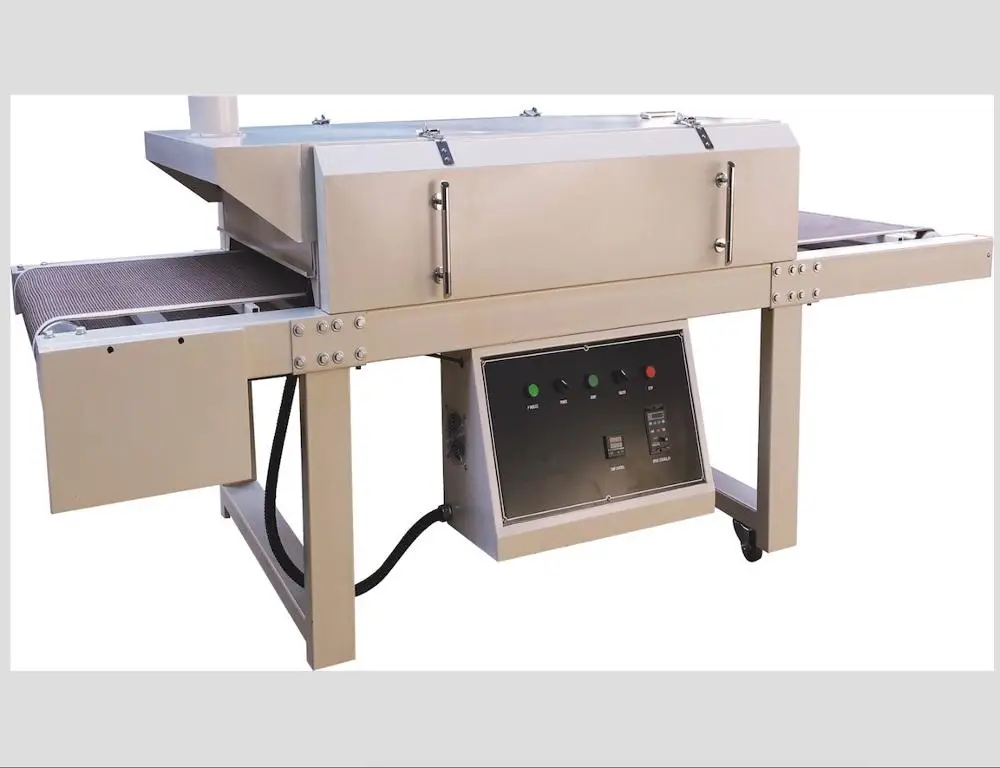

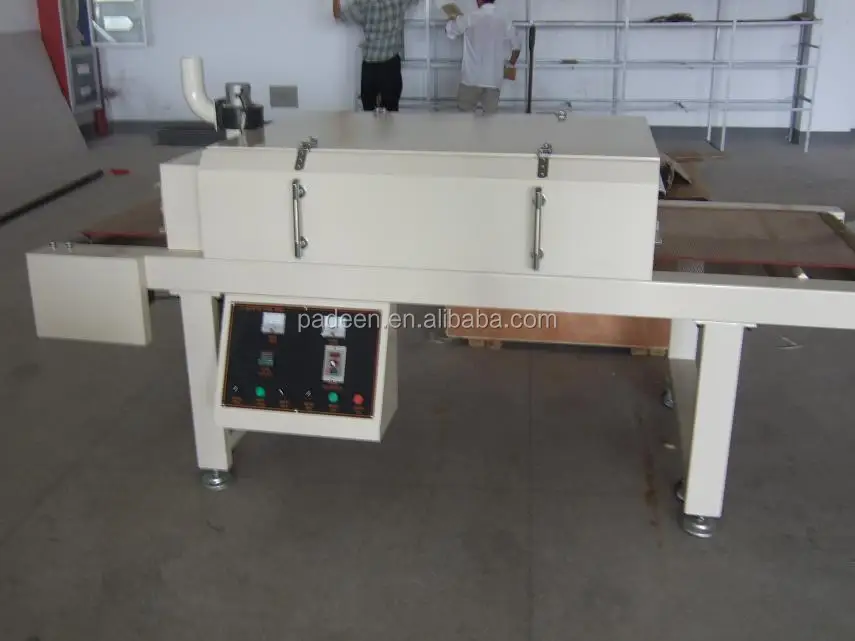

Drying Tunnel :

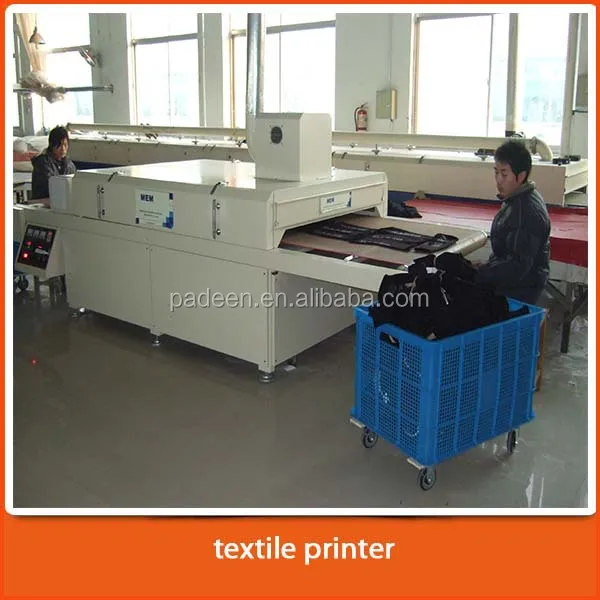

tunnel dryer working :

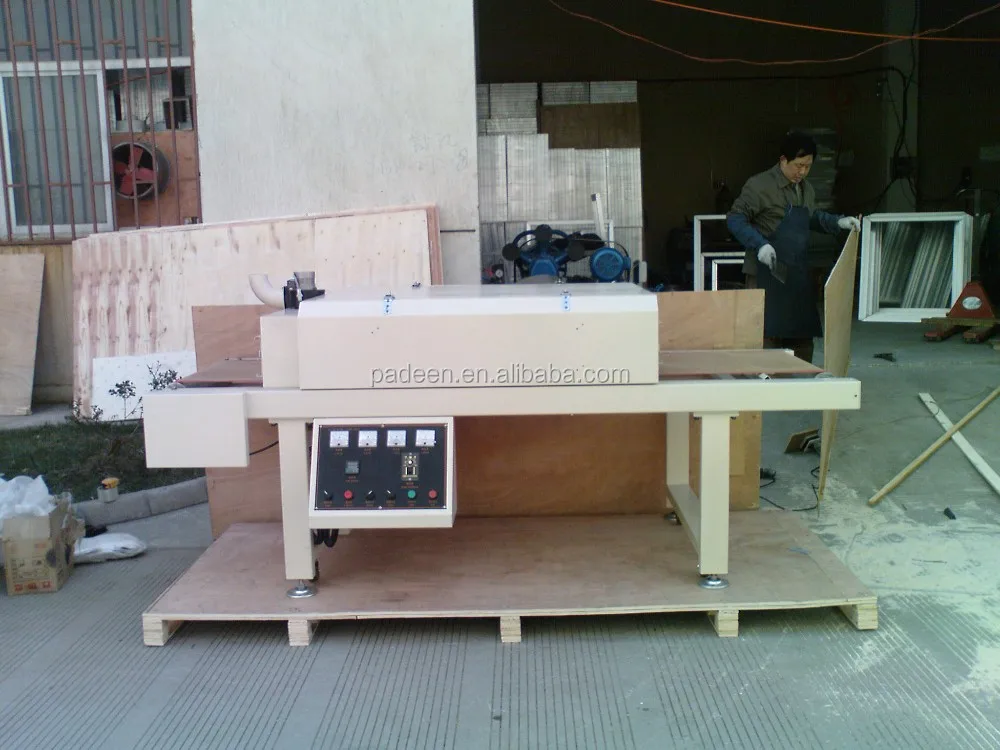

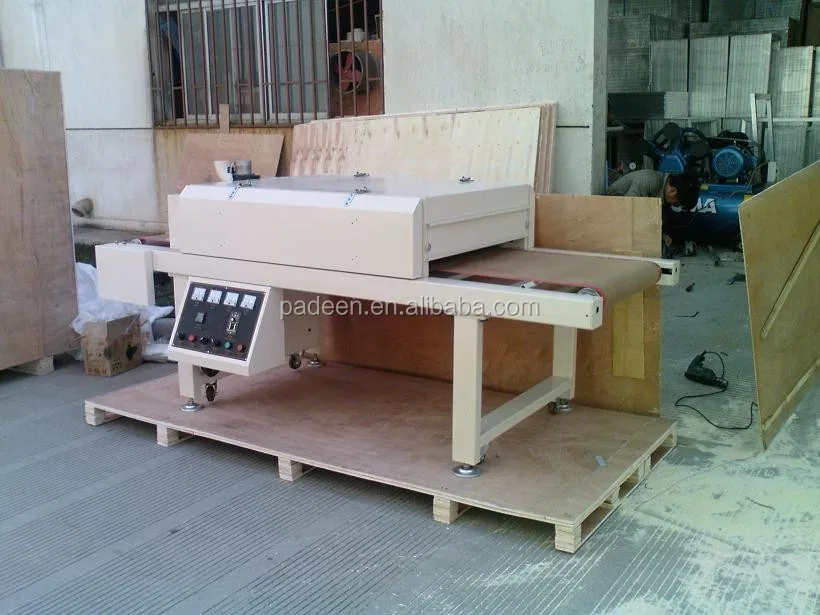

All tunnel conveyor dryer will be packed with standard export wooden case.


1) All your inquiries will be answered in fluent English by well-trained&experence staffs in 24 hours.
2) Free lifetime Professional technology support.
3) All your information is in well protection.
4) OEM, ODM service are welcome
Basic Information:
Product/ Service: screen printer, textile printer, pad printer, screen frame, IR dryer.
Brands: Smile
Number of Employee: 11-50 People.
Trade & Market
Maina Markes: South America
Southeast Asian
Domesic market
Mid East
Western Europe
Africa
North Americ
Total Annual Sales Volume: US$ 1 Million – US$ 2.5 Million.
Export Percentage: 81%-90%
Factory Information
Factory Size: 1000-3000 square meters
Factory Location: No 9290 Songjin Hwy, Songjiang Dist,Shanghai
Number of Production Lines: 4
Number of R&D Staff: 5-10 People
Contract Manufacturing: OEM Service Offered Design Service Offered Buyer Label Offered
History of Development:
We are a manufacturer of nice quality printing machine using in screen printing industries. In the year of 2005, PADEEN is found in SuZhou, Jiangsu. Along with the development, it quickly became the professional supplier & exporter Pad & Screen printing system in China.
Now we move to Shanghai. By cooperating with other domestic excellent manufacturer and setting up the systematic global marketing lines in more than 30 countries and regions.
PADEEN provide full sets of printing systems such as pad printing system, screen printing system, textile printing systemm, heat press systems, stencial-making system, peripheral system and relative suppliers. Main pneumatic and electronic componet are imported from Europe. As a warranty of the quality, all of the exported products are under the strict control and conformity to the CE certificate.
PADEEN PSL'S full set of printing systems are used world wide in a wide range of industries such as graphic medium printing, electronic unit printing,promotional products printing, textile screen printing, glass printing, plastic products printing, packing printing, paper printing, advertising printing and other industrial printing.
