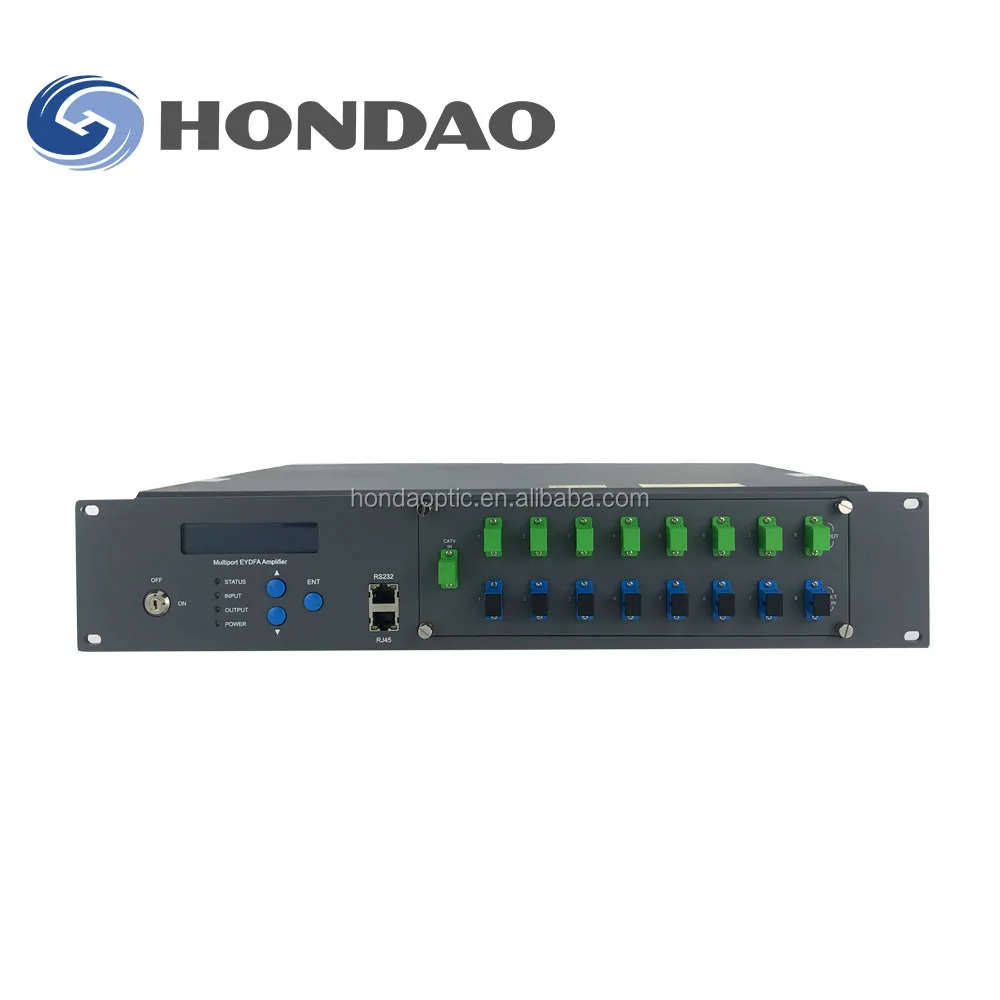

Hondao CATV 1550nm Fiber Optic Laser CATV 20dbm Signal Amplifier Dual Power Supply EDFA
- Category: >>>
- Supplier: Hangzhou Hondao Optic Co. Ltd.
Share on (60770991655):
Product Overview
Description
Product Description
With gain spectrum band within1540~1563nm, this amplifier is mainly designed for the application of CATV or 1~8 continuous branding channel (ITU wavelength) and also offers a flexible and low-cost solution for CATV large area coverage of large and medium-sized cities.
It can realize Single wave transmission, CWDM three waves in single fiber, flat gain.DWDM; it is important fiber transmission equipment of building large and medium - sized CATV network, mainly used in FTTH, FTTB, DBS, MMDS, FTTX pon.
Main Features
Optical connector & WDM connector: SC/APC or SC/PC or LC/APC or LC/PC for optional.
High performance dual hot plug power supply: AC220V & AC110V & DC48V for optional.Built in independent optical gain box, easy to operate or change.
Internal SNMP interface RJ45: it can control the working index remotelly.
Four cooling fan at the back of the panel: temperature 25 degree, working at low speed; over 40 degree, working at high speed.
Use 32 ARM processor and optical output power precision is ±0.05dBm.
Exellent ventilation design: Chassis cooling can be automatically controlled by the temperature.
2.8" large TFT ture color display: all the device working index can be checked and mornitored.
Product Description
Product Details
PON WDM is built in well-performed CWDM . Integrated 1490/1310 data stream from the OLT and
ONU into single fiber transmission through EDFA . Adopt GPON/GEPON signal
Feature
1.1540~1563nm operating bandwidth
2. Output ports :16~64 optional , total up to 2W
3. Each output ports with WDM . 1310/140/1550nm single fiber . XPON Adopt .
4.APC,ACC,ATC controlled selecion
5. Efficient space , flexible installation and easy operation.
6. Power RS232 supervisory instruction . Excellent P/P ration .
Certifications
Product Details
Main Products
GEPON/GPON OLT
GEPON/GPON ONU
Fiber Optical Equipment
FTTx Passive
Our Company
With years of export experience along with excellent quality, advanced services and competitive prices, Hondao has won numerous customers' trust and support.Our one stop shop gather thousand of product from the various of dhinese factory as well as a lot of well-know brands .
Win-Win is our business Cooperation . Hondao Is your Good partner in Fiber Optic Communication .
FAQ
IF YOU HAVE ANY PROBLEM ,YOU CAN CONTACT ME
FOR EXAMPLE :
Q:How long is the delivery time for the goods?
A:during 7-25days
Q:What is the product used for packing?
A:We always use catron, Unless you have different packing needs .
Q:what's the way to pay?
A:We support T/T, WESTERN UNION,OEN,OBN,OHTERS
it's welcome
