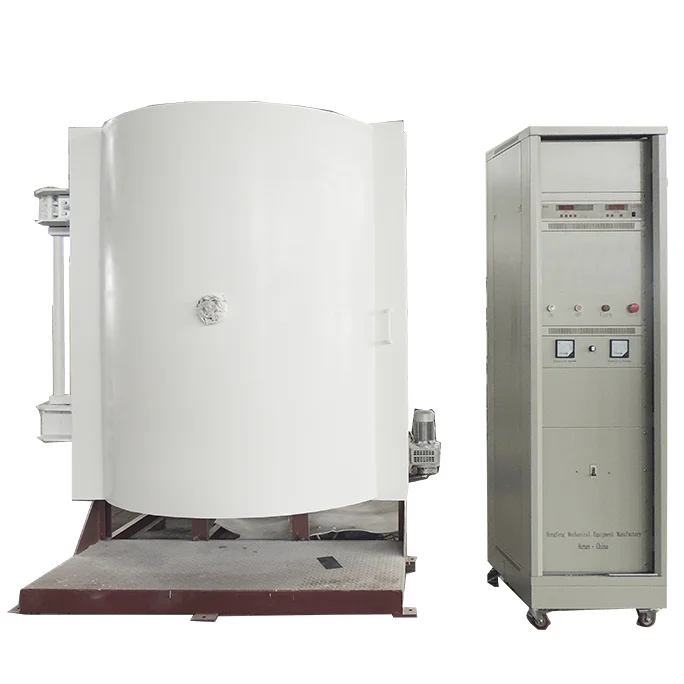

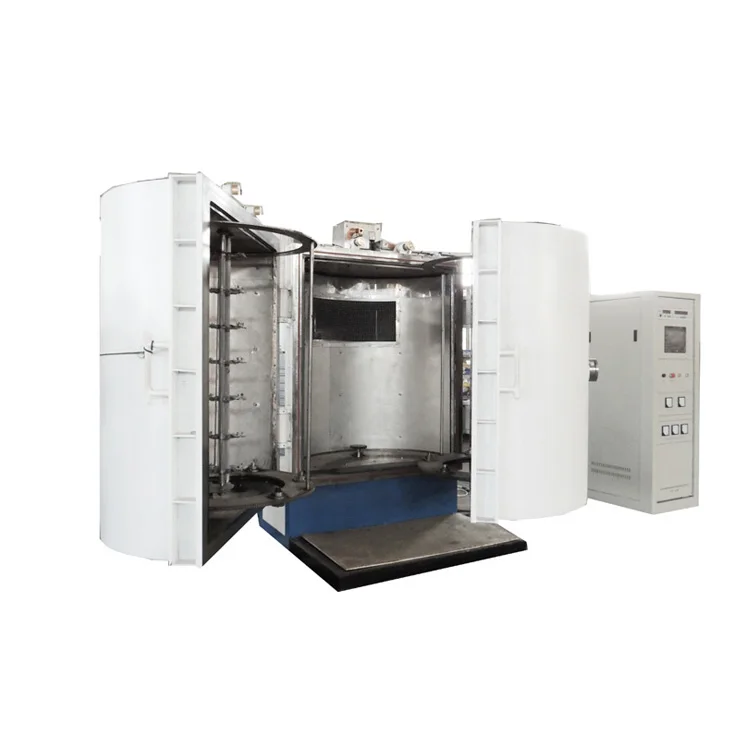

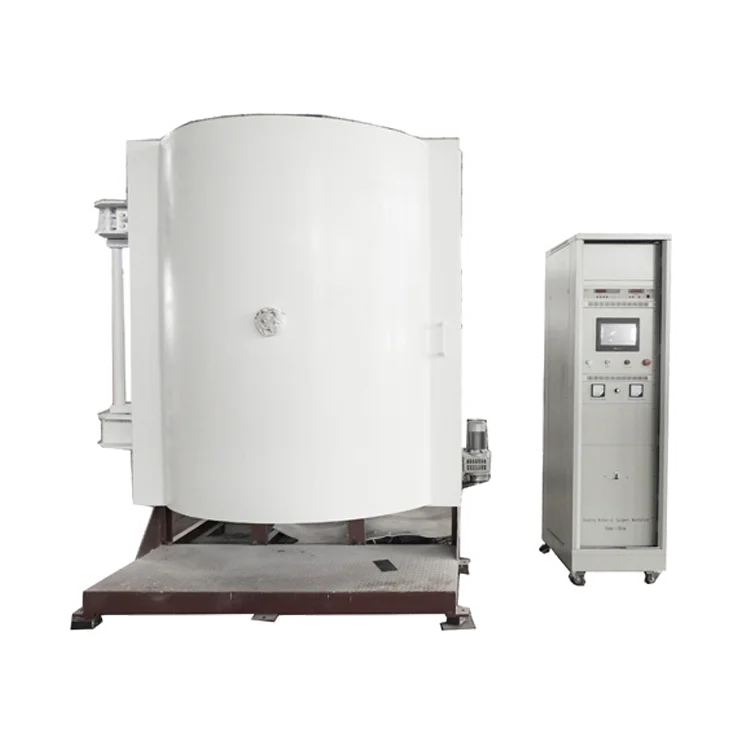

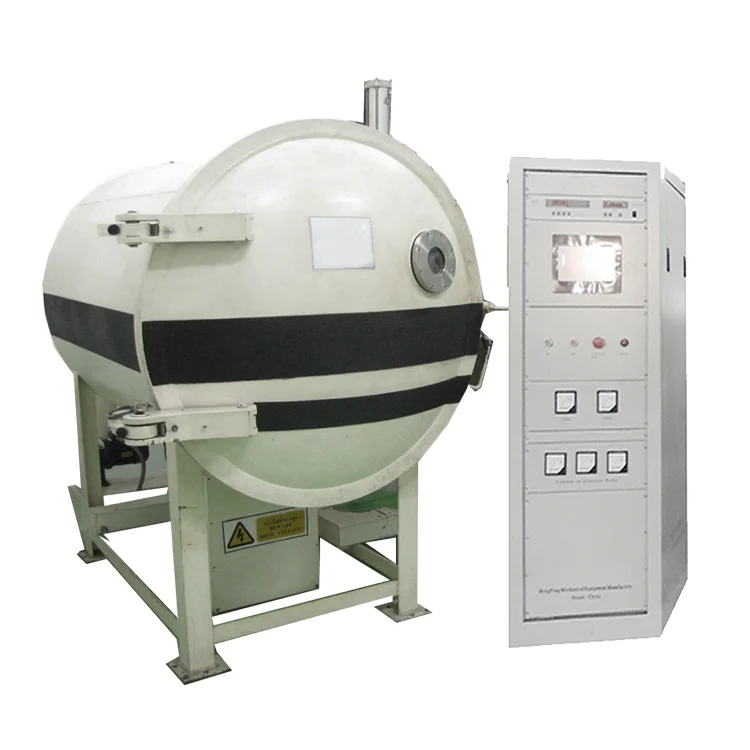

Plastic Vacuum Metallizing Coating Machine with Ion Plasma Treatment
- Category: >>>
- Supplier: Xiangtan Hongfeng Mechanical Equipment Manufactory
Share on (60770994189):
Product Overview
Description
Plastic Vacuum Metallizing Coating Machine with Ion Plasma Treatment
This machine can apply metallizing coatings on plastic, ceramic, glass, and metal items.
Evaporation Spec.
Vacuum metallization is a form of physical vapor deposition, meaning that metal is combined with a non-metallic substrate through evaporation. Aluminum is the most commonly used metal in the process due to its aesthetic and functional properties.

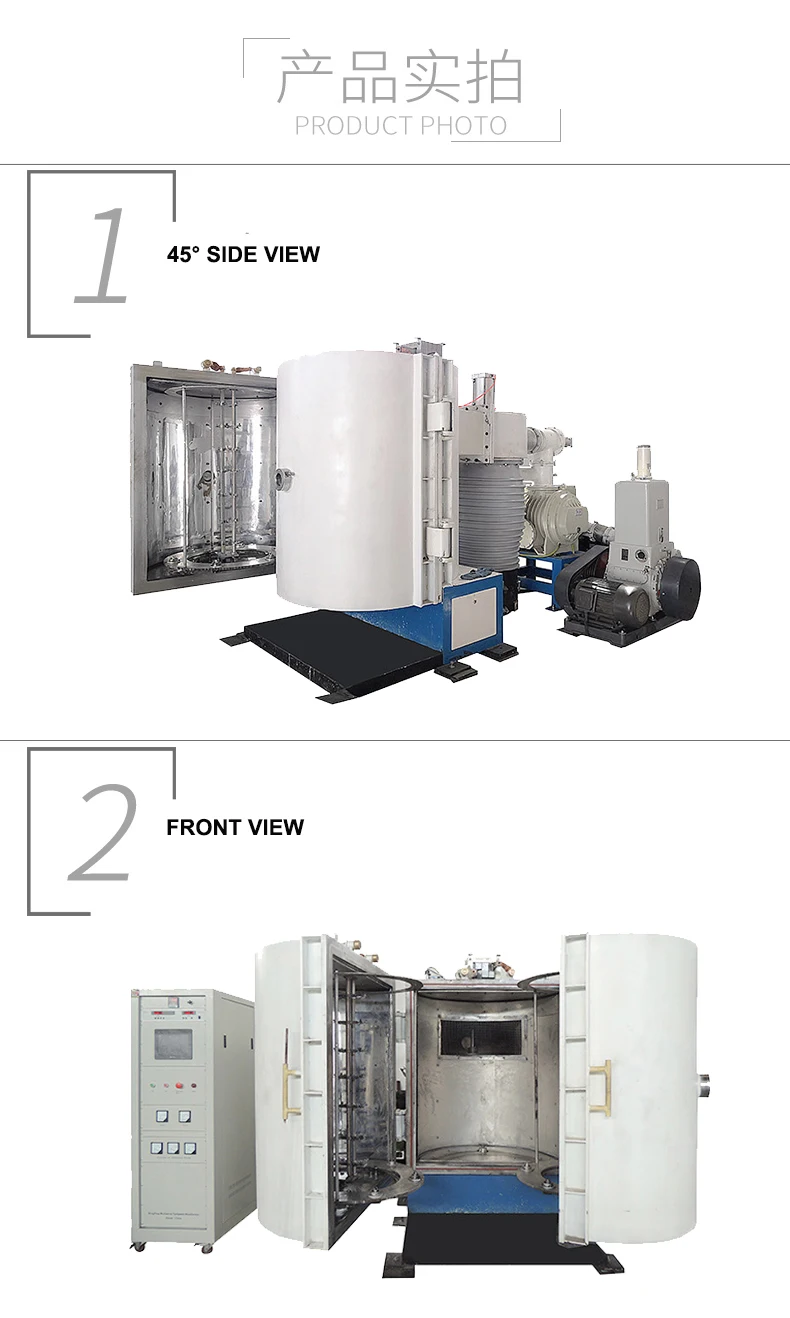

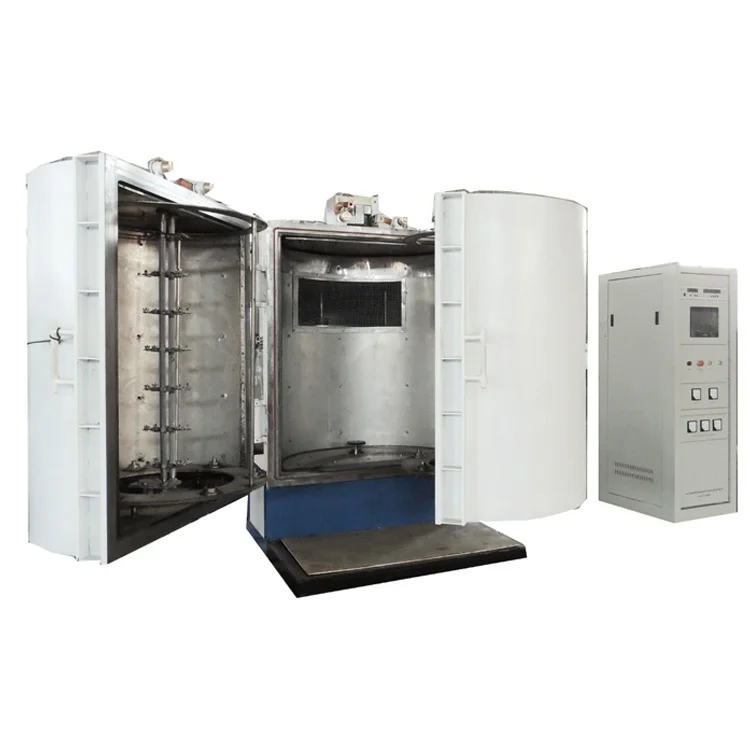

| Photos of the vacuum metallizing machine |
| Structure of the Evaporation Metallizing Machine |
1. Vacuum Metallizing Machine - Technical Specifications:
| Mode | EV-1000 | EV-1200 | EV-1600 | EV-1800 |
| Dimension | D1000*H1100mm | D1200*H1400mm | D1600*H2000m | D1800*H2000m |
| Main Applications | Plastic or glass metallizing, decorative coatings | |||
| Coating System | Evaporation Coating System with high power transformer | |||
| Vacuum chamber structure | Vertical chamber front opening door, one or two doors, as well as two chambers optional | |||
| Pumping system | Diffusion pump(Molecular pump) +Roots pump +Mechanical pump (5.0*10-4Pa) | |||
| Workpiece Carousel | Public rotation Frequency control: 0-20RPM | |||
| Vacuum degree measuring | Digital display composite vacuum gauge: from atmosphere to 8.0*10-4Pa | |||
| Control mode | Manual/Automatic work mode by PLC touched screen | |||
| Remark | We can make the machine according to customer’s requirements. | |||

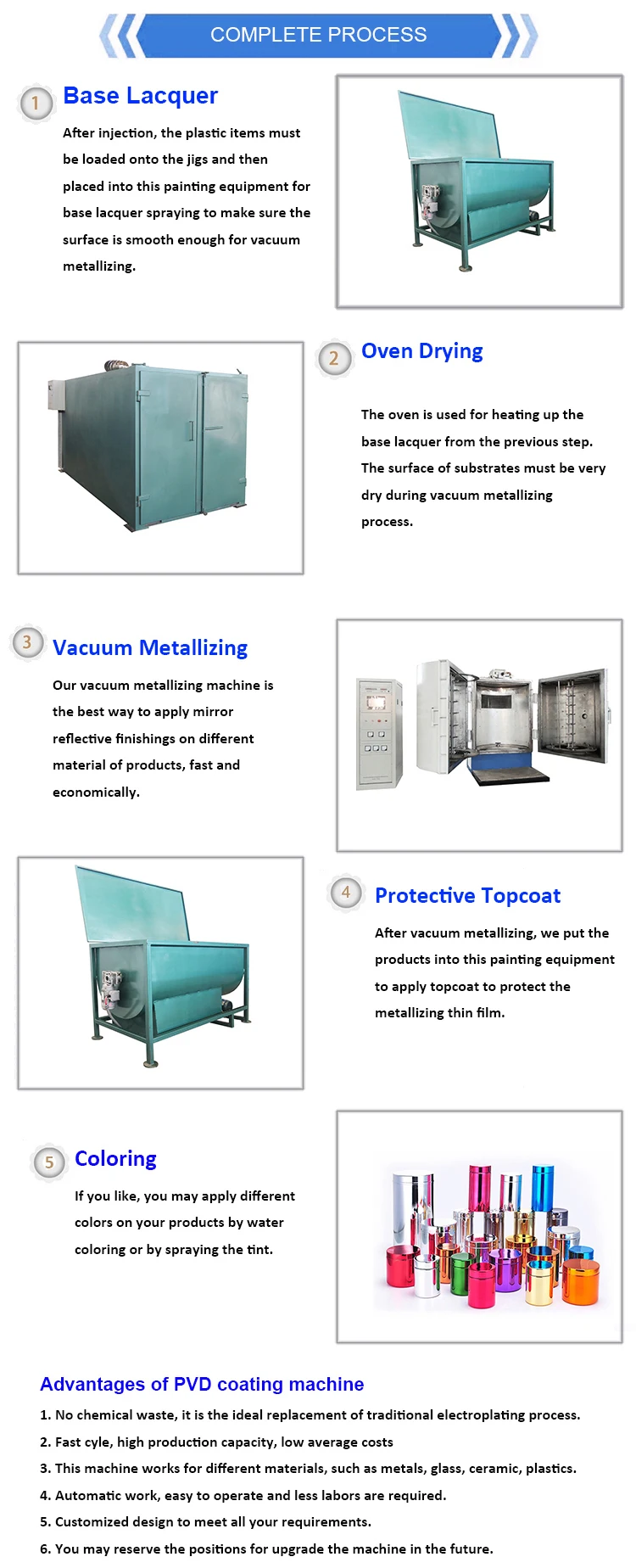

Note: We can provide the complete solutions for this whole process.
Company Information
Packaging & Shipping
1. The inner packing is protective plastic film to protect the PVD machine from moisture and rain.
2. The out packing is plywood plate with steel to keep the PVD machine in good condition during the long distance transportation.
After the customer tested the PVD coating machine and make sure the machine is no problem, we will take the machine apart. The solid packing can make sure you will receive a machine without any destroy.

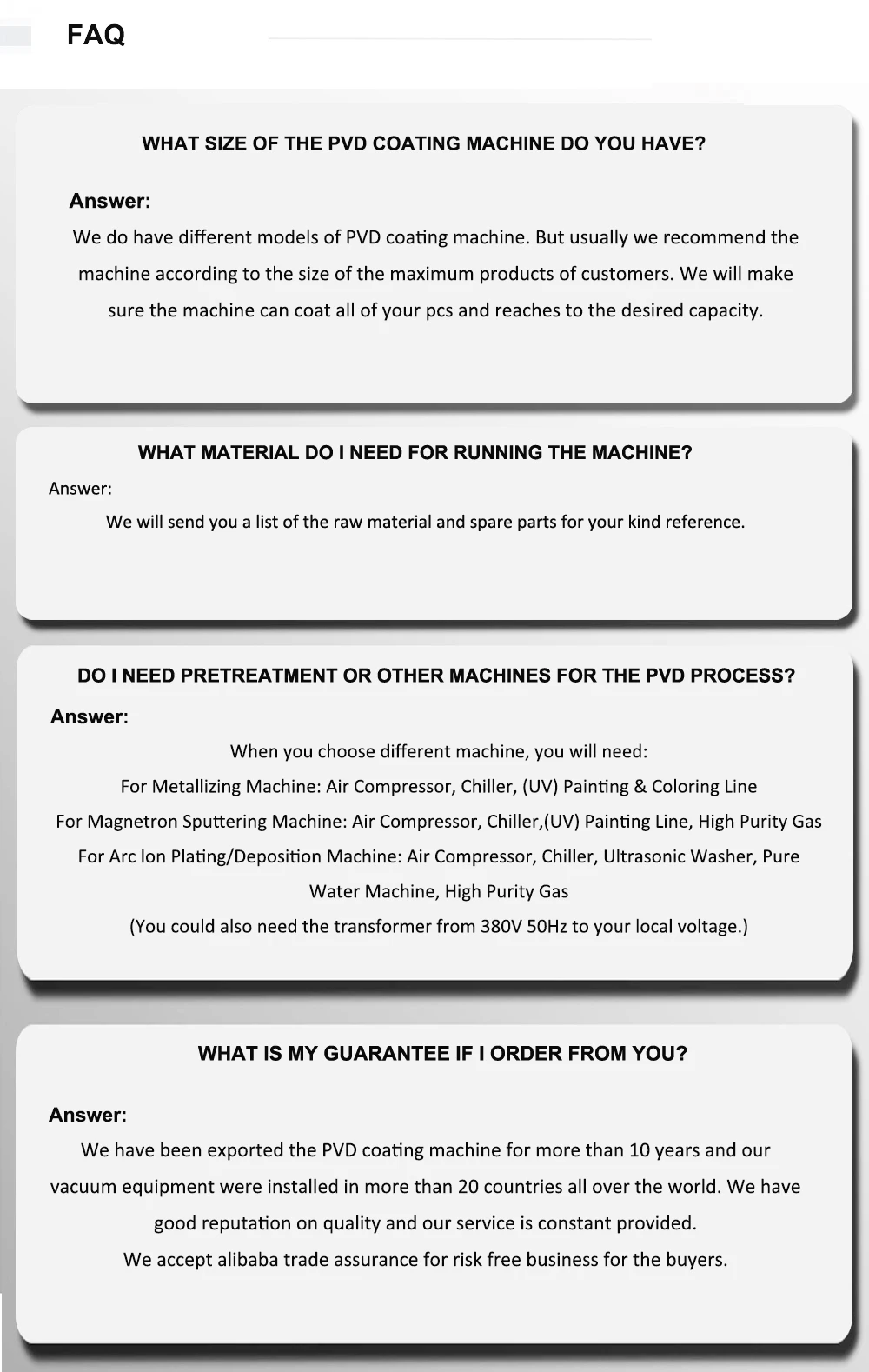

FAQ
