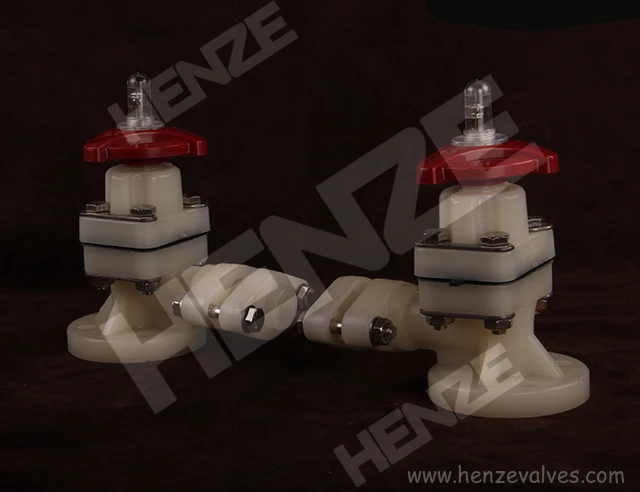

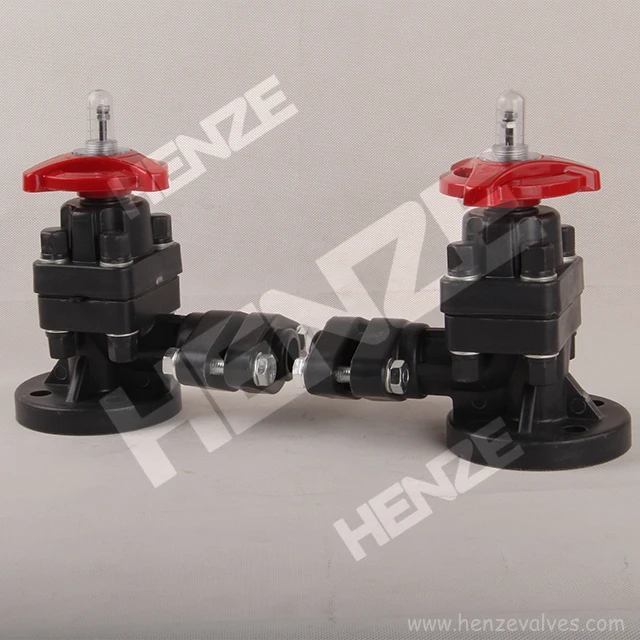

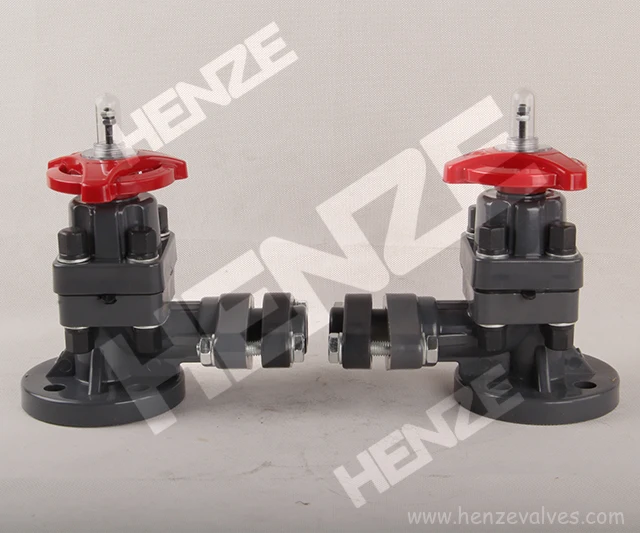

UPVC, CPVC, PPH, PVDF, FRPP Plastic Flanged Lever Indicator
- Category: >>>
- Supplier: Henze Valves Corporation
Share on (60771008927):
Product Overview
Description
Technical Parameters
Technical Parameters & Characteristics
| Product Description | Plastic Flanged Lever Indicator |
| Nominal Diameter | 1/2"~2"(DN15~DN50) |
| Operating Temperature | -10 Deg. C~120 Deg. C(the range of service temperature may vary for different materials) |
| Operating Pressure | Class150, PN6, PN10, PN16 or lower |
| Main Materials | CPVC, UPVC, PVDF, PPH, FRPP |
| Seal Materials | EPDM, VITON |
| O Ring | NBR, EPDM, VITON |
| Design standard | ASME B16.34, ISO STD |
| Structural length | ANSI and Manufacture Standard |
| Connect Ends | RF, FF |
| Ends Standard | ASME B16.5, EN 1092, BS 4504 |
| Test standard | ISO5208 |
| Application | Metallurgical, Chemical, Water Management, Pharmaceutical, Photovoltaic, Food Industry |
| Other Features 1 | Easy of Maintenances |
| Other Features 2 | Small Operating Torque |
| Other Features 3 | Stock is available |
| Other Features 4 | Compact and Portable |
