DPP 140 Tablet Capsule Blister Packaging Machine

Product Overview

Description

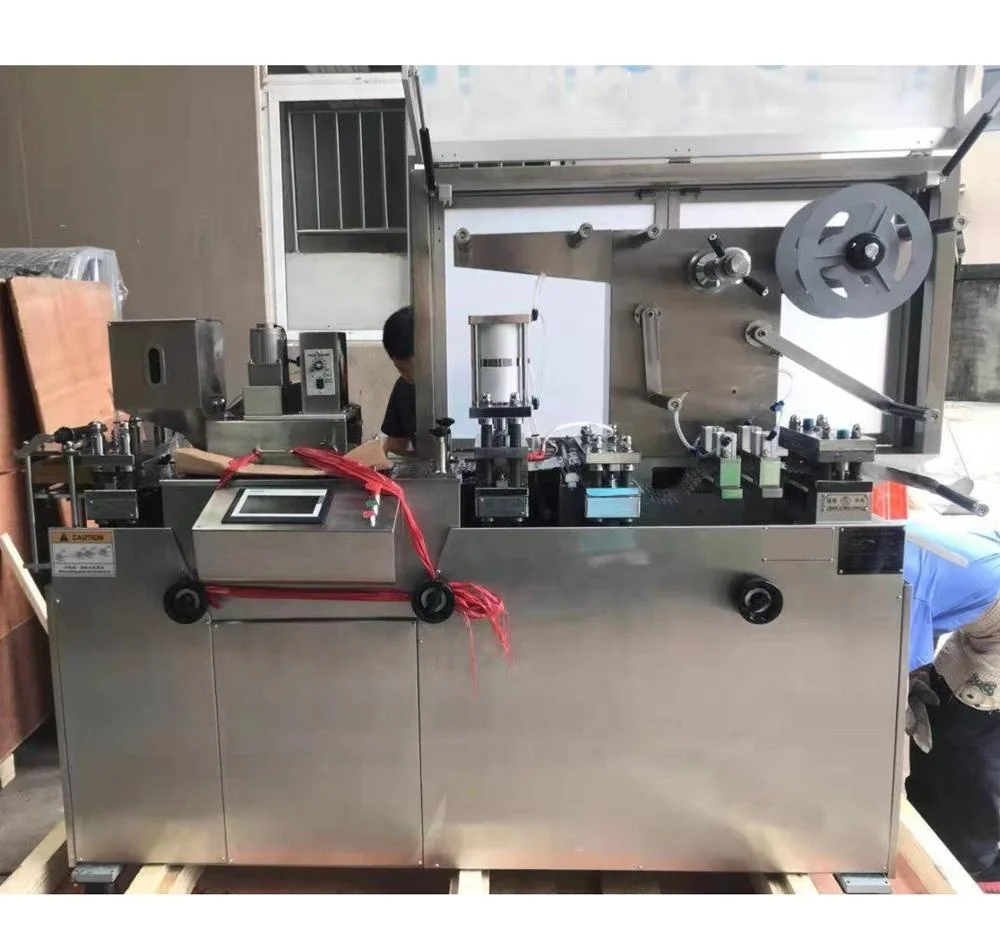

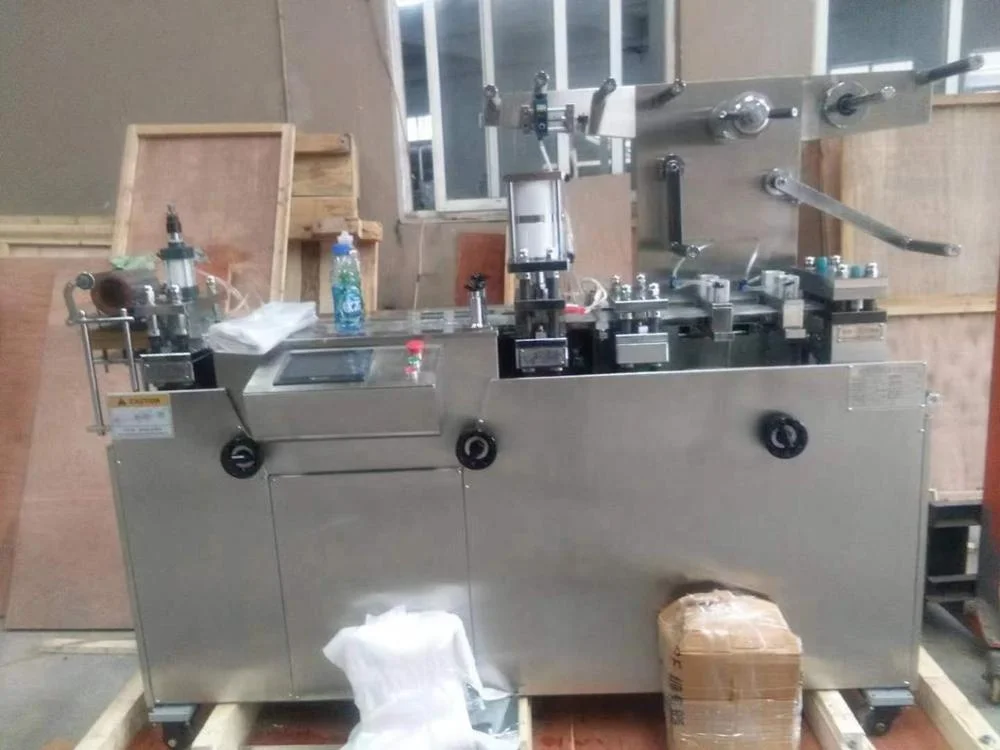

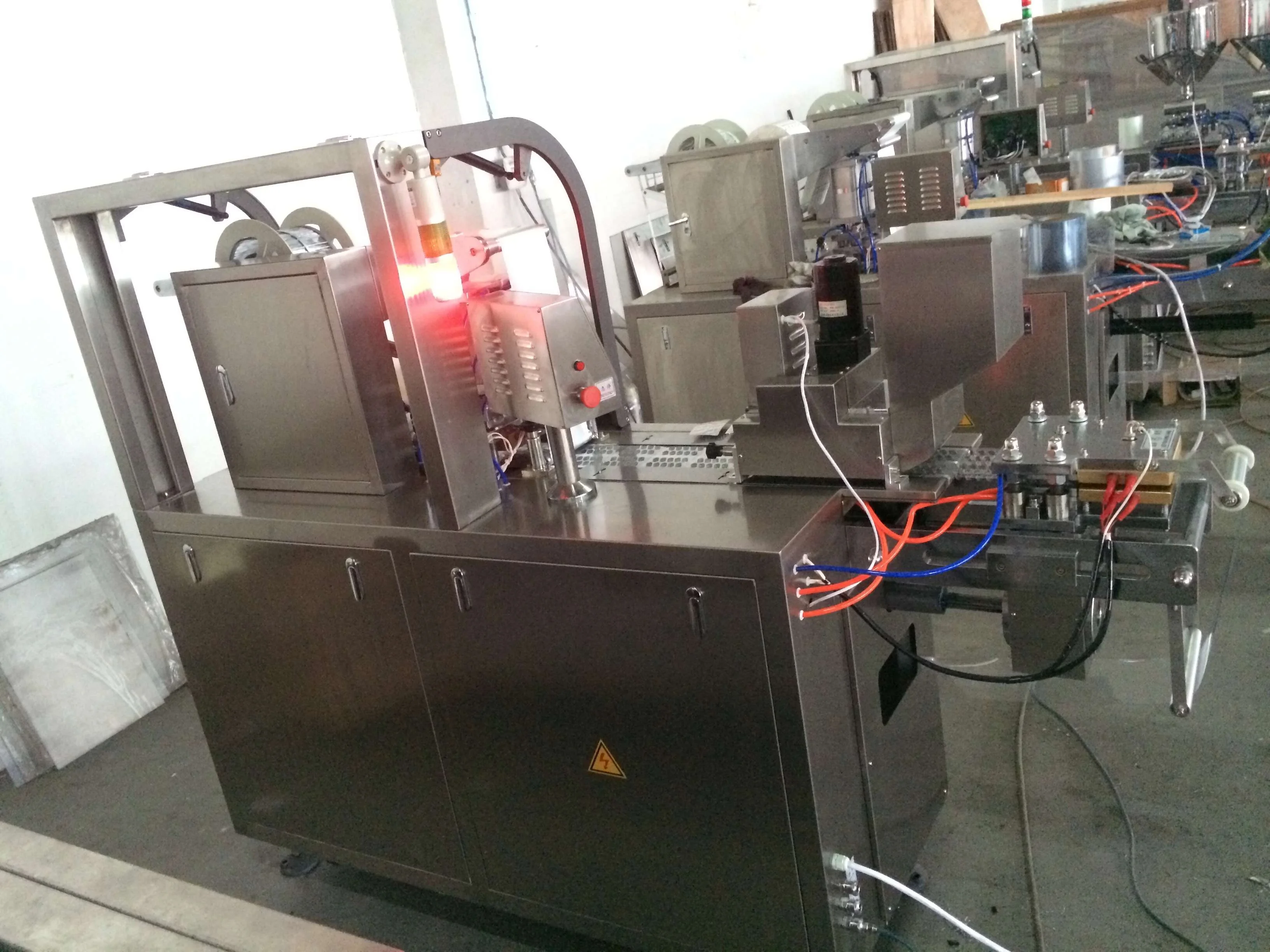

DPP-140 Tablet Capsule Blister Packaging Machine



I. Performance characteristics

1. Adopting the latest domestic high-power transmission mechanism, the main transmission shaft is driven by chain arrangement, which eliminates the errors and noise of other gear transmission.

2. With import control system, electrical appliances can be equipped with missing material filling device and missing particle detection and elimination device (Omron sensor) according to customer requirements. Imported frequency converter is adopted.

3. The whole machine is composed of segments: PVC forming, feeding and hot sealing are one segment, while hot forming, hot sealing and blanking of tropical aluminium are one segment, which can be packed separately.

4. Adopt photoelectric control system, automatic feeding device for PVC, PTP, tropical aluminium packaging and automatic punching device for waste edge to ensure synchronous stability of ultra-long distance multi-station.

5. It can be equipped with photoelectric detection and correction device, imported stepper motor traction, printing and packaging of pictures and texts to optimize packaging grade.

6. This machine is suitable for capsules, plain tablets, sugar coatings, capsules, injections, profiles, and sealed packaging of medical appliances, light food, electronic components blister.



II. Technical Parameters

Model	DPP-140
Number of blanking times	15-40 times/min (hard aluminum 10-20 times/min)
Throughput	4800 edition/hour
Maximum Forming Area and Depth	140*110*13mm (max form depth can be 26mm after pay extra charge)
Standard range of travel	20-110 mm (can be designed according to customer requirements)
Standard section	80*57mm (can be designed according to customer requirements)
air pressure	0.6-0.8 MPa
Total power supply	380V/220V 50Hz 5.2Kw
Main electrode power	1.5Kw
PVC Hard Pieces	0.15-0.5*140 mm
PTP Aluminum foil	0.02-0.035*140 mm
Dialysis paper	50-100g*140 mm
Mold cooling	Tap or circulating water
Outward Size	2300*650*1615mm
Weight	900 kg
Noise Indicators	<75dBA

III.  Working flow

1. Forming (heating up and down)

2. Heat Sealing (Upper Heating)

3. Coding

4. indentation (micro-heating)

5. Cutter

6. Shaping Output Products

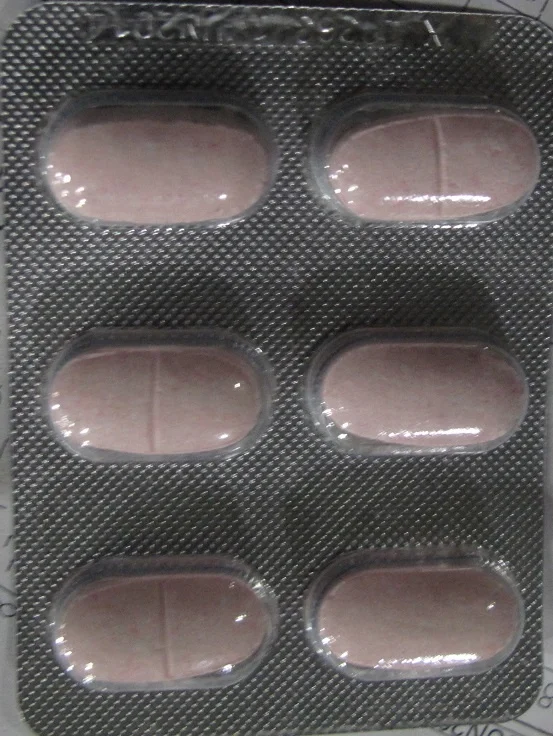

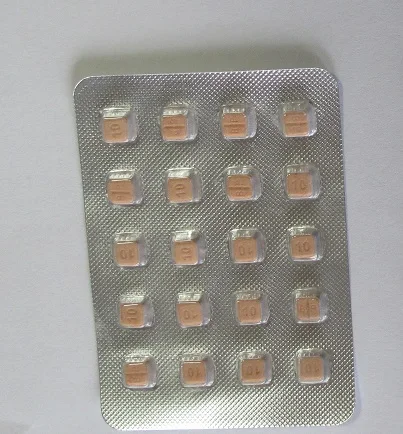

V. Sample picture





V. Configuration list

1.    Drive Parts

NO	Name	Qty	Model	Brand
1	Traction drive cylinder	1	φ50* travel distance10	Ryan Yida
2	Main motor	1	YS1500W-4P	Wenzhou Dongli
3	Heating position	1	AL160×180	Taixing, Jiangsu
4	Frequency converter	set	DVA-2S0015G	Zhejiang Tianzheng Group
5	Feeding motor	1		Wenzhou Dongli



2.    Electrical components

No	Name	Qty	Model	Brand
1	thermocouple	2	LI-2M	Zhongpu, Zhejiang
2	Air circuit breaker	1	DZ47-63/10A	CHINT, Zhejiang
3	Air circuit breaker	2	DZ47-63/6A	CHINT, Zhejiang
4	Air circuit breaker	1	DZ47-63/25A	CHINT, Zhejiang
5	Relay	5	HRS4H-S	Hong Kong HKE
6	Single chip	1	Control panel	Sino-foreign Joint Venture
7	Solid State Relay Motor	2	SSR-40DA	Yang ming, Taiwan
8	Control transformer	1	JBK3-63	Zhengtai, Zhejiang
9	Solenoid valve	1	SG4V210-08	Wenzhou Yida
10	Emergency stop button	1	LAY2	Zhengtai, Zhejiang
