Product Overview

Description

Product Description

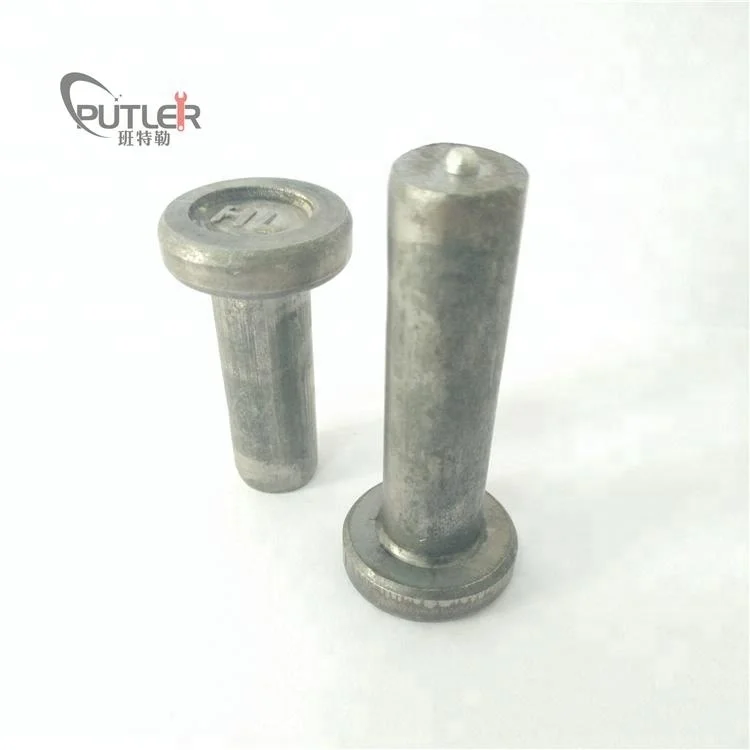

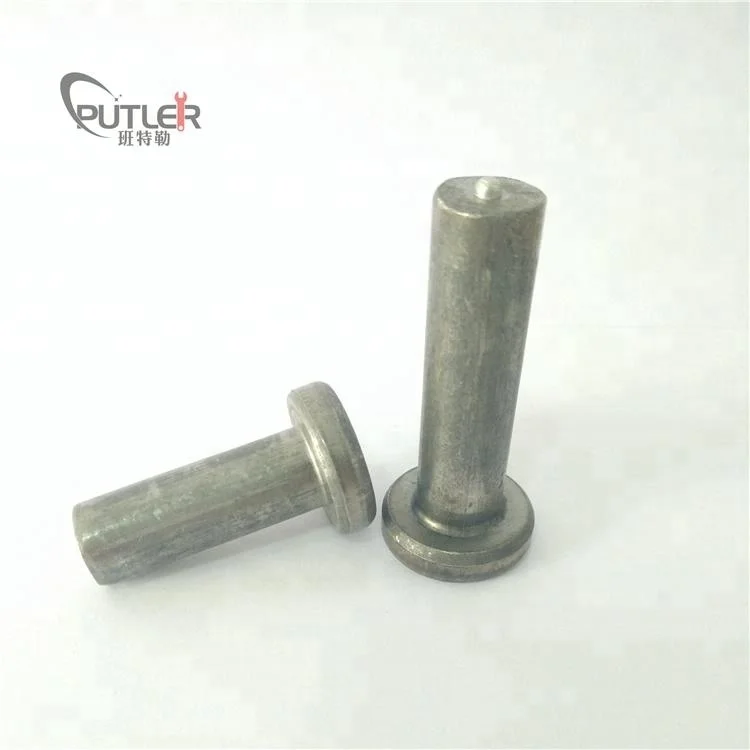

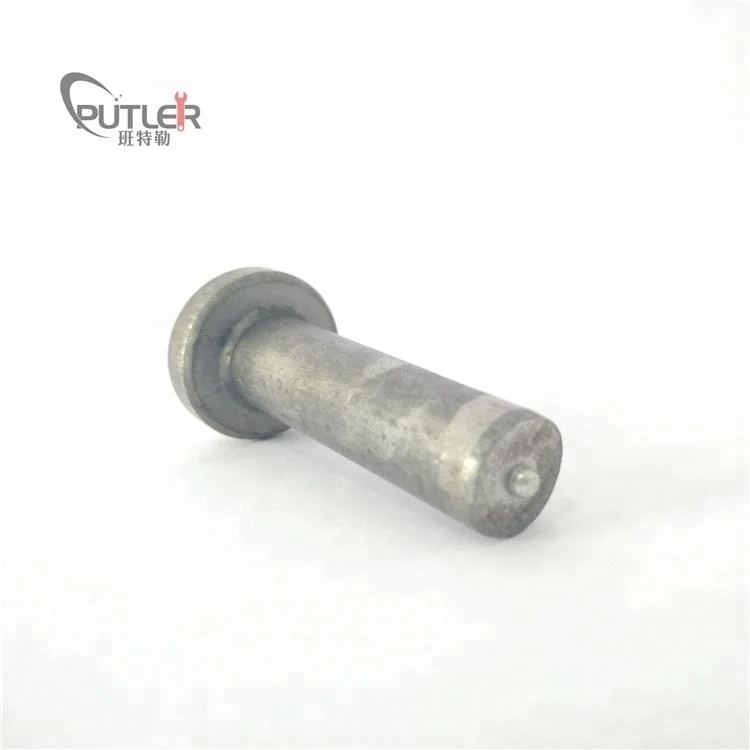

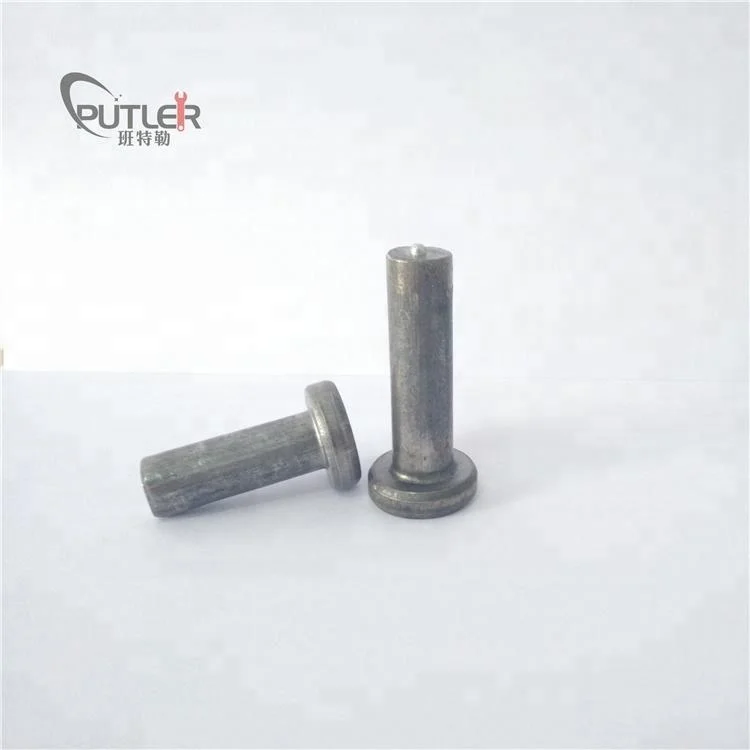

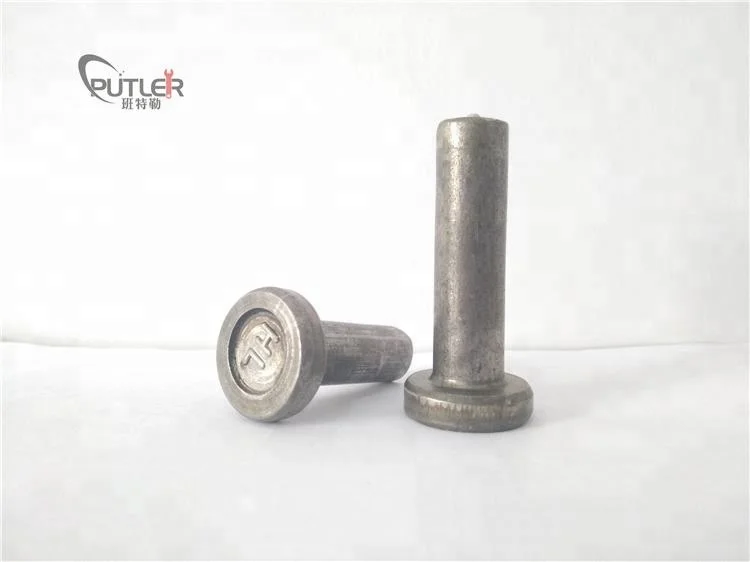

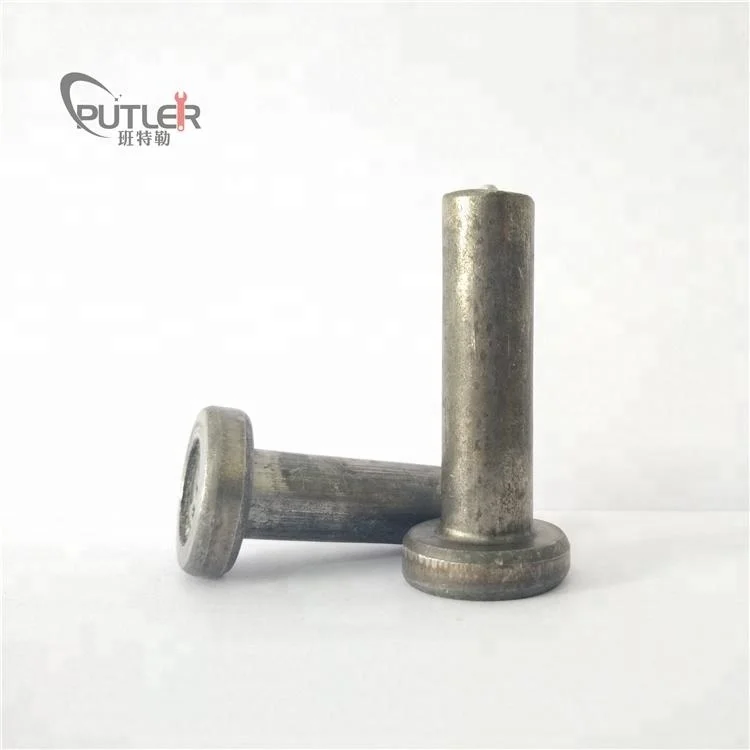

Shear connector(it is also named shear stud) are typically used in composite steel construction to tie the concrete to steel members and resist shear forces between the concrete slab and steel members. Plenty of steel construction(such as steel building, steel beam, steel bridges, etc.) uses shear connector widely. Butler shear connectors meet the following standards:

• ISO 13918: 2008: 2008 Welding – Studs for arc stud welding, type SD1
• GB/T 10433: 2002 Cheese Head Studs for Arc Stud Welding
• JIS B 1198-1995 Headed Studs
• AWS D1.5: 2002 Bridge Welding Code, type B
• AS/NZS 1552.2: 2003 Australian/New Zealand Standard – Structural Stud Welding
• BS 5400: 2005 Steel, Concrete, and Composite Bridges
• AWS D1.1: 2015 Structural Welding Code-Steel, type B
Product
Shear Connector
Brand
Butler
Material
Low Carbon Steel – SWRCH15A、ML15AL、ML15
Nominal Diameter (mm)
10, 13, 16, 19, 22, 25
Length Before Weld (mm)
50 – 255
Surface Treatment
Plain
Yield Strength (0.2% offset) (MPa)
240
Tensile Strength (MPa)
400～550
Elongation (A5) %
≥14
Origin
China
Chemical Component of Raw Material (%)
Material
C
Si
Mn
P
S
Al
SWRCH15A
0.13-0.18
≤0.10
0.30-0.60
≤0.035
≤0.035
≥0.020
SWRCH18A
0.15-0.20
≤0.10
0.60-0.90
≤0.030
≤0.035
≥0.020
Mechanical Properties of Shear Stud Connector
Standard
Tensile strength
Yield strength
Elongation
BS EN ISO13918:2008
≥450MPa
≥350MPa
≥15%
USA ANSI/AWS D1.1
≥450MPa
≥350MPa
≥15%
CHINA GB/T10433
≥400
≥320
≥14
Manufacure Process


Raw Material→Retesting the raw material→Coil drawing→Cold forging→Fluxing→QC Inspection→Packing→Shipping.

Detailed Images
Workshop

There're 5 production lines for shear connector studs in our workshop.

Cold Forging Machines

Raw materials are carefully selected to achieve the necessary mechanical conditions

Using new cleaning oil machine to clean oil after the shear stud by cold forging

Quality Control

 Mechanical Test

Shear studs are also mechanically tested. Bending tests are performed for each order after welding. Shear studs are also tested for elongation and tensile strength using our own testing equipment

Welding Test

Shear stud are regularly weld tested .

The test implies that the stud is bent to an angle of at least 60° or until breakage occurs.

Quality raw material

We choose the quality mild carbon steel from BIG Steel Factory.

Taking M19*100mm for example

Head thickness(mm)

Body diameter(mm)

Forehead diameter(mm)

Being able to determine the chemical composition of the raw materials for shear studs is a must for a good quality end product.

Tensile and yield strength tests are carried out regularly for each order and test certificates are supplied on request.

Packing & Delivery

Cartons Packages

The packaging of shear studs can be in carton boxes which are easy to carry or in metal drums.

Butler provides an appropriate package for shear stud connector, cartons (lined with plastic bags) & plywood pallets is our standard package;

Drum (lined with plastic bags) & plywood pallets based on customer's specific requirements.


Carton Packing

1. 25 kgs per carton, 48 cartons/1200KG per pallet.

2. Generally speaking, 1 x 20' GP container can load about 16-20 pallets.

Drum Packing

1. 200 kgs per drum,6 drums/1200KG per pallet.
2. Generally speaking, 1 x 20' GP container can load about 16-20 pallets.

Ordering information

For inquiring and ordering, please give us the following details:
Product name + standard + stud type + material + specification + quantity + special request (if any), for example:
Shear connectors, Type SD, Low carbon steel, 19 X 100, 50,000Pieces complete with standard UF ceramic ferrules.

Customer Service

Customer service


1. 7*24 Hours service for overseas clients.

2. A rapid reaction for inquiry within 3 hours.

3. Fast delivery within 7 days after order confirmation.

4. Strict quality control to all the orders.

5.With a large number of product inventory, conventional pieces in stock.

6. OEM service is available for our VIP clients.

7. All standards can be satisfied based on specific request.
