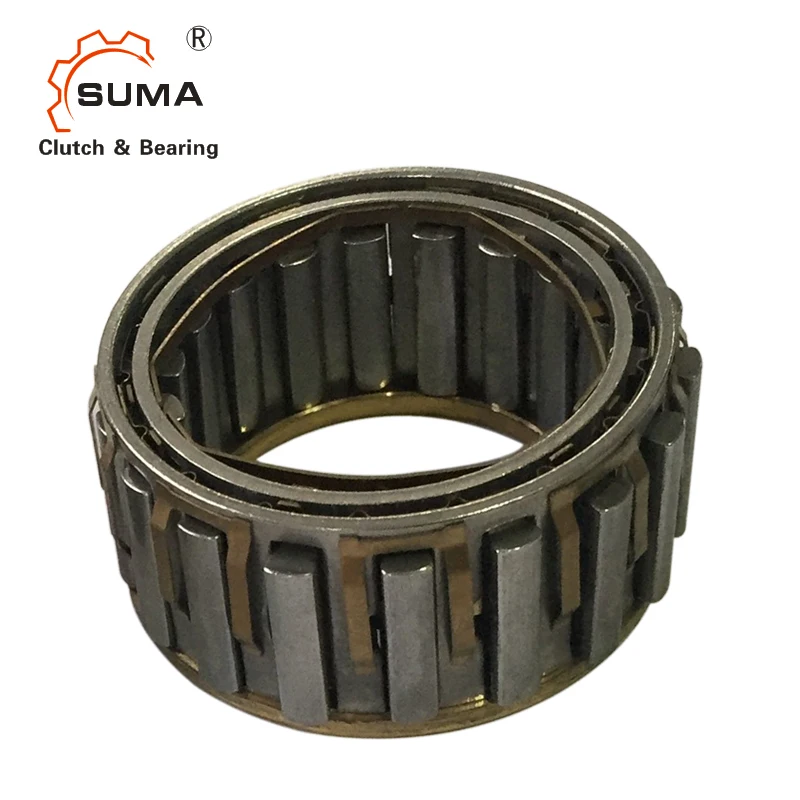

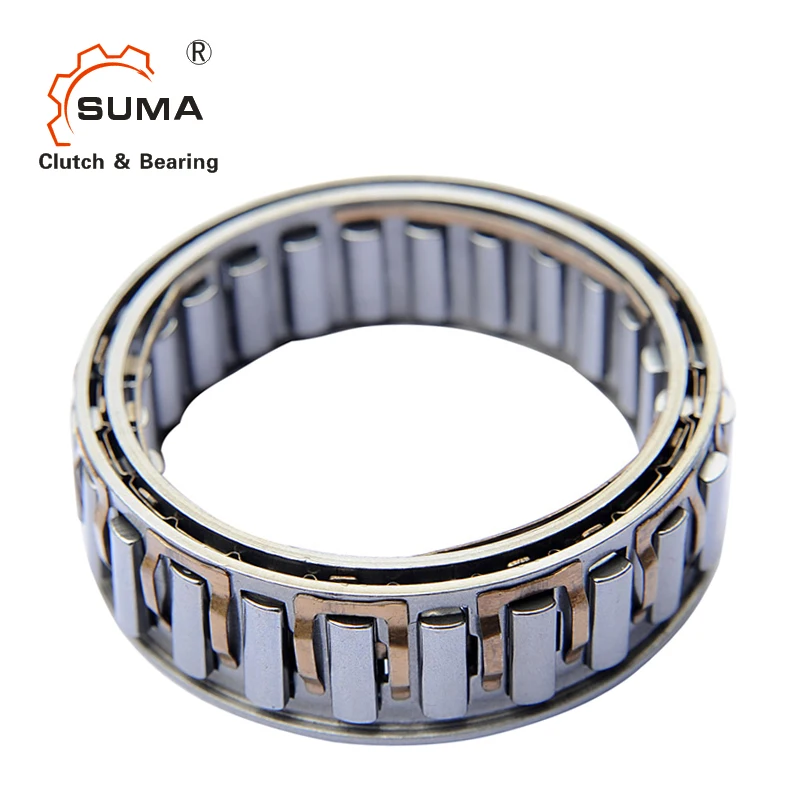

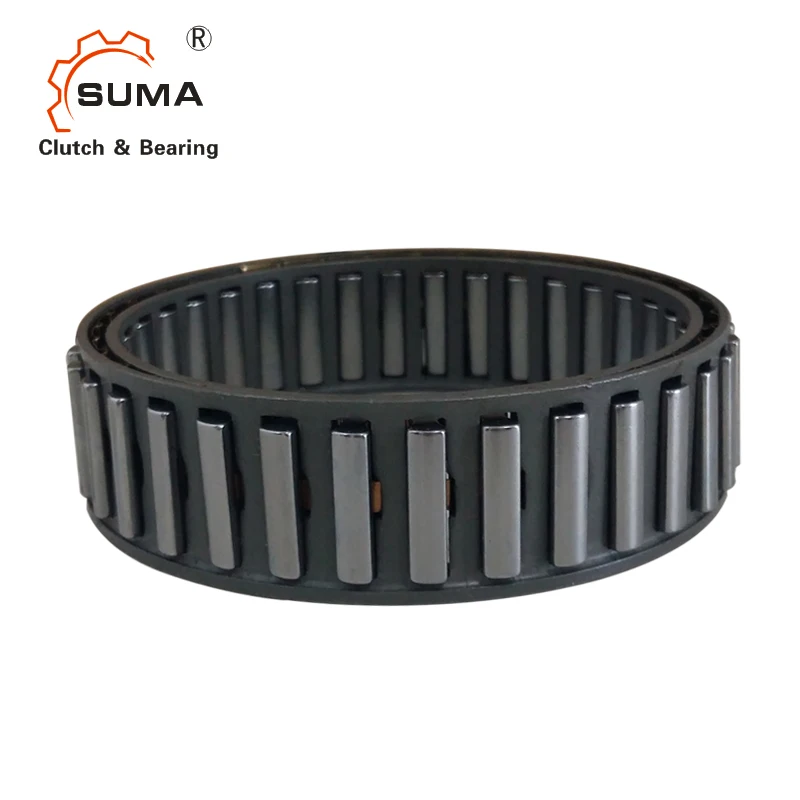

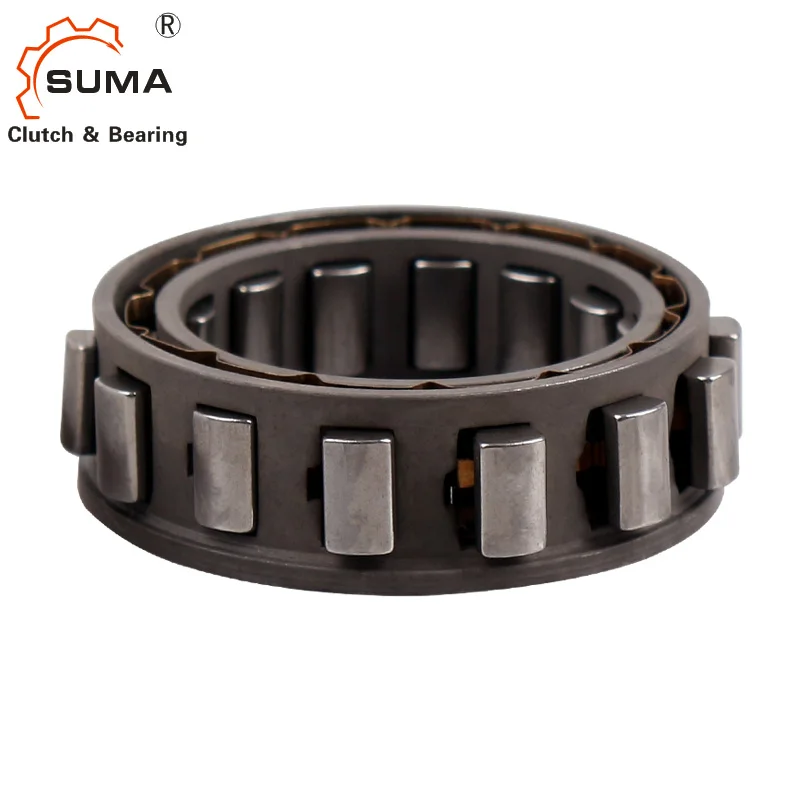

25.4MM Height DC4445A Freewheel One Way Sprag Clutch Bearing for Sale
Product Description
Features of dc clutch bearing : DC is a sprag type freewheel bearing cage without inner or outer races.
| SPECIFICATIONS | |
| Model | DC4445A |
| Material | Chrome Steel GCr15 |
| Inner diameter | 44.45mm |
| Outer diameter | 61.11mm |
| Sprag No. | 20 |
| Clip No. | 4 |
| Torlance | ± 0,013 |
| Weight | 0.09kg |
| Package | carton box, wooden box |
| Delivery time | 1 day for sample, 5-7 days for big order |
| Payment Terms | TT, L/C, D/P, D/A, Western Union, Paypal |
Installation Condition: It must be installed in a design providing races,bearing support for axial and radial loads. Lubrication and sealing.
Caution: The sprag tolerance must not be exceeded. Inner and outer races must both have am ini- mum plain widttie, without any recess, to ensure the freewheel functions correctly.
Catalogue of sprag freewheel clutch for your choice
| Size | Overrunning speeds | Øa | Øc | Sprag space | emin | Ødmin | Øbmax | Number of clips | Number of sprags | Weight | ||
| + 0,008 | ± 0,013 | |||||||||||
| - 0,005 | ||||||||||||
| TKN1[Nm] | nimax [min-1] | Namax2 [min-1] | [mm] | [mm] | [mm] | [mm] | [mm] | [mm] | [kg] | |||
| DC2222G | 63 | 8600 | 4300 | 22.225 | 38.885 | 8.33 | 10 | 50 | 15 | - | 12 | 0.03 |
| DC2776 | 119 | 6900 | 3400 | 27.762 | 44.422 | 8.33 | 13.5 | 58 | 18 | - | 14 | 0.055 |
| DC3034 | 124 | 6300 | 3100 | 30.34 | 47 | 8.33 | 13.5 | 62 | 20 | - | 14 | 0.06 |
| DC3175(3C) | 159 | 6000 | 3000 | 31.75 | 48.41 | 8.33 | 13.5 | 63 | 24 | 3 | 16 | 0.06 |
| DC3809A | 275 | 5000 | 2500 | 38.092 | 54.752 | 8.33 | 16 | 71 | 29 | - | 18 | 0.085 |
| DC4127(3C) | 224 | 4600 | 2300 | 41.275 | 57.935 | 8.33 | 13.5 | 75 | 32 | 3 | 18 | 0.09 |
| DC4445A | 363 | 4300 | 2100 | 44.45 | 61.11 | 8.33 | 16 | 79 | 34 | - | 20 | 0.095 |
| DC4972(4C) | 306 | 3800 | 1900 | 49.721 | 66.381 | 8.33 | 13.5 | 86 | 38 | 4 | 22 | 0.1 |
| DC5476A | 525 | 3500 | 1700 | 54.765 | 71.425 | 8.33 | 16 | 92 | 42 | - | 24 | 0.11 |
| DC5476A(4C) | 525 | 3500 | 1700 | 54.765 | 71.425 | 8.33 | 16 | 92 | 42 | 4 | 24 | 0.13 |
| DC5476B(4C) | 769 | 3500 | 1700 | 54.765 | 71.425 | 8.33 | 21 | 92 | 42 | 4 | 24 | 0.18 |
| DC5476C(4C) | 990 | 3500 | 1700 | 54.765 | 71.425 | 8.33 | 25.4 | 92 | 42 | 4 | 24 | 0.2 |
| DC5776A | 604 | 3300 | 1600 | 57.76 | 74.42 | 8.33 | 16 | 98 | 44 | - | 26 | 0.11 |
| DC6334B | 806 | 3000 | 1500 | 63.34 | 80 | 8.33 | 21 | 104 | 50 | - | 26 | 0.175 |
| DC7221(5C) | 675 | 2600 | 1300 | 72.217 | 88.877 | 8.33 | 13.5 | 115 | 56 | 5 | 30 | 0.14 |
| DC7221B | 1279 | 2600 | 1300 | 72.217 | 88.877 | 8.33 | 21 | 115 | 56 | - | 30 | 0.185 |
| DC7221B(5C) | 1279 | 2600 | 1300 | 72.217 | 88.877 | 8.33 | 21 | 115 | 56 | 5 | 30 | 0.21 |
| DC7969C(5C) | 2038 | 2400 | 1200 | 79.698 | 96.358 | 8.33 | 25.4 | 124 | 61 | 5 | 34 | 0.28 |
| DC8334C | 2055 | 2300 | 1100 | 83.34 | 100 | 8.33 | 25.4 | 132 | 65 | - | 34 | 0.27 |
| DC8729A | 1250 | 2200 | 1100 | 87.29 | 103.96 | 8.33 | 16 | 134 | 67 | - | 34 | 0.165 |
| DC10323A(3C)* | 1612 | 1800 | 900 | 103.231** | 119.891 | 8.33 | 16 | 155 | 80 | 3 | 40 | 0.205 |
| DC12334C* | 4800 | 1500 | 750 | 123.34 | 140 | 8.33 | 25.4 | 184 | 96 | - | 50 | 0.4 |
| ** | ||||||||||||
| DC12388C(11C) | 4875 | 1500 | 750 | 123.881 | 142.88 | 9.5 | 25.4 | 196 | 96 | 11 | 44 | 0.4 |

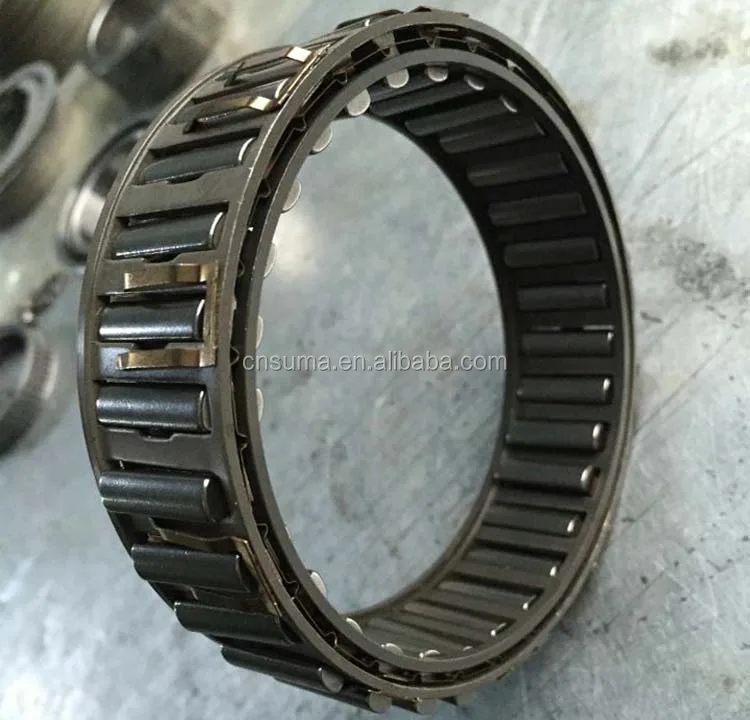

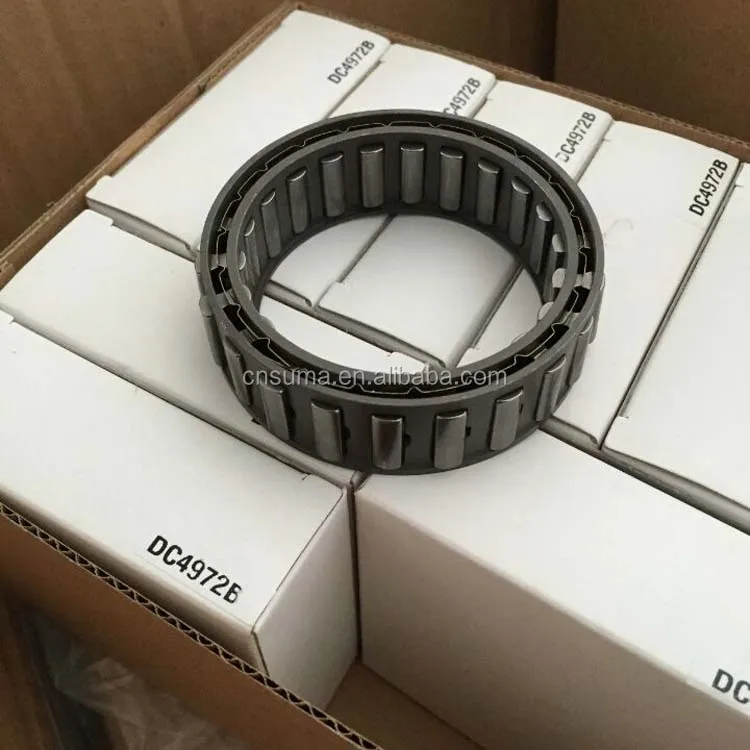

Detailed Images
