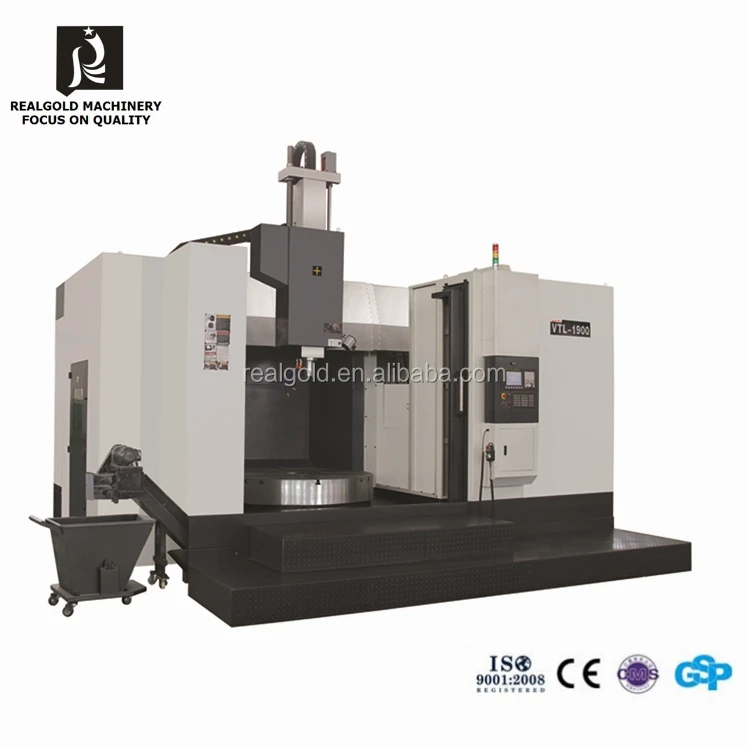

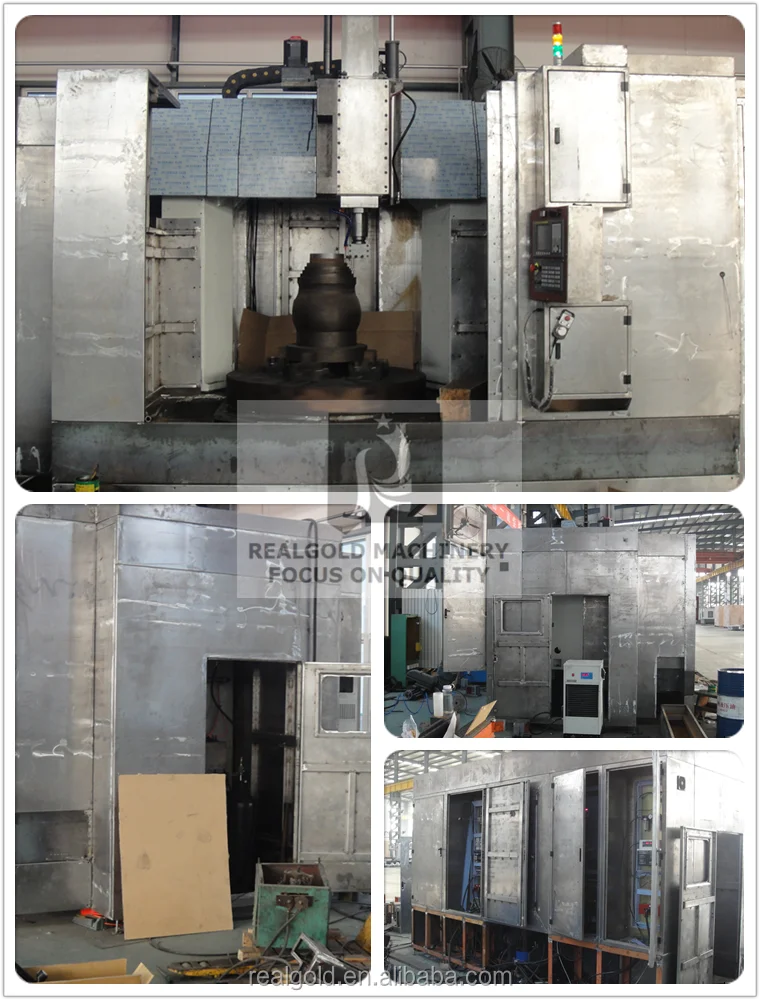

China Heavy Duty Double Column Large Specification CNC VTL 1900 Turning Vertical Lathe Machine Price For Sale

Product Overview

Description



Product main technical specification:



ITEM	UNIT	VTL1600		VTL1900
MAX.turning diameter	mm	1600		1900
MAX.swing diameter	mm	1900		2000
Worktable diameter	mm	1400		1600
MAX.weight of work piece	T	5		8
Speed range of woektable	r/min	7-200		7-200
Horizontal travel of toolpost	mm	1600		2000
Vertical travel of toolpost	mm	950		950
Magazine capacity		16pcs		16pcs
Tool holder		BT50		BT50
MAX.tool weight	kg	15		15
MAX.tool length	mm	200		200
Range axis rapid feed speed	mm/min	1-2000(stepless)		1-2000(stepless)
Horizontal rapid feed of toolpost	mm/min	6000		6000
Vertical rapid feed of toolpost	mm/min	4000		4000
Power of main motor	kw	30/37		30/37
weight of machine	T	16		20
Overall of machine	mm	4900*2800*3400		6000*4600*4300

STANRARD

FANUC 0i-TF

Chuck with four independent jaws;

2-step gear box ZF;

Hydr. Workstation;

Auto lubrication system;

The machine's operation with visual alarm mode;

Air-cooled electricity ark;

Automatic vent flocks and trolley;

Umbellate type magazine 12pcs;

Repairs and maintenance tools;

Manual pulse generator;

Body protection;

Spindle heat exchanger;

Spindle brake unit

Cooling system ;

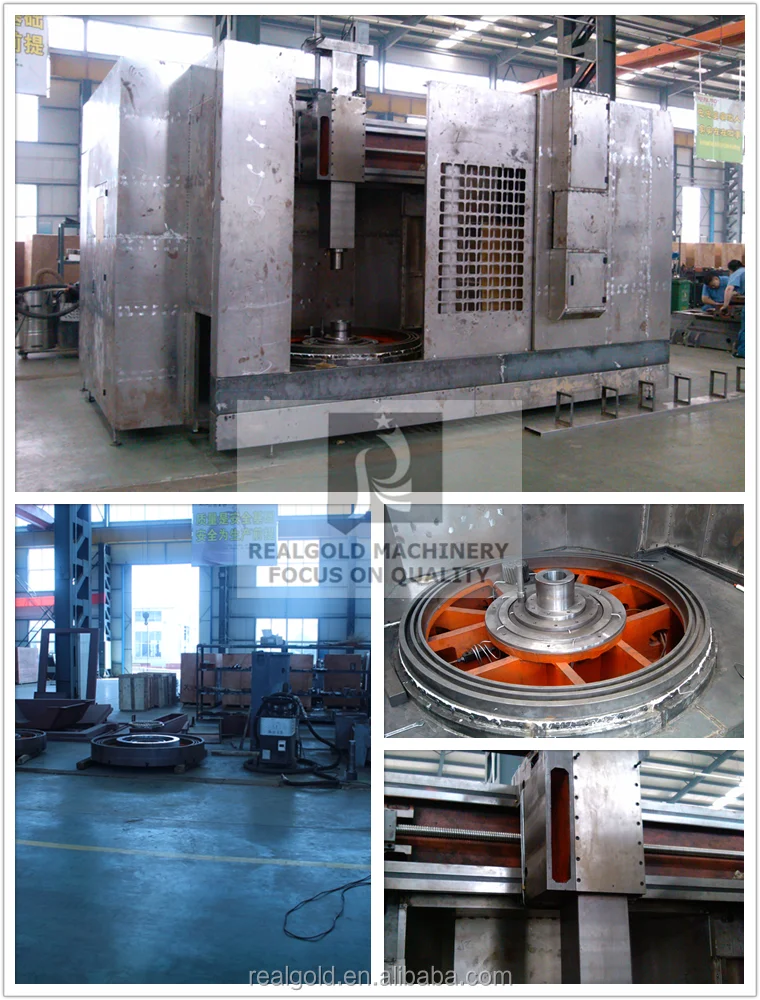

Details:

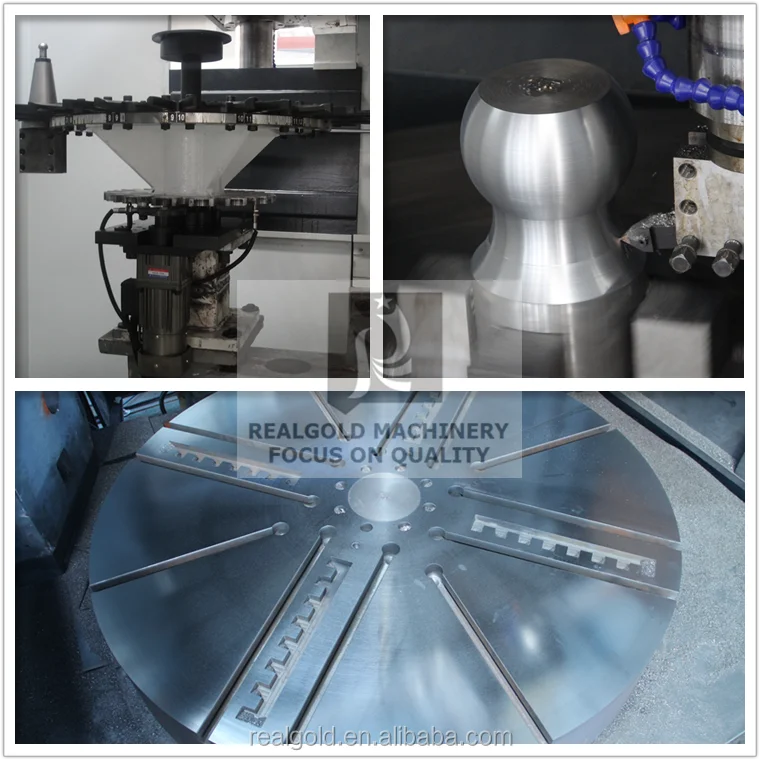

Umbrella-type magzine,auto tool changer;

Made by cast-iron can absorb vibration;

Machine tool made in a box which contains a static and dynamic stability parts, Ensure high rigidity and the reliability  framework;

The machine made by  quality cast iron  with heat treatment and stress processing;

Main motor with high power and high torque

The X/Z axis guideway with high frequency heat treatment, slideguide stick wear-resisting plastic, improve the accurary and reduce the frictional factor;

The chuck with four independent jaws, Max. Torque of each jaw more than 18.5kg/m, and weight of each jaw less than 28 kg, every parts of CAM and jaws with the compact reasonable design;

This machine with FANUC system, spindle servo drive with 2-step high torque gear box, ZF;

Explain of the Gear box ;



Main transmission

2 step high torque ZF gear box make the machine can be used in heavy cut and support the spindle CW and CCW;

Install the cooling system for reduction box, noise cancellation and prevent heat transfer to the spindle;

Install  V belt to Eliminate vibration and prevent vibration transfer to the spindle;

It can reduce 95% of vibration at least,

Spindle speed change controlled by solenoid valve;

Both X/Z drive are Ac servo drive;

Both X/Z axis with special high precision tune syetem,  To achieve the best performance motor;

Machine function:

Materials can be processed:Non-ferrous and black metal ,alloy, compounds, organic matter and polymers;

Turning, drilling, boring, threading etc;

Processing surface accuracy(Unit um)1.6   3.2   ;

Positioning accuracy 0.03mm;

Spindle radial beat and the flatness of machine surface 0.05mm;

Number of axis can be conrtolled  2;

Precision:

Reposition accuracy   X, Z, : ±0,005mm;

Reposition accuracy   500mm, : ± 0,007mm;
