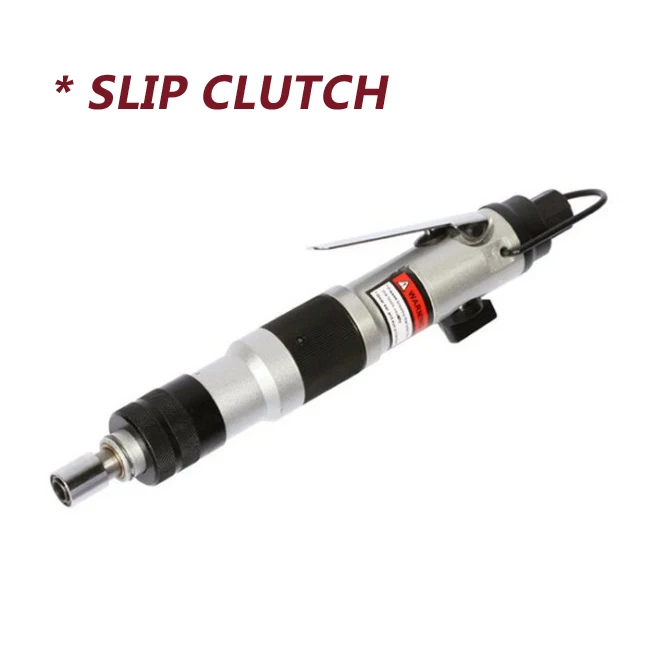

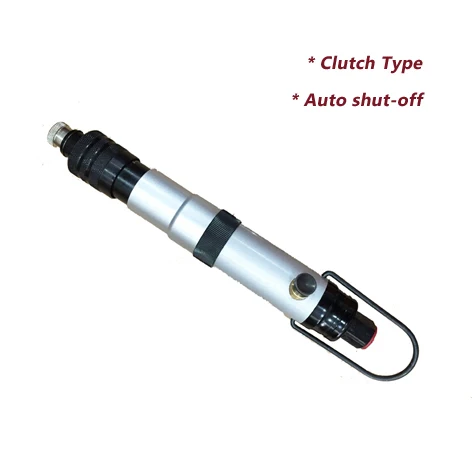

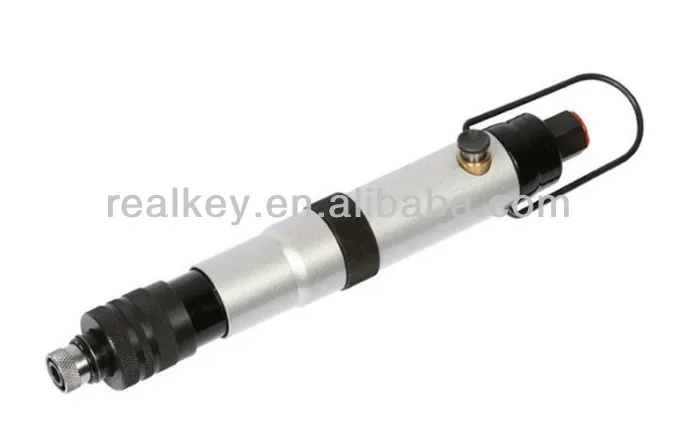

Automatic Air Screwdriver Clutch type
- Category: >>>
- Supplier: Ningbo Airmax Tools Co. Ltd.
Share on (60771172071):
Product Overview
Description
Products Description
Air Screwdriver Clutch type
CE Certification Push to start ,Auto Shut-off High efficiency.large torque Capacity M2-6mm
Technical Data:
Free speed:-----------------------1,200rpm
Capacity of Tearing ------------ M2-M6
Exhaust ---------------------------- FRONT
Length:------------------------------230mm
Weight:-----------------------------0.67kgs
Air Pressure:---------------------90psi/6.3bar
Air Inlet:----------------------------1/4"

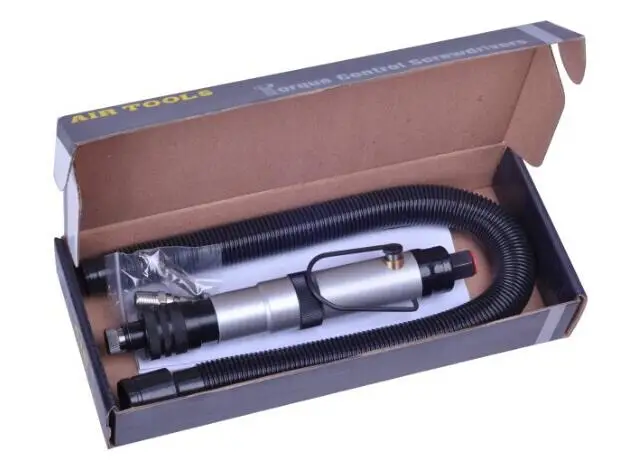

Packing information:
Packaging: ----------------------colorbox
Qty/ctn: ----------------------------25pc
N./G.W.: --------------------------18/20kgs
Ctn Size: -------------------------40.5x23x23(cm)
Cbm: ------------------------------0.0214
20' GP: ---------------------------32000
Instructions for use:
A: The handle body is equipped with a positive and reverse knob switch, which can be selected according to actual needs.
B: When the start switch is turned on, the screwdriver head does not rotate. Only when the cutter head is pressed down and the
clutch is on, the cutter head starts to rotate to ensure safe use.
C: According to the torque of the loading and unloading screwdriver, adjust the torque sleeve, increase the clockwise torque,
reduce the counterclockwise torque, and have the scale line on it.
D: There is a hole screen muffler inside, which significantly reduces exhaust noise.
Precautions:
A: The compressed air should be clean and free of moisture and dirt. (loading oil and water separation)
B: Inject a small amount of lubricating oil at the joint before starting. HJ-10 (GB443-63) mechanical oil commonly known as white
oil, bearing and impact mechanism with 2G-2 (GB491-65) calcium-based grease.
Pneumatic tools are high-precision products that require frequent maintenance and inspection, and the components are inspected and
adjusted. After deactivation, lubricants should be stored to prevent rust inside the machine.
CE Certification Push to start ,Auto Shut-off High efficiency.large torque Capacity M2-6mm
Technical Data:
Free speed:-----------------------1,200rpm
Capacity of Tearing ------------ M2-M6
Exhaust ---------------------------- FRONT
Length:------------------------------230mm
Weight:-----------------------------0.67kgs
Air Pressure:---------------------90psi/6.3bar
Air Inlet:----------------------------1/4"
Packing information:
Packaging: ----------------------colorbox
Qty/ctn: ----------------------------25pc
N./G.W.: --------------------------18/20kgs
Ctn Size: -------------------------40.5x23x23(cm)
Cbm: ------------------------------0.0214
20' GP: ---------------------------32000
Instructions for use:
A: The handle body is equipped with a positive and reverse knob switch, which can be selected according to actual needs.
B: When the start switch is turned on, the screwdriver head does not rotate. Only when the cutter head is pressed down and the
clutch is on, the cutter head starts to rotate to ensure safe use.
C: According to the torque of the loading and unloading screwdriver, adjust the torque sleeve, increase the clockwise torque,
reduce the counterclockwise torque, and have the scale line on it.
D: There is a hole screen muffler inside, which significantly reduces exhaust noise.
Precautions:
A: The compressed air should be clean and free of moisture and dirt. (loading oil and water separation)
B: Inject a small amount of lubricating oil at the joint before starting. HJ-10 (GB443-63) mechanical oil commonly known as white
oil, bearing and impact mechanism with 2G-2 (GB491-65) calcium-based grease.
Pneumatic tools are high-precision products that require frequent maintenance and inspection, and the components are inspected and
adjusted. After deactivation, lubricants should be stored to prevent rust inside the machine.
Details Images
Certifications
Why Choose Us
FAQ
We are trade company, you can talk to us any brand from CHINA.
We are professional for air tools, so our company named with AIRMAX TOOLS (formerly REALKEY TOOLS)
we have good experience for sourcing, and we will work for you with great passion.
we hope to be part of you.
