Product Overview

Description

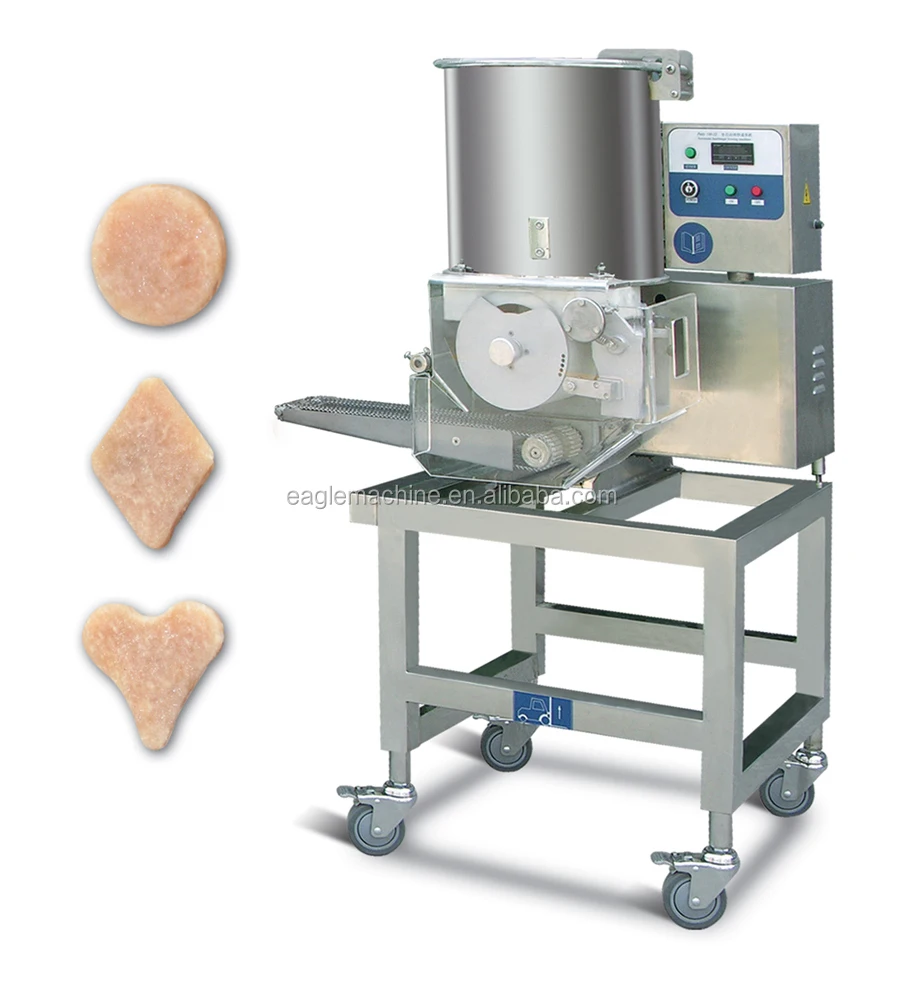

Automatic Fish/Chicken Meat Patty Hamburger Burger Forming Making Processing Machine



1. Description:

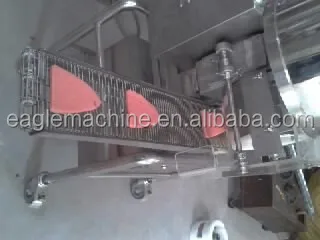

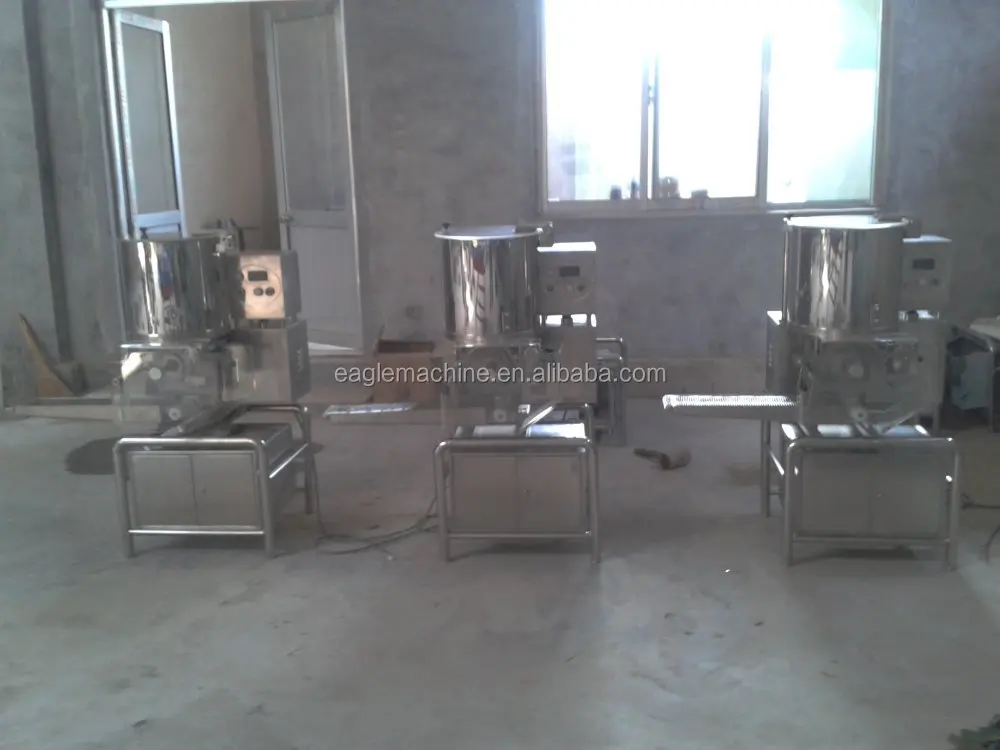

  This meat Patty machine can automatically perform various procedures such as meat filling, forming and output and form a fully automatic prepared food line when connected with the battering machine, preduster, frying machine, cooking machine, instant freezer and packing machine, sharing the good features of high production capacity and stable quality.



 2. Ingredients :



Meat (chicken, pork, beef, mutton ), Fish, shrimp, vegetables(potato, pumpkin, geen beans), cream and others.





3. Shapes:

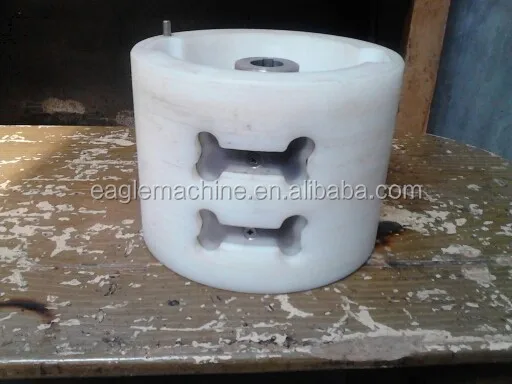

Endless patterns can design for your products: round, square, ellipse, triangle, heart and some other patterns such as cartoon, star



4. Specification



Model	Overall dimension	Tank capacity	Power	Belt width	Weight	Production capacity
PATTY100-Ⅲ	860×600×1400mm	30L	550W	130mm	100Kg	35pcs/min



5.  Flow chart   for whole production machines introduction

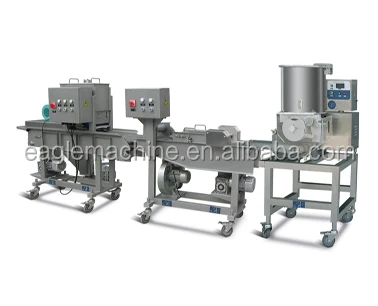

Mini Automatic hamburger Processing line can automatically finish the procedure of forming, battering, flouring (predusting), bread crumbing processing. This line shares the reputation of high automatlization, mini size and easy operation, very simple cleaning design.



This line can process diversified materials:



 Meat : Poultry, beef, mutton, pork etc.



 Seafood: fish, shrimp



 Vegetable: Pumpkin and potato, cheese and their mixer.



 The end products include the very popular hamburger, chicken nuggets, chicken or beef steak, pumpkin patty etc. It regularly becomes the most ideal choice for the small or middle scale factory, home factory and dispatching center.

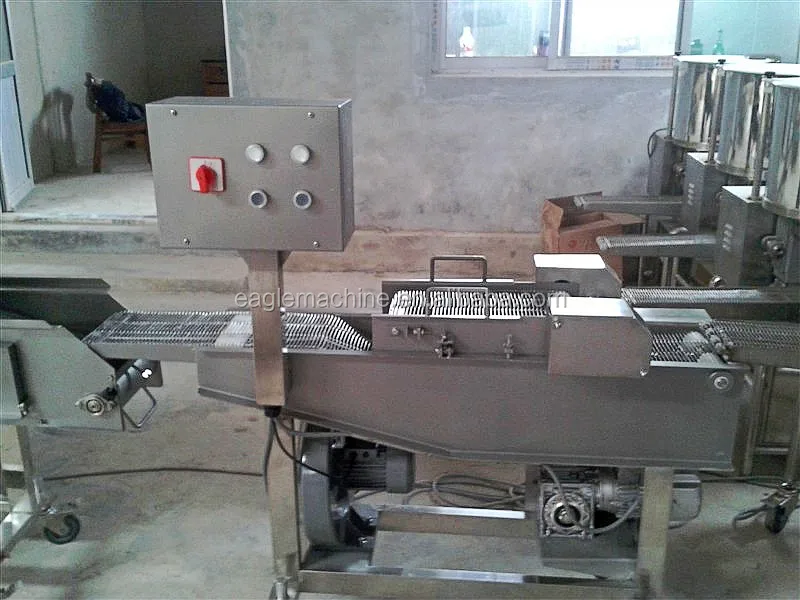

Battering machine NJJ200-Ⅱ can offer a even coverage of the chicken (Poultry), beef, meat, seafood. Etc by the batter curtain on the top and the dipping on the bottom, there is the blower designs to remove the excess batter from entering the next processing procedure. And it is suitable for the processing before the procedure of breading or predusting.

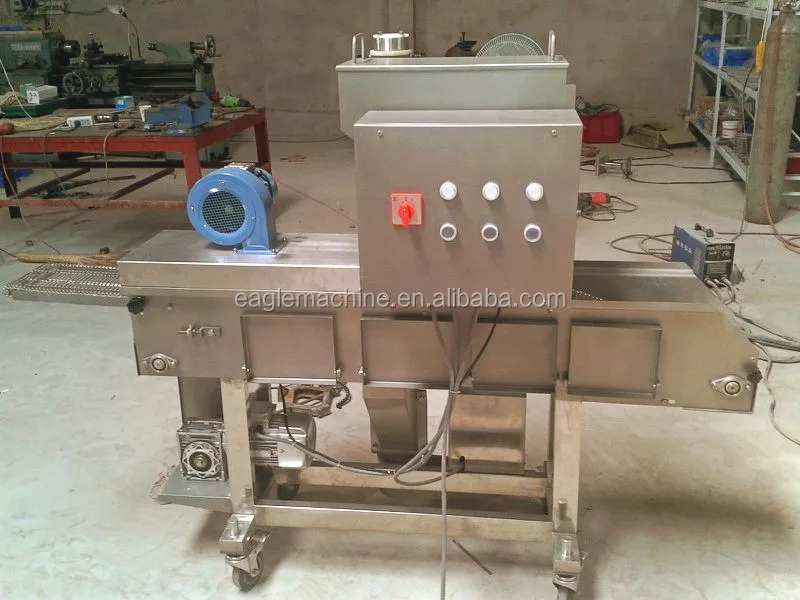

   Breading machine SXJ200-Ⅱcan evenly coat the meat like chicken, beef pork, meat and seafood by outpouring the crumb from the hopper when the products is carried by the belt pass under it. For the bottom coating, there is a layer of crumb on the lower belt. Also there is a roller pressing system to press tightly the crumb onto the surface of the food and the thickness of crumb can be regulated by this unit too.

  Both fine and coarse crumb suitable

  Easy operation and cleaning

  Powerful blower and vibrator can easily remove the excess flour.



SFJ200- II Preduster(Flouring Machine)

The conveyor belt carries the products on to a floor bed, above where a hopper above can offer a layer of flour, this makes the products thinly and evenly coated to make preparation of the next processing step. And it can be joined to the battering machine and breading machine to make different production lines to finish the processing of predusting-battering-predusting,battering-predusting and battering-predusting-breading. etc different procedures. It can predust all around the products, completely even.

    Powerful blower and vibrator can easily remove the excess flour. The pressing roller design can help to coat the products and can regulate the thickness of the coating.



Model	Size	Size	Power	Belt width	Weight	Capacity
PATTY100-Ⅲ Meat patty forming machine	860×600×1400mm	Tank 30L	550W	130mm	100Kg	35pcs/min
NJJ200-Ⅱ Battering machine	1400×550×1250mm	Inputheight:780±50mm  Outputheight:780±50mm	620W	200mm	100Kg	100Kg/h
SXJ200-Ⅱ Breading machine	1720×650×1400mm	Inputheight:720±50mm  Outputheight:780±50mm	860W	200mm	150Kg	100Kg/h
SFJ200-Ⅱ Flour coating machine	1730×650×1480mm	Inputheight:720±50mm  Outputheight:780±50mm	980W	200mm	150Kg	100Kg/h
