High Quality 9um Thin Red Copper Foil
- Category: Copper Strips >>>
- Supplier: Shanghai Xinye Metal Material Co. Ltd.
Share on (60771291122):
Product Overview
Description
\t\t\t\t\t\t\t\t\tProduct Description \t\t\t\t\t\t\t
GB | ISO | ASTM | JIS |
TU1 | Cu-OF | C10200 | C1020 |
TU2 | Cu-OF | C10300 | C1020 |
T2 | Cu-RTP | C11000 | C1100 |
TP1 | Cu-DLP | C12000 | C1201 |
TP2 | Cu-DHP | C12200 | C1220 |
GB | Composition(%) | ||||||||
Cu | P | O | Other | ||||||
TU1 | 99.97 | 0.002 | less than 0.002 | balance | |||||
TU2 | 99.95 | 0.002 | less than 0.003 | balance | |||||
T2 | 99.9 | - | - | balance | |||||
TP1 | 99.9 | 0.004-0.012 | - | balance | |||||
TP2 | 99.9 | 0.015-0.040 | - | balance | |||||
ASTM | Composition(%) | ||||||||
Cu | P | O | Other | ||||||
C10200 | 99.95 | 0.001-0.005 | - | balance | |||||
C11000 | 99.9 | - | - | balance | |||||
C12000 | 99.9 | 0.004-0.012 | - | balance | |||||
C12200 | 99.9 | 0.015-0.040 | - | balance | |||||
Classification | 9 | 12 | 18 | 35 | 50 | ||||||
Width | 520 | 520 | 520 | 520 | 520 | ||||||
Purity(%) | ≧99.9 | ||||||||||
Density(g/m³) | 8.89 | ||||||||||
Area Weight(g/㎡) | 80±2 | 107±3 | 160±4 | 311±5 | 444±5 | ||||||
Tensile Strength(N/㎜²) | Normal | ≧390 | ≧400 | ≧400 | ≧400 | ≧400 | |||||
180℃30Min | ≧150 | ≧160 | ≧180 | ≧200 | ≧200 | ||||||
Elongation (%) | Normal | ≧0.5 | ≧0.5 | ≧0.8 | ≧0.8 | ≧0.8 | |||||
180℃30Min | ≧5 | ≧6 | ≧8 | ≧15 | ≧15 | ||||||
Roughness | Ra(μm) | ≦0.2 | |||||||||
Rz(μm) | 0.8-1.5 | ||||||||||
Anti-oxidization | 200℃,≧90Minnondiscolouring | ||||||||||
temperature 85℃,humidity 85%,nondiscolouring | |||||||||||
Solder Resistance | 288℃/10S no bubbles | ||||||||||
Peel Strength(N/㎜) | ≧0.8 | ≧0.8 | ≧1.0 | ≧1.2 | ≧1.2 | ||||||
Chemical Resistance(%) | ≦5 | ||||||||||
Surface Quality | No wrinkles, no color difference, no scratches, no convex and concave points | ||||||||||
Storage Condition | Temperature 0℃≦t≦25℃,RH≦60%,90 days | ||||||||||

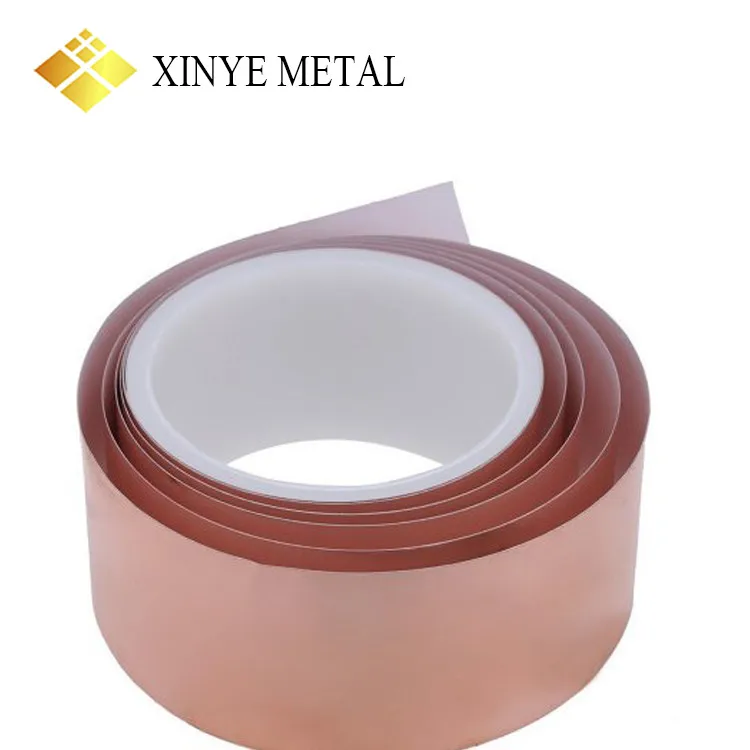

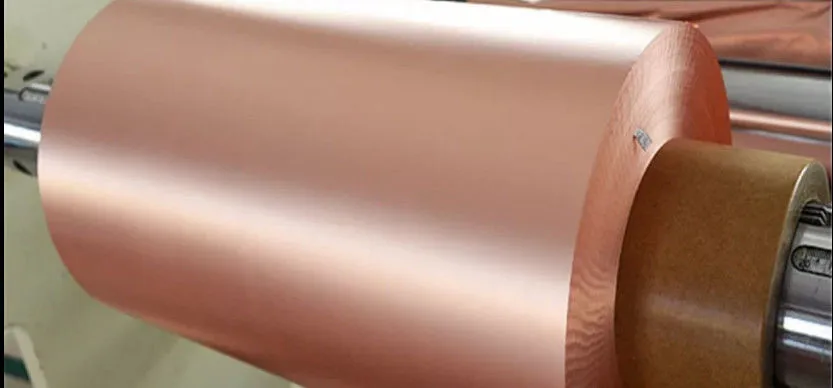

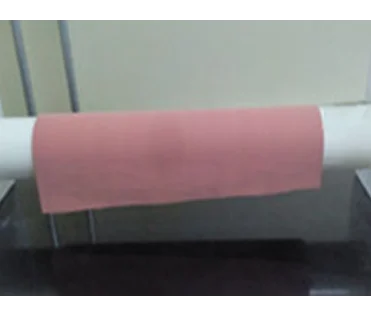

\t\t\t\t\t\t\t\t\tProduct show \t\t\t\t\t\t\t
\t\t\t\t\t\t\t\t\tRelated Products \t\t\t\t\t\t\t

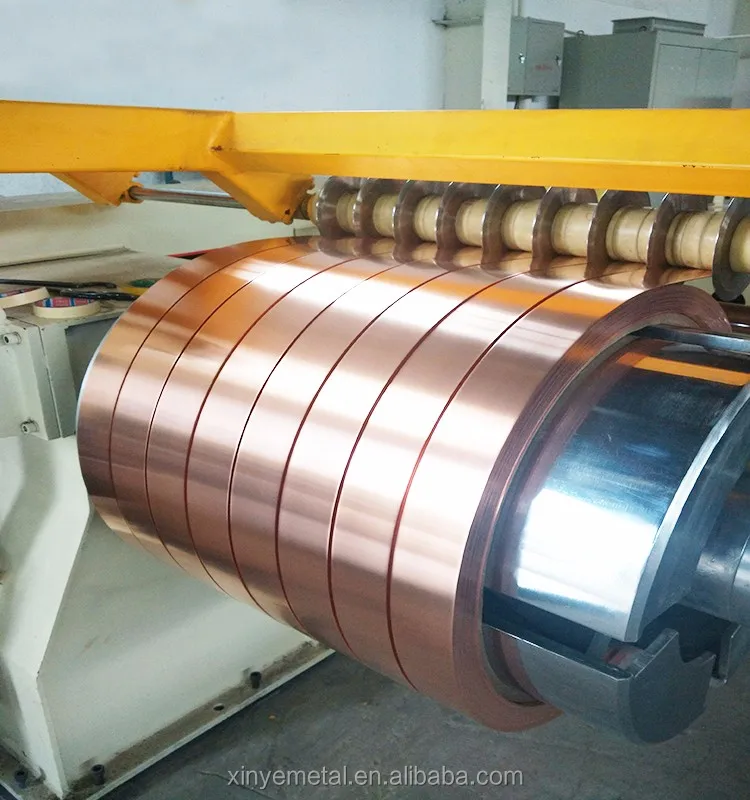

\t\t\t\t\t\t\t\t\tTechnology \t\t\t\t\t\t\t
Professional equipments guarantee the products' quality. And we provide the customized service.
\t\t\t\t\t\t\t\t\tRelated Products \t\t\t\t\t\t\t
\t\t\t\t\t\t\t\t\tOur Certification \t\t\t\t\t\t\t
\t\t\t\t\t\t\t\t\tFAQ \t\t\t\t\t\t\t
Q: Are you trading company or manufacturer ?
A: We are trading company.
Q: How long is your delivery time?
A: Generally it is within 15 days if the goods are in stock. or it is less than 30 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ?
A: Yes, we could offer the sample.
Q: What is your terms of payment ?
A:30% T/T in advance ,balance before shippment. And the price depends on the material and the quantity.
