Free shipping Excellent quality stainless steel encoder suppliers ---DH 30081 ;



FREE SAMPLES can be sent on request. Call me, let's talk more!

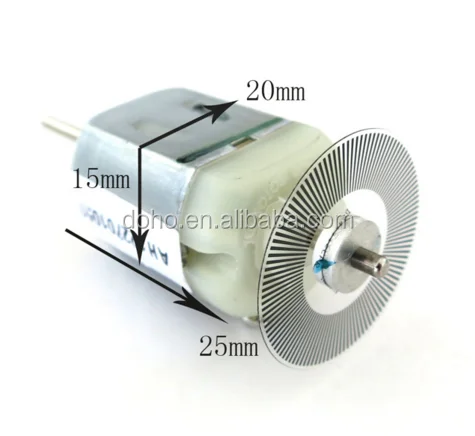

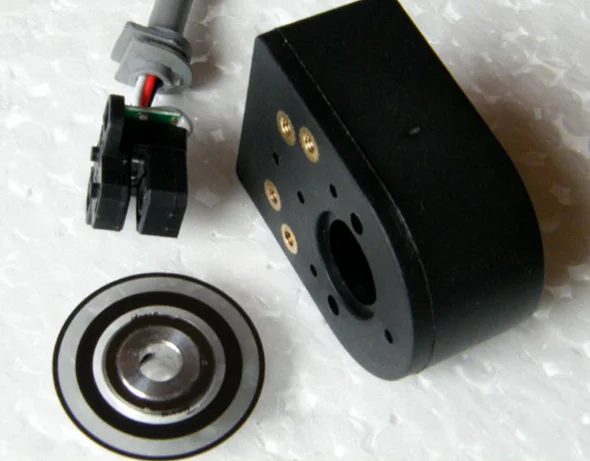

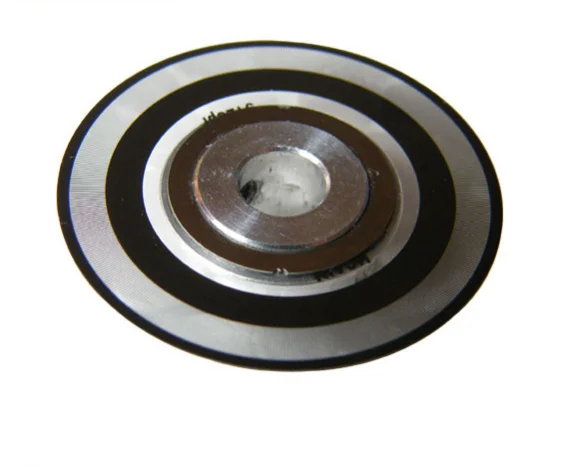

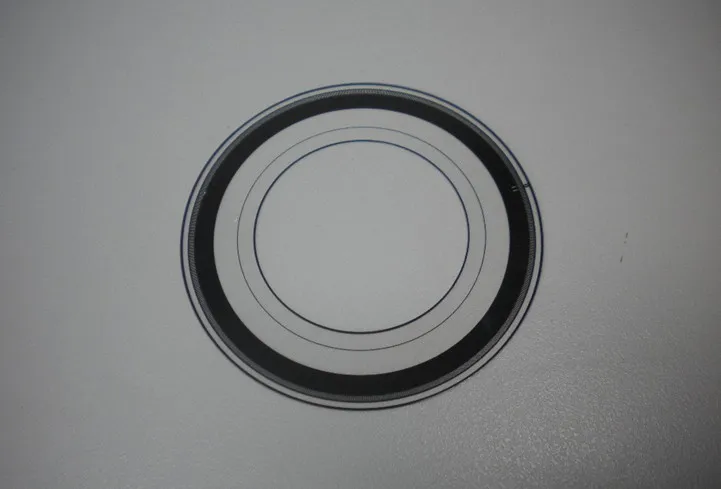

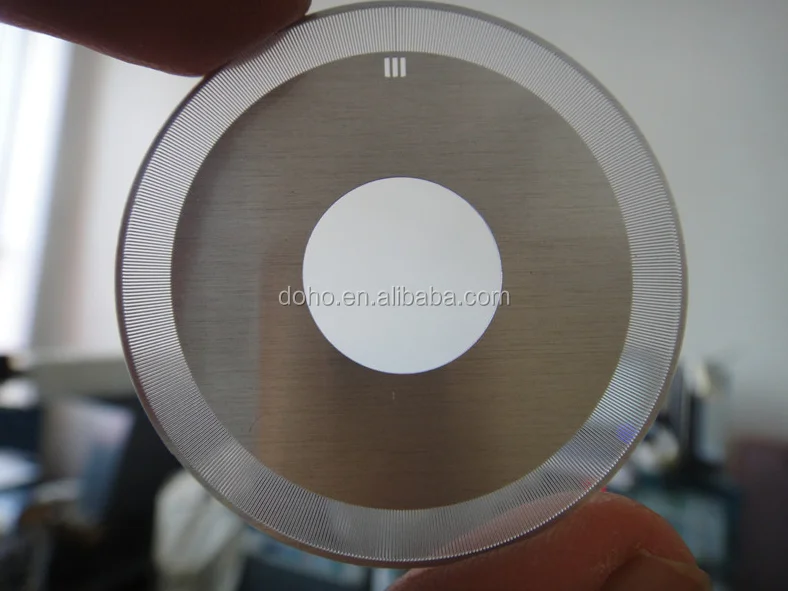

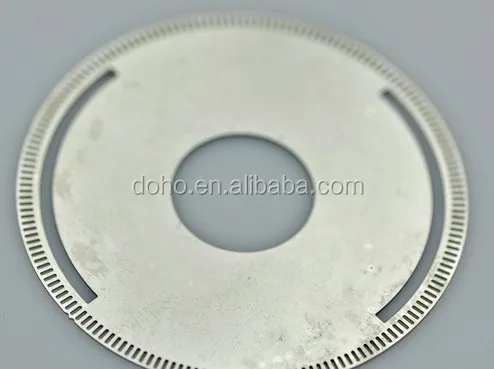

Encoder disk



SUS304 planarity sheet for photo etching is used.
Minimum bar code width is around 0.1mm(t=0.05 mm)
Bar pitch tolerance within ±0.02 mm, max and min difference of bar code tolerance in the same lot within 0.02.
Center run-out within 0.01, circularity within 0.01 is possible.
Internal dia. accuracy range is within 0.03 (0.01 is possible when finished with a reamer.)
Technology highlights: Standard processing
SUS304 planarity sheet for photo etching is used.
Minimum bar code width is around 0.08(t=0.05)
Bar pitch tolerance within ±0.003, max and min difference of bar code tolerance in the same lot within 0.04.
Center run-out within 0.015, circularity within 0.015 is possible.
Internal dia. accuracy range is within 0.04 (0.01 is possible when finished with a reamer.)



Technical Data:


Machining Type Photo chemical etching, Laser cutting, stamping and E-forming

1.Material Capabilities Stainless Steel, Brass, Bronze, Copper, Hardened Metals, Precious Metals and Aluminum alloy.
2.Product thickness: 0.001'' up to 0.045''



3.Product Max Dimension: 27*27 inch



4.Smallest opening hole D= 0.0039 inch when thickness below 0.002''



5.Centre to Centre for holes 1.5*Thickness
6.Smallest line width 0.03mm.
7.Product dimensional tolerance ± 0.01mm (depending on the thickness). It’s generally 20% of material thickness.
8.Secondary processing:Silver/Gold/Tin plated, Matt finish, paint, polishing or other surfaces treatment can be discussed when needed.



9.Two types of image files (DXF/DWG) enabled
