High Efficient HP 200 Cone Crusher
- Category: >>>
- Supplier: Zhengzhou Great Wall Heavy Industry Machinery Co. Ltd
Share on (60771343941):
Product Overview
Description
"Great Wall Make Great Machine"
High Efficient HP 200 Cone Crusher
Product Description
| Usage and Application High Efficient HP 200 Cone Crusher |
HP 200 Hydraulic Cone Crusher With ISO CE Quality Certificate is a high-performance model optimized and improved on the basis of PY Series Spring Cone Crusher. It is widely used for secondary and fine crushing in the fields of mining, building materials, metallurgy and so on. It can crush materials with middle and high hardness, such as metal ore, basalt, granite, limestone, cobblestone, sandstone and so on.
| Features High Efficient HP 200 Cone Crusher |
1. The crushing cavity of HP 200 cone crusher is special designed according to particles-layer- pressure principle. The special cavity and the suitable rotary speed improve crushing ratio and capacity, so does the cubic product percentage.
2. With hydraulic protection and hydraulic cavity cleaning, the HP 200 cone crusher is high-automatic. If something abnormal happens, such as iron is fed into the crushing cavity or there is a jam in the cavity, the machine will lift up the cover and discharging the materials automatically. This eliminates the trouble of stopping the machine to discharge the material by workers, so the maintenance is easier, the cost is lower than Spring Cone Crusher.
3. The mantle and bowl liner of HP 200 cone crusher are made by high abrasion materials. The special design of crushing cavity and particles-layer- pressure protection decrease the abrasion, make the service time 30%-80% longer than traditional cone crusher.
4. Hp 200 cone crusher is adjusted by hydraulic device and lubricated by diluted oil. The labyrinth seal eliminates the defect of mixture between water and oil in the traditional Spring Cone Crusher.
Technical Parameters
| Item Model | Cavity Type | Max Feeding Size (mm) | Minimum Output Size (mm) | Capacity (t/h) | Motor Power (kW) | Weight (t) |
| HPC200 | F(Fine) | 95 | 13 | 120-200 | 160 | 13.4 |
| M(Medium) | 120 | 16 | 140-220 | |||
| C(Coarse) | 190 | 19 | 150-250 | |||
| HPC300 | F(Extra Fine) | 80 | 10 | 100-240 | 250 | 18.1 |
| F(Fine) | 105 | 13 | 110-260 | |||
| M(Medium) | 150 | 16 | 175-320 | |||
| C(Coarse) | 210 | 20 | 190-380 | |||
| EC(Extra Coarse) | 230 | 25 | 220-440 | |||
| HPC400 | F(Fine) | 110 | 14 | 185-345 | 315 | 26 |
| M(Medium) | 196 | 20 | 255-430 | |||
| C(Coarse) | 251 | 25 | 295-560 | |||
| EC(Extra Coarse) | 295 | 30 | 325-630 | |||
| HPC500 | F(Extra Fine) | 95 | 13 | 200-430 | 400 | 37 |
| F(Fine) | 135 | 16 | 280-455 | |||
| M(Medium) | 210 | 22 | 345-605 | |||
| C(Coarse) | 290 | 30 | 405-790 | |||
| EC(Extra Coarse) | 330 | 38 | 445-855 |
Contact Supplier for More Information!!

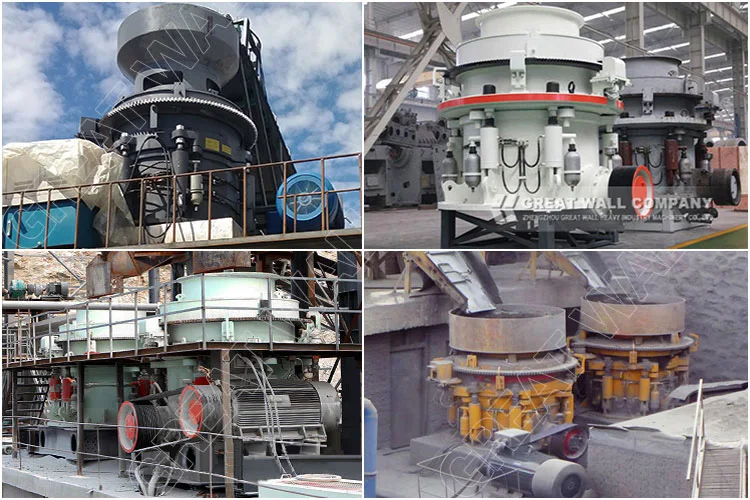

Successful Case
