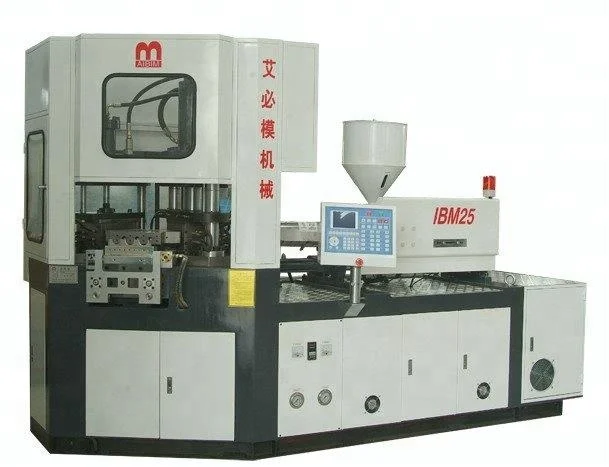

1. The clamping framework adopts single-crossbeam, double poles, which enlarge the space of setting mould, much easier to install mould.
2. Unique PREFILL technology and variable pressurizing technology are supplied to hydraulic system to achieve high efficiency and reliability.
3. Specialized control system: Adopt the specified controller and software to operate the machine commission and parameter setting. All parameters can be saved and read by SD card, convenience for function testing and after-sales service.
4. Energy saving: Refer to our testing result, our machine system can save at least 35% energy consumption. which can directly displayed on the computer screen about the total and unit product energy consumption , help customers to understand the production cost.
5. Stripper station adopts long distance digital laser sensor for detection, to protect mould safety.
6. Stripper station installs light curtain, to protect personal safety.
7. Optional servo rotary, precise, long using time, easy maintenance, save energy.
8. Optional injection with all-electric way, replacing hydraulic way.
9. CE certificate.
Injection Item
Unit
Data
Dia. of Screw
mm
50
Max Theoretial Shot Volumn
G
375
Total Power for Charging Barrel
kw
10
Clamping Force of Injection Mold
kn
650
Clamping Force of Blow Mold
kn
89
Motor Power
kw
22/30
Mold-heating Power
kw
5.0
Hydraulic Working Pressure
Mpa
14
Discharge Rate of Compressed Air
m3/min
≥0.8
Consumption of Cooling Water
m3/h
4
Machine size (L×W×H)
mm
4000×1500×2350

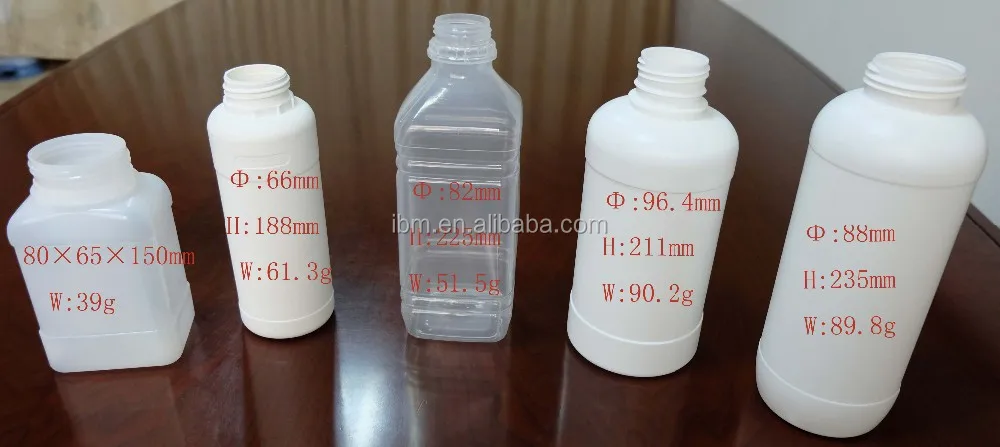

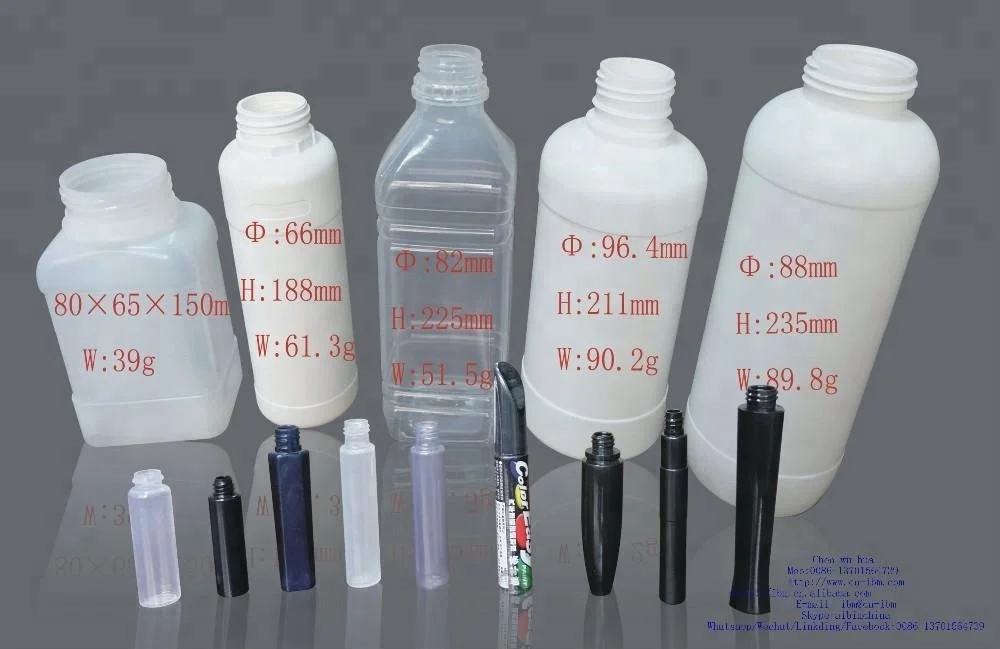

Product Range
ml
5-1000
Product Height
mm
≤220
Product Diameter
mm
≤100
Station Principle
Auxiliary Equipments
Servo Parts
Configuration
1. Oil pump and hydraulic valve : YUKEN brand Ex JAPAN.
2. Oil pump :YUKEN
3. Pneumatic valve connector: FESTO Ex Germany.
4. Hydraulic pressure hose: ISR brand Ex USA.
5. Oil seal: VALQUA brand Ex JAPAN.
6. Motor: INTERMOT brand Ex SAMUN brand.
7. Controlling system: TECHMATION brand Ex TAIWAN.
8. Electronic Rulers: GEFRAN
9. Moulded case circuit breaker , contactor, Thermal overload relay: SCHEIDER brand Ex FRANCE.
