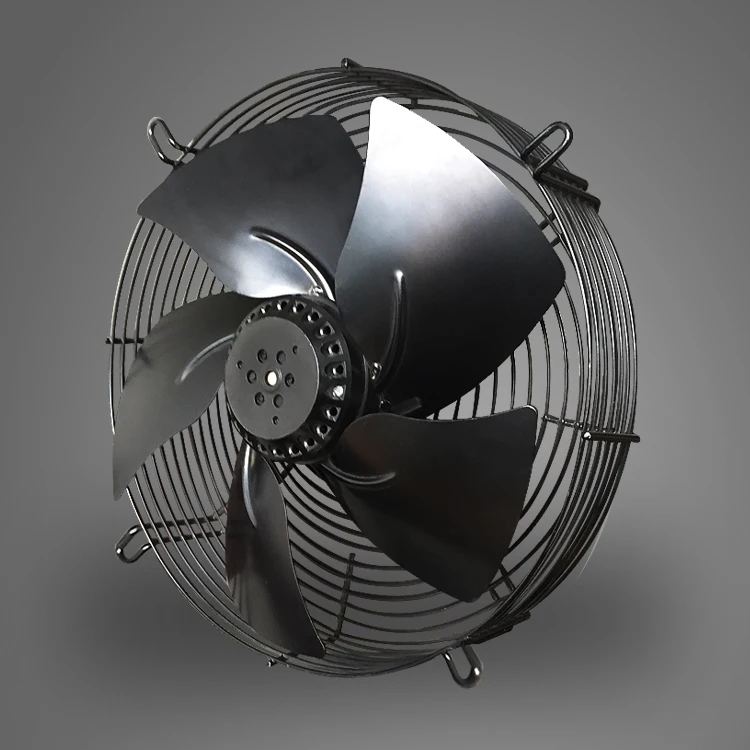

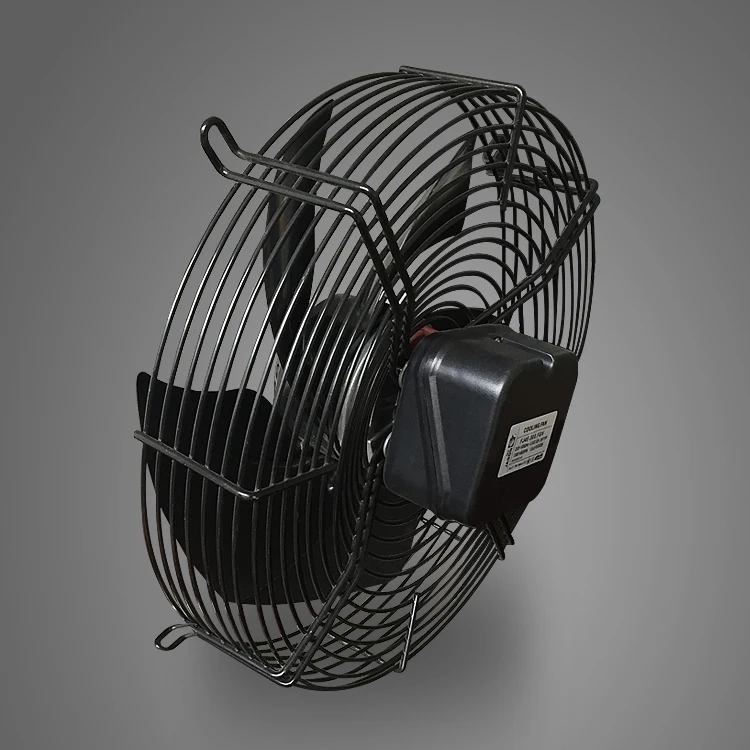

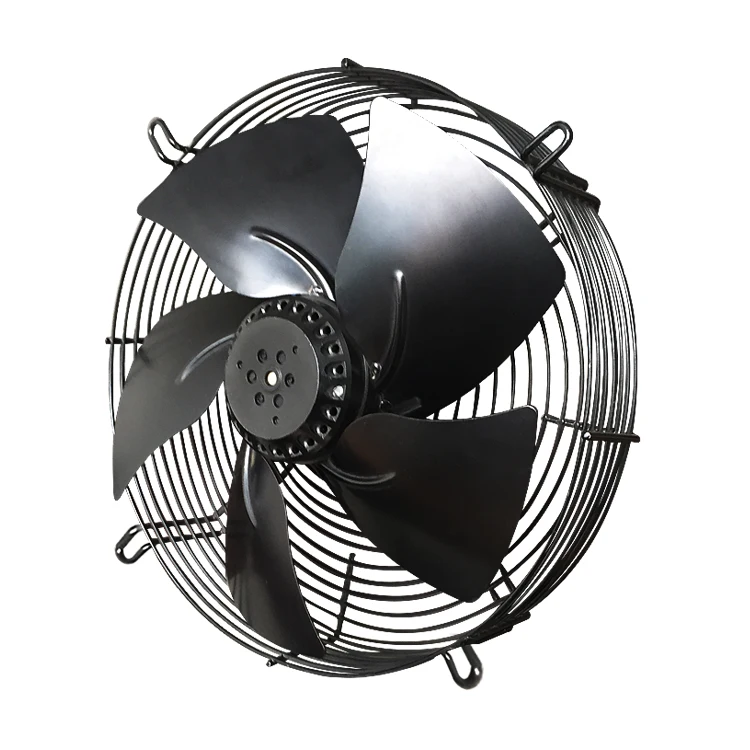

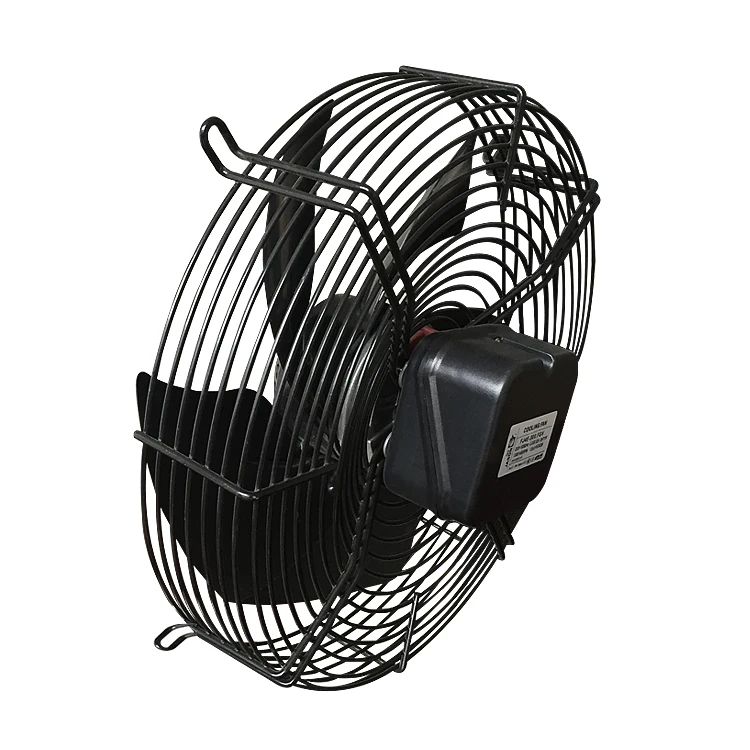

450mm external rotor Cooling Fan FJ4E 450.FGV

Product Overview

Description

Ventilation Industrial Exhaust Fan/Axial Fan To Cool The Cooling Fan
Motor
Cage type capacitor start external rotor motor
Impeller
Pressed from metal armor plate, impellers are welded to
motor rotor and its surface is black and anti-corrosion
Fixed Guard
Steel wire is finished with black paint and anti-corrosion treatment
Allowable environment temperature and
humidity range:(under unconcretionary condition)
-30ºC ~ +75ºC (temperature) 0% ~ 95% (humidity)
Protection
Automatic recovery thermal protection
Withstand Voltage
AC 1,800V ,1 min at 0.5mA, 50/60 Hz
Insulation Grade
Design according to IEC61858 Grade F,
Protection Grade
IP44

Quick Details:

Type	Sickle Impeller Fan
Fix gurad	Steel
Impeller	Metal armor plate
Motor Structure	Cage tyoe capacitor start external rotor motor
Protection	Automatic recovery thermal protector
Temperature & Humidity	-40ºC ~ +80ºC, 0% ~ 95%
Withstand Voltage	AC 1800V at 0.5mA 50/60Hz
Power connection	Lead or Terminal connection
Protection Grade	IP44
Insulation Systerm	F

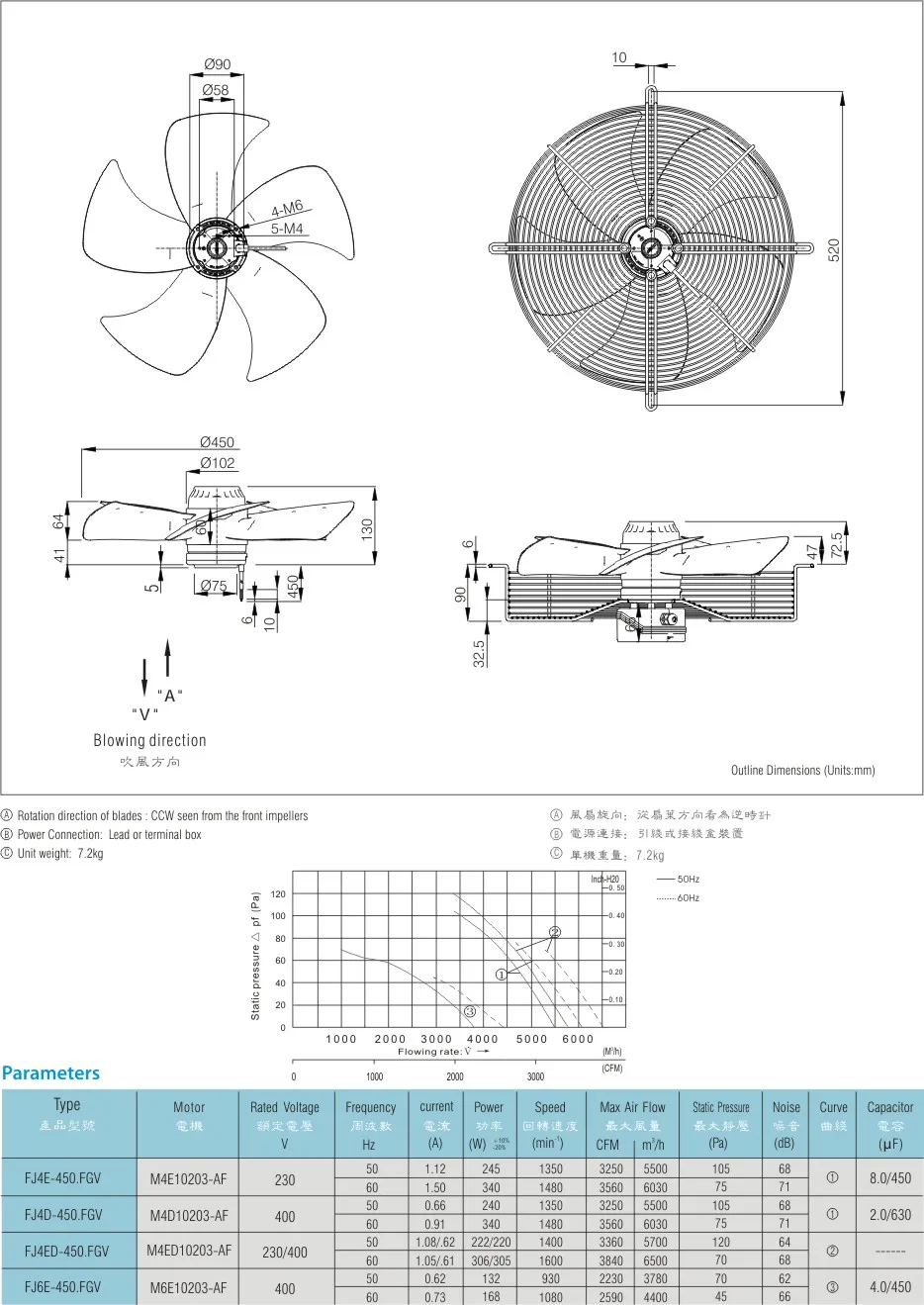

Model Number	C4E-450.FGV
Voltage	230VAC
Power:	50/60Hz
Air Volume	3250/3650CFM
Speed	1350-1480RPM,Singel speed
Certification	CE, ROHS , CSA
Unit weight	7.2KG
Color	Black and anti-corrosion


Packaging & Delivery:
Packaging Details: 1 PCS/CTN
Weight: 9KGS/CTN
Size: 49*49*24 cm
Delivery Detail (sample): Shipped in 3-8 days after payment
