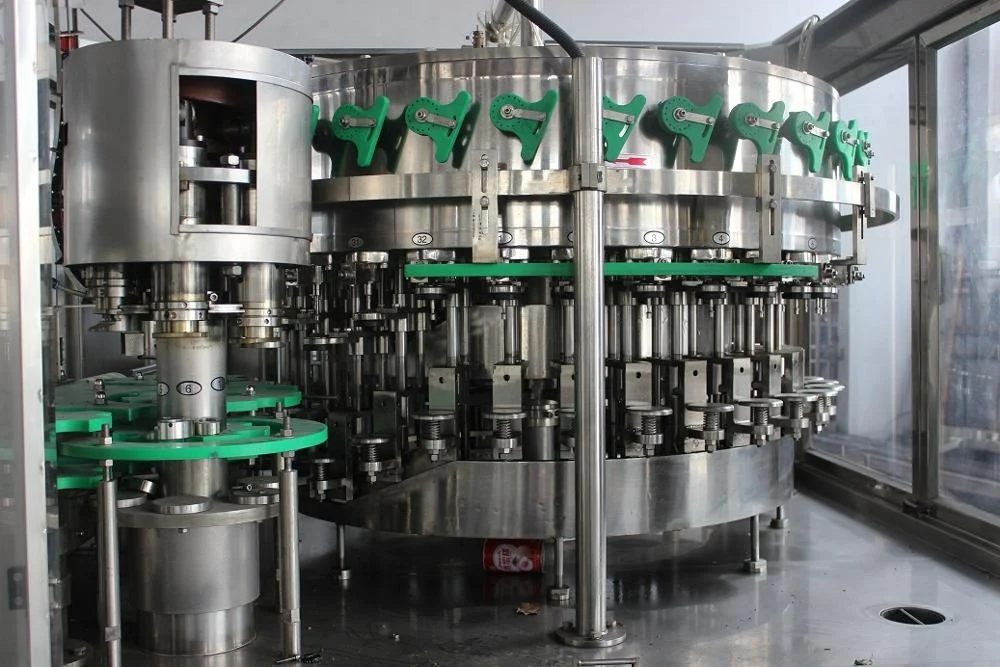

Top quality three in one monoblock automatic filling machine glass bottle beer filler
- Category: >>>
- Supplier: Zhangjiagang Twelve Wei Machinery Co. Ltd.
Share on (60771383357):
Product Overview
Description

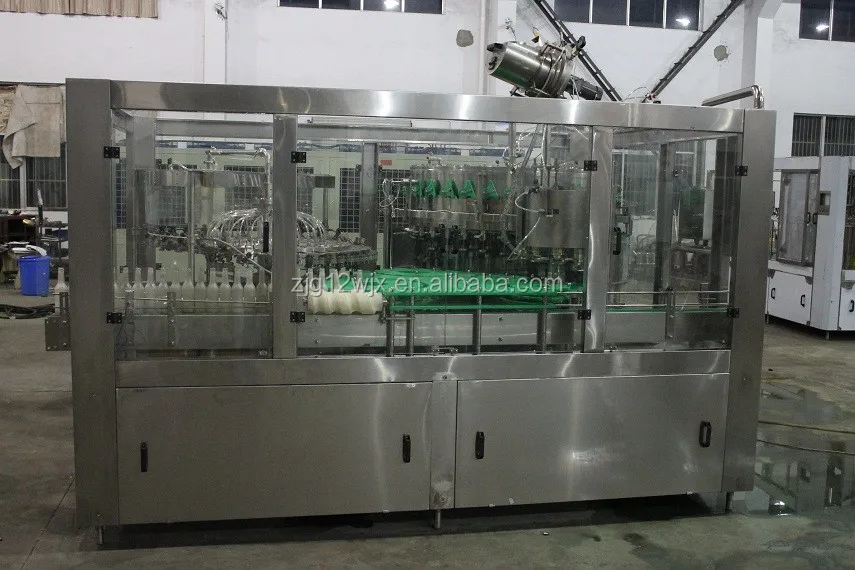

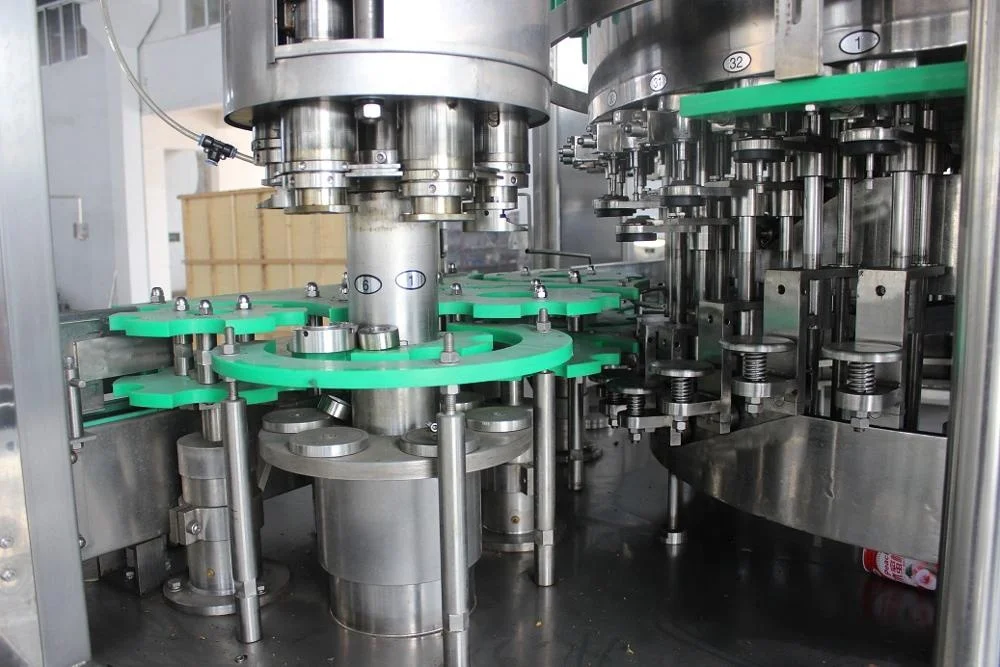

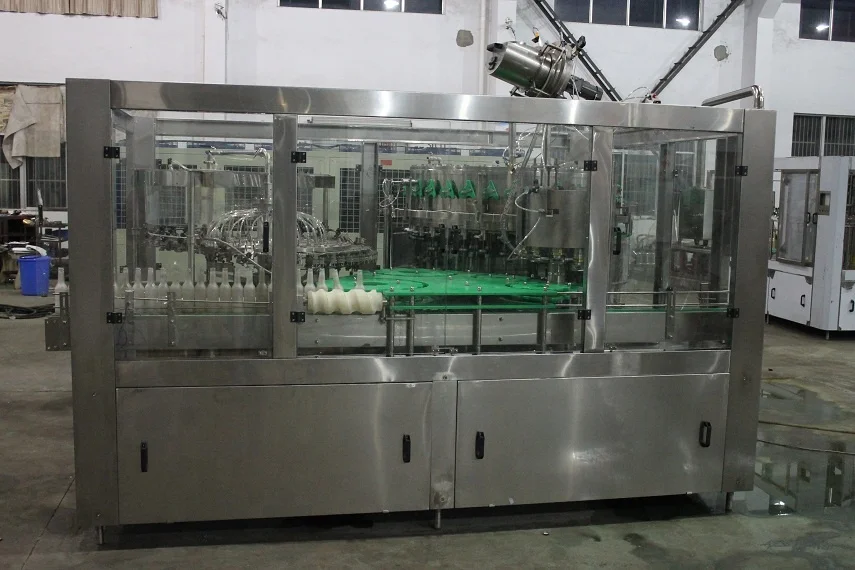

Automatic glass bottle beer bottle filler

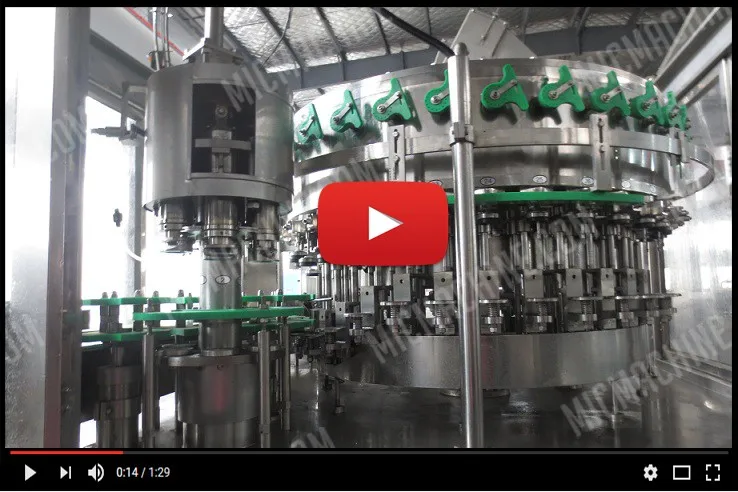

You can check machine'Video from link: https://www.youtube.com/watch?v=_kWjMK9v5Uo
Or you can click the followed picture:
If you want to see more videos about other type filling machines, you can check my Youtube: https://www.youtube.com/channel/UC0xTIHs82mYUAvwJ5LVKtzQ

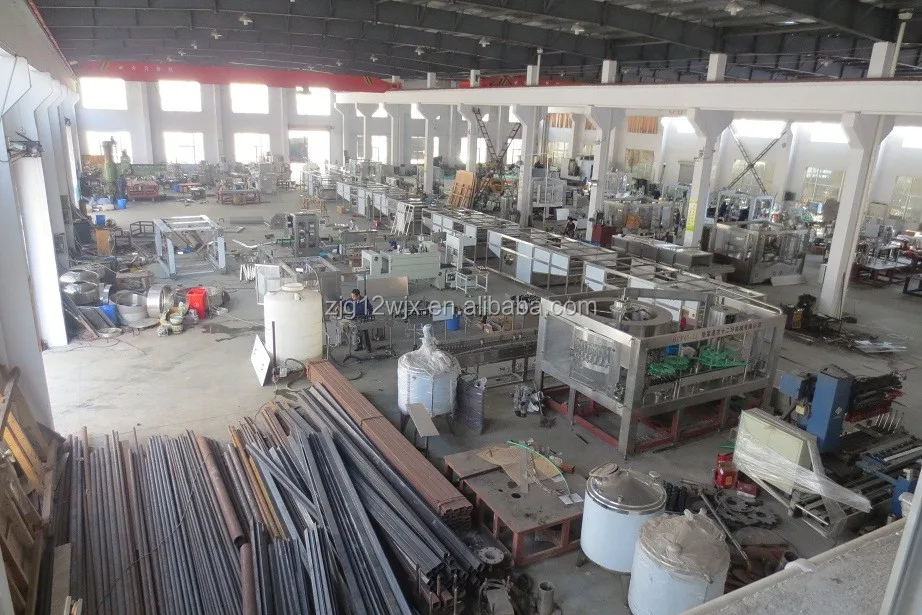

We are manufacturer for glass bottle filling capping machine and can filling seaming machine, steady machine which can reach Germany standard, hope you can come to see us.
If you want to know other type liquid filling machines, please click the name:
Model No. | XGF12-8-1 | XGF12-12-1 | XGF18-18-1 | XGF18-18-6 |
Rinsing heads | 12 | 12 | 18 | 18 |
Filling heads | 8 | 12 | 18 | 18 |
Capping heads | 1 | 1 | 1 | 6 |
Filling speed | 300-500BPH | 800-1500BPH | 1000-2500BPH | 3000-4000BPH |
Model No. | XGF24-24-6 | XGF32-24-6 | XGF32-32-8 | XGF72-72-8 |
Rinsing heads | 24 | 32 | 32 | 72 |
Filling heads | 24 | 24 | 32 | 72 |
Capping heads | 6 | 6 | 8 | 8 |
Filling speed | 3000-5000BPH | 6000-8000BPH | 8000-10000BPH | 10000-25000BPH |
Main Features

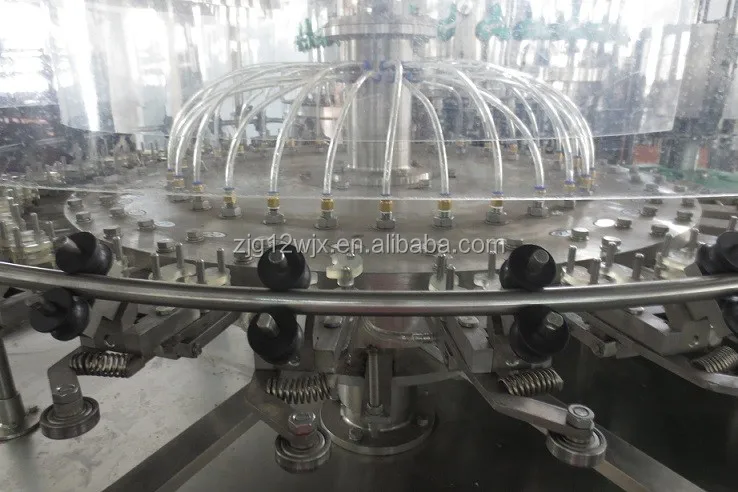

Washing part
1. Inverter clamp to pick up the bottles by catch the bottle neck
2. SUS304 stainless steel
3. Spraying nozzle could reach all the parts of the bottle, save the washing water
The bottle will be feed into the machine through the conveyor to the first part is rinsing part, there are many support seats and the bottle grippers, The grippers take the bottles from the inlet star wheel while they are still driven by the star wheel, thus guaranteeing a safe grip.
The bottle is turned upside down and centered above a spraying nozzle which directs a stream of rinse water into the bottle. After the draining period the bottle is turned over to an upright position again.

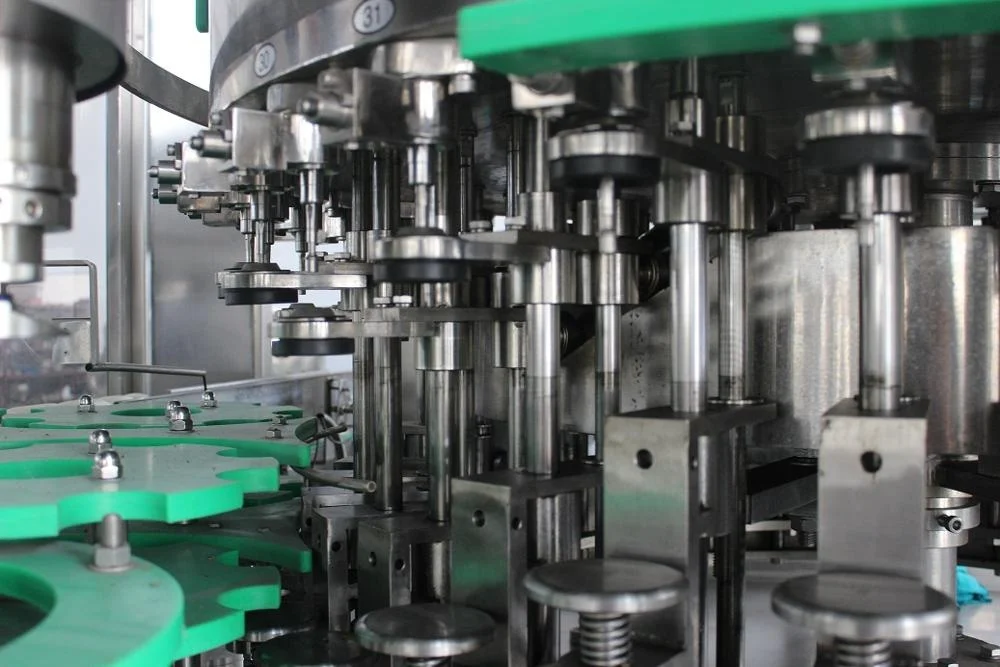

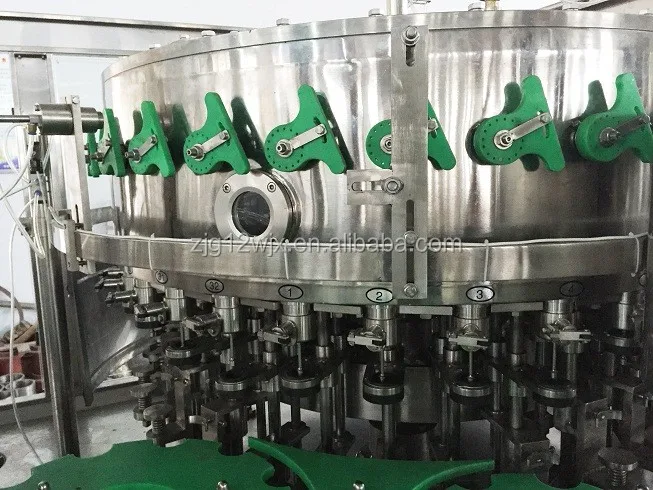

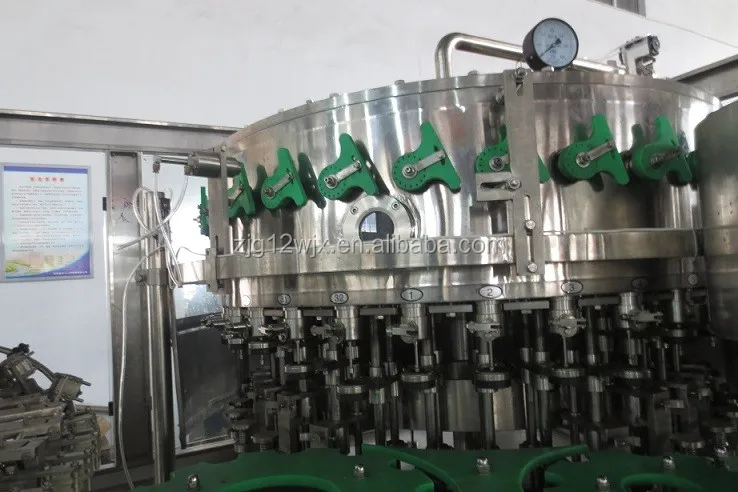

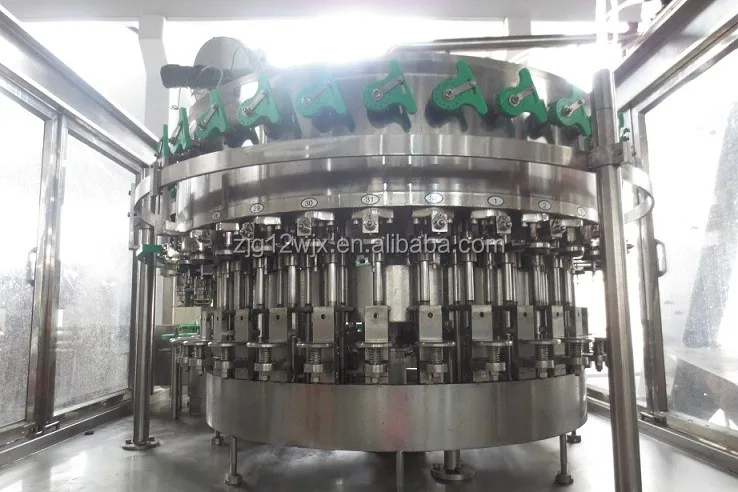

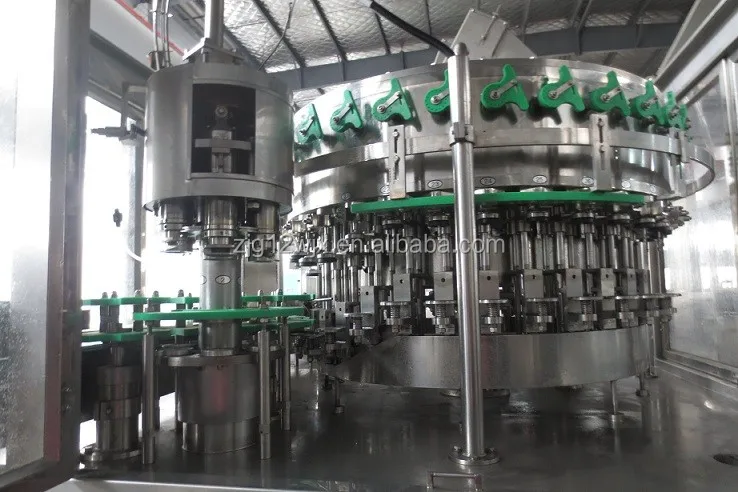

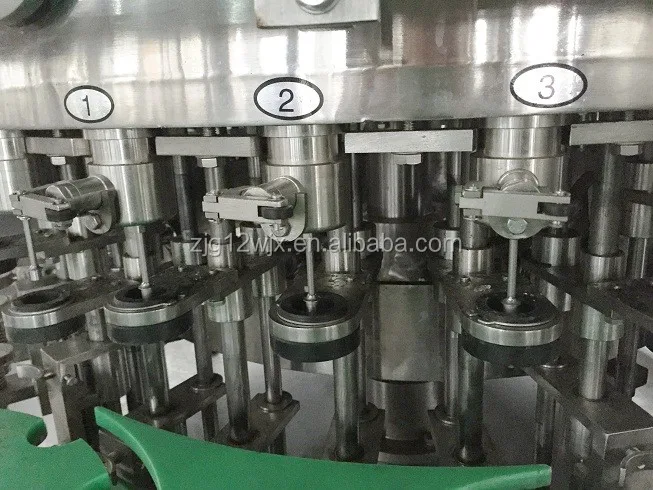

Filling part
1, No bottle no filling
2, Same filling level of all the bottles, adjustable filling level
3, Filling precision ≤±2mm

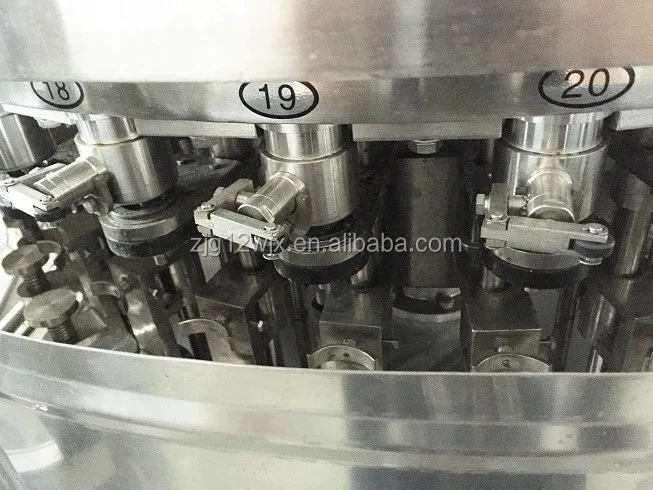

4, Isobaric pressure filling valve
5, 0-4 filling temperature
6, No filling, no capping, no Cap loading
7, Filling volume: 0.1-1L
8, Filling speed: 1000-3000bottle/hr
9, Filling material: Beer or other carbonated drinks
10, Cap type: Aluminum Cap or crown Cap

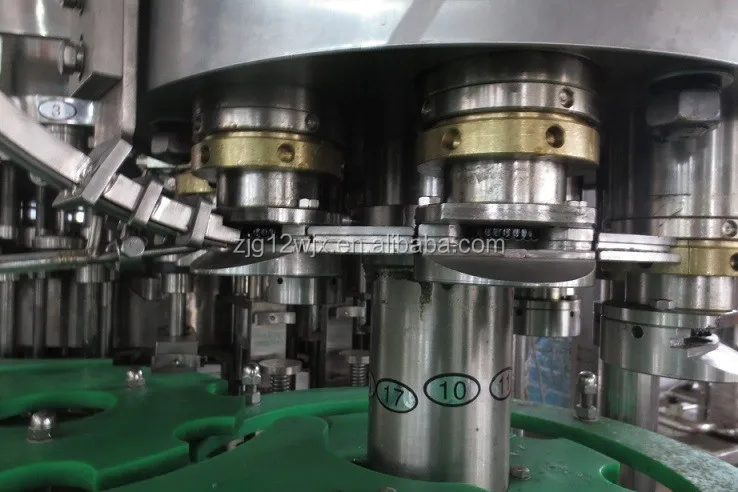

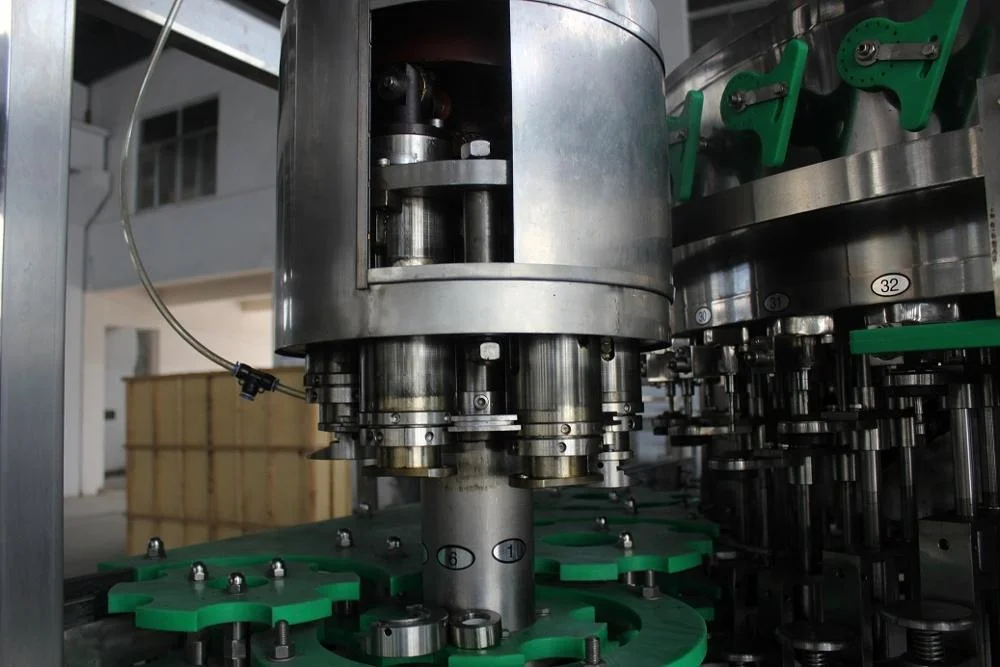

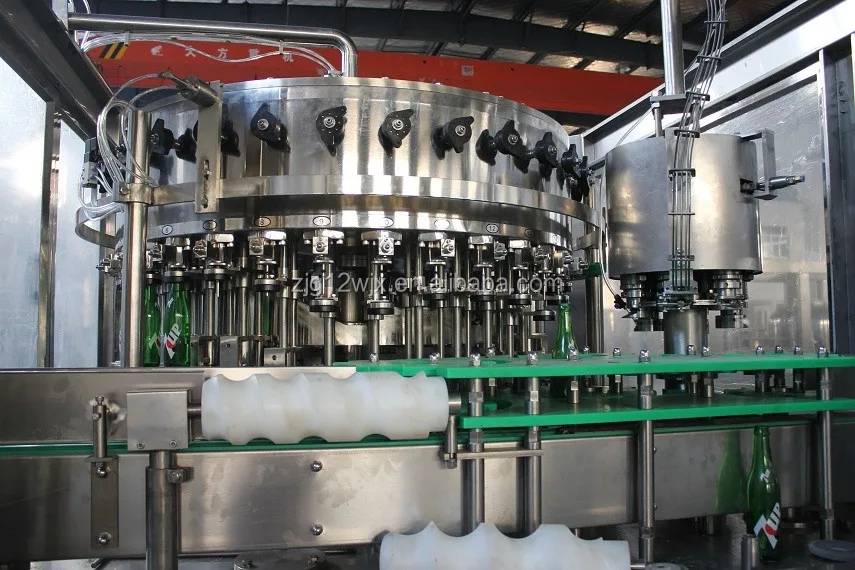

Capping part
1. Aluminum cap, Crown cap, plastic cap, metal cap
2. No bottle no capping
3. Two sensor to check, PLC control
4. No full no capping
5. Place & capping system, electromagnetic capping heads, with burden discharge function, make sure minimum bottle crash during capping
6. All 304stainless steel construction
7. Automatic stop when lack of bottle
8. Automatic caps arranging and feeding, lack of caps automatic feeding
Machine Parts

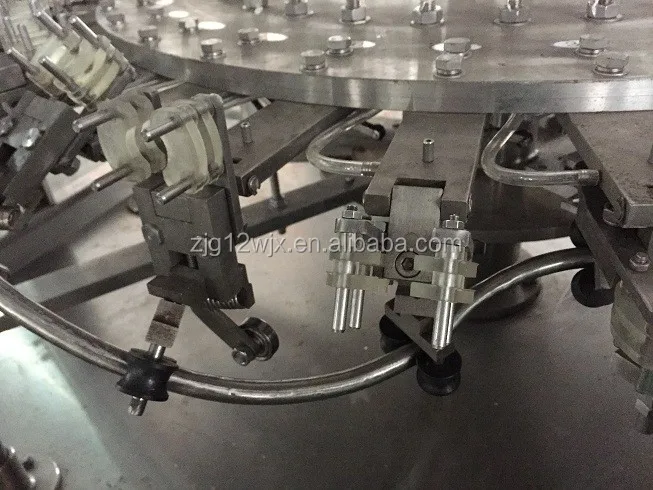

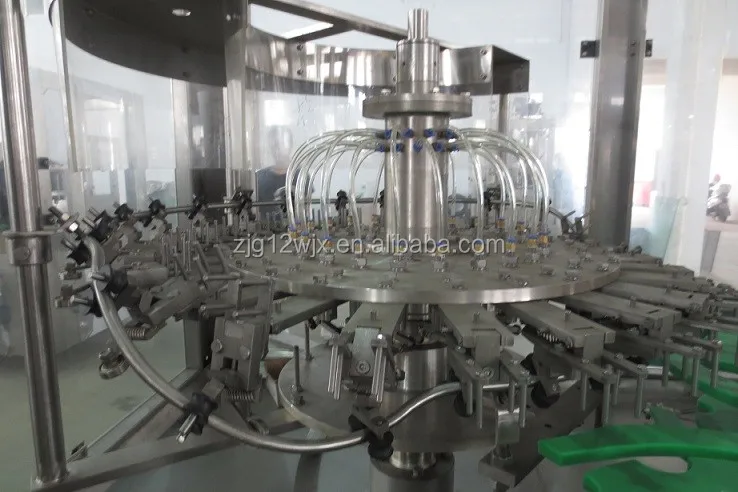

Name: Washing part
Brand: MIC
Original: China
This is glass bottle washing part. The washing heads are rubber material. It will not drop bottle, will not damage bottle, and it will not scratch bottle also.
Main Features
Machine Parts

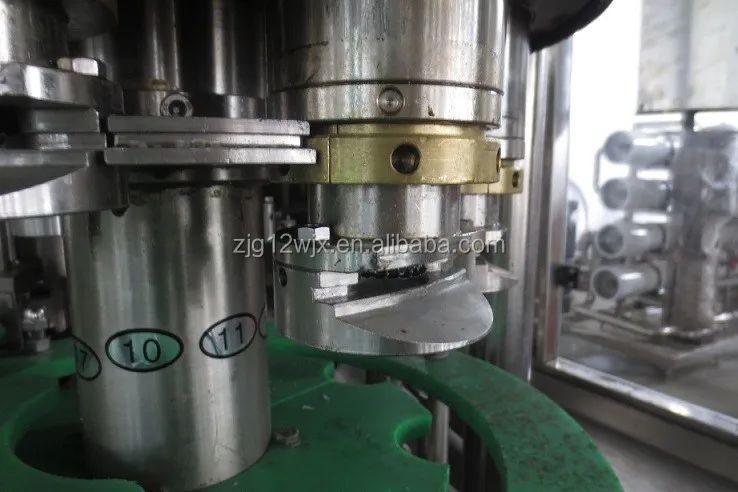

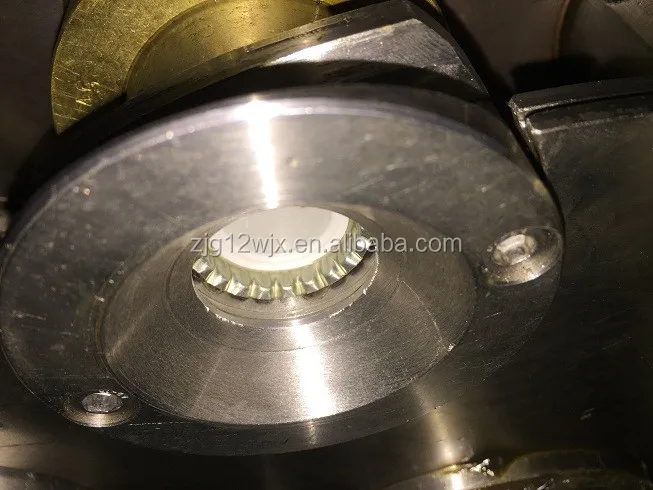

Name: Cap heads
Brand: MIC
Original: China
This is the Cap holding heads, it is hold Cap with magnetic force, no bottle, no Cap.
Main Features
Air compressor
https://www.youtube.com/watch?v=lAik3VC3AgQ
CO2 mixing machine
https://www.youtube.com/watch?v=r2NAyZDIm24
Pasteurizer
https://www.youtube.com/watch?v=WR_55YOgDEI
This machine need air compressor, 0.8 m3/min 10Kg is enough
This machine can be connected with:
- Water treatment system
- Glass bottle depalletizer
- Glass bottle washer, filler-seamer monoblock
- Glass bottle cooling tunnel
- Glass bottle blow dryer
- Liquid level inspector
- Glass bottle labeling machine
- Glass bottle code printer
- Glass bottle packaging system (shrink-wrapper or carton packaging machine)
- Palletizing system
1. Each water filling machine element the contacts with the liquid is made of high quality Stainless steel 304, if need, SUS 316 is also available.
2. The water filling machine adopts bottle neck holding transmission technology to realize fully automatic rinsing, filling and capping.
3. Most elements of the electrical system use famous international brand, such as Mitsubishi, Omron brand.
4. The water filling machine obtain the advantages of good abrasive resistance,high stability,low failure rate, etc. The quality of the equipment reaches the international advanced level.
5. Advanced technologies, human-machine interface touch screen and PLC program control are adopted in this machine.
6. Nozzles in the grab can guarantee the complete wash of the interior of the bottle.
7. Easy to operate, save the cost of workers.
