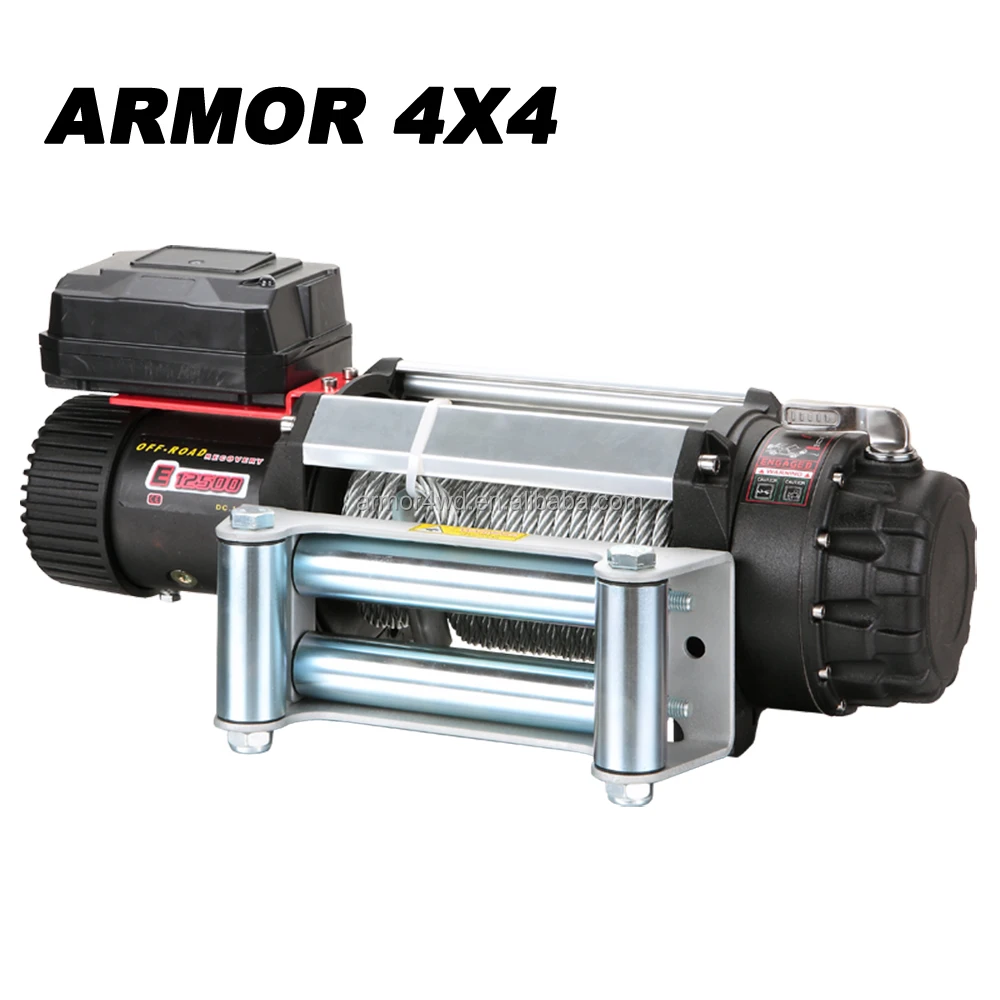

12500lbs power electric winch with wire rope
12500lbs power electric winch with wire rope
12500lbs power electric winch with wire rope
12500lbs power electric winch with wire rope

12500lbs power electric winch with wire rope

Share on (60771392746):


Price:$240.00 - $300.00

Quantity:


Product Overview

Description


Product Detail
Specification
\t
Specification
\t
Rated line pull
\t
12500Lbs(5670kgs)single line.
\t

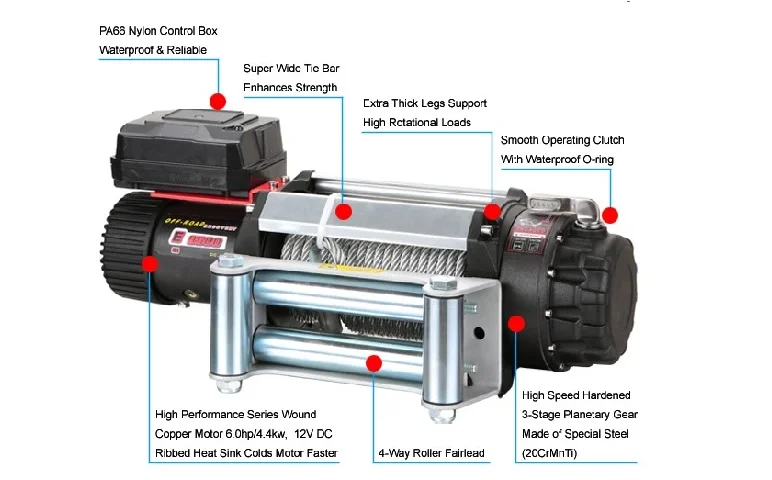

Motor
\t
Series wound 6.5hp /4.8kw,12V DC     8.1hp/6.0kw,24V
\t
Gear Train
\t
3 stage planetary
\t
Gear ratio
\t
262:1
\t
Cluth
\t
Sliding Ring gear
\t
Braking action
\t
Automatic in the drum
\t

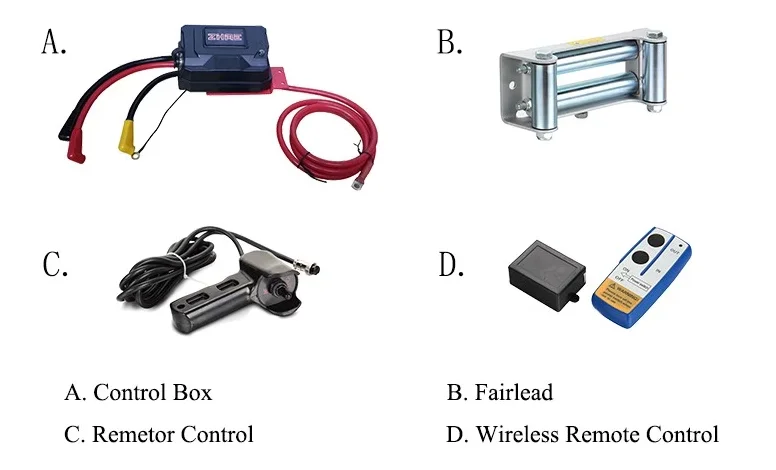

Fairlead
\t
Roller fairlead for wire rope, Aluminum fairlead for synthetic rope
\t
Rope
\t
Wire rope 9.5mm ×25m ,Synthetic rope 11mm×24m
\t
Drum size
\t
2.5''x9.0''(63mmx224mm)
\t
Dimensions
\t
23''x6.7''x8.4''(552mmx170mmx214mm)
\t
Mounting bolt pattern
\t
10''x4.5''(254mmx114.3mm)
\t
Battery
\t
Recommended 650 CCA minimum for winching 25 square mm,72''(1.83)
\t
N.W
\t
93lbs(42kgs)
\t
Packing
\t
620mmx200mmx390mm (400pcs per 20' container)
\t
Line speed and motor current(first layer)
\t
Line pull
\t
Lbs
\t
0
\t
2000
\t
4000
\t
8000
\t
12500
\t
Kgs
\t
0
\t
907
\t
1814
\t
3629
\t
5670
\t
Line speed
\t
FPM
\t
25.6
\t
12.5
\t
8.9
\t
7.3
\t
6
\t
MPM
\t
7.8
\t
3.8
\t
2.72
\t
2.24
\t
1.8
\t
Motor  current
\t
Amps
\t
65
\t
100
\t
130
\t
200
\t
290
\t
Line pull and cable capacity
\t
Layer of cable
\t
\t
1
\t
2
\t
3
\t
4
\t
Rated line pull per layer
\t
Lbs
\t
12500
\t
10750
\t
9460
\t
8040
\t
Kgs
\t
5670
\t
4876
\t
4290
\t
3647
\t
Cable capacity per layer
\t
Ft.
\t
15.75
\t
36.4
\t
61.3
\t
85.3
\t
M
\t
4.8
\t
11.1
\t
18.7
\t
26
