Product Overview
Description
Atlas Copco Drill rigs and rock drills (AC Drill rigs and rock drills )
Technical data
| Air system | |
|---|---|
| Air pressure gauge | Yes |
| Adjustable flow/pressure | Yes |
| Lubricated air for the rock drill | Yes |
| 2-inch system | No |
| Drilling unit | |
| Hole diameter | 51 - 89 mm |
| Adaptable to drill tubes | TDS 56, TDS 64 |
| Adaptable to rods/pipes | 4', 5', 6' |
| Adaptable to speed rods | R32, T38, T45 (T51) |
| Mechanized drilling | up to 32 m |
| Rock drill lubrication surveillance system | No |
| Rod Handling System | RHS 17, 17+1 rods |
| Carrier | |
| Protective roof, FOPS-approved | Yes |
| Swingable seat for operating and tramming | No |
| Fixed seat for tramming | Yes |
| Engine | Deutz 4-cylinder, D914 L04 (Tier 3/Stage IIIA) |
| Power rating | 55 kW at 2300 rpm |
| Articulated steering | ±41 steering angle |
| All-wheel drive | Yes |
| Torque | 230 Nm at 1550 rpm |
| Hydrostatic power steering system | Yes |
| Transmission | Hydrodynamic, Clark 12000 |
| Axle, front | Dana 176 |
| Axle, rear | Dana 176, ± 8 oscillation |
| Differential lock on front axle | Automatic |
| Tires | 12.00xR20 |
| Clearance outside axles | 15 |
| Hydraulic jacks, front | 2 extendable |
| Hydraulic jacks, rear | 2 |
| Service brakes | 2 separate circuits |
| Emergency and parking brakes | SAHR |
| Fuel tank, volume | 60 l |
| Exhaust catalyser | Yes |
| Electrical system | 24 Volt |
| Silencer | Yes |
| Tramming lights | 8x70 W |
| Batteries | 2x70 Ah |
| Brake lights | Yes |
| Beacon warning lamp | Yes |
| Tramming speed on flat ground | >10 km/h |
| Tramming speed on incline 1:8 | >4 km/h |
| Illuminated stairs for platform | Yes |
| Central lubrication system | Yes |
| Fire extinguisher | Yes |
| Horn | Yes |
| Spirit level | Yes |
| Reverse alarm | Yes |
| Shelf for drill bits and tools | Optional |
| Hand throttle | No |
| Boot washing kit | No |
| Manual rig washing kit | Optional |
| Rack for spare hammers and pipes | No |
| Safety belt | Yes |
| Control system | |
| Control system | Electrical Direct System, EDS |
| Electronic control panel | Yes |
| Transfer of data and back-up settings | N/A |
| Integrated diagnostic system | N/A |
| Battery for electronic system | Yes |
| Control panel mounted on trolley or under canopy | Yes |
| Drill settings for up to 5 different drill bits | N/A |
| Angle reading instrument | Optional |
| Trolley-mounted control panel with colour display | No |
| Dimensions and weight | |
| Height tramming | 3180 mm |
| Height roof up | 2960 mm |
| Turning radius, inner | 2890 mm |
| Turning radius, outer | 5440 mm |
| Ground clearance | 280 mm |
| Width | 1950 m |
| Electrical system | |
| Total installed power | 70 kW |
| Main motors | 1x55 kW |
| Starting method | star/delta (380–690 V) direct (1,000 V) |
| Overload protection for electric motors | Thermal |
| Percussion hour meter | Yes |
| Percussion hour meter on A-panel | Yes |
| Phase sequence indicator | Yes |
| Digital volt/amperage meter in electrical cabinet | Yes |
| Earth fault indicator | Yes |
| Battery charger | Yes |
| Transformer | 4 kVA |
| Limit switch for cable reel | Yes |
| Cable reel | Yes |
| Working lights mounted on tripod | 2x200 W, 24 V |
| Frequency | 50-60 Hz |
| Voltage | 380-1000 V |
| Hydraulic system | |
| Hydraulic pump for percussion | Yes |
| Oil/water cooler in stainless steel | Yes |
| Smart oil leakage shut-down system | No |
| Hydraulic pump for rotation, positioning and feed | Yes |
| Hydraulic oil tank volume | 159 - 160 l |
| Pumps unloaded at start | Yes |
| System pressure, max | 230 bar |
| Low oil level indicator | Yes |
| Oil temperature gauge on oil tank | Yes |
| Oil filter indicator | Yes |
| Electrical oil filling pump | Yes |
| Filtration | 16 µm |
| Hydraulic oil | Mineral |
| Positioning system | |
| Feed dump, drilling | +20 forward, -65 backward |
| Feed extension (with 4' drill steel) | 900 mm |
| Feed extension (with 5' and 6' drill steel) | 1200 mm |
| Pendulum arm | BHP 150 gives 1.5 m feed parallel positioning in the side walls. Adds further 1.5 m feed parallel positioning upwards/downwards. |
| Rig Alignment Laser, RAL | No |
| Rotary accurator | BHR 60–2 for 360 ring drilling |
| Sliding table | BHT 150 gives ± 0.75m feed parallel positioning |
| Stinger backward on feed | BSJ 8-200 |
| Stinger forward on feed | BSJ 8-115 2 |
| Water system | |
| Water booster pump | Yes |
| Water inlet pressure, min | 2 bar |
| Water pressure gauge | Yes |
| Water flow guard | Yes |
| Capacity, max | 100 l/m at 10 bar |
| Water injection pump | No |
| Noise and vibration | |
| Operator sound pressure level in canopy, drilling, free field (ISO 11201) | 104±6 dB(A) re 20uPa |
| Operator sound pressure level working close to machine, drilling, free field | 104±6 dB(A) re 20uPa 2 |
| Sound power level (ISO 3744), drilling, free field | 128 dB(A) re 1pW |
| Rock drill | |
| Drilling method | Tophammer |
| Rock drill | COP 1838MUX, COP 1838ME, COP 2550UX |

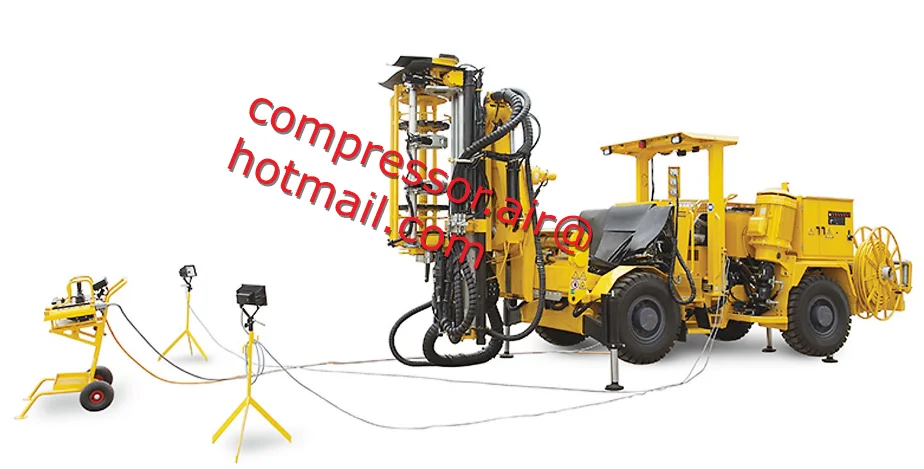

Simba 1354
Simba 1354
The Simba 1354 provides a high penetration rate in medium-size drifts.
Versatile drill rig
Adaptable drilling
Superior long-hole drill
To increase uptime and vehicle life, the rig is designed with easy access to service points for efficient daily checks and maintenance.
Powerful production drill
The Simba 1354 provides a high penetration rate in medium-size drifts. In-the-hole hammers and rock drills designed for variable drilling patterns are easy to adapt this rig to your needs. Stinger up-and-down stabilizes the feed for accurate collaring and drilling. To increase uptime and vehicle life, the rig is designed with easy access to service points for efficient daily checks and maintenance. When you need a hard-working, high-precision rig for long-hole drilling, you can rely on the Simba 1354.
Quick facts
Download
- Simba 1354 technical specification
Simba 1254
A hydraulic production drill rig made for limited tunnel sizes.
Robust production drill
Maneuverable rig
Efficient drilling
Ergonomic controls and accessible service points make it easier for operators to reach higher levels of production.
Precise drill rig
The Simba 1254 is a hydraulic production drill rig made for limited tunnel sizes. The high penetration rock drills give you the power to increase your production, no matter the rock conditions. Dual stingers with an angle reading system make setup quick and easy, while increasing drilling stability and accuracy. Ergonomic control and accessible service points make it easier for operators to reach higher levels of production. When you need a high-precision, hard-working rig for long-hole drilling, you can rely on the Simba 1254.
Quick facts
TECHNICAL DATA
Coverage, max. width | 0 mm |
Coverage, max. height | 0 mm |
Hole diameter | 64 mm - 89 mm |
Rod handling system (RHS) | 0 |
Hole length | 0 m |
Rock drill | COP 1838+ |
Diesel engine | 912 kW |
DIMENSIONS
Length, tramming | 0 mm |
Width, tramming | 0 mm |
Height, min. protective roof | 0 mm |
Height, min. cabin | 0 mm |
Height, tramming | 0 mm |
Turning radius, inside | 0 mm |
Turning radius, outside | 0 mm |
Operating weight | 12 500 kg |
Download
- Simba 1254 technical specification
Simba E7
Hydraulic long hole production drill rig for medium to large size drifts.
Versatile drilling rig
Easy to customize
Operator assistance
This reliable rig is equipped with a boom-mounted drilling unit for improved versatility, adaptable to any challenge.
Flexible and reliable rig
The Simba E7 is a hydraulic long hole production drill rig for medium to large size drifts, with hole range from 51 up to 127 mm. It accommodates a range of drill bits, rock drills and in-the-hole hammers to adapt to your specific needs. This reliable rig is equipped with a boom-mounted drilling unit for improved versatility, adaptable to any challenge. With the The Simba E7, you can drill parallel holes upward and downward with up to 6.9 m spacing. The rig can be operated by remote control to enhance production and operator safety and comfort. When you need a hard-working, high-precision rig for long-hole drilling, rely on the Simba E7.
Downloads
Quick facts
TECHNICAL DATA
Coverage, max. width | 8 000 mm |
Coverage, max. height | 8 700 mm |
Hole diameter | 89 mm - 127 mm |
Rod handling system (RHS) | 27 |
Hole length | 51 m |
Control system | RCS |
Rock drill | COP 3060MUX |
Diesel engine | 120 kW |
DIMENSIONS
Length, tramming | 12 748 mm |
Width, tramming | 2 550 mm |
Height, min. protective roof | 2 450 mm |
Height, min. cabin | 3 150 mm |
Height, tramming | 3 150 mm |
Turning radius, inside | 4 400 mm |
Turning radius, outside | 7 300 mm |
Gradeability, max. | 1:4 |
Operating weight | 27 500 kg |
Simba M6
Long-hole production drill rig for medium to large-drift mining
Long-hole drilling
Flexibility and precision
Remote operation
The rig operator enjoys excellent visibility and enhanced safety in the comfortable cabin.
Fast, precise rock drilling
The sturdy Simba M6 is a long-hole production drill rig for medium to large-drift mining with holes ranging from 51 to 178 mm in diameter. It accommodates a range of drill bits, rock drills and in-the-hole hammers to adapt to your specific needs. The rig operator enjoys excellent visibility and enhanced safety in the comfortable cabin. Tele-remote control capability allows for control of one or more machines from a safe and comfortable location. Your Simba M6 can then continue to drill through personnel breaks and shift changes. When you need a hard-working, high-precision solution for long-hole drilling, rely on the powerful Simba M6.
Downloads
Replacement parts & kits
Financial solutions
Simba M4
Hydraulic production drill rig for medium-to-large holes
Powerful production drill
Sturdy rock drilling
Easy automated drilling
Simba M4 can be operated by remote control to increase production and operator safety and comfort.
Fast and accurate drill
Simba M4 is a hydraulic production drill rig for medium-to-large holes ranging from 51 to 178 mm in diameter. It accommodates a range of drill bits, rock drills and in-the-hole hammers to adapt to your specific needs. Simba M4 becomes even more efficient when equipped with automated single-hole or multi-hole drilling functions. The rig can be operated by remote control to increase production and operator safety and comfort. When you need a hard-working, high-precision rig for long-hole drilling, rely on Simba M4.
Downloads
Simba S7
Simba S7
Game changing precision
Superior long-hole drilling
Smarter underground drilling
Flexible and reliable rig
Trick shot - Game changing precision
Simba S7 offers a sustainable high-precision solution for long-hole drilling.
Increased drill performance
Simba S7 is built on a modern design sharing many components in common with the successful Boomer S1 face drilling rig. Simba S7 is a long-hole drilling rig for small to medium sized drifts in the 51 to 89 mm hole range. The rig is capable of ring drilling with parallel holes upward and downward with up to 5,9 m spacing. Equipped with a high-performance tophammer rock drill and boom-mounted drilling unit Simba S7 offers a sustainable high-precision solution for long-hole drilling. Increased automation lets you add the functionality you need to this versatile rig.
Downloads
- Drill rigs
- Production drill rigs
Production drill rigs
Long-hole drilling rigs
Epiroc’s long-hole drilling rigs are used for production drilling in underground mining applications. With a variety of feed lengths, positioning configurations, rock drills, and an extensive options program; we offer the optimum long-hole drilling rig for every application. The computerized Rig Control System, RCS, offers different levels of automation. You can add options like a bit changer, a collar pipe installer, or even multi-hole automatic drilling. The latest released option is the tele-remote function, providing an edge in safety when drilling and utilizing the machine.
Increased productivity
Epiroc's production drill rigs are built for fast on-site positioning and accurate hole placement to increase your production.
More precise drilling
The Simba range of underground drill rigs offer high-precision sustainable solutions for long-hole drilling.
Automated drilling
Add the automated functions you need for safer, more precise and more profitable underground drilling.
Simba S7
- Simba S7 offers a sustainable high-precision solution for long-hole drilling.
Simba M4
- Hydraulic production drill rig for medium-to-large holes.
Simba M6
- The rig operator enjoys excellent visibility and enhanced safety in the comfortable cabin.
Simba E7
- Hydraulic long hole production drill rig for medium to large size drifts.
Simba E6-W
- Hydraulic long hole production drill for large size drifts.
Simba 1254
- A hydraulic production drill rig made for limited tunnel sizes.
Simba 1354
