Meter gauge, standard gauge Railway freight bogie made in China

Product Overview

Description

Production Description



Hot sale 24t, 28t, 32t 36t railway bogie  made in China exported to Europe, Asia

Wagon bogie Specification used for standard gauge

Item	Specification
Gauge	1,435 mm
Axle load	22.5 t
Tare weight	4.6 t
Speed	100 km/h
Distance between journals	2,000 mm
Distance between side bearing	1,700 mm
Wheel Diameter(Type A)	920 mm
Brake ratio	4



Wagon bogie Specification used for meter  gauge



Hot selled in Indian market:

Item	Specification
Gauge	1,000 mm
Axle load	20 t
Tare weight	3.7 t
Speed	80 km/h
Wheel Diameter(Type A)	840 mm
Brake ratio	4



Hot selled for Veitnam

Item	Specification
Gauge	1,000 mm
Axle load	21 t
Tare weight	4 t
Speed	80 km/h
Wheel Diameter(Type A)	840 mm
Brake ratio	4

Wheel specification MTJ offered





Forging part	Forged steel rail wheel and tyre
Material	ER6,ER7,ER8,ER9,R7T,R8T,R9T,CL60
Dimension	According to your drawings
Application	Heavy industrial equipment
Inspection	Chemical composition; UT,MT; mechanical property; dimension check
Standard	IRS,BS,UIC,AAR,BN,GB,TB/T,EN
Forging Processing	Ingot---forging---heat-treatment---rough machining---UT.MT---Q+T---inspection---finishing machining---UT.MT---packing
QC Doc	Chemical composition report mechanical properties report; UT test report; heat treatment report; dimensions
Heat reatment	Normalized / Annealed / Quenched / tempered

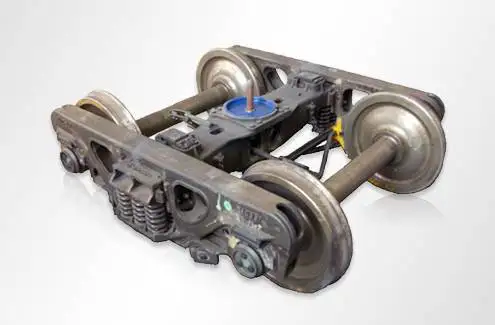

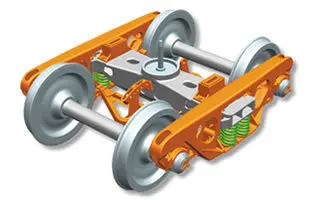

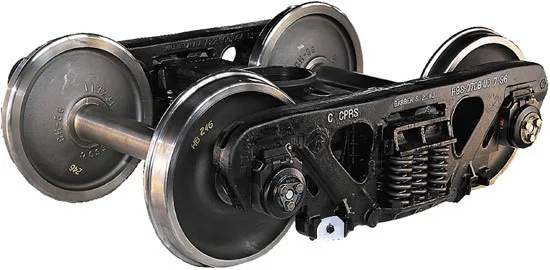

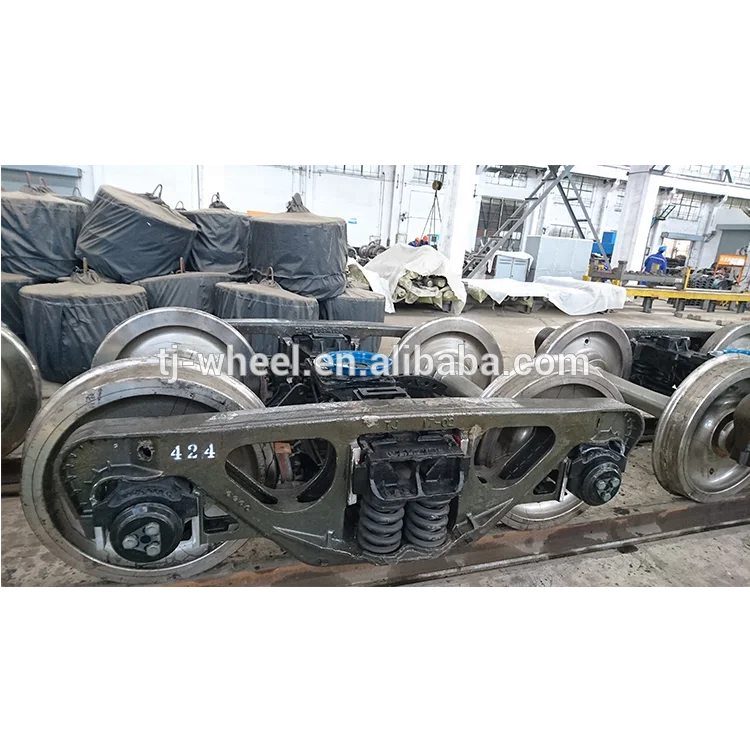

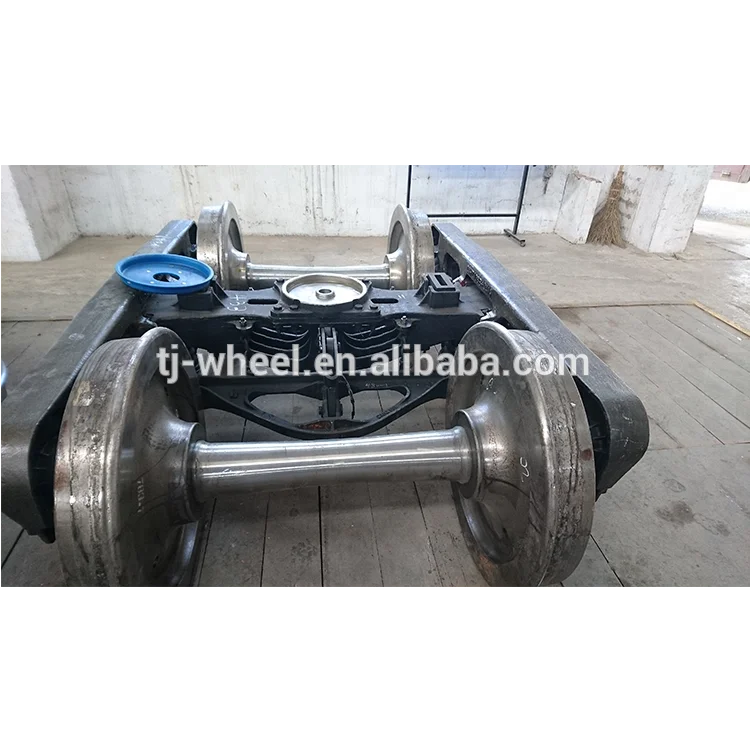

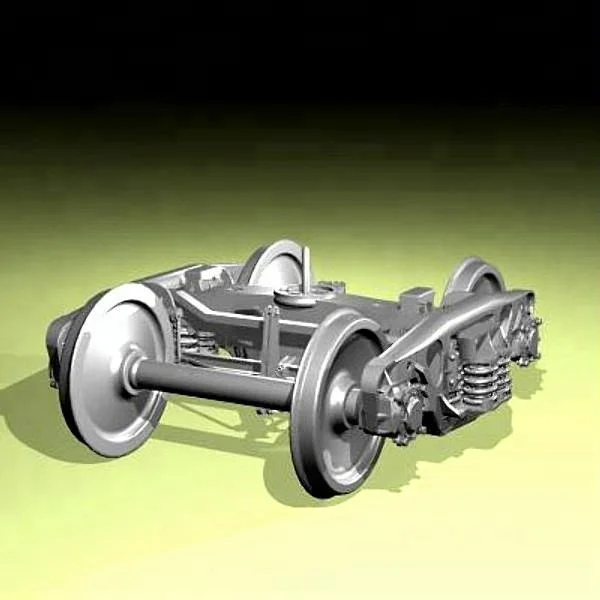

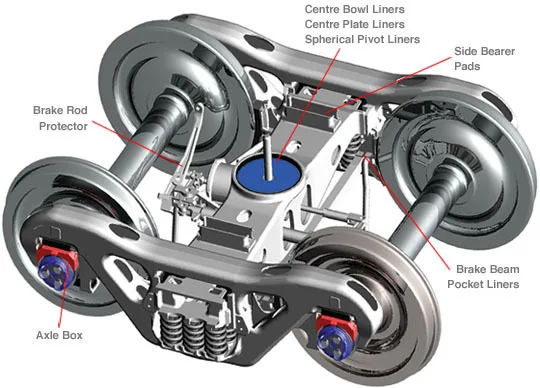

Products pictures

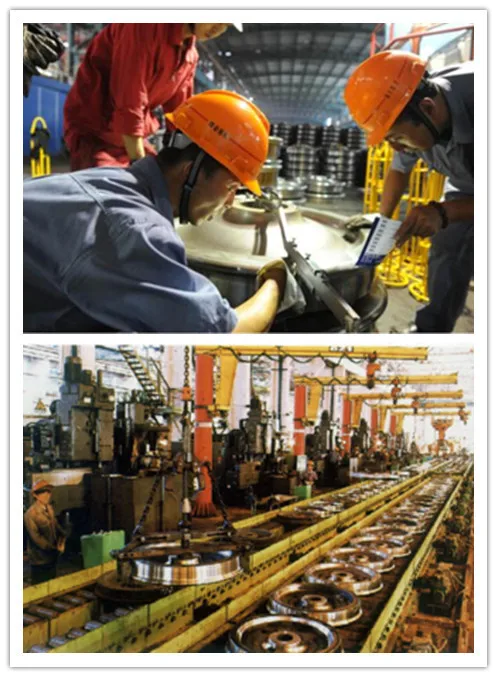

About Our Factory





Our Services

1. One on one service guarantees you the best purchasing experience.
2. Strong team and professional workmen guarantees you the short delivery.
3. Strict delivery inspection guarantees you the high quality products.





Certifications



Contact





Good Quality Good Services---  Hot sale 24t, 28t, 32t 36t railway bogie  made in China exported to European
