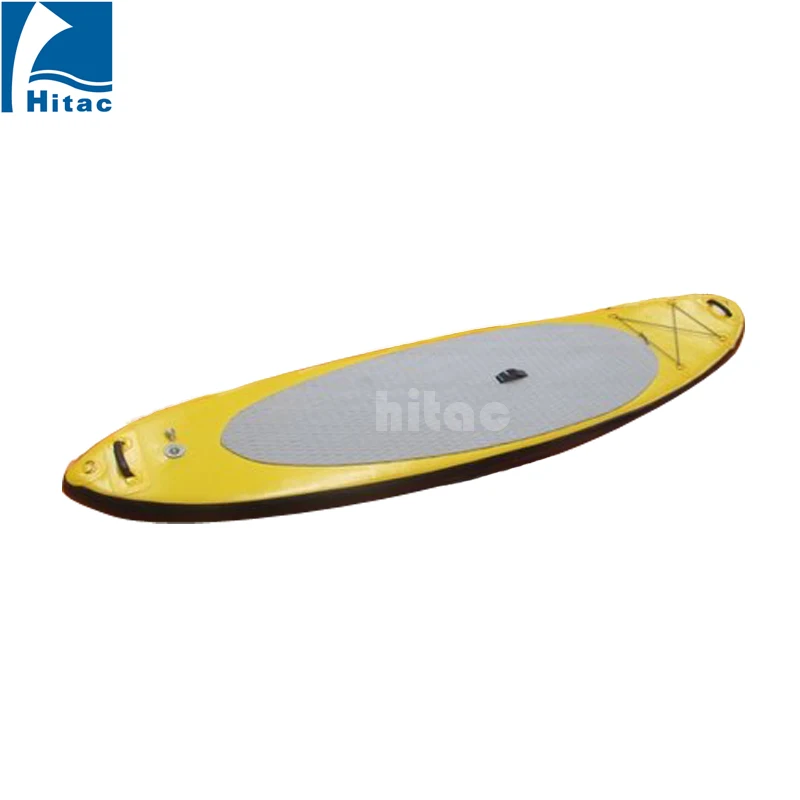

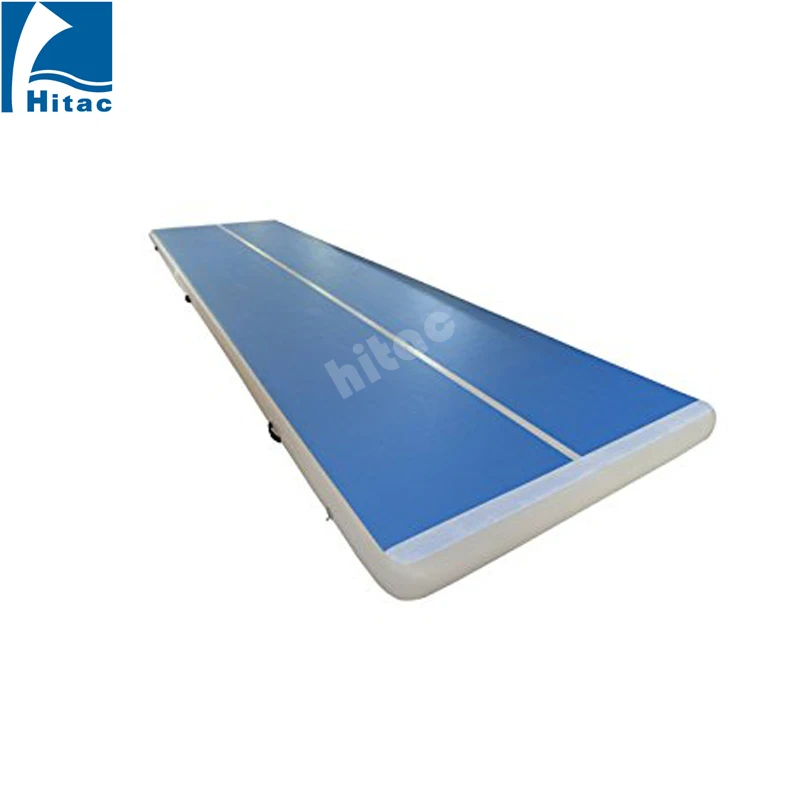

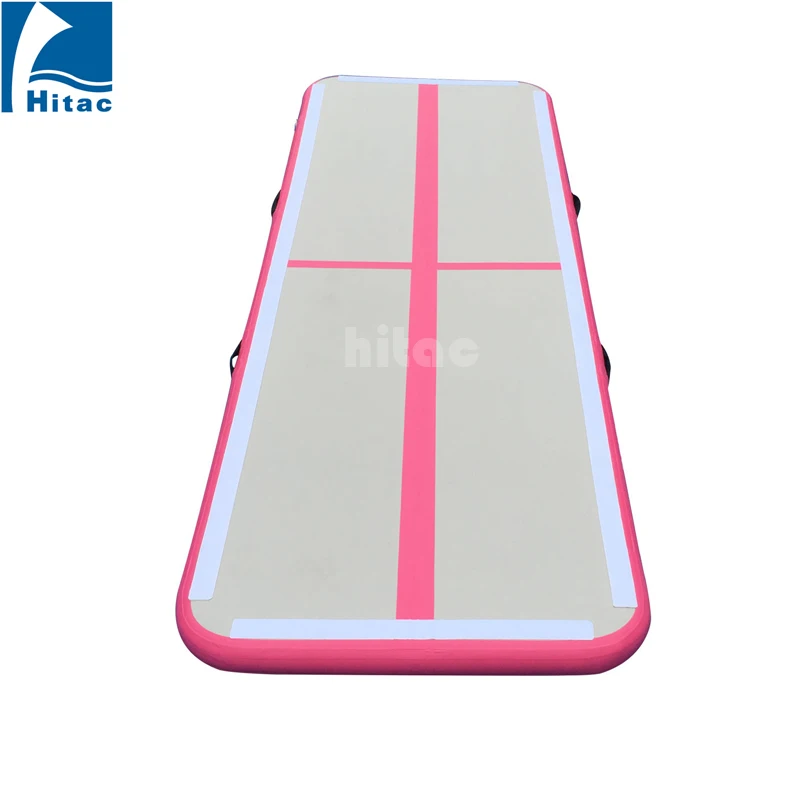

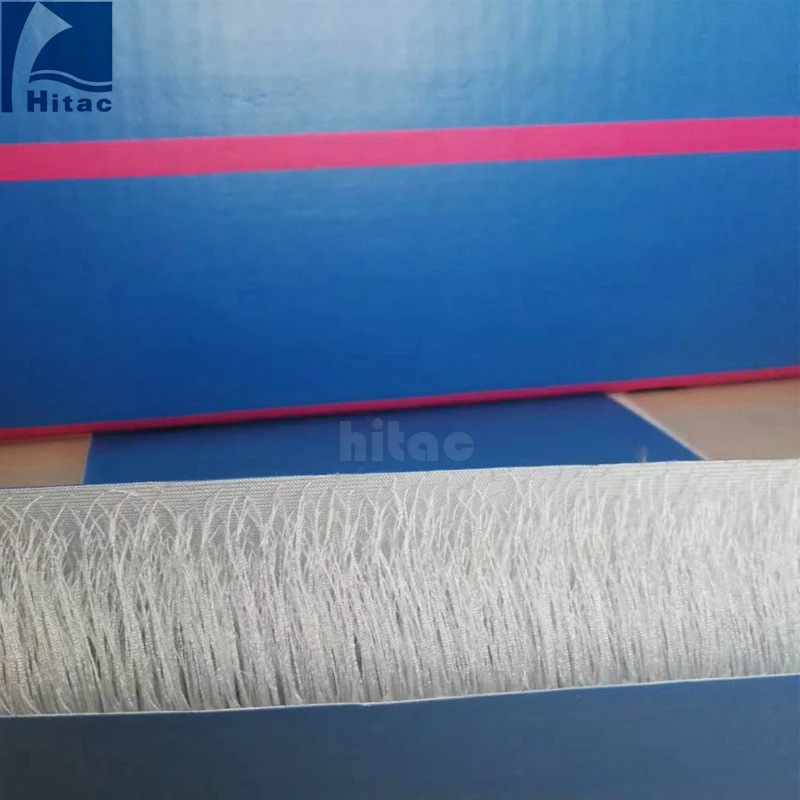

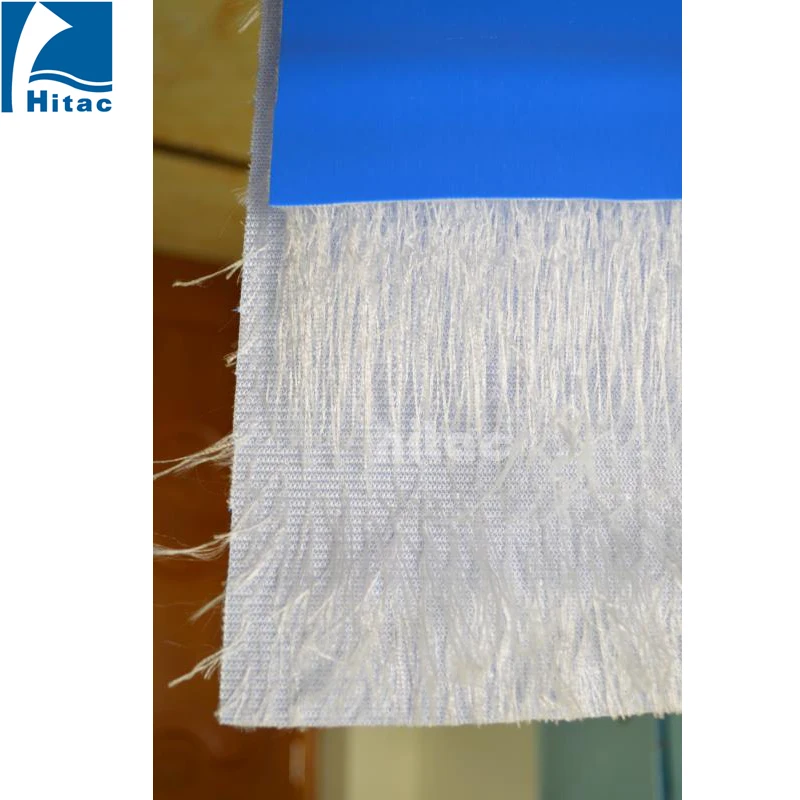

China supplier 500D pvc double wall fabric for gym mat and sup board

Description

Items

Units

DWF80

DWF100

DWF150

DWF200

Finished products

Base fabric

D

500

500

500

500

Density

Inch*Inch

13*23

13*23

13*23

13*23

Design

Standard

Gypsophila(punctiform),Wavy(stripe),Linear

colors

Standard

Light grey,white,blue,black

Thickness(for reference)

mm

2.4(±0.2)

2.5(±0.2)

2.8(±0.2)

3.0(±0.2)

Grammage of finished products

G/sqm

2400

(±200)

2600

(±200)

2900

(±200)

3200

(±200)

Width of finished products

mm

1550-1650(±10)

1550-1650(±10)

1550(±10)

1900(±10)

The length of package

m/roll

30

30

30

30

Tensile strength

N/5cm

MIN 1400*2000

MIN 1400*2000

MIN 1400*2000

MIN 1400*2000

Tear strength

N/5cm

500*600

500*600

500*600

500*600

Adhesive force of glue

N/5cm

180*180

(±20)

180*180

(±20)

180*180

(±20)

180*180

(±20)

Recommended inflation pressure

Psi

10

10

10

8

Maximum pressure

Psi

20

20

20

15
