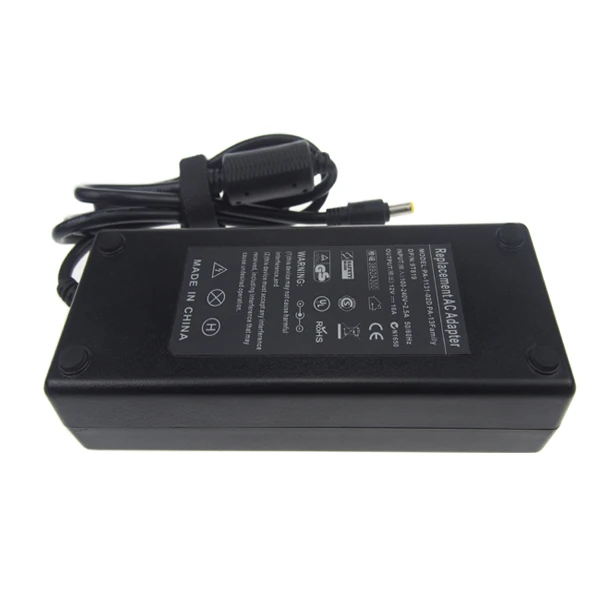

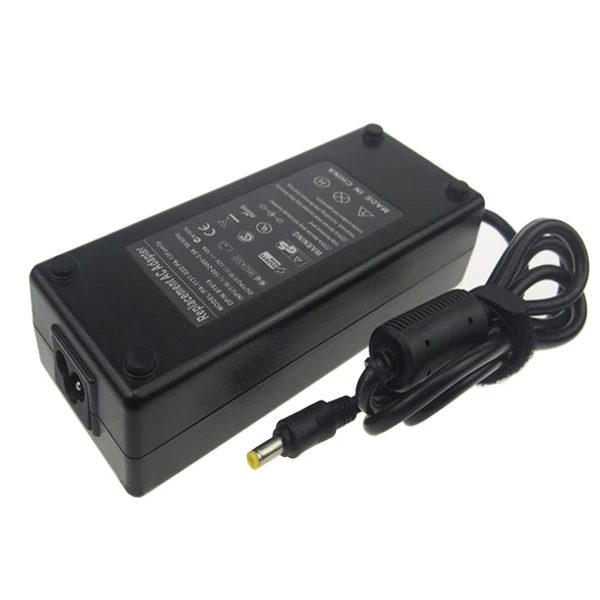

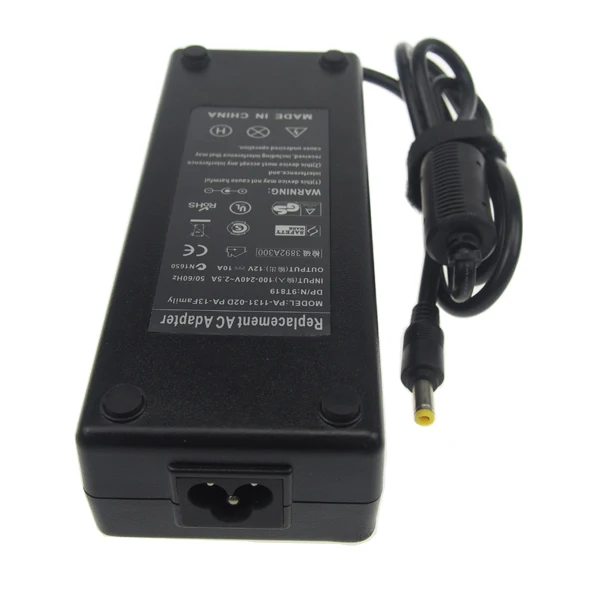

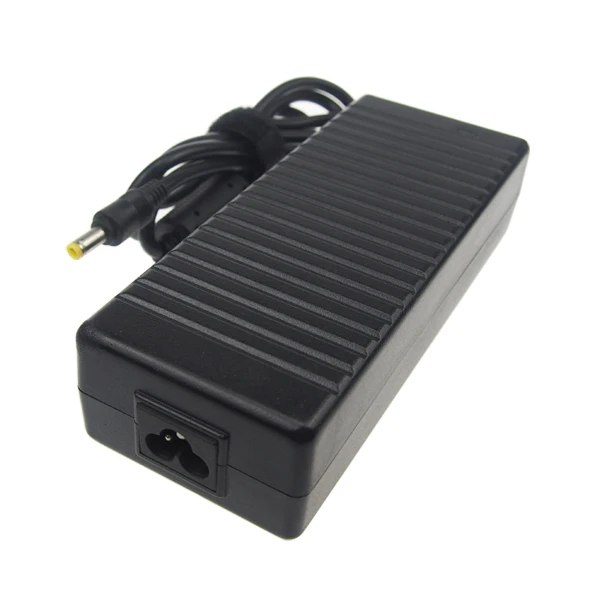

12V 10A 120W power supply adapter for LCD LED CCTV power charger desktop adapter
- Category: >>>
- Supplier: Shenzhen Yidashun Technology Co. Ltd.
Share on (60771522905):
Product Overview
Description
12V 10A 120W power supply adapter for LCD LED CCTV power charger desktop adapter
Product Description
| Specifications | |
| Model No. | YLCG23 |
| AC Input | |
| Nominal Input Voltage | AC 100V~240V |
| Input Voltage Range | AC 95V~265V |
| Input Frequency | 50/60Hz |
| DC Output | |
| Output Voltage | 12V |
| Output Current | 10A |
| Output Power | 120W |
| DC Connector Size | 5.5*2.5 mm |
| Line Regulation | 2% |
| Load Regulation | 5% |
| Ripple Noise | 180 Mvp-p |
| Efficiency | >85% |
| Output Cable Standard | 1.0 mm2 Pure Copper |
| Output Cable Length | 1.5m normally or customized requirement |
| Environment | |
| Operating Temperature | 0°C ~40°C |
| Operating Humidity | 5%~95%RH |
| Storage Temperature | -20°C ~85°C |
| Storage Humidity | 5%~95%RH |
| Protection | |
| Over Load Protection | Short Circuit Protection |
| Over Current Protection | Over Temperature Protection |
| Certificates | |
| CE FCC ROHS CB | |
| Dimensions | |
| Adapter Size | 16.6*6.5*3.9CM |
| Adapter Weight | 590G |
| Inner Box Size | 21.5*14.5*5.5CM |
| Inner Box Weight | 60G |
| PCS/CTN | 50PCS |
| Outer Carton Size | 55.5*44*37.5CM |
| Outer Carton Weight | 1100G |
| GW/CTN | 33600G |
| Package | |
| Inner Box | Normally neutral brown box or customized requirement |
| Outer Carton | Normally neutral standard carton or customized requirement |
| Warranty | |
| Guarantee | 30 days |
| Warranty | 1 year |
| Terms and Conditions | |
| MOQ | 100PCS for mixed order |
| Payment Terms | T/T, L/C, PayPal, western union |
| Delivery Time | 3-5 days |
| Manufacturing Process | |
| 1. Set-Up→2. Hand Insertion→3. Wave Soldering→4. Touch-Up→5. V/I→6. ICT→7. INT→8. Apply Glue→9. Q/A→10. Entering Stock→11. Assembly→12. Power On Test→13. Hi-Pot Test→14. Burn-In→15. Hi-Pot Test→16. All Fun Test→17. Packing→18. OQC→19. Shipping | |
| Test Procedures | |
| 1.No-load output voltage test→2.input power load test→3.No-load output ripple test→4.Full load open test→5.Full load output voltage test→6.Full load output ripple test→7.Full load input power test→8.Half load output voltage test→9.Half load output ripple test→10.Over load test→11.Over current protection test →12.Short circuit protection test (above test is under both 110V and 230V.)→13.High voltage test→14. burn-in test→15.Turn on delay time test→16.Rise time test→17.Hold time test→18.Overshoot test | |

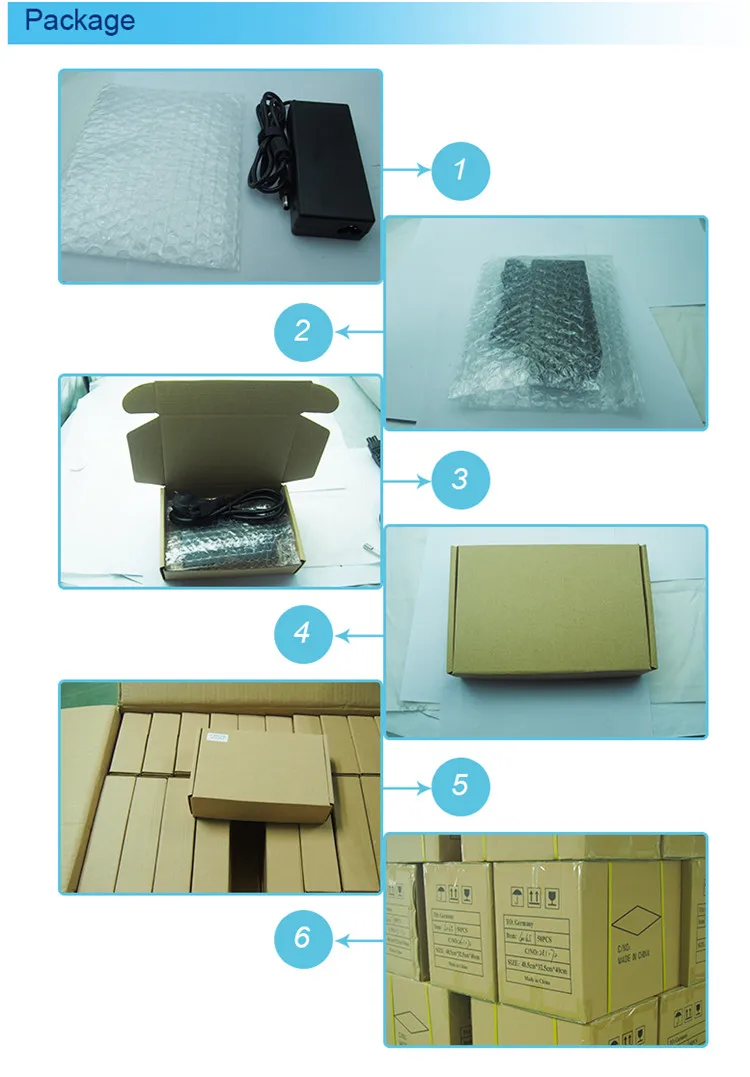

Packaging & Shipping
Packing details:
PE bag+bubble bag+box+carton;
PE bag+bubble bag+carton for saving shipping cost;
Inner box size: 21.5*14.5*5.5CM
Outer Carton Size: 55.5*44*37.5CM
- Delivery Time:
- 100-500PCS,3-5 days
- 500-1000PCS,5-8 days
- for big order,it takes about 2 weeks
Company Information
production Flow
Quality Control
Certifications
FAQ
Q1: Are you factory?
A1: Yes, we are a leading laptop adapter and AC/DC power supplier factory, specialize in this field since 2007.
Q2: what is the warranty for high quality power adapter?
A2: 1 year and a half warranty for power adapter, Any quality issues by our side during this time, the replacement parts will be sent in next order.
Q3: How soon can I get samples for testing quality?
A3: For our normal products(not customized products), sample will be sent in 1-2 days after final price being confirmed, Sample fee will be refunded after order place.
Q4: what is your defective rate for high quality power adapter?
A4: About 0.3%~0.5%.
Q5: Can you provide OEM & ODM service?
A5: OEM & ODM are warmly welcome. We can provide custom service for products, labels, package as your demands.
Q6: What’s your payment terms?
A6: Standard terms: T/T in advance. Big order: L/C at sight. Sample fees: Paypal and Western Union.
Q7: What about delivery time?
A7: 1,000PCS can be sent in 24 hours. 1,000-5,000PCS can be sent in 72 hours . 5,000-20,000PCS can be sent in 5 days. 20,000PCS can be sent in 1 week.
Q8: How do you usually ship the goods?
A8: For small order, by express; For large order, by sea; If you need goods urgently, by air. And we promise to find the most economic and safe way to delivery the goods for you.
