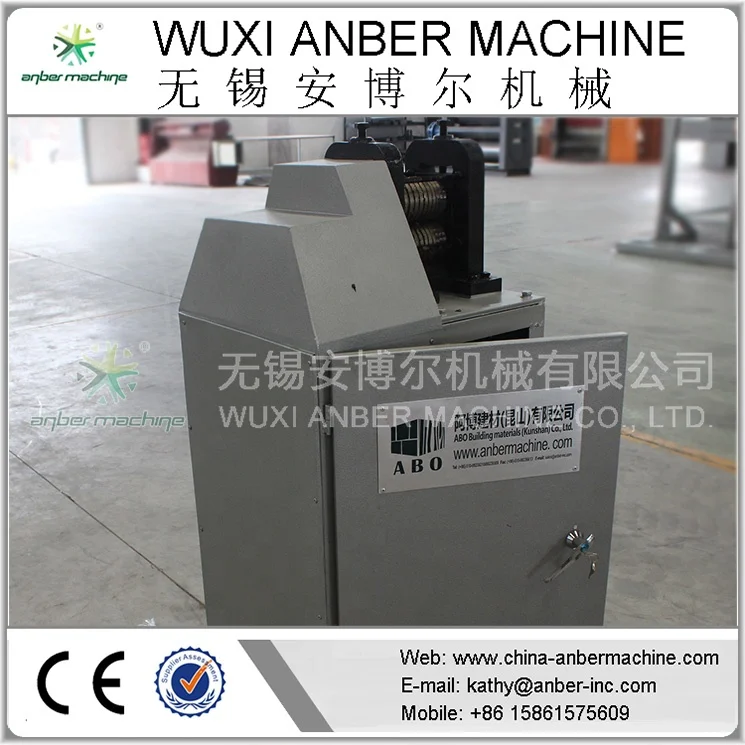

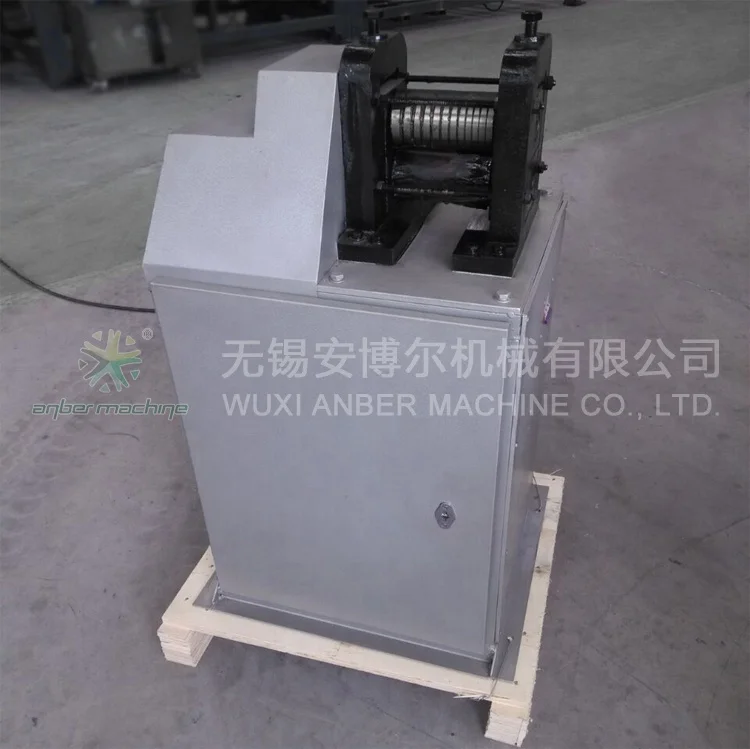

ABO-8.0 Tip rolling machine
Summary of structure

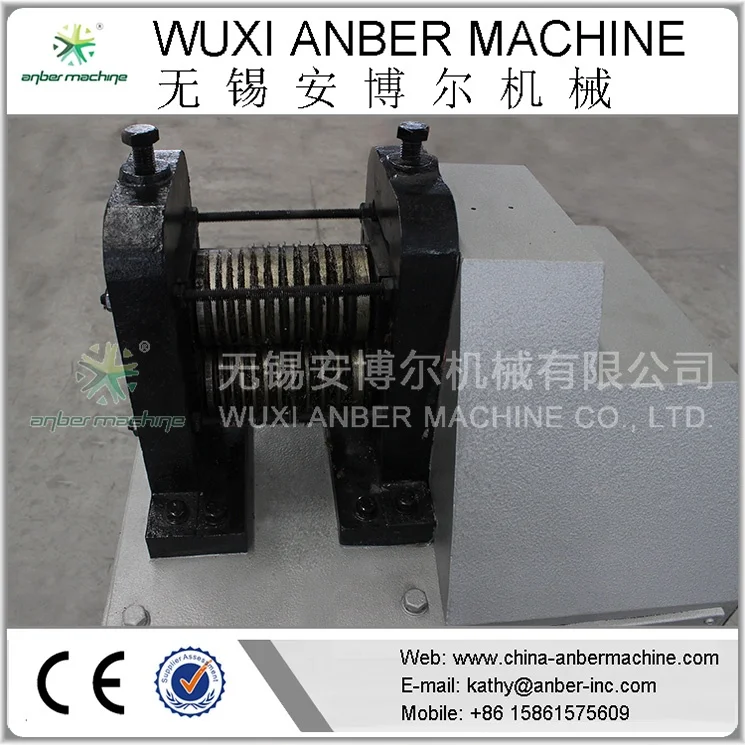

The tip rolling machine make up of roller, support, floor, shearing part, motor and driving system (coupling, gear), etc. Shearing part, support connect by screw and bottom board, make up the tip rolling structure, footing use screw fixed at the table board, motor install at the bottom of the machine, tense-lax belt, cross adjust screw to adjust, under the bottom board install four trundles for moving flexible, when fix the ground, need tight two screws to the ground to the two wheels leave the ground a little, so can not move when operate and use the machine.
When operate the machine, should close the automatic air switch’s connection power, Motor driving install at the belt pulley D1 of the motor, via the triangle belt drive the big triangle to drive D2, together the coaxial pinion Z1 drive roller coaxial big gear Z2 to make the roller get 50 rotate/minute, ROT n=n electricity xD1/D2xZ1/Z2=1400x70/335x64/85=45.5rotate/minute, beside the down roller big gear Z2, upper and down roller install a pair gear Z3, Z4 make the two rollers have same speed and opposite direction.
Application
The wire pointing machine copied the West Germany products, it is professional designed and manufactured by our factory, have the features of good looking appearance, compact structure, high efficiency and good performance and so on.
Tip rolling machine is the necessary auxiliary equipment for wire drawing machine, it will roll the wire head to be thinner to inlet in the wire drawing die according to the die size (at the same time cut-off the irregular head part before roll thin).
Specification
Technical parameters
Machine parameters are as Table 1
Table 1
Wire diameter | Φ6.5- Φ1 | Φ8- Φ2 |
Roller diameter (mm) | Φ81 | Φ81 |
Roller length (mm) | 140 | 140 |
Roller rotate speed (mm) | 50 | 50 |
Roller groove number (strip) | 11 | 10 |
Max. wire dia. (mm) | Φ6.5 | Φ8 |
Min. roll dia. (mm) | Φ1 | Φ2 |
Rolling material strength (kg f/mm2) | 115 | 115 |
Rolling length/time (mm) | 120 | 120 |
Motor model | Y100L1-4.2KW | 1400 r/min |
Outlet size (Length x Width x Height) | 660x520x1200 | 66x520x1200 |
Weight (kg) | 200 | 200 |
Wearing parts parameters are as Table 2:
Table 2
Item | Name | Material | Qty. | Remarks |
1 | Brass bush | ZQSn6-6-3 | 4 |
|
2 | Upper roller | 9Cr2 | 1 | Substitute material GCr15 |
3 | Down roller | 9Cr2 | 1 |
|
4 | bearing | 7206 | 1 | Φ30x Φ62x 16.5 |
5 | bearing | 307 | 1 | Φ25x Φ80x21 |
6 | Grease seal | Φ35x Φ55x12 | 1 |
|
7 | Triangular belt | A1702 | 2 | model |

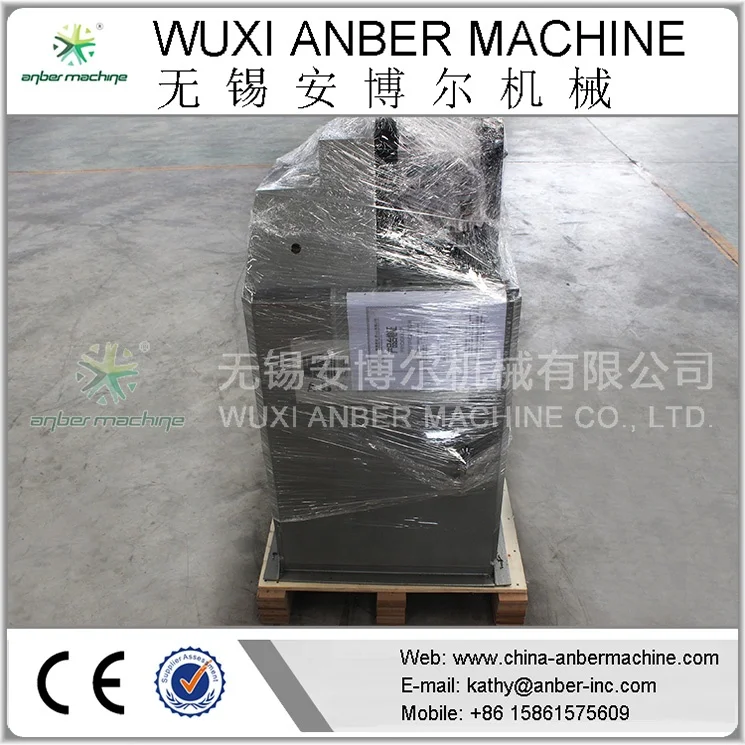

Packaging & Shipping
Our Services
Warranty
Within the limits of what hereinafter set forth, ANBER undertakes to remedy all defects of the equipment attributable to its engineering, material and workmanship. Such obligation of ANBER is limited to defects that show within 12 (twelve) months from the delivery of the equipment.
To benefit from these rights, Buyer shall notify within 8 days of its discovery to ANBER, in writing, analytically and precisely, all shown defects.
Installation and commissioning
To benefit from these rights, Buyer shall notify within 8 days of its discovery to ANBER, in writing, analytically and precisely, all shown defects.
Installation and commissioning
Machine is installed and commissioned by ANBER technicians. Testing cost, travel, accommodation and meal expenses are payable by the customer, the customer will provide local engineers and staff to support the installation.
