Product Overview

Description

High Capacity Apron Feeder From China Factory,

High Quality Vibrating Feeder, Apron Feeder For Sale

Application of Mineral Delivering Machine, Plate Chain Apron Feeder Conveyor

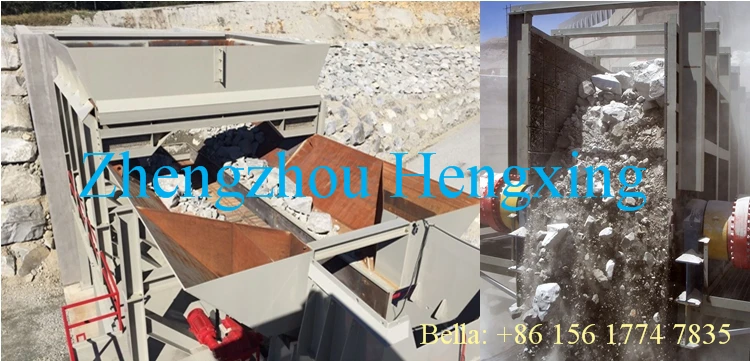

The feeder of this series is generally used under the large-scale hopper, transporting the material of large volume to a variety of crushing devices in a uniform and continuous way at a short distance. Besides, it is widely used in various fields such as mining, smelting, building materials, highway, railway, water conservancy and chemical industry.









Description of Mineral Delivering Machine, Plate Chain Apron Feeder Conveyor
Apron feeder is a kind of bulk material conveying equipment, changing the batch-type feeding into continuity feeding. By introducing the foreign advanced technologies, type XBW, type XBZ apron feeders newly developed by our company can adapt to the harsh working environment, and will have a large applicability to the species, temperature, and viscosity of the materials.



Advantages of Mineral Delivering Machine, Plate Chain Apron Feeder Conveyor
1. Wide application. It can transport materials and goods that have sharp edges. And large materials are available. It is also suitable to convey high temperature materials that are below 400℃.

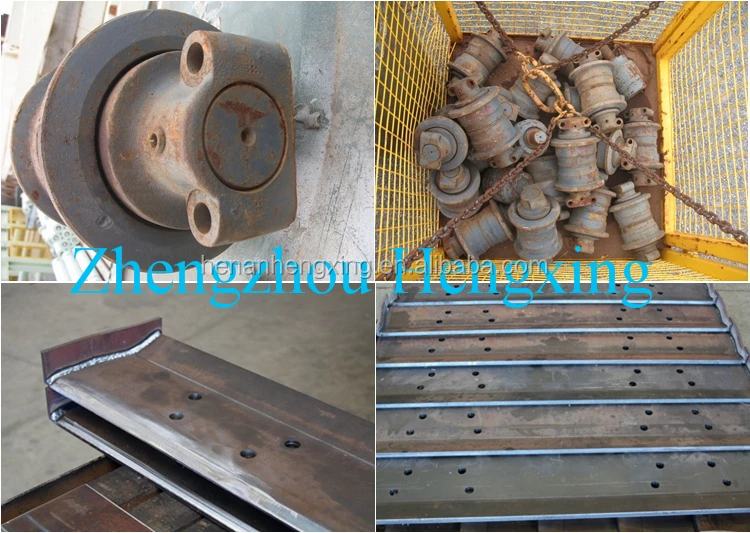

2. Large carrying capacity. The slot board adopts stamping and welding structure, being able to adapt the delivery of denser materials.
3. Good airtight performance. It does not spread and leak materials during running and unloading process.
4. Smooth and reliable operation and low noise.
5. Long durability and easy maintenance.



Features of Mineral Delivering Machine, Plate Chain Apron Feeder Conveyor
The tail of this feeder machine adopts unique design, so that it is suitable to be used in rainy and humid areas, and when sticky materials accumulate to the tail, the chain will not jump, so that the normal production will not be influenced. The hauling chain and the load chain are separated, so that the dynamic load is small and the service life of the machine is improved. This feeder machine has fine material selection, reliable quality and good interchangeability.





Work Principle Mineral Delivering Machine, Plate Chain Apron Feeder Conveyor

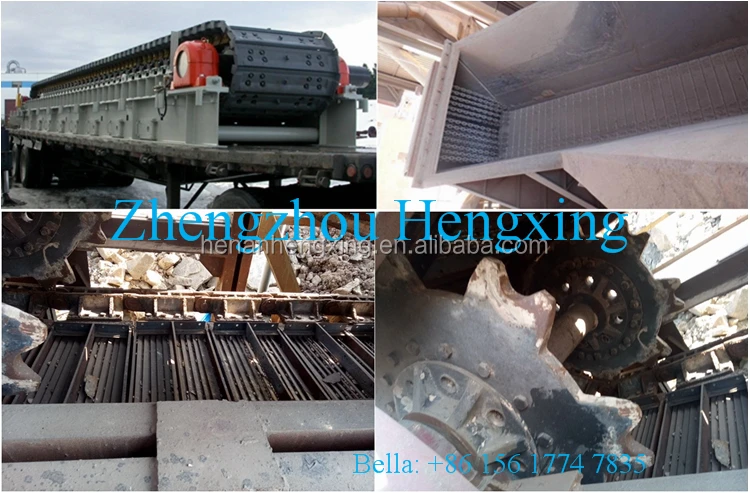

When the plate feeder works, the electro motor and the reducer drives the sprocket with alveolus structure to rotate, so that the hauling chain that engages with the chain wheel will drag the material trough in which there are materials to move forward. The supporting device-hauling chain moves on the thrust wheel and the riding wheel props with the conveying trough to bear the weight of the materials and the running devices. The materials are pushed from the storage bin above the tail to the conveying trough, and move along with it to the chute mouth with housing and then are discharged.









Parameters of Mineral Delivering Machine, Plate Chain Apron Feeder Conveyor

Model	Width of  chain  plate(mm)	Wheel  Base (mm)	Speed (m/s)	Feeding size(mm)	Capacity (t/h)	Motor power  (kw)	Dimension (mm)	Weight (t)
XBW100	1000	6000	0.01-0.1	≤500	80-160	11	86200*4960*1600	15
XBW120	1200	11000	0.01-0.1	≤600	50-100	15	11463*5029*2860	23.5
XBW125	1250	6000	0.014-0.8	≤800	45-150	11	8620*5240*1950	18.9
XBW140	1400	16000	0.006-0.06	≤900	20-200	22	18310*6447*3020	45.9
XBW150	1500	10500	0.006-0.06	≤700	61-610	22	12850*5595*1705	49.4
XBW160	1600	6000	0.017-0.17	≤800	≤500	22	8354*6099*2100	25.5
XBW180	1800	8000	0.022-0.046	≤800	30-320	37	10300*4295*3650	53
XBW220	2200	10000	0.018-0.055	≤1500	220-680	45	12650*4495*3350	80.4
XBZ160	1600	9000	0.01-0.07	≤1000	≤500	30	11250*4153*2890	50
XBZ180	1800	8000	0.01-0.07	≤1000	≤500	37	10250*4353*2890	59
XBZ200	2000	9800	0.01-0.07	≤1000	≤700	45	12000*4553*2890	82
XBZ220	2200	10000	0.01-0.07	≤1000	≤800	45	12000*4753*2890	85
XBZ230	2300	10000	0.01-0.07	≤1500	≤850	55	12000*4853*2890	86
XBZ240	2400	10000	0.02-0.06	≤1600	550-900	2*37	12000*4953*2890	95
XBZ250	2500	11460	0.01-0.07	≤1800	100-1000	2*45	12000*5053*2890	105
