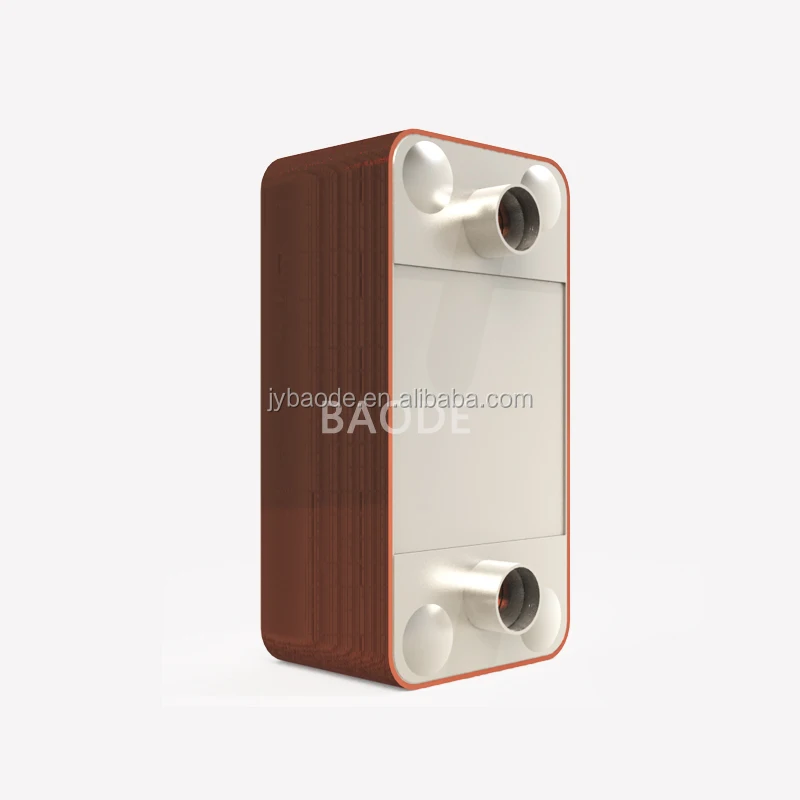

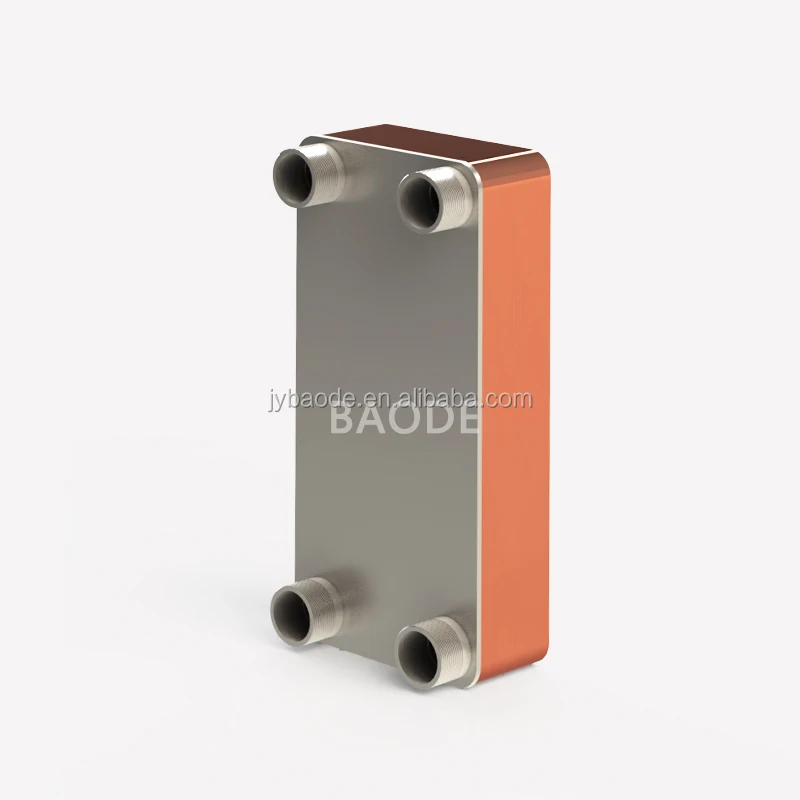

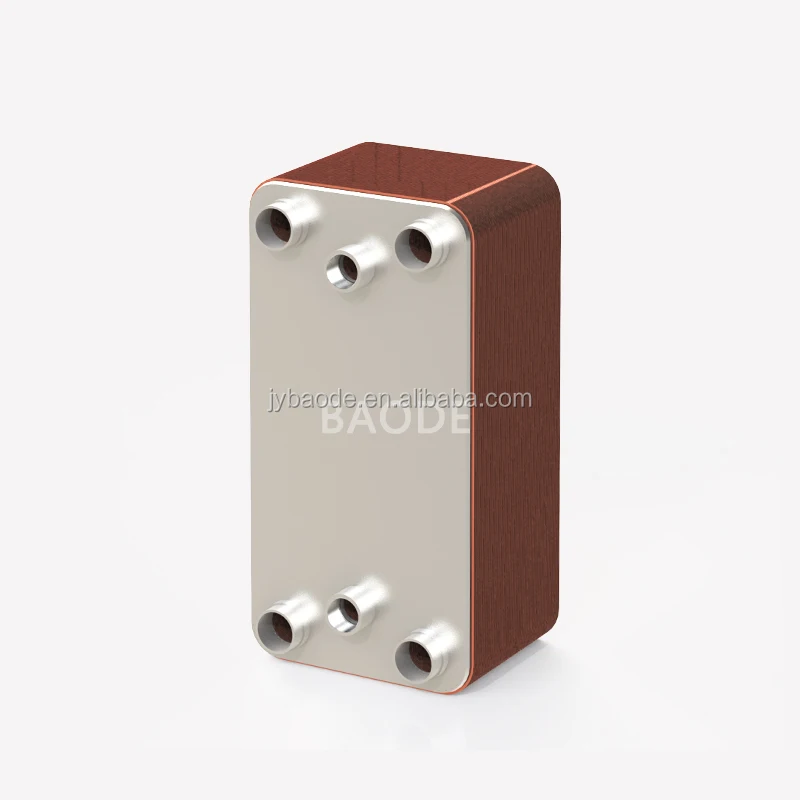

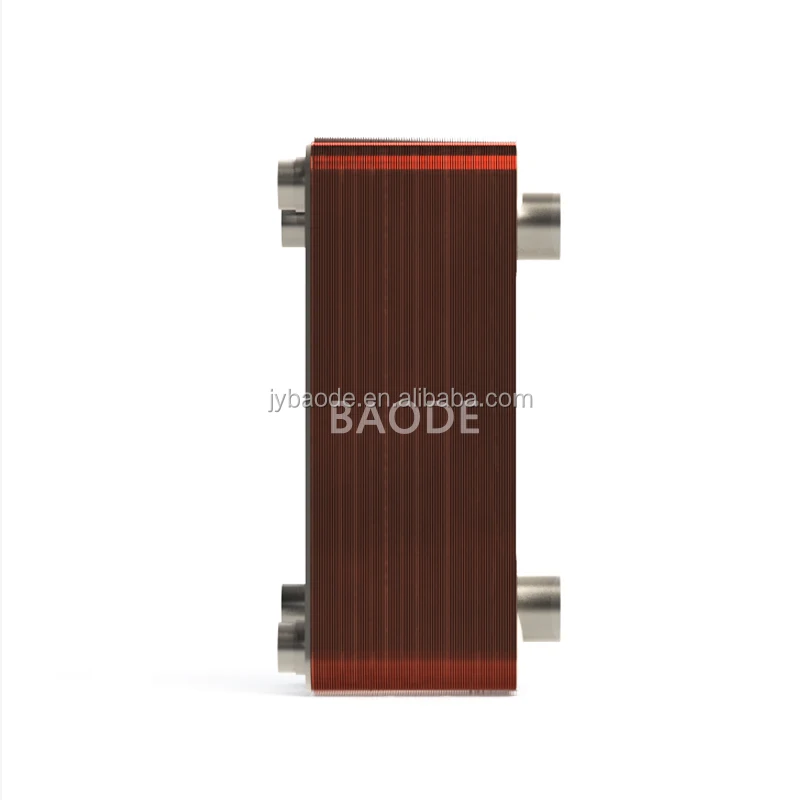

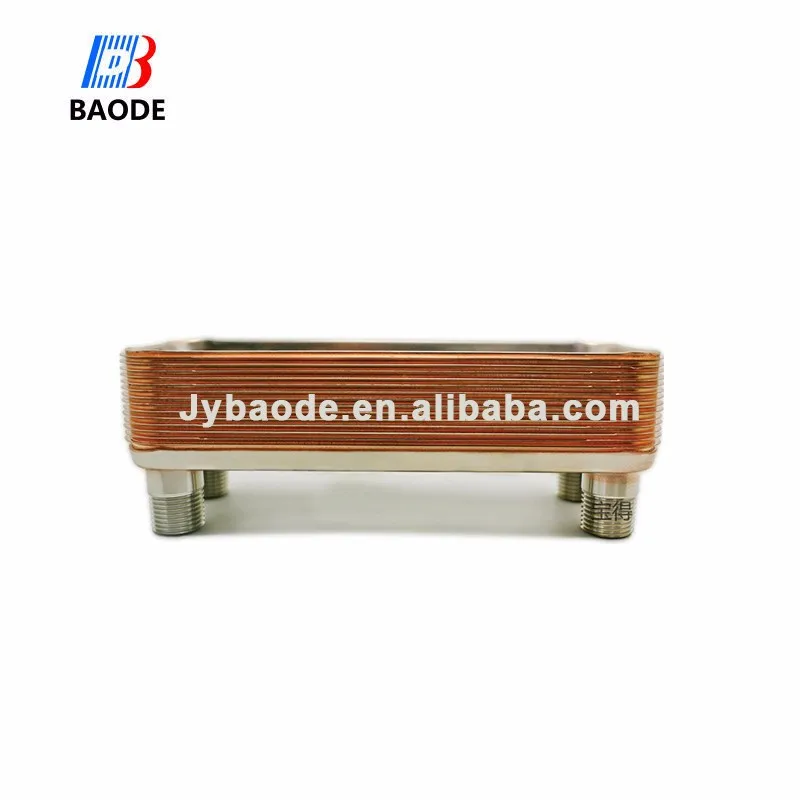

aquarium water chiller cw5000 water chiller air to air heat plate exchanger
- Category: >>>
- Supplier: Jiangsu Baode Heat-Exchanger Equipment Co. Ltd.
Share on (60771670042):
Product Overview
Description
aquarium water chiller cw5000 water chiller air to air heat plate exchanger
| Brazed plate heat exchangers specification | |||
| Model | BL14 | BL20 | BL26 |
| Width (mm) | 78 | 76 | 111 |
| Height (mm) | 206 | 310 | 310 |
| Length (m) | 9+2.3n | 9+2.3n | 10+2.36n |
| Horizontal port distance (mm) | 42 | 42 | 50 |
| Vertical port distance (mm) | 172 | 282 | 250 |
| Max pressure [Mpa] | 3 | 3 | 3/4.5 |
| Max flowrate (M3/h) | 3.6 | 3.6 | 8.1 |
| Weight(kg) | 0.6+0.06n | 1.0+0.08n | 1.3+0.12n |
| Model | BL26C | BL50 | BL95 |
| Width (mm) | 124 | 111 | 191 |
| Height(mm) | 304 | 525 | 616 |
| Length (m) | 13+2.4n | 10+2.35n | 11+2.35n |
| Horizontal port distance (mm) | 70 | 50 | 92 |
| Vertical port distance (mm) | 250 | 466 | 519 |
| Maxpressure(Mpa) | 3 | 3/4.5 | 3/4.5 |
| Max flowrate (M3/h) | 8.1 | 12.7 | 39 |
| Weight[kg] | 2.2+0.16n | 2.6+0.19n | 7.8+0.36n |
| Model | BL120 | BL190 | BL200 |
| Width (mm) | 246 | 307 | 321 |
| Height(mm) | 528 | 696 | 738 |
| Length (mm) | 13+2.36n | 13+2.75n | 13+2.7n |
| Horizontalportdistance (mm) | 174 | 179 | 188 |
| Vertical port distance (mm) | 456 | 567 | 603 |
| Max pressure [Mpa] | 3 | 3 | 21 |
| Max flowrate [M3/h] | 42 | 100 | 100 |
| Weight[kg] | 7.2+0.52n | 12.5+0.72n | 13+0.75n |
| Model | BL600 | BL100 | BL210 |
| Width [mm] | 429 | 248 | 322 |
| Height [mm] | 1398 | 495 | 739 |
| Length [mm] | 22+2.78n | 10+2.15n | 13+2.55n |
| Horizontalportdistance[mm] | 220 | 157 | 205.2 |
| Vertical port distance [mm] | 1190 | 405 | 631 |
| Max pressure [Mpa] | 1.5 | 3/4.5 | 3/4.5 |
| Max flowrate [M3/h] | 300 | 42 | 100 |
| Weight[kg] | 31.8+1.73n | 6.5+0.37n | 13+0.78n |
Certifications
Related Products
Company Information
BAODE Plate Heat Exchanger Co., Ltd. Is a Chinese Plate Heat Exchanger manufacturer specialized in development,Production and global marketing of air to air heat plate exchanger for fireplaces. Since the very start in 2004 BAODE has grown to one of the leading companies in China Plate air to air heat plate exchanger market and has developed a big range of air to air heat plate exchanger for fireplaces for any task
Our main products are Brazed air to air heat plate exchanger for fireplace & Gasket air to air heat plate exchanger for fireplace & Air cross air to air heat plate exchanger for fireplace (Flat air to air heat plate exchanger for fireplace and frame and air to air heat plate exchanger for fireplace, welded air to air heat plate exchanger for fireplace). Braze air to air heat plate exchanger for fireplace include Copper brazed air to air heat plate exchanger for fireplace and Nickel brazed air to air heat plate exchanger for fireplace.
Our mission is to help you to achieve the optimum solution with regards to performance efficiency, payback and energy conservation, whatever the application. This is based on a marketing orientation concept which makes us a highly valuable partner. Our combined experience in the air to air heat plate exchanger for fireplace industry, allow us giving the best technical recommendation for our customers and end users for applications such as:Refrigeration Systems that includes,HVAC includes,Other Industrial applications.
Packaging & Shipping
FAQ
FAQ
Q : 1. Can I have a sample order?
A : Yes,we welcome sample order to test and check quality.Mixed samples are acceptable.
Q : 2. What is the lead time?
A : Sample needs 1-3 days,mass production needs 7-15days,also according to the order volume.
Q : 3. Can you accept mixed batch of different products?
A : Yes,we are support different product mix wholesale.
Q : 4. How do you ship the goods and how long does it take arrive?
A : For sample order ,we usually ship by DHL,UPS,FedEx or TNT.It usually takes 3-5 days to arrive.
Q : 5. Can you provide container packed in wooden cases if I order more products?
A : Yes,we are can provide a set of wooden packaging products,but only in big quantity.
Q : 6. We want to visit your company?
A : No problem,we are a production and processing enterprises,look forward to your arrival and we will lead you to visit our factory and processing factory.
